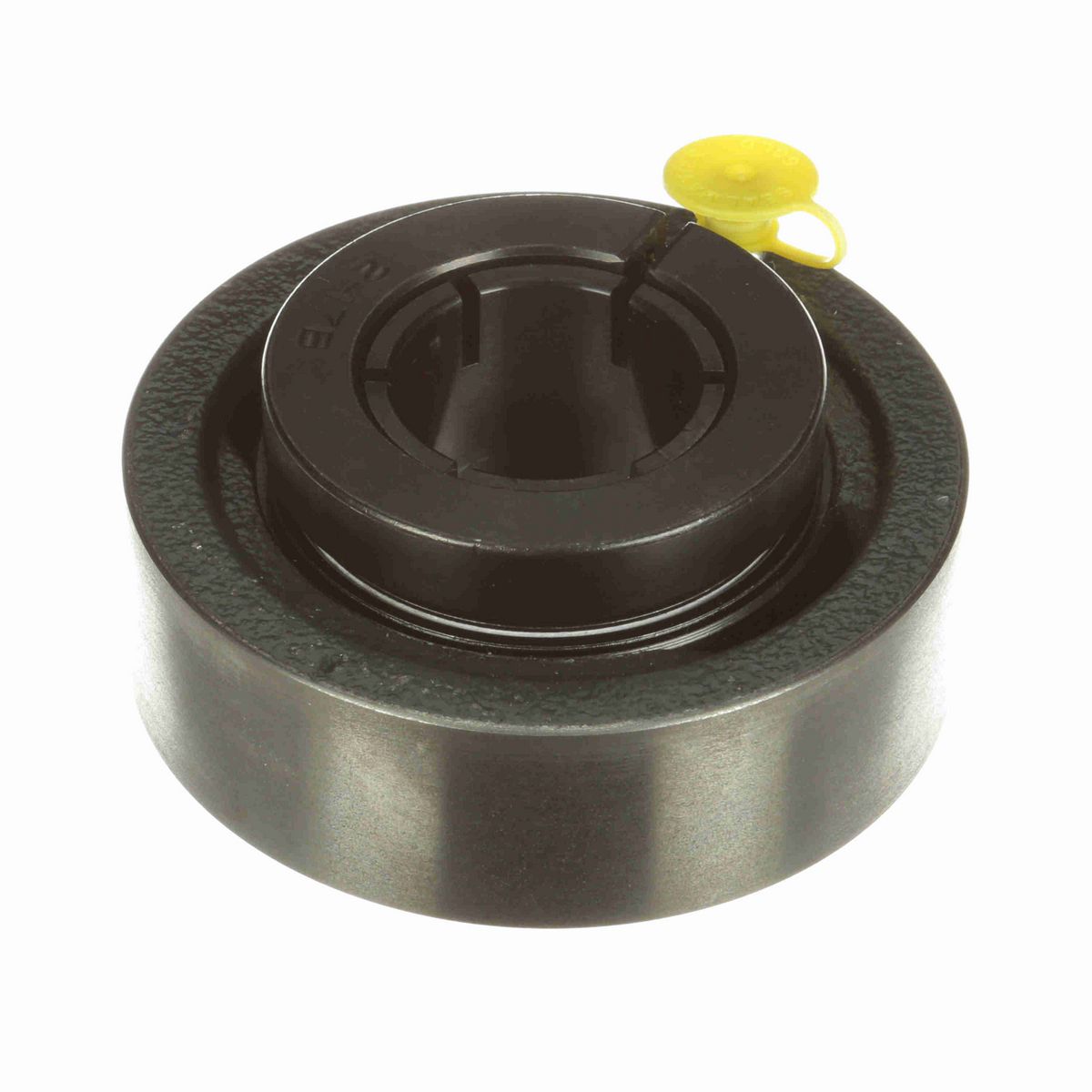

• Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	3.88 in
Overall Width (in)	1.75 in
Overall Height (in)	3.88 in
Bore Diameter (in)	1.375 in
Length Through Bore (in)	1.75 in
Centerline to Outermost Bearing Face (in)	1.06 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Construction	One Piece
Bore Shape	Straight
Housing Color	Gray
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Series	SC-T
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Cartridge, Cylindrical
Seal Type	Felt Labyrinth Seal
Outside Diameter (in)	3.875
Housing Style	Cartridge Block
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.5 in
Inner Race Heat Treat Method	Zone-Hardened
Max Operating Temperature (F)	220 °F
End Cap Available	No
Shaft Locking Type	Concentric
Insert	2-16T
Housing Material	Cast Iron
Dynamic Load Rating (lb)	5,782 lb
Bearing Type	Standard Duty
Bearing Insert Finish	Black Oxide
Misalignment Capability	±2.0° Misalignment - Static Only
Fixed vs. Expansion	Fixed
Size Code	2-17
Bearing Insert Material	52100 Bearing Steel
Radial Clearance	Standard
Maximum Speed (RPM)	6500 rpm
Lubricant	Lithium Complex NLGI 2 Grease
Cage Type	Land Riding Retainer
Inner Ring Outside Diameter (in)	1.859 in
Static Load Rating (lb)	3,493 lb
Grease Fitting Thread Size	1/4-28
Housing Width (in)	1.22 in

General Specifications

UPC	662461029831
Weight	3.20 LB
Packaged Length	4.50 IN
Packaged Width	1.69 IN
Packaged Height	4.56 IN
HTC	8482.10.5052
Country of Origin	Mexico
