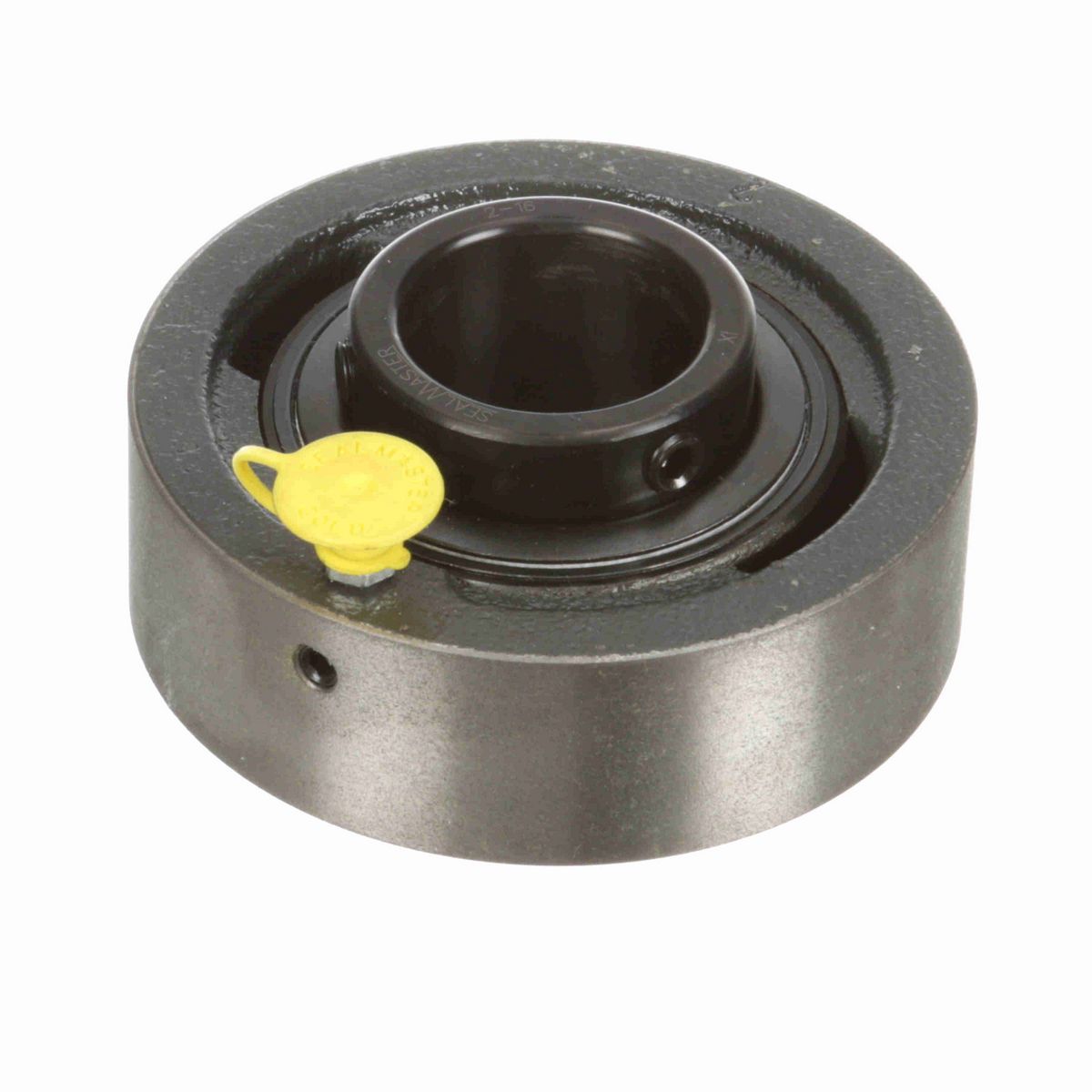

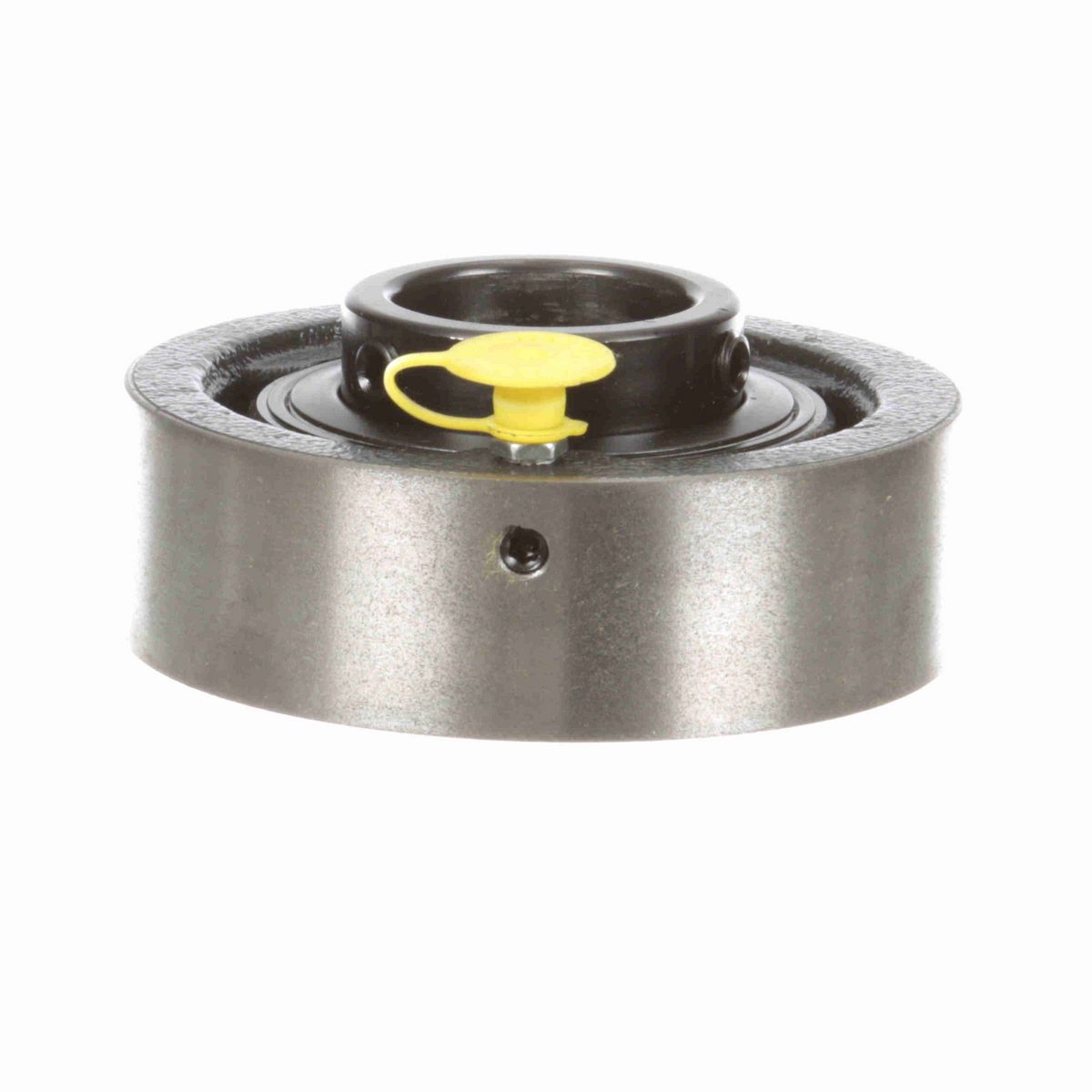

• Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	3.88 in
Overall Width (in)	1.69 in
Overall Height (in)	3.88 in
Bore Diameter (in)	1.375 in
Length Through Bore (in)	1.688 in
Centerline to Outermost Bearing Face (in)	1 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Gray
Series	SC
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Cartridge, Cylindrical
Outside Diameter (in)	3.875
Housing Style	Cartridge Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Lubricant	Lithium Complex NLGI 2 Grease
Radial Clearance	Standard
Max Operating Temperature (F)	220 °F
Maximum Speed (RPM)	4650 rpm
Cage Type	Land Riding Retainer
Bearing Insert Material	52100 Bearing Steel
Grease Fitting Thread Size	1/4-28
Inner Ring Outside Diameter (in)	1.859 in
Bearing Type	Standard Duty
Shaft Locking Type	Set Screw
Dynamic Load Rating (lb)	5,782 lb
Static Load Rating (lb)	3,493 lb
Fixed vs. Expansion	Fixed
End Cap Available	No
Insert	2-16
Size Code	2-17
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Insert Finish	Black Oxide
Housing Material	Cast Iron
Housing Width (in)	1.22 in

General Specifications

UPC	662461002469
Weight	2.90 LB
Packaged Length	4.50 IN
Packaged Width	1.69 IN
Packaged Height	4.56 IN
HTC	8482.10.5052
Country of Origin	Mexico
