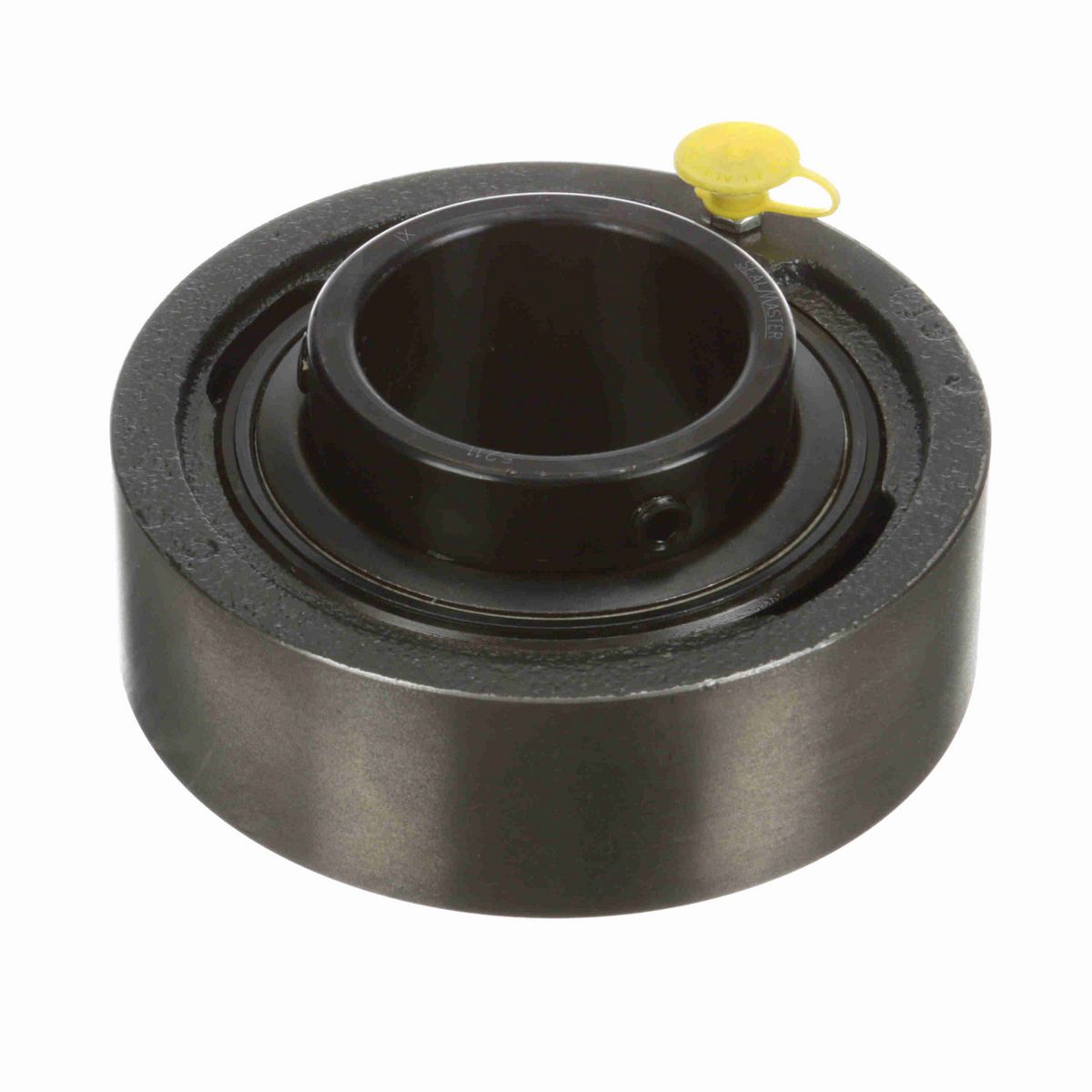

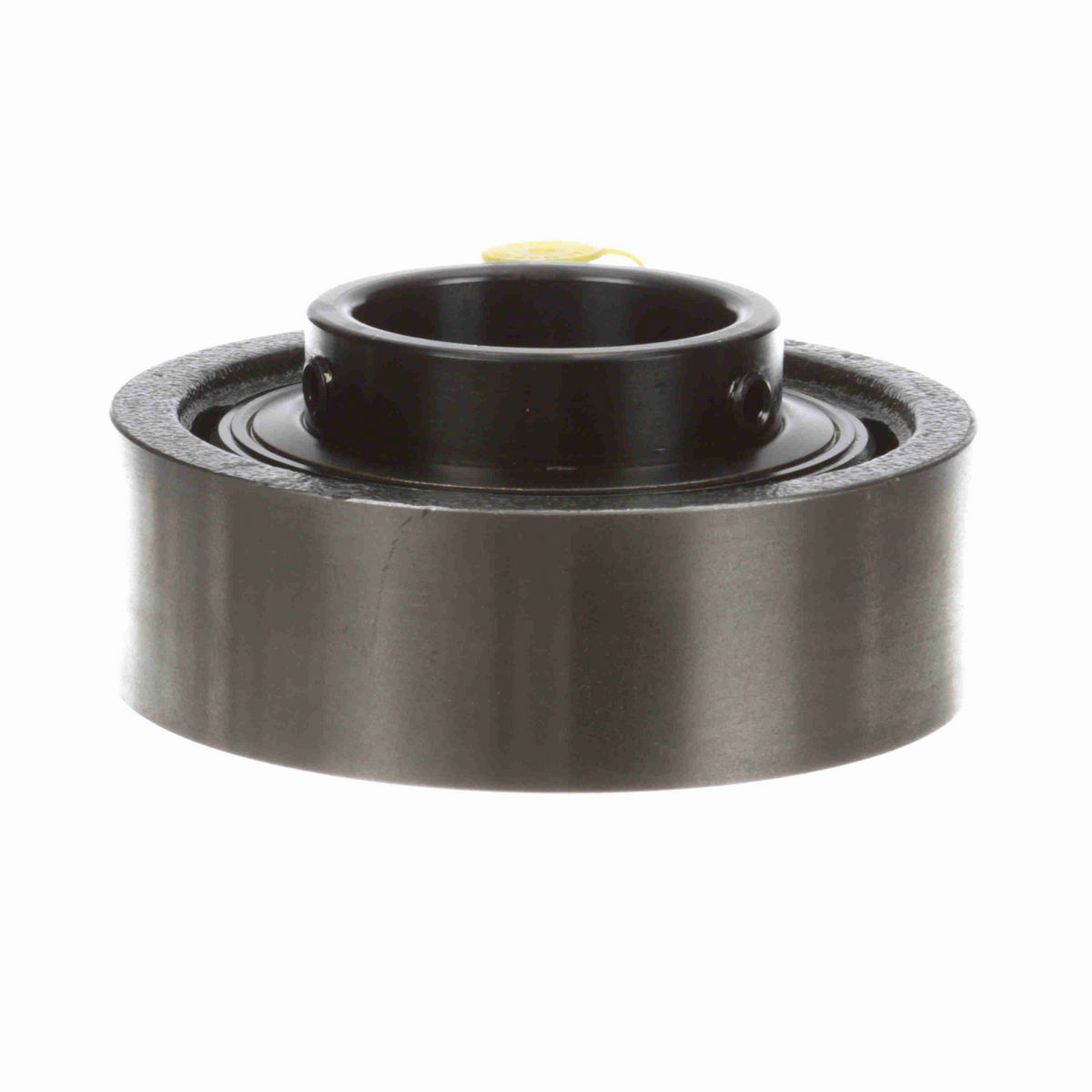

• Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Height (in)	4.94 in
Overall Length (in)	4.94 in
Overall Width (in)	2.19 in
Bore Diameter (mm)	55 mm
Length Through Bore (in)	2.188 in
Centerline to Outermost Bearing Face (in)	1.31 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Gray
Cage Material	PPS - Polyphenylene Sulfide
Series	SC
Housing Type	Cartridge, Cylindrical
Seal Type	Felt Labyrinth Seal
Outside Diameter (in)	4.938
Housing Style	Cartridge Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
End Cap Available	No
Max Operating Temperature (F)	220 °F
Grease Fitting Thread Size	1/4-28
Insert	5211
Fixed vs. Expansion	Fixed
Static Load Rating (lb)	6,601 lb
Bearing Insert Material	52100 Bearing Steel
Cage Type	Land Riding Retainer
Shaft Locking Type	Set Screw
Radial Clearance	Standard
Misalignment Capability	±2.0° Misalignment - Static Only
Size Code	2-23
Bearing Type	Standard Duty
Maximum Speed (RPM)	3250 rpm
Housing Material	Cast Iron
Lubricant	Lithium Complex NLGI 2 Grease
Inner Ring Outside Diameter (in)	2.719 in
Bearing Insert Finish	Black Oxide
Dynamic Load Rating (lb)	9,752 lb
Housing Width (in)	1.59 in

General Specifications

UPC	662461052075
Weight	5.80 LB
Packaged Length	5.50 IN
Packaged Width	5.38 IN
Packaged Height	3.50 IN
HTC	8482.10.5052
Country of Origin	Mexico
