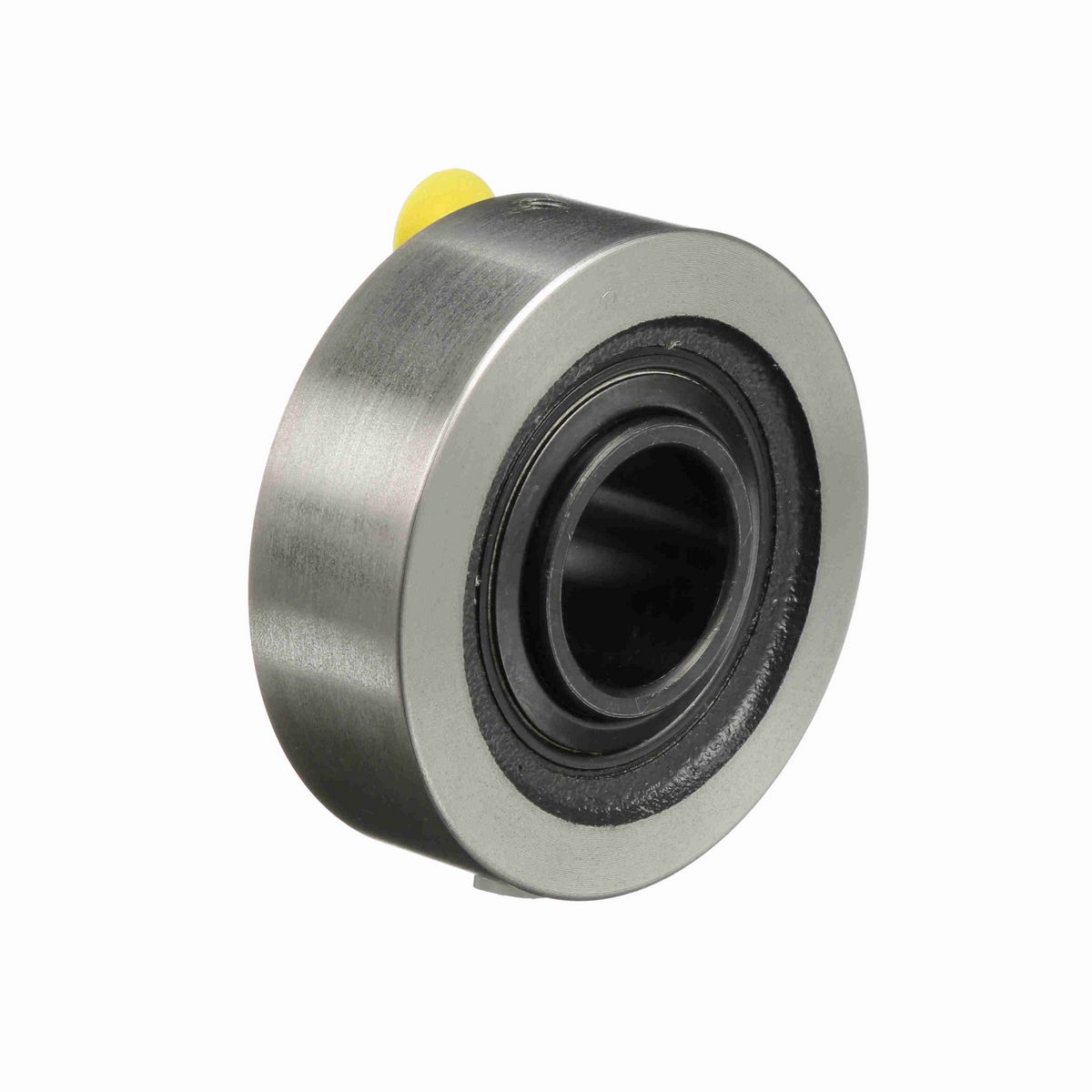

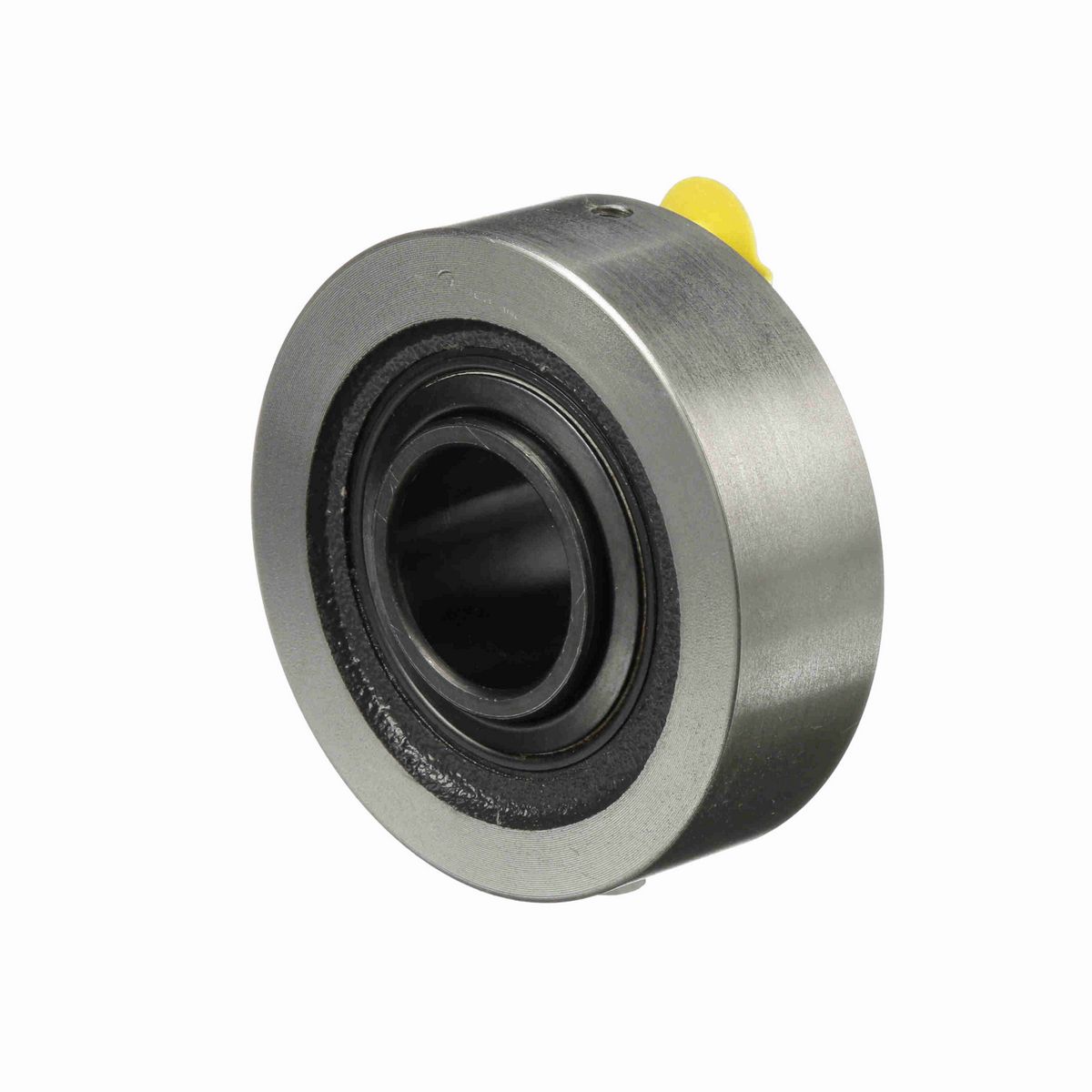

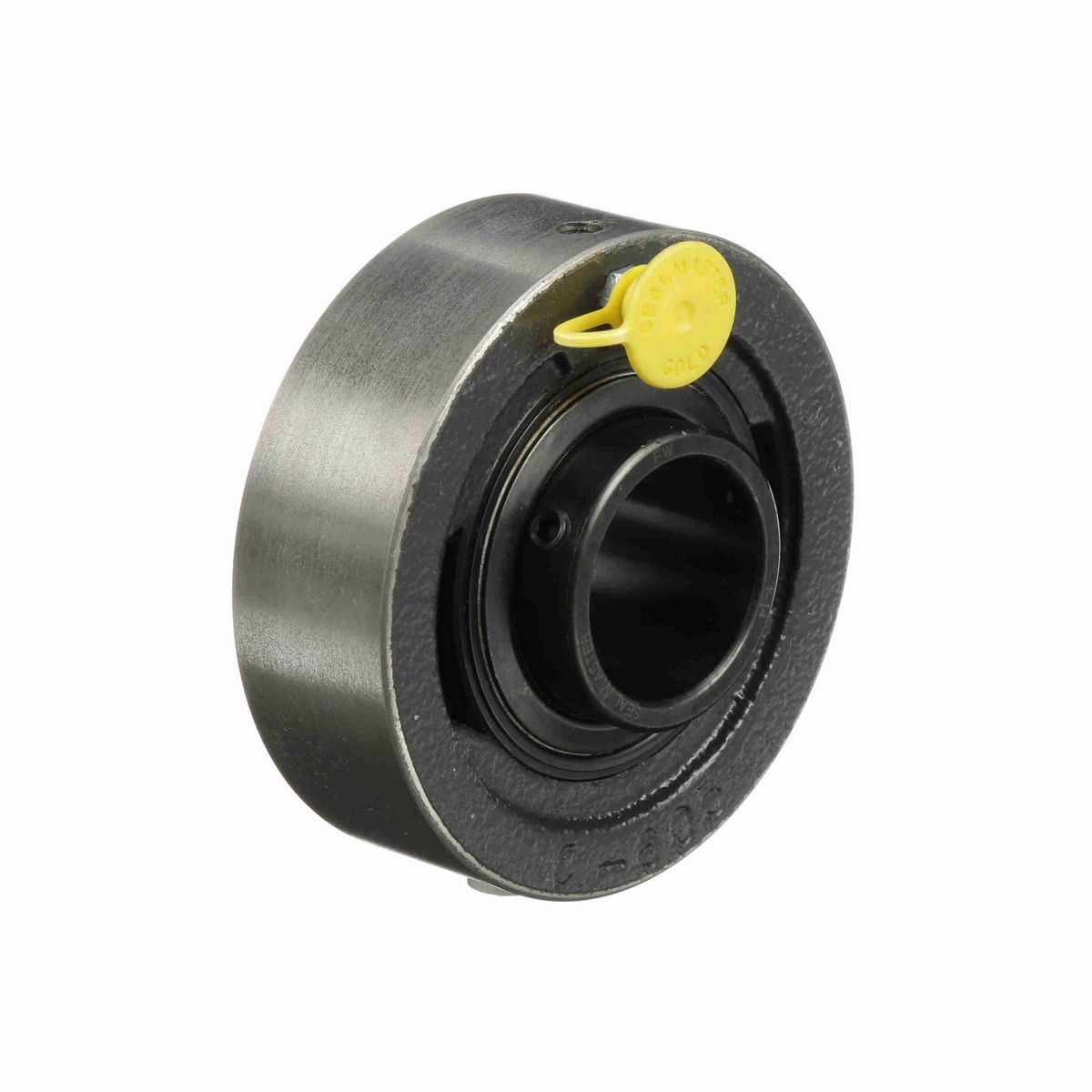

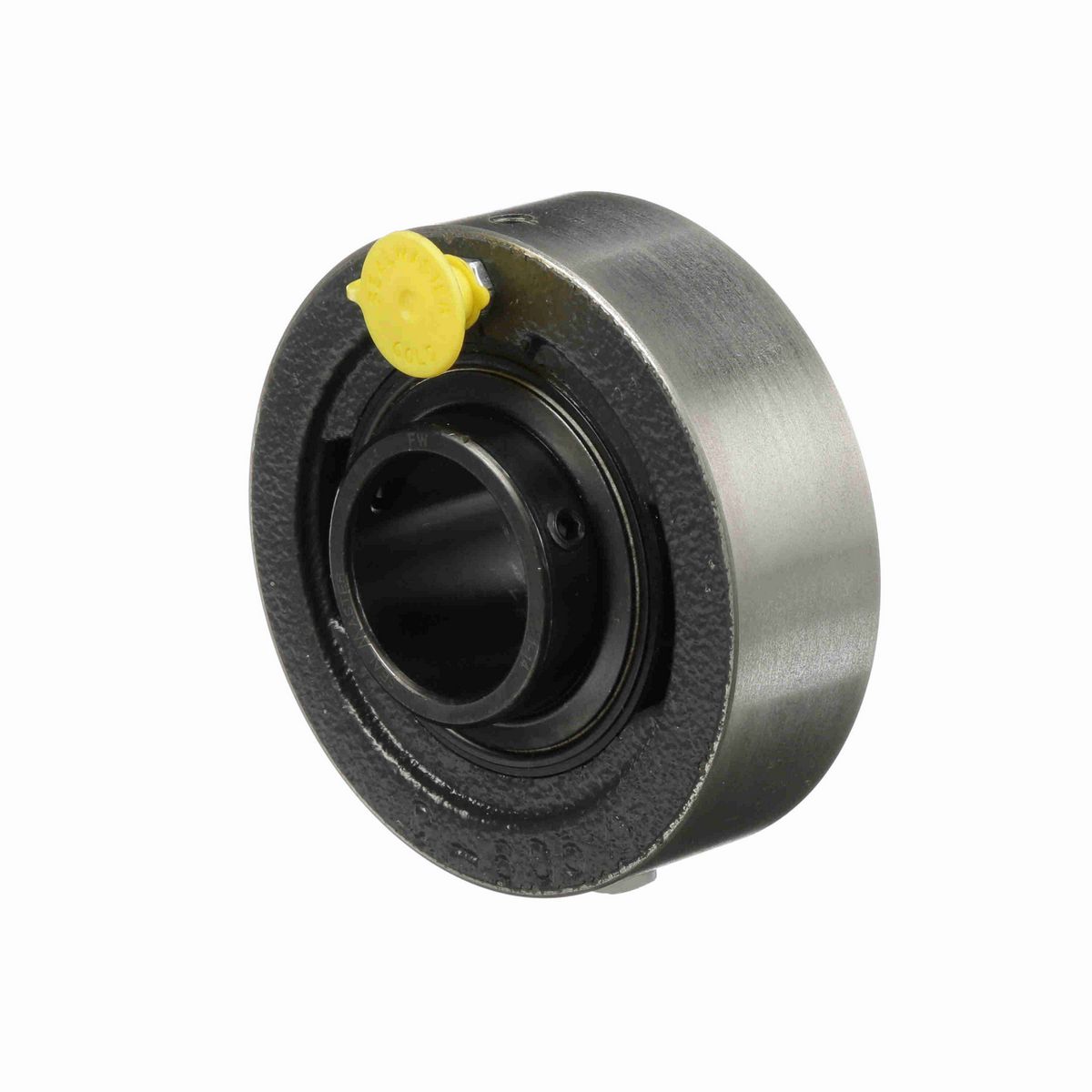

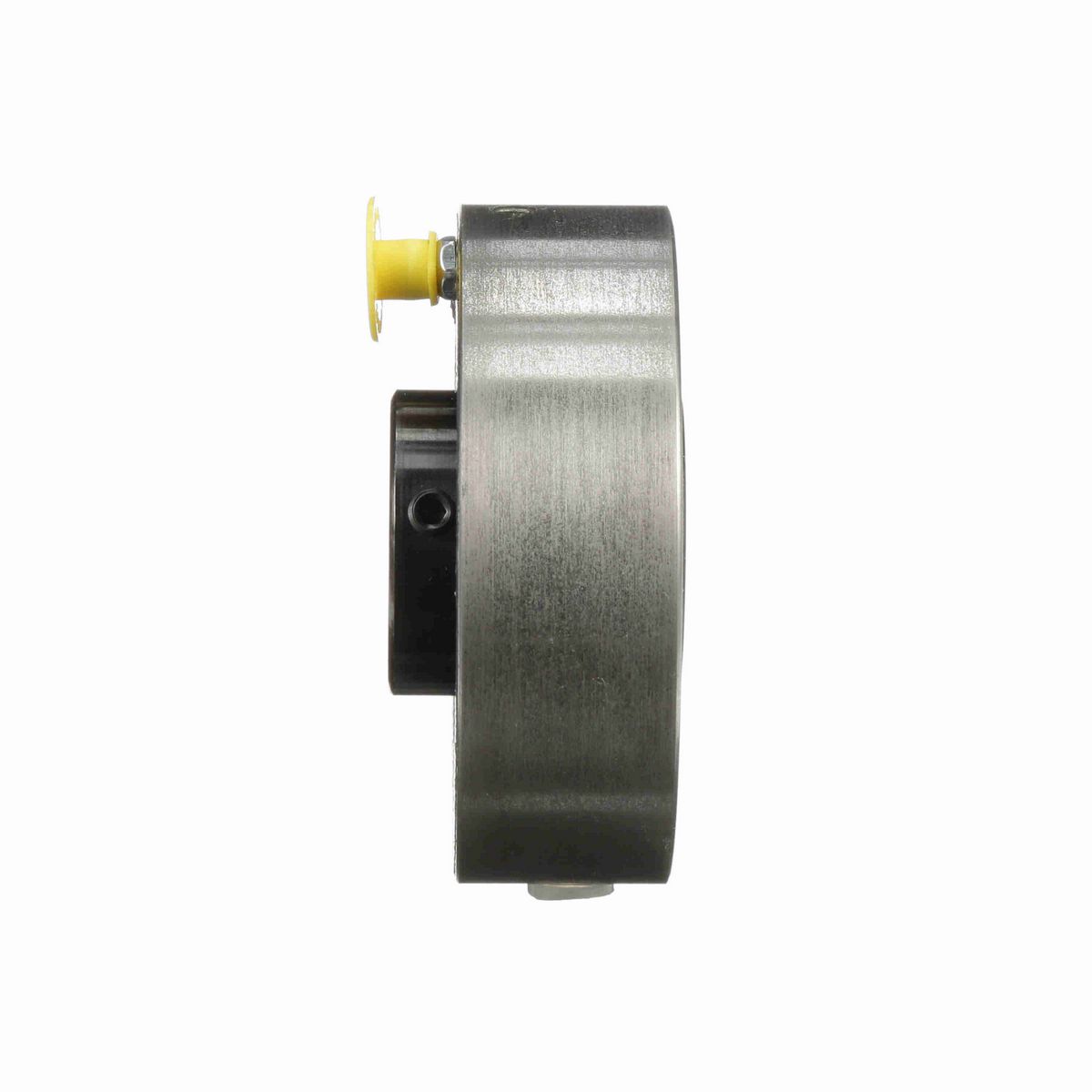

• Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Height (in)	3.5 in
Overall Length (in)	3.5 in
Overall Width (in)	1.5 in
Bore Diameter (in)	1.25 in
Length Through Bore (in)	1.5 in
Centerline to Outermost Bearing Face (in)	0.87 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Construction	One Piece
Bore Shape	Straight
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Gray
Cage Material	PPS - Polyphenylene Sulfide
Series	SC
Housing Type	Cartridge, Cylindrical
Seal Type	Felt Labyrinth Seal
Housing Style	Cartridge Block
Outside Diameter (in)	3.5
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Static Load Rating (lb)	2,567 lb
Misalignment Capability	±2.0° Misalignment - Static Only
Housing Material	Cast Iron
Radial Clearance	Standard
Lubricant	Lithium Complex NLGI 2 Grease
Fixed vs. Expansion	Fixed
Shaft Locking Type	Set Screw
Cage Type	Land Riding Retainer
Bearing Type	Standard Duty
Bearing Insert Material	52100 Bearing Steel
Inner Ring Outside Diameter (in)	1.594 in
Bearing Insert Finish	Black Oxide
Dynamic Load Rating (lb)	4,381 lb
End Cap Available	No
Insert	1-14 SFB
Size Code	2-13
Grease Fitting Thread Size	1/4-28
Max Operating Temperature (F)	220 °F
Maximum Speed (RPM)	5450 rpm
Housing Width (in)	1.09 in

General Specifications

UPC	662461002438
Weight	2.14 LB
Packaged Length	4.00 IN
Packaged Width	1.50 IN
Packaged Height	3.94 IN
HTC	8482.10.5052
Country of Origin	Mexico
