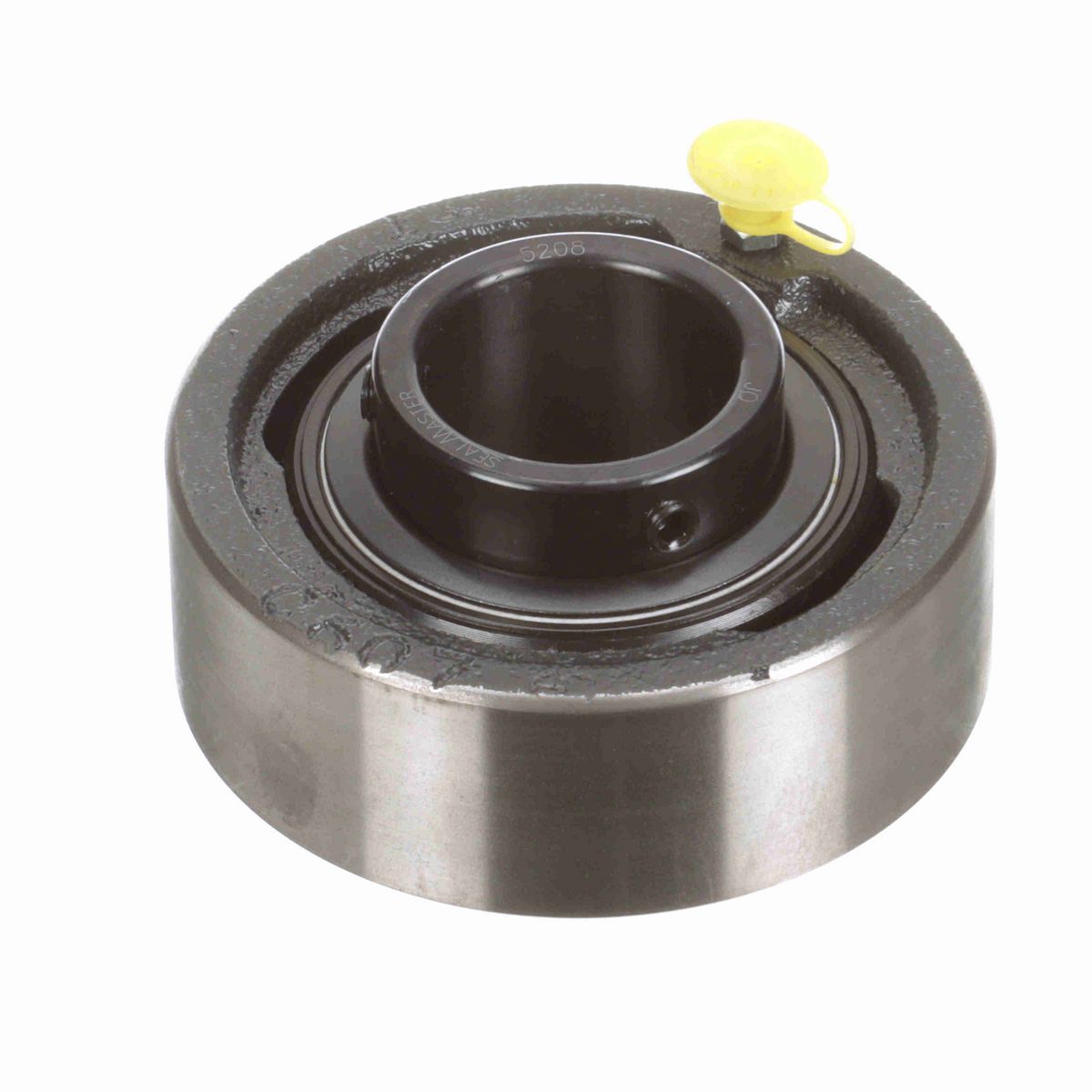

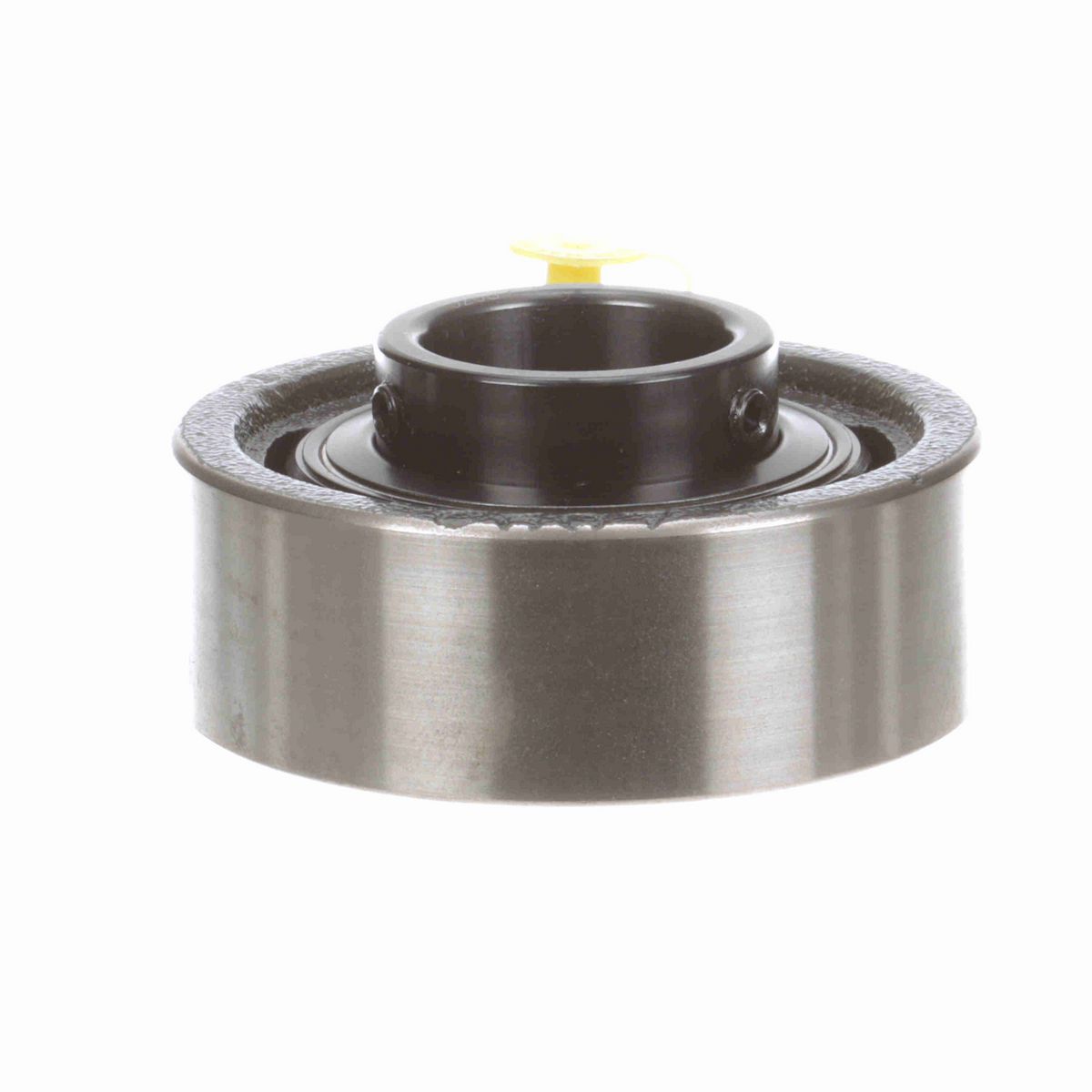

• Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Height (in)	4.19 in
Overall Length (in)	4.19 in
Overall Width (in)	1.94 in
Bore Diameter (mm)	40 mm
Length Through Bore (in)	1.938 in
Centerline to Outermost Bearing Face (in)	1.19 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Gray
Outer Ring Land Profile	Standard
Series	SC
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Cartridge, Cylindrical
Outside Diameter (in)	4.188
Housing Style	Cartridge Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Insert	5208
Maximum Speed (RPM)	4150 rpm
Fixed vs. Expansion	Fixed
Size Code	2-19
Cage Type	Land Riding Retainer
Housing Material	Cast Iron
Dynamic Load Rating (lb)	7,340 lb
End Cap Available	No
Misalignment Capability	±2.0° Misalignment - Static Only
Inner Ring Outside Diameter (in)	2.063 in
Bearing Type	Standard Duty
Max Operating Temperature (F)	220 °F
Bearing Insert Material	52100 Bearing Steel
Radial Clearance	Standard
Shaft Locking Type	Set Screw
Lubricant	Lithium Complex NLGI 2 Grease
Grease Fitting Thread Size	1/4-28
Bearing Insert Finish	Black Oxide
Static Load Rating (lb)	4,467 lb
Housing Width (in)	1.47 in

General Specifications

UPC	662461052044
Weight	3.83 LB
Packaged Length	5.00 IN
Packaged Width	2.00 IN
Packaged Height	5.00 IN
HTC	8482.10.5052
Country of Origin	Mexico
