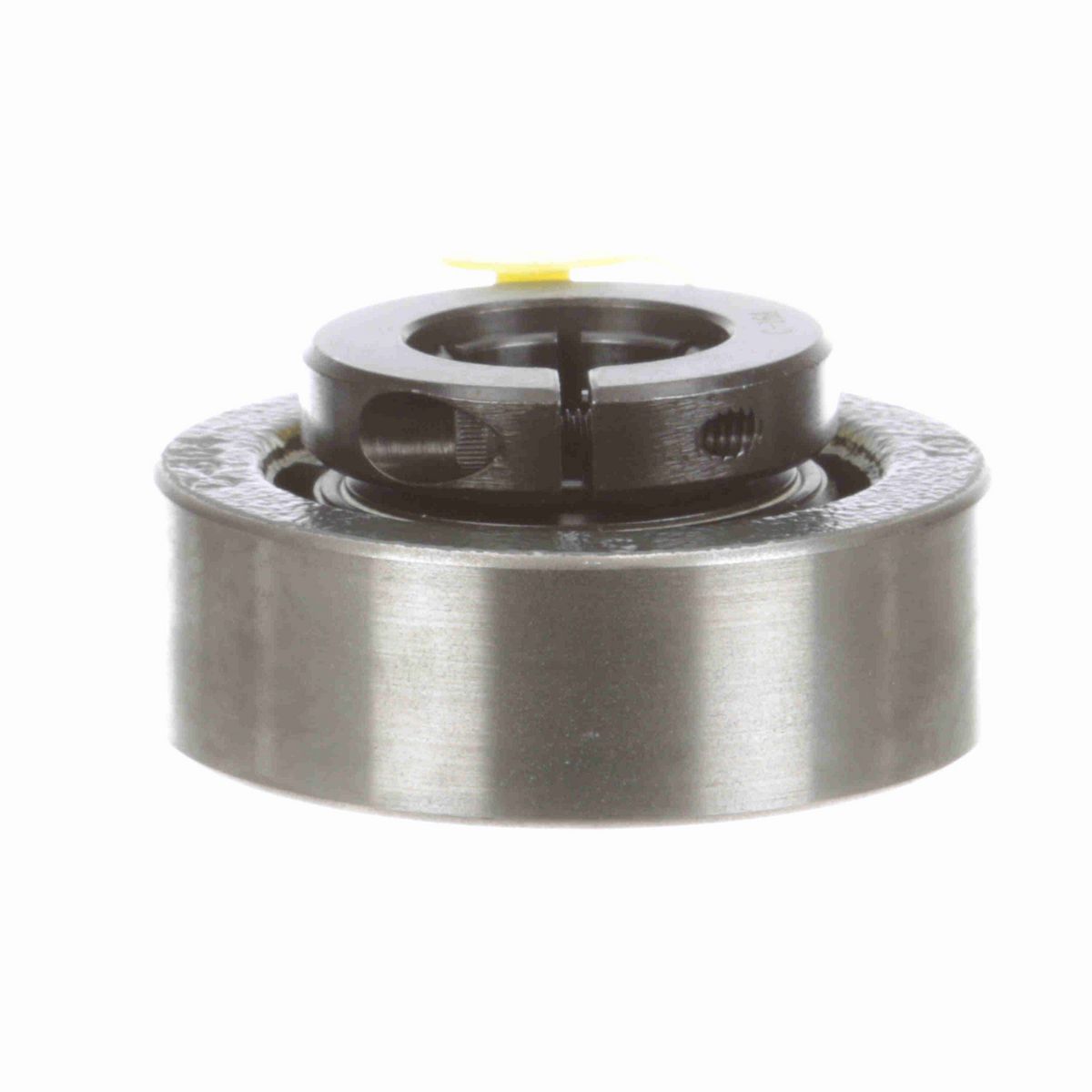

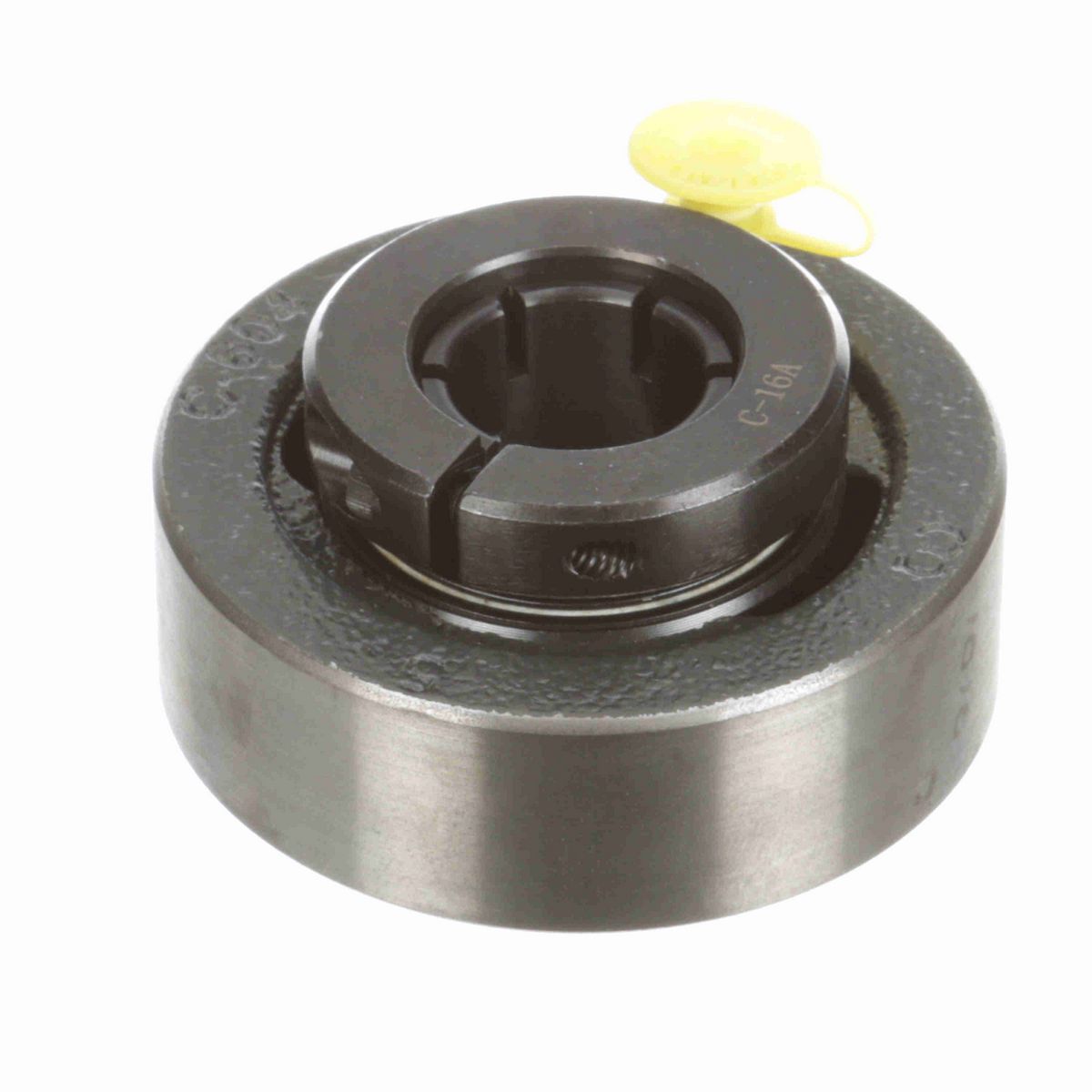

• Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	3.13 in
Overall Height (in)	3.13 in
Overall Width (in)	1.38 in
Bore Diameter (in)	0.9375 in
Length Through Bore (in)	1.375 in
Centerline to Outermost Bearing Face (in)	0.87 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Gray
Series	SC-T
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Cartridge, Cylindrical
Housing Style	Cartridge Block
Outside Diameter (in)	3.125
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	1.98 in
Ability to Relubricate	Yes
Cage Type	Land Riding Retainer
Bearing Insert Material	52100 Bearing Steel
End Cap Available	No
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Insert Finish	Black Oxide
Maximum Speed (RPM)	9000 rpm
Inner Ring Outside Diameter (in)	1.375 in
Radial Clearance	Standard
Housing Material	Cast Iron
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Type	Standard Duty
Shaft Locking Type	Concentric
Insert	2-015T
Dynamic Load Rating (lb)	2,801 lb
Grease Fitting Thread Size	1/4-28
Size Code	2-015
Static Load Rating (lb)	1,651 lb
Fixed vs. Expansion	Fixed
Max Operating Temperature (F)	220 °F
Housing Width (in)	1.03 in

General Specifications

UPC	662461143698
Weight	2.10 LB
Packaged Length	1.75 IN
Packaged Width	3.13 IN
Packaged Height	3.13 IN
HTC	8482.10.5048
Country of Origin	Mexico
