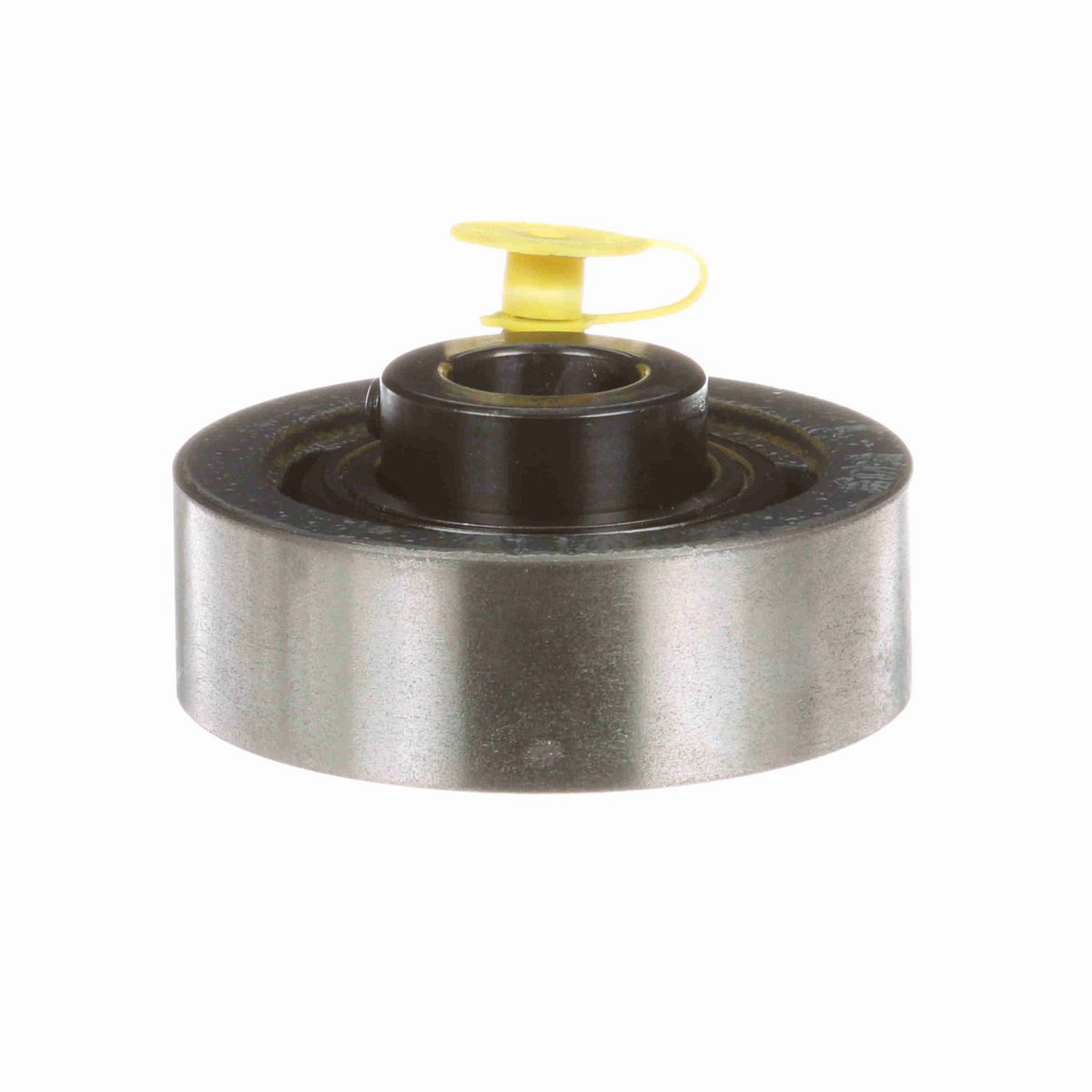

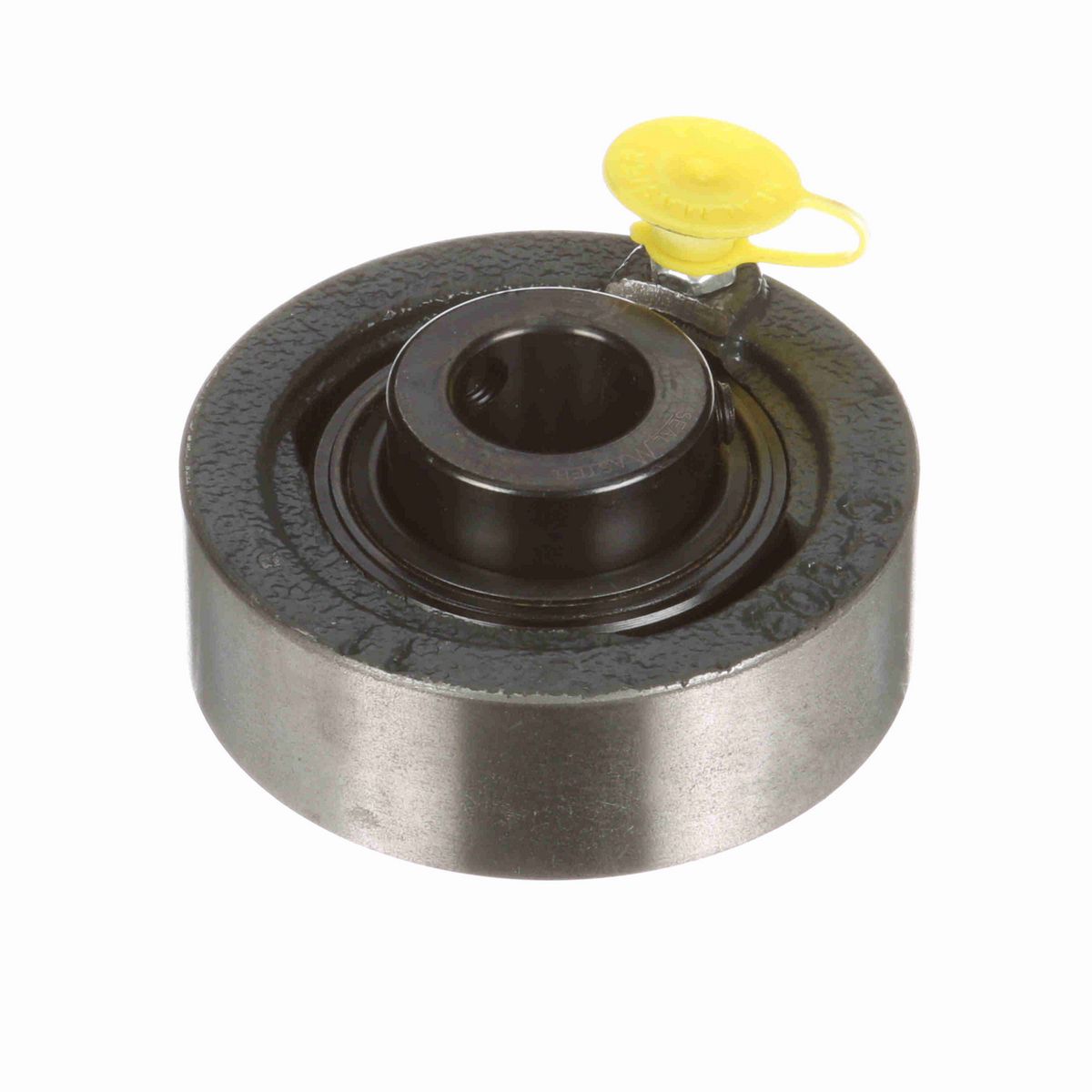

• Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Height (in)	2.69 in
Overall Length (in)	2.69 in
Overall Width (in)	1.22 in
Bore Diameter (in)	0.6875 in
Length Through Bore (in)	1.219 in
Centerline to Outermost Bearing Face (in)	0.72 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Construction	One Piece
Bore Shape	Straight
Outer Ring Land Profile	Standard
Housing Color	Gray
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Series	SC
Housing Type	Cartridge, Cylindrical
Seal Type	Felt Labyrinth Seal
Housing Style	Cartridge Block
Outside Diameter (in)	2.688
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Insert	2-011
Inner Ring Outside Diameter (in)	1.188 in
Dynamic Load Rating (lb)	2,611 lb
Cage Type	Land Riding Retainer
Radial Clearance	Standard
End Cap Available	No
Misalignment Capability	±2.0° Misalignment - Static Only
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Type	Standard Duty
Bearing Insert Material	52100 Bearing Steel
Bearing Insert Finish	Black Oxide
Housing Material	Cast Iron
Shaft Locking Type	Set Screw
Grease Fitting Thread Size	1/4-28
Max Operating Temperature (F)	220 °F
Static Load Rating (lb)	1,444 lb
Maximum Speed (RPM)	7300 rpm
Fixed vs. Expansion	Fixed
Size Code	2-012
Housing Width (in)	0.94 in

General Specifications

UPC	662461002346
Weight	1.10 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5048
Country of Origin	Mexico
