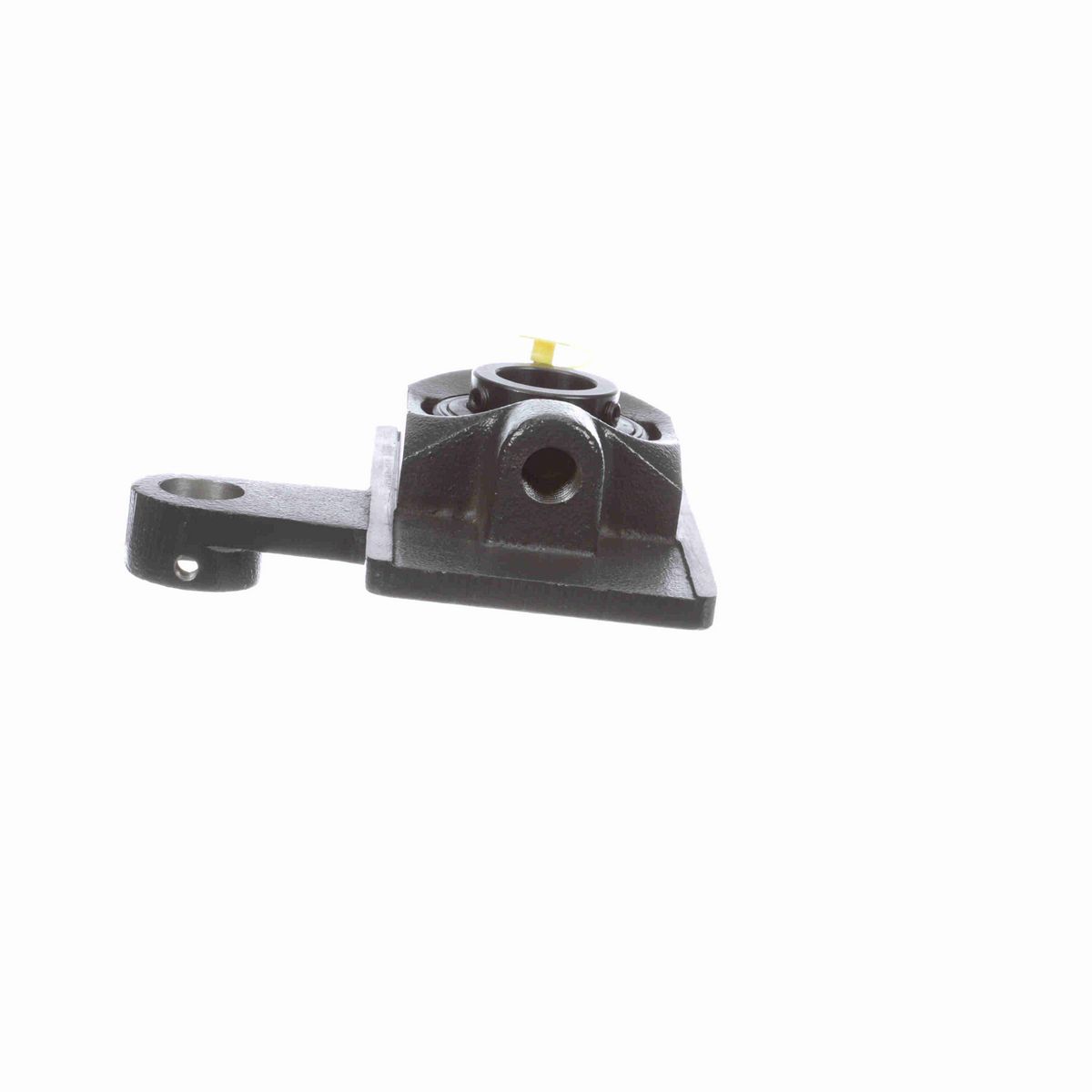

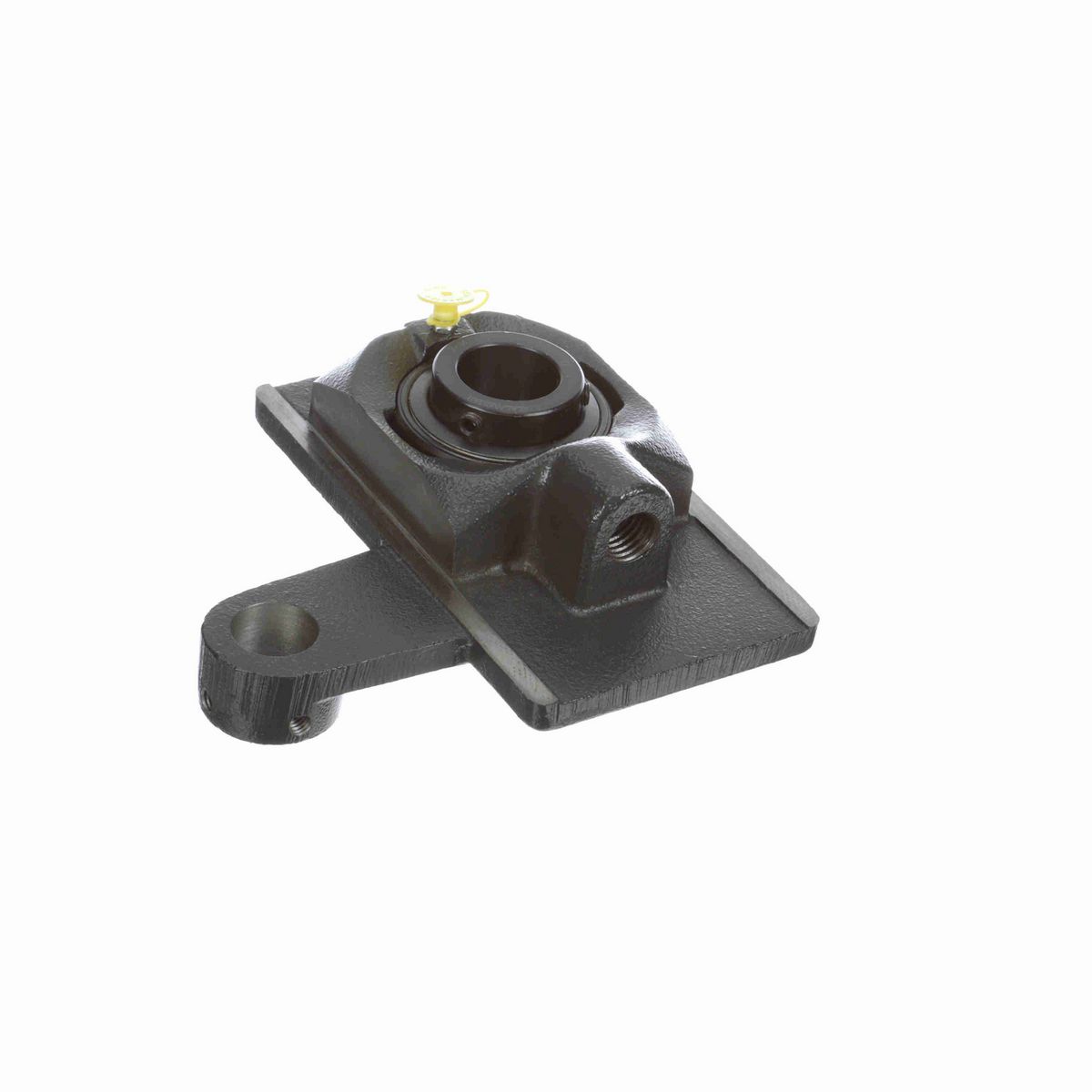

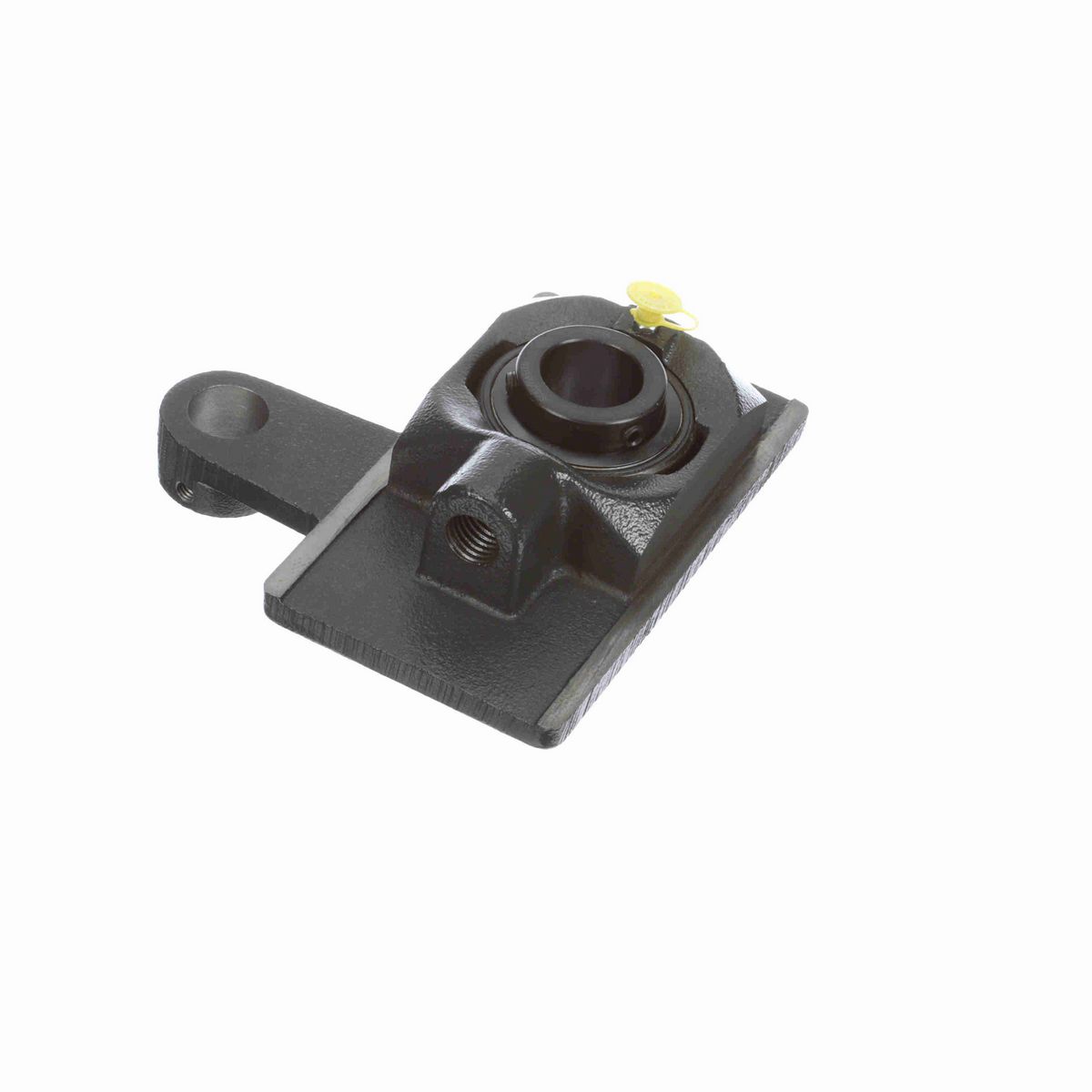

• Custom Sealmaster® mounted bearing assembly with application specific features

Dimensions

Overall Width (in)	4 in
Bore Diameter (in)	1.25 in
Centerline to Outermost Bearing Face (in)	0.995 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Take-Up Block, Wide Slot
Housing Style	Take-Up Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	1.85 in
Grease Fitting Thread Size	1/4-28
Misalignment Capability	±3.0° Misalignment - Static Only
Radial Clearance	Standard
Insert	2-14
Bearing Type	Standard Duty
Housing Coating	Powder Coated
Maximum Speed (RPM)	6500 rpm
Bearing Insert Finish	Black Oxide
Shaft Locking Type	Set Screw
Fixed vs. Expansion	Fixed
Bearing Insert Material	52100 Bearing Steel
Max Operating Temperature (F)	220 °F
Cage Type	Land Riding Retainer
End Cap Available	No
Lubricant	Lithium; EP; NLGI#2
Housing Material	Cast Iron

General Specifications

UPC	662461159330
Weight	8.15 LB
Packaged Length	7.50 IN
Packaged Width	7.38 IN
Packaged Height	2.63 IN
HTC	8483.20.4040
Country of Origin	United States of America
