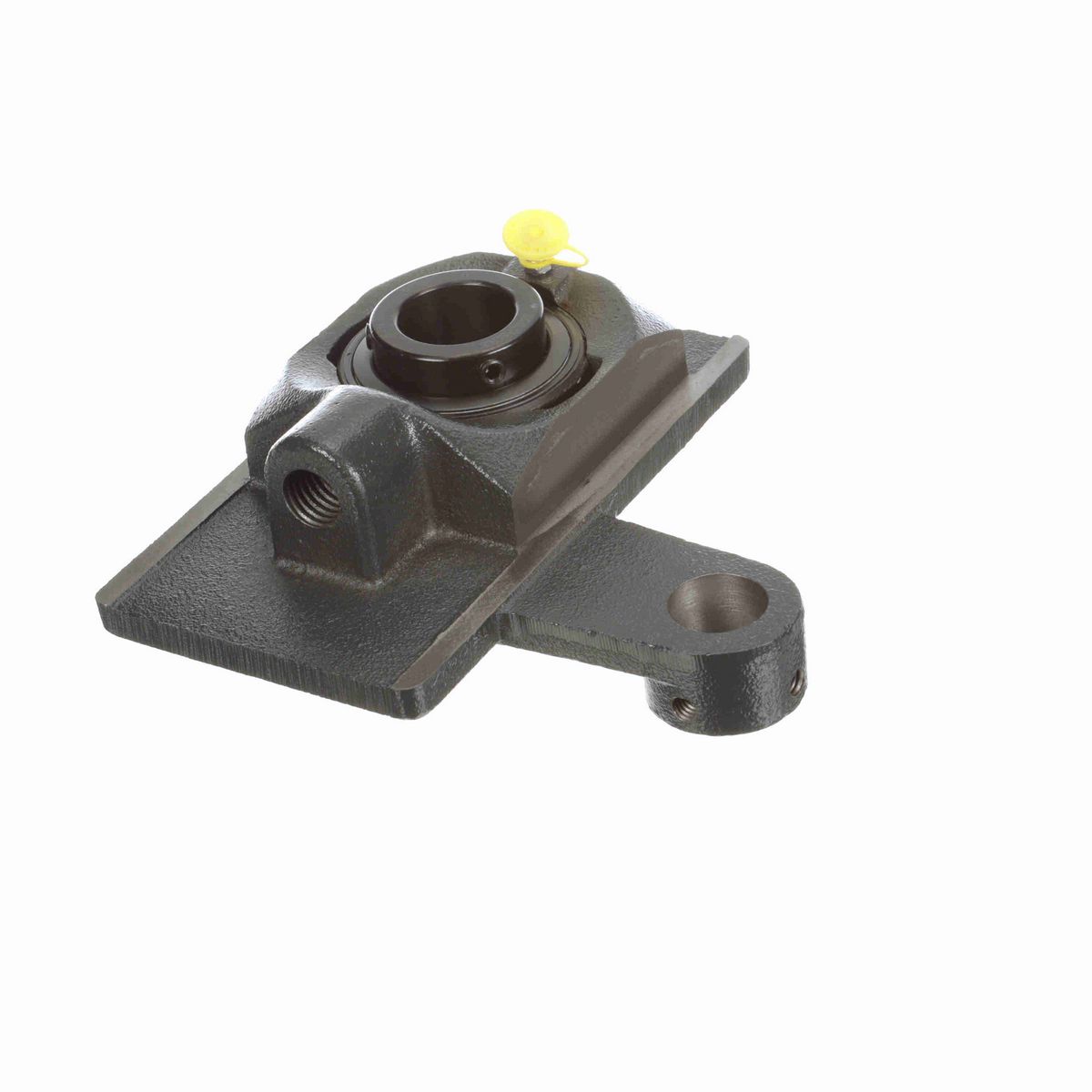

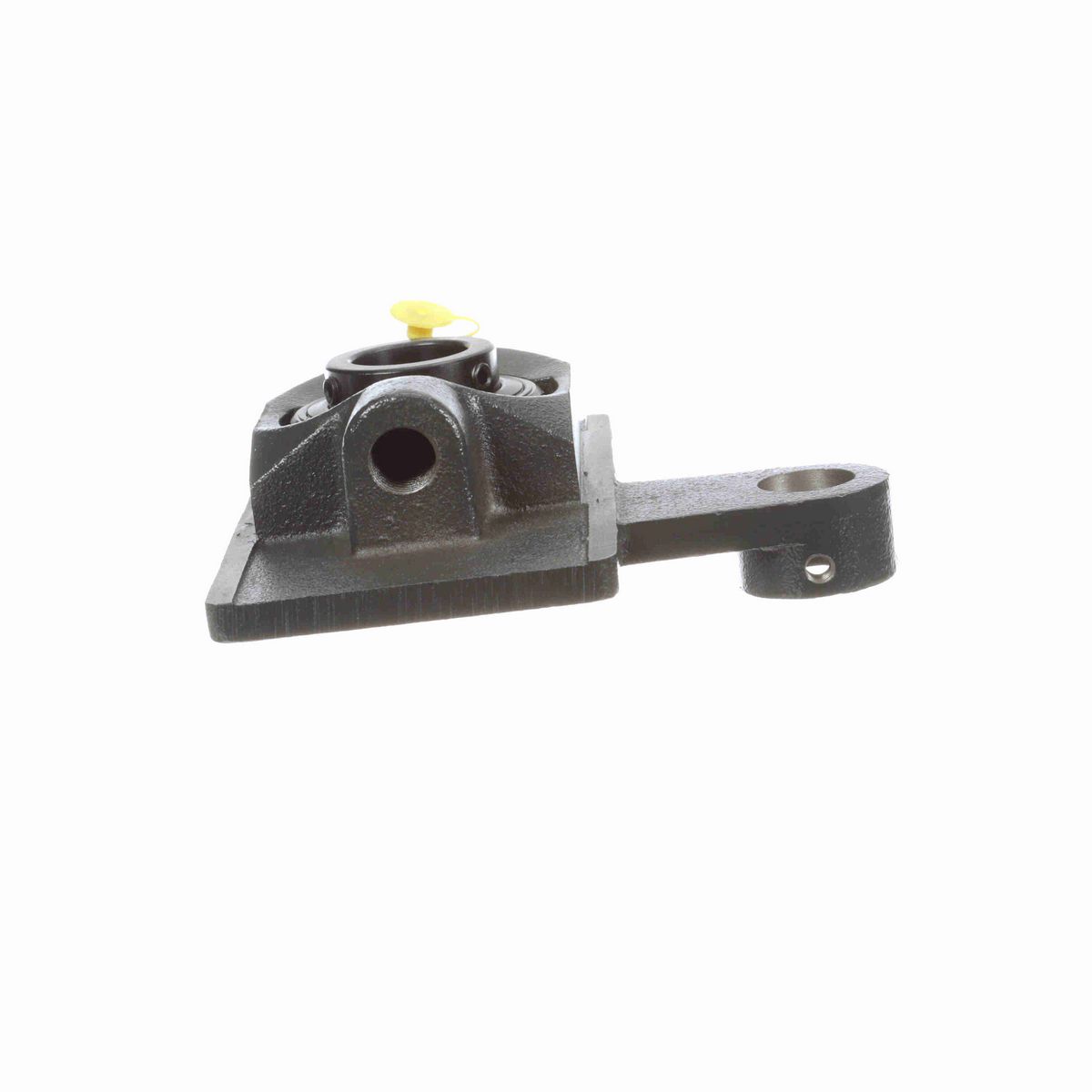

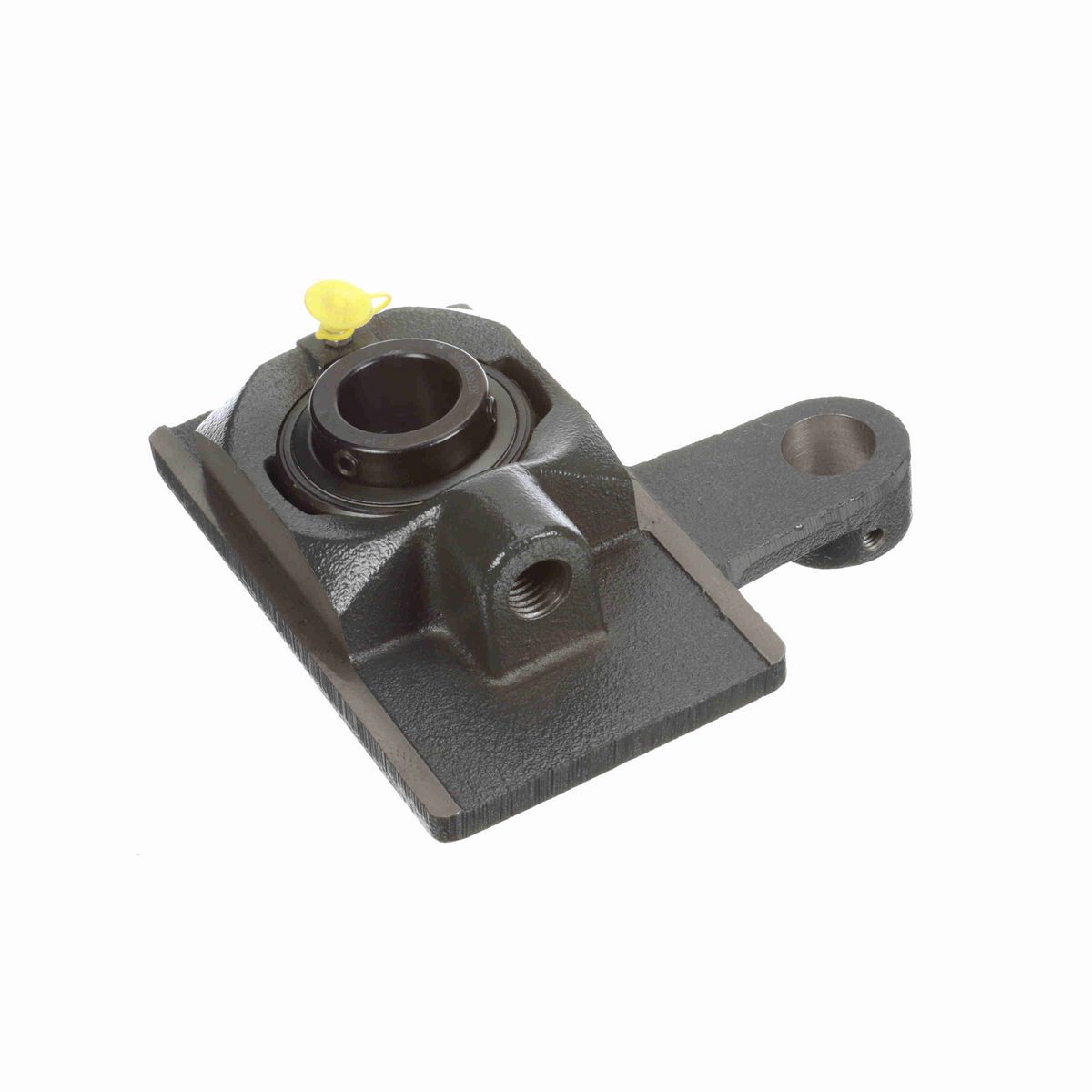

• Custom Sealmaster® mounted bearing assembly with application specific features

Dimensions

Overall Width (in)	4 in
Bore Diameter (in)	1.25 in
Centerline to Outermost Bearing Face (in)	0.995 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Take-Up Block, Wide Slot
Seal Type	Felt Labyrinth Seal
Housing Style	Take-Up Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	1.85 in
Max Operating Temperature (F)	220 °F
Housing Coating	Powder Coated
Insert	2-14
Fixed vs. Expansion	Fixed
Bearing Insert Finish	Black Oxide
Housing Material	Cast Iron
Maximum Speed (RPM)	6500 rpm
Misalignment Capability	±3.0° Misalignment - Static Only
Cage Type	Land Riding Retainer
Bearing Insert Material	52100 Bearing Steel
Radial Clearance	Standard
Shaft Locking Type	Set Screw
Grease Fitting Thread Size	1/4-28
Bearing Type	Standard Duty
End Cap Available	No
Lubricant	Lithium; EP; NLGI#2

General Specifications

UPC	662461159347
Weight	8.15 LB
Packaged Length	7.50 IN
Packaged Width	7.38 IN
Packaged Height	2.63 IN
HTC	8483.20.4040
Country of Origin	United States of America
