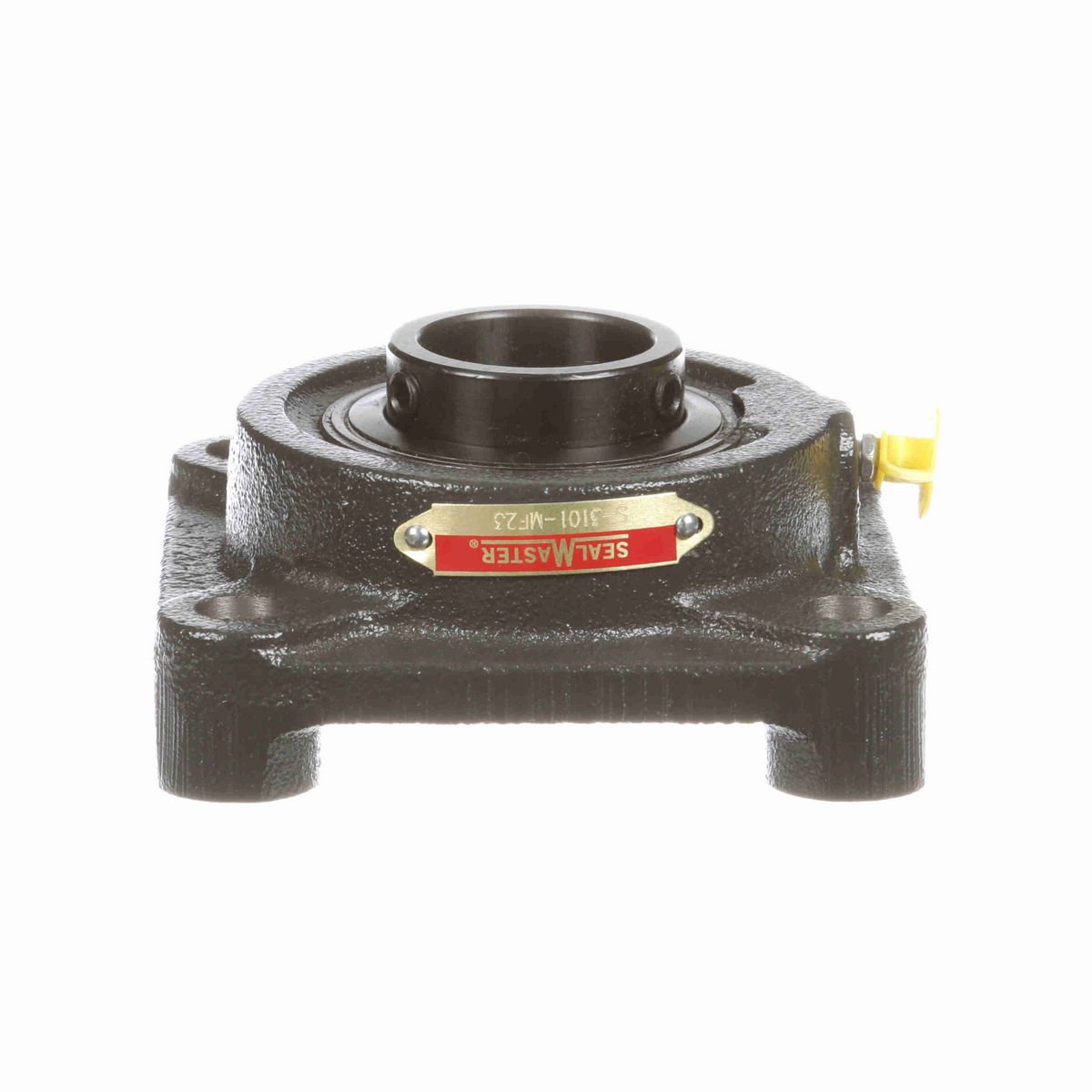

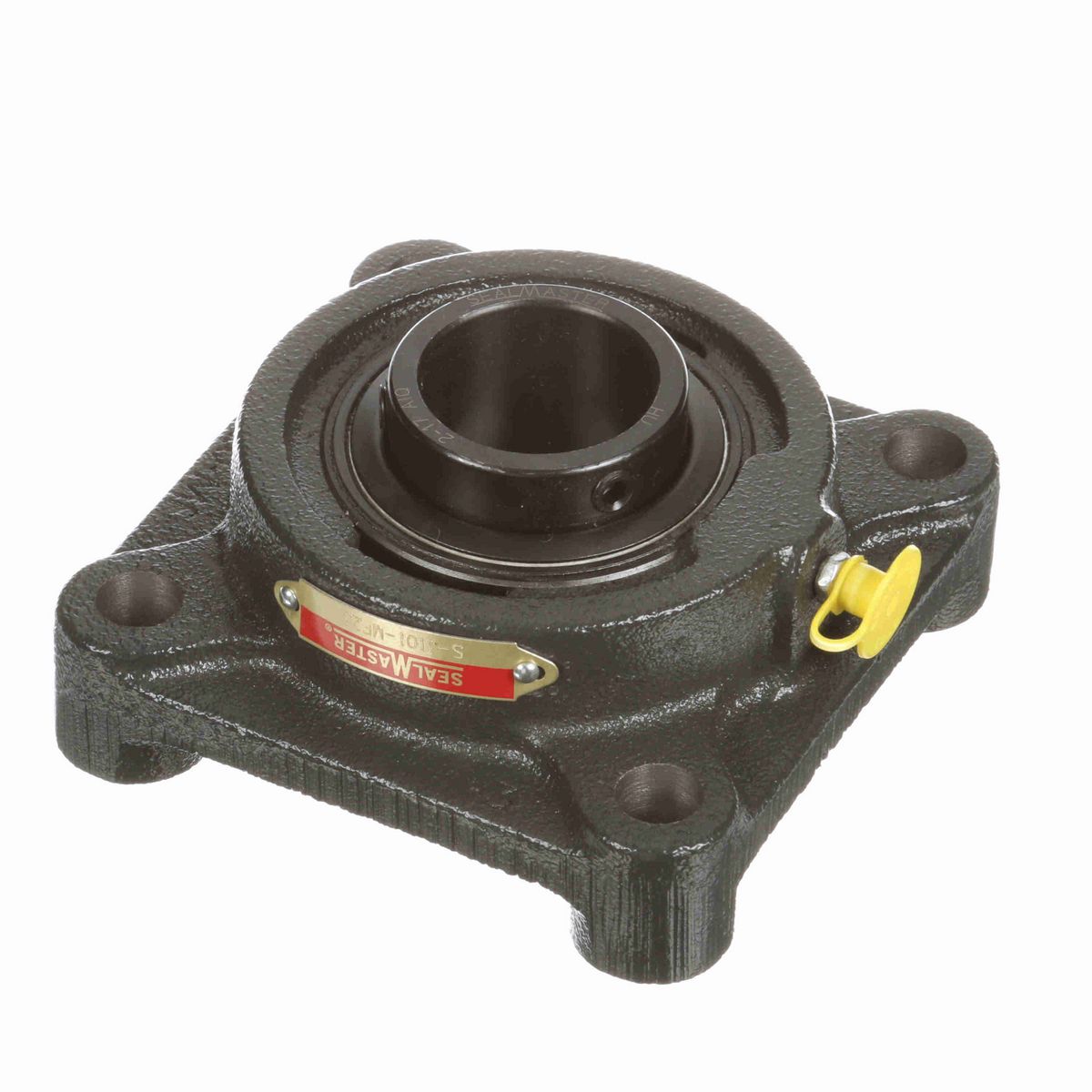

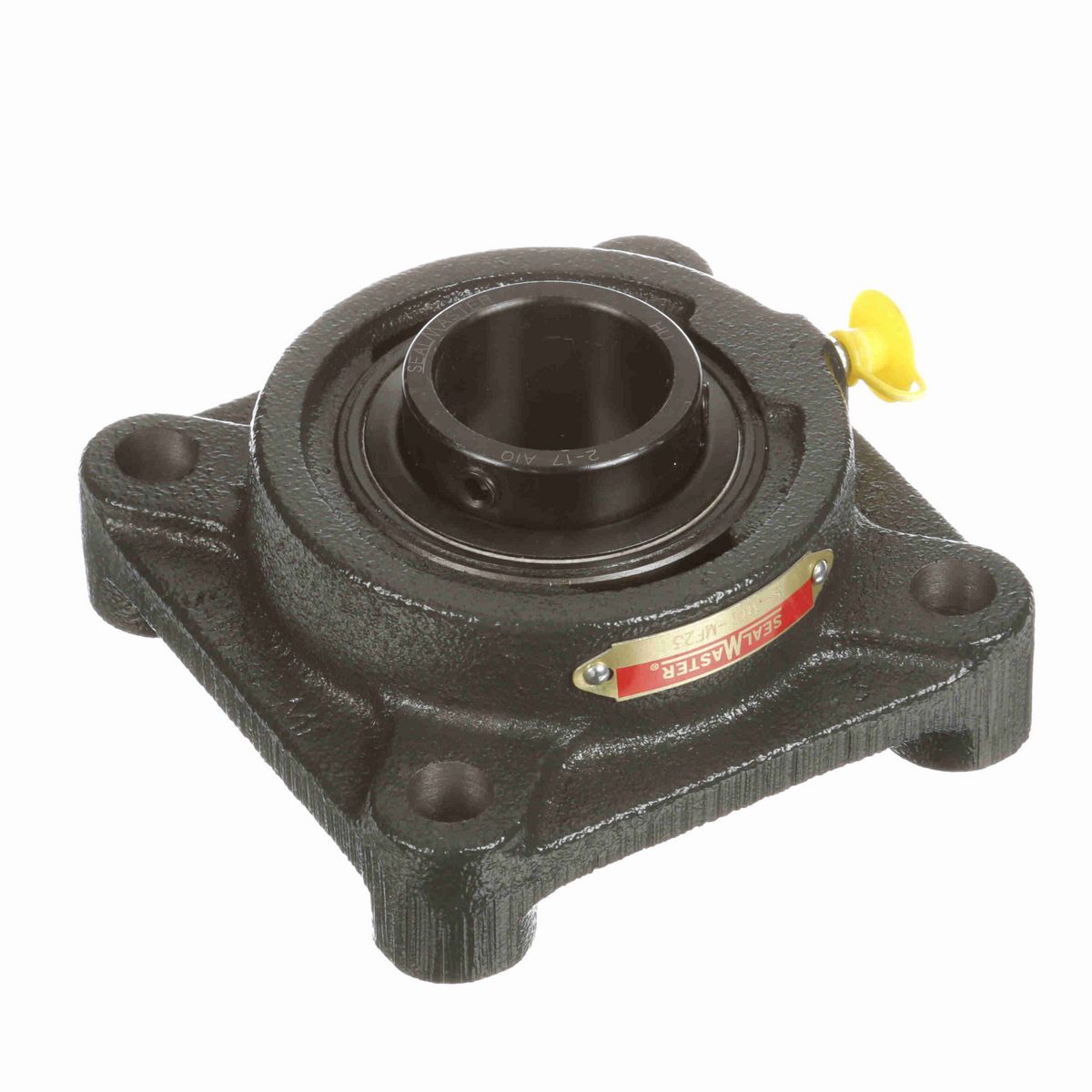

• Custom Sealmaster® mounted bearing assembly with application specific features

Dimensions

Bolt Size (in)	1/2 in
Overall Width (in)	4.63 in
Overall Length (in)	4.63 in
Overall Height (in)	2.25 in
Bore Diameter (in)	1.4375 in
Foot Height (in)	1.06 in
Length Through Bore (in)	1.69 in
Bolt Spacing (in)	3.6250 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Misalignment Capability	±3.0° Misalignment - Static Only
Insert	2-17 AIQ
Max Operating Temperature (F)	220 °F
Vibration Frequency Fundamental Train	0.0066 cps
Lubricant	Lithium; EP; NLGI#2
Vibration Frequency Inner Ring Defect	0.0905 cps
Size Code	2-17
Maximum Speed (RPM)	4000 rpm
Shaft Locking Type	Set Screw
Fixed vs. Expansion	Fixed
Dynamic Load Rating (lb)	5,782 lb
Bearing Insert Finish	Black Oxide
Inner Ring Outside Diameter (in)	1.86 in
Housing Backside Inner Diameter	3.50
End Cap Available	No
Housing Coating	Powder Coated
Radial Clearance	Standard
Bearing Type	Standard Duty
Grease Fitting Thread Size	1/4-28
Vibration Frequency Outer Ring Defect	0.0595 cps
Bearing Insert Material	52100 Bearing Steel
Housing Material	Cast Iron
Vibration Frequency Roller Spin	0.0386 cps
Static Load Rating (lb)	3,493 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461167649
Weight	4.10 LB
Packaged Length	4.75 IN
Packaged Width	2.63 IN
Packaged Height	4.81 IN
HTC	8483.20.4040
Country of Origin	United States of America
