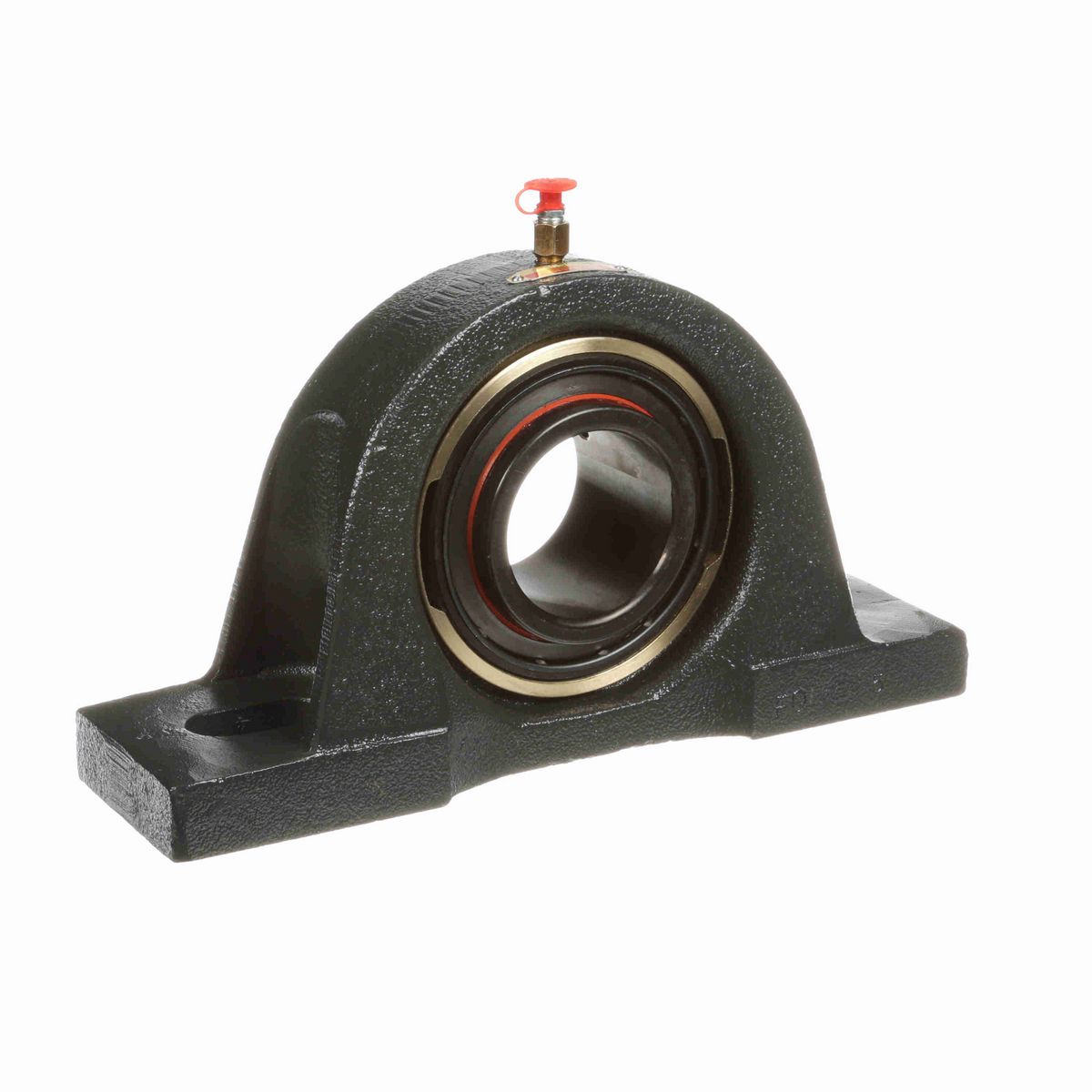

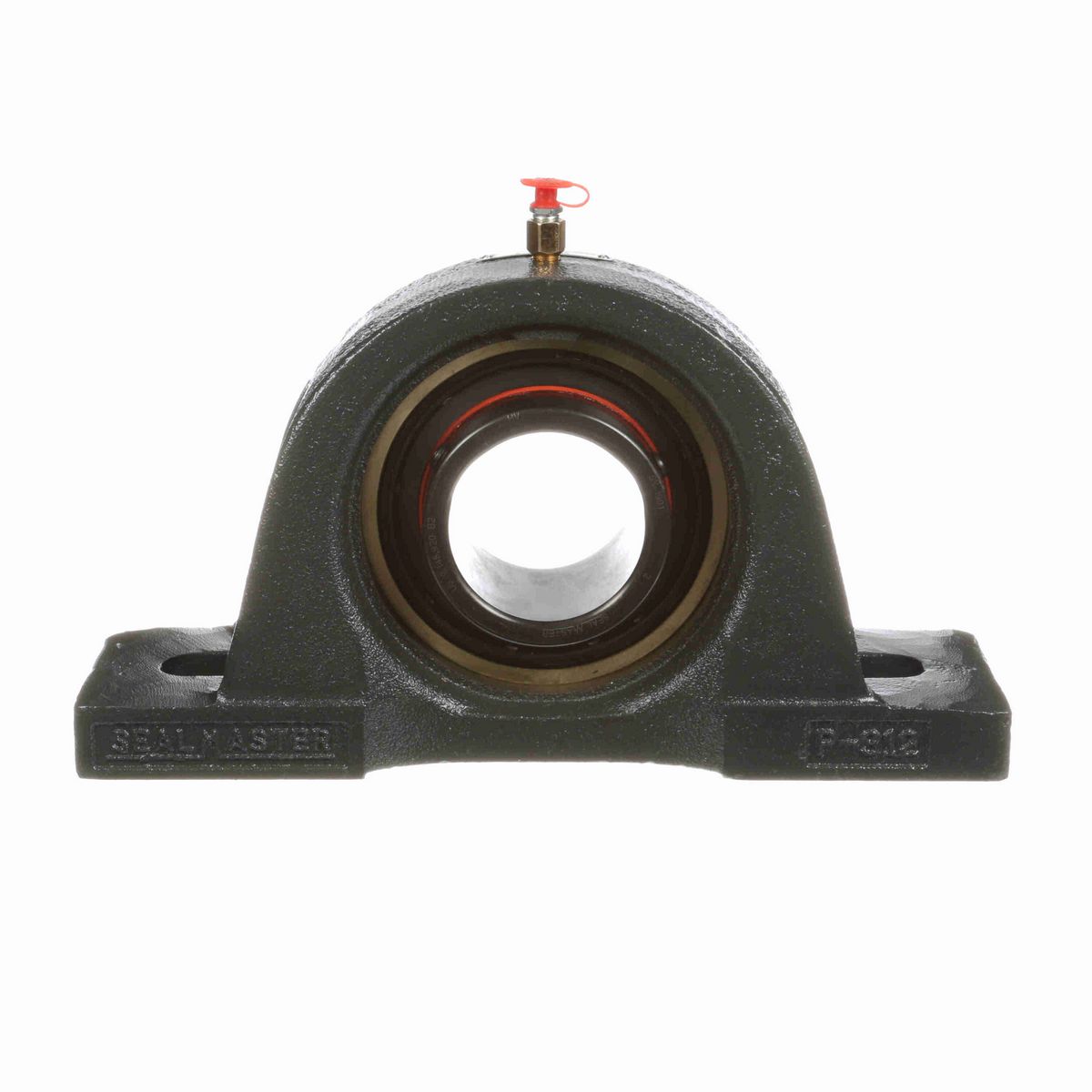

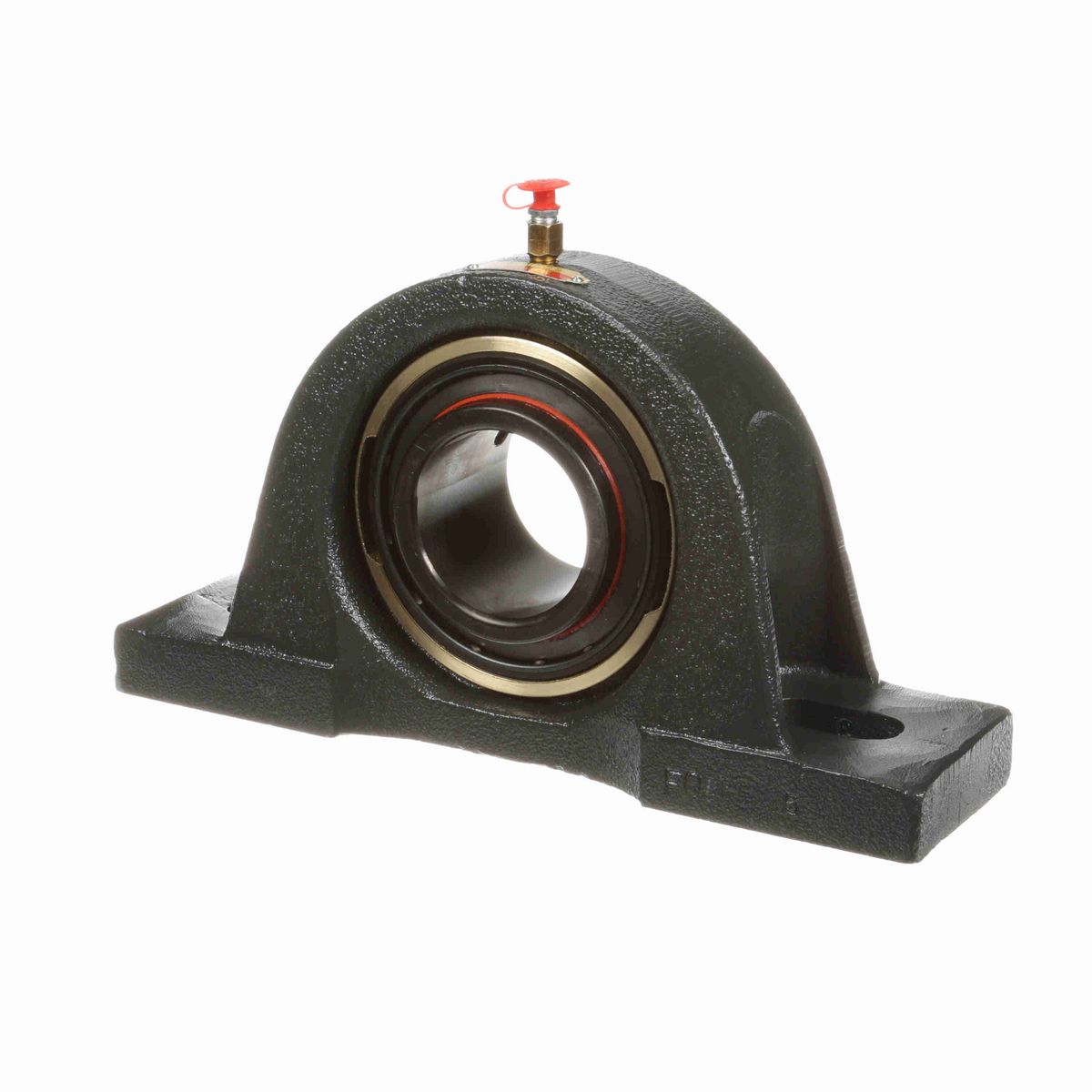

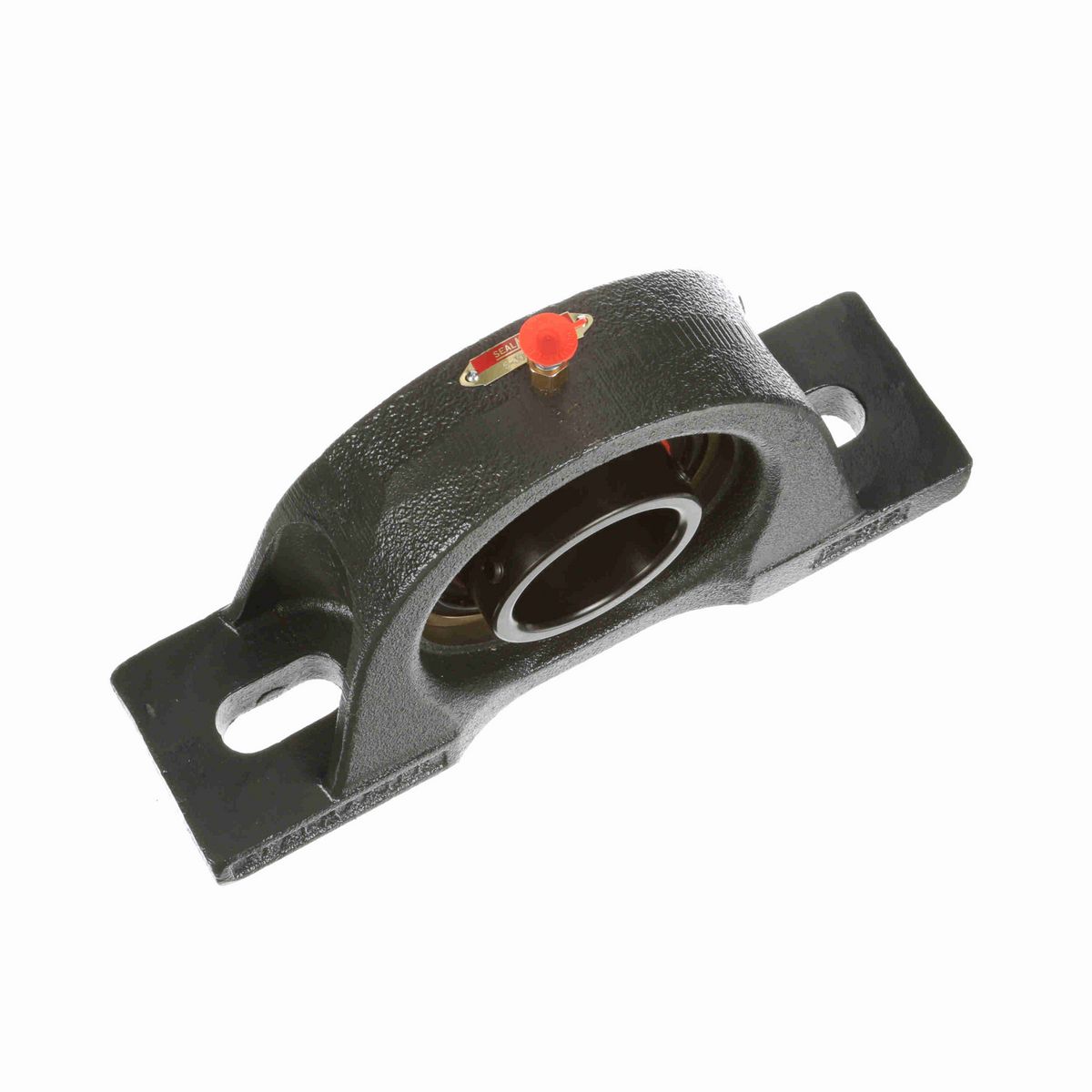

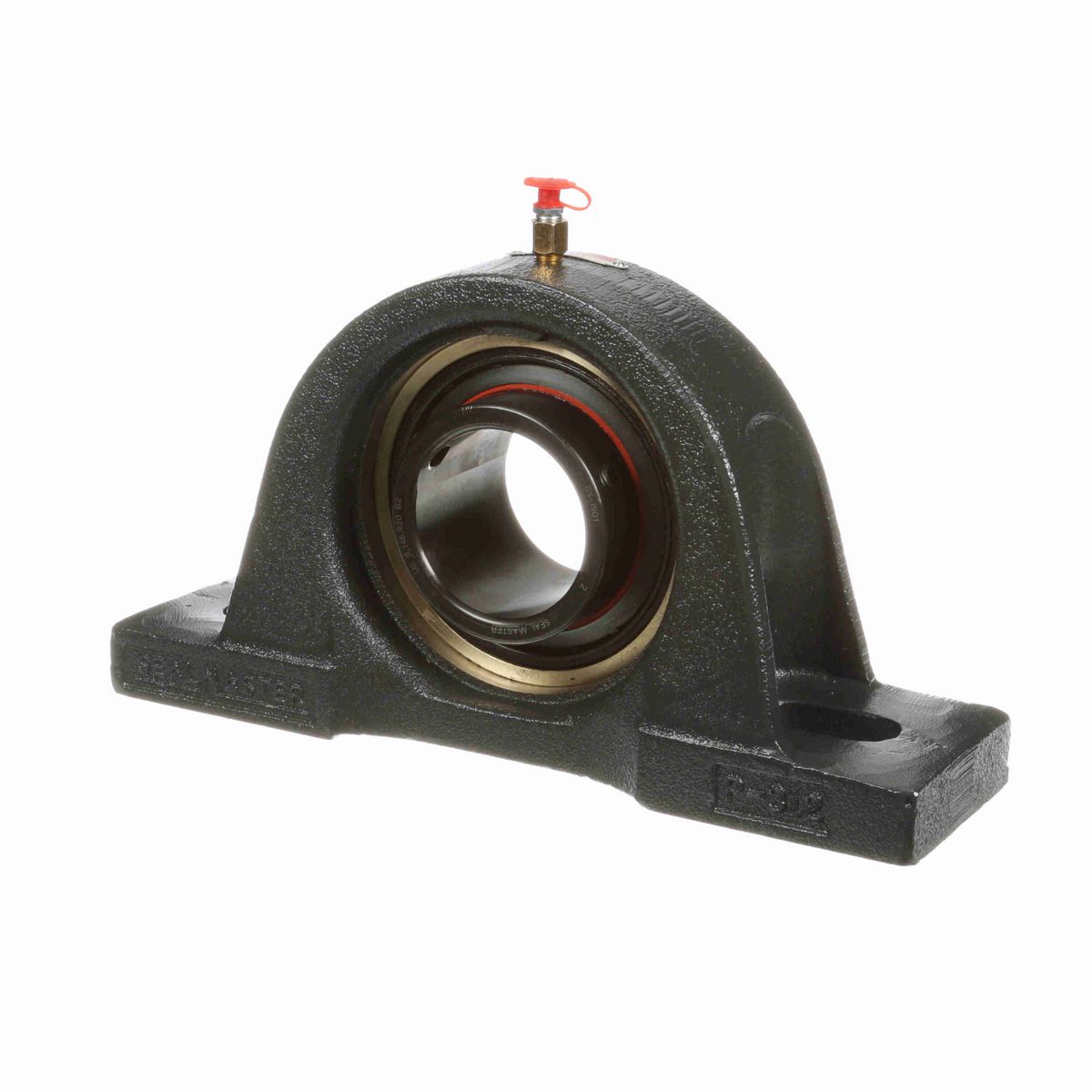

• Custom Sealmaster® mounted bearing assembly with application specific features

Dimensions

Overall Height (in)	7 in
Overall Width (in)	3.5 in
Base Width (in)	3.5 in
Overall Length (in)	13 in
Bolt Size (in)	7/8 in
Bore Diameter (in)	2.6875 in
Foot Height (in)	1.13 in
Base to Center Height (in)	3.5 in
Length Through Bore (in)	2.748 in
Centerline to Outermost Bearing Face (in)	1.688 in
Bolt Spacing (in)	9 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Housing Construction	One Piece
Bore Shape	Straight
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Black
Cage Material	Brass
Housing Type	Pillow Block, Two Bolt
Seal Type	Single Lip Contact Seal
Slot Length (in)	2 in
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Vibration Frequency Fundamental Train	0.0068 cps
Max Operating Temperature (F)	220 °F
End Cap Available	No
Housing Coating	Powder Coated
Vibration Frequency Roller Spin	0.0451 cps
Misalignment Capability	±2.0° Misalignment - Static Only
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Insert Material	52100 Bearing Steel
Size Code	2-211
Inner Ring Outside Diameter (in)	3.438 in
Shaft Locking Type	Set Screw
Vibration Frequency Inner Ring Defect	0.0982 cps
Grease Fitting Thread Size	1/8 NPT
Fixed vs. Expansion	Expansion
Base Length (in)	13 in
Cage Type	Land Riding Retainer
Insert	SK-1901
Dynamic Load Rating (lb)	13,971 lb
Bearing Insert Finish	Black Oxide
Bearing Type	Standard Duty
Maximum Speed (RPM)	3800 rpm
Radial Clearance	Standard
Static Load Rating (lb)	10,063 lb
Vibration Frequency Outer Ring Defect	0.0684 cps
Housing Material	Cast Iron

General Specifications

UPC	662461167373
Weight	27.70 LB
Packaged Length	14.25 IN
Packaged Width	8.06 IN
Packaged Height	4.00 IN
HTC	8483.20.8040
Country of Origin	United States of America
