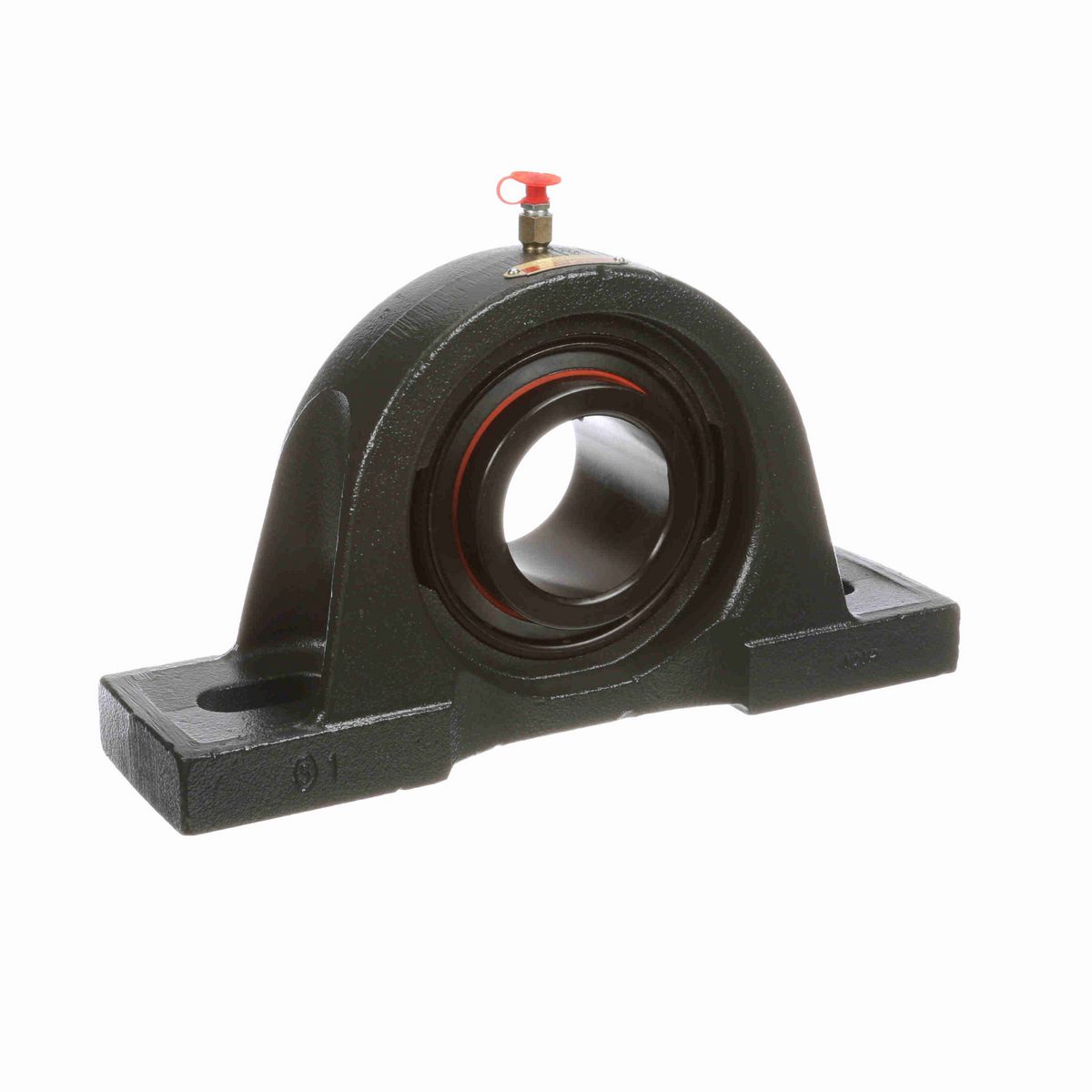

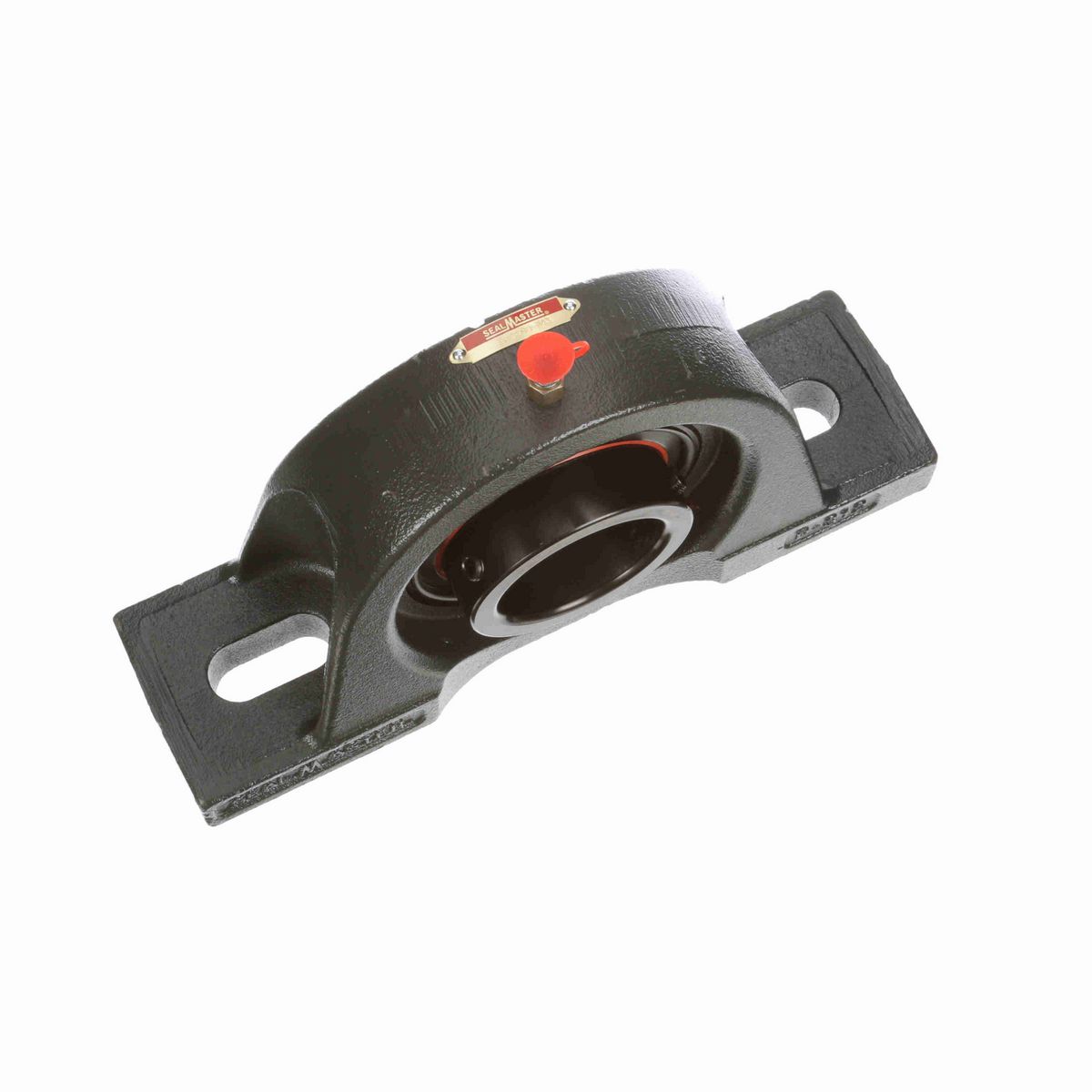

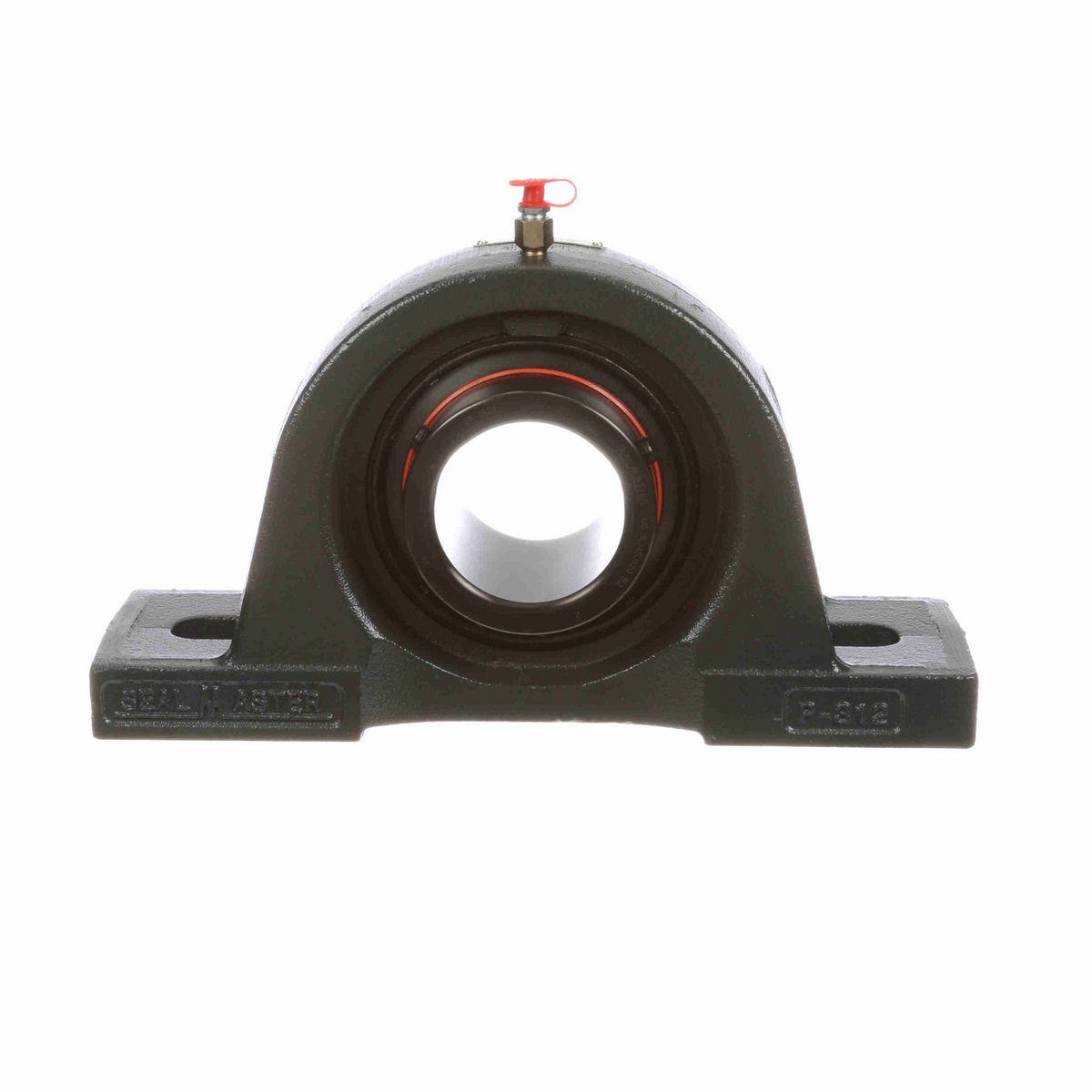

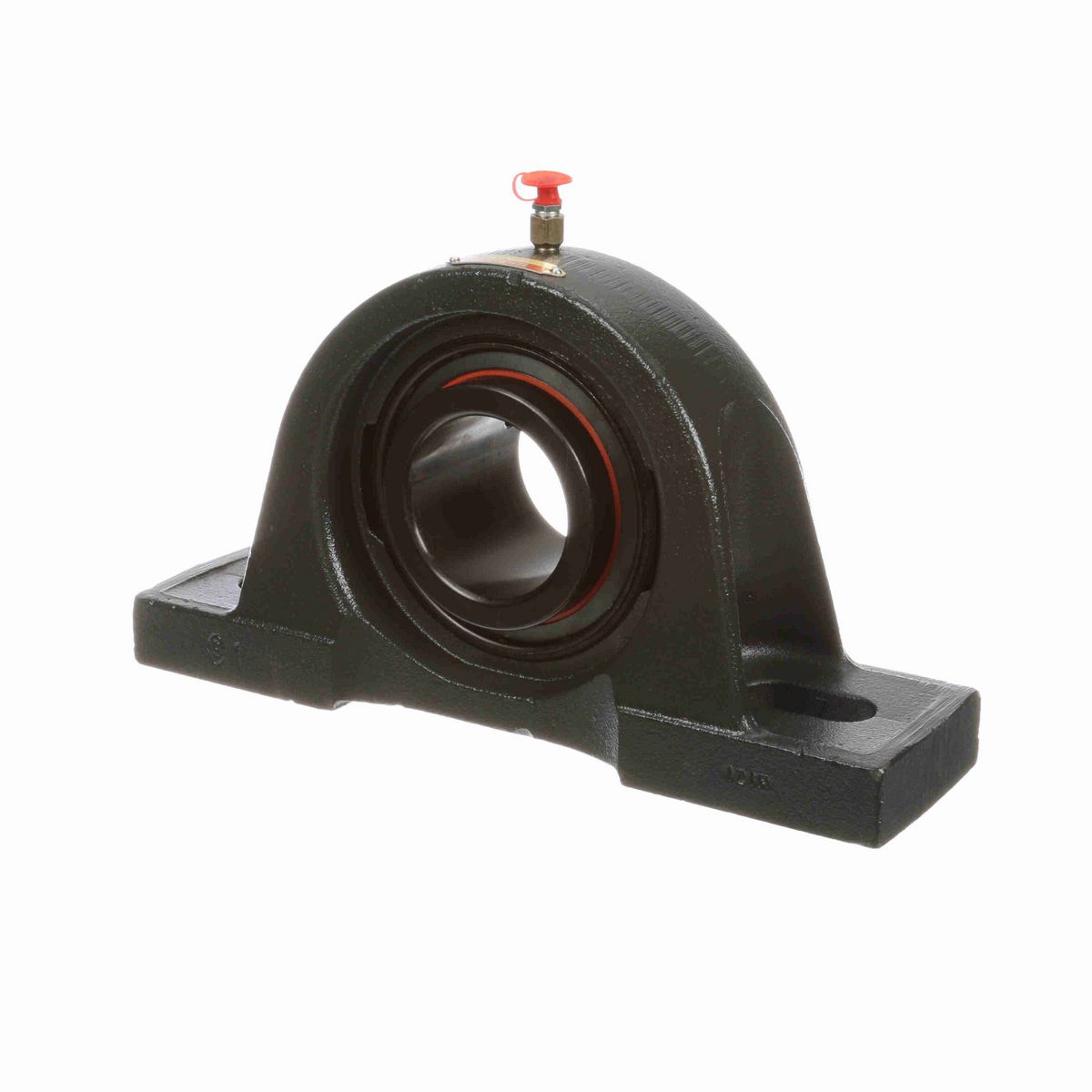

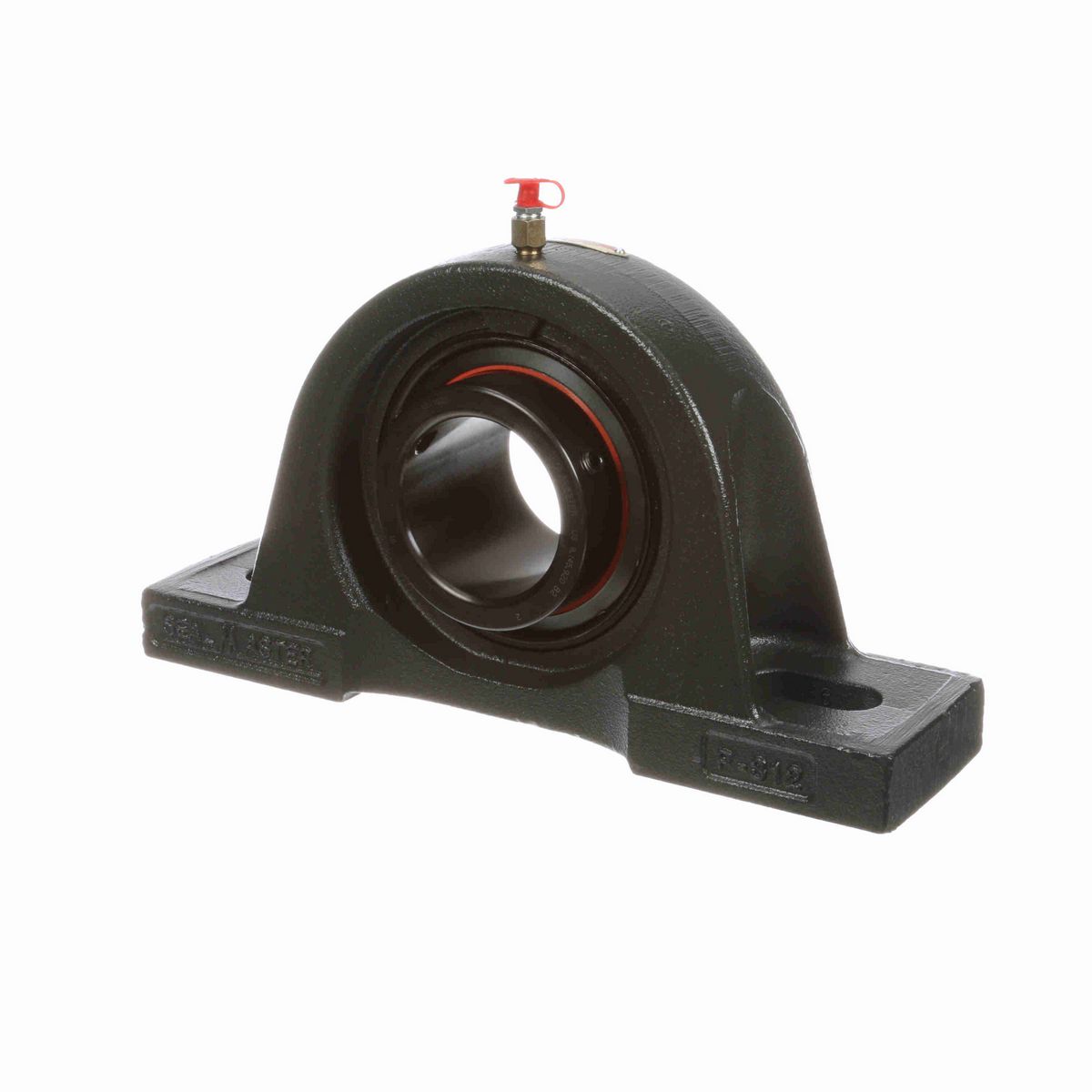

• Custom Sealmaster® mounted bearing assembly with application specific features

Dimensions

Overall Width (in)	3.5 in
Overall Length (in)	13 in
Base Width (in)	3.5 in
Overall Height (in)	7 in
Bolt Size (in)	7/8 in
Bore Diameter (in)	2.6875 in
Foot Height (in)	1.13 in
Base to Center Height (in)	3.5 in
Length Through Bore (in)	3.063 in
Centerline to Outermost Bearing Face (in)	1.750 in
Bolt Spacing (in)	9 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Housing Construction	One Piece
Bore Shape	Straight
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	Brass
Housing Type	Pillow Block, Two Bolt
Seal Type	Single Lip Contact Seal
Slot Length (in)	2.00 in
Housing Style	Pillow Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Maximum Speed (RPM)	3800 rpm
Vibration Frequency Roller Spin	0.0476 cps
Inner Ring Outside Diameter (in)	3.641 in
Bearing Insert Material	52100 Bearing Steel
Cage Type	Land Riding Retainer
Bearing Insert Finish	Black Oxide
Dynamic Load Rating (lb)	14,839 lb
Vibration Frequency Inner Ring Defect	0.1072 cps
Size Code	2-215
Radial Clearance	Standard
Misalignment Capability	±2.0° Misalignment - Static Only
Insert	SK-1921
Bearing Type	Standard Duty
End Cap Available	No
Shaft Locking Type	Set Screw
Vibration Frequency Outer Ring Defect	0.0761 cps
Housing Material	Cast Iron
Housing Coating	Powder Coated
Lubricant	Lithium Complex NLGI 2 Grease
Vibration Frequency Fundamental Train	0.0069 cps
Grease Fitting Thread Size	1/8 NPT
Max Operating Temperature (F)	220 °F
Fixed vs. Expansion	Fixed
Static Load Rating (lb)	11,224 lb
Base Length (in)	13.00 in

General Specifications

UPC	662461167342
Weight	29.20 LB
Packaged Length	14.25 IN
Packaged Width	8.06 IN
Packaged Height	4.00 IN
HTC	8483.20.8040
Country of Origin	United States of America
