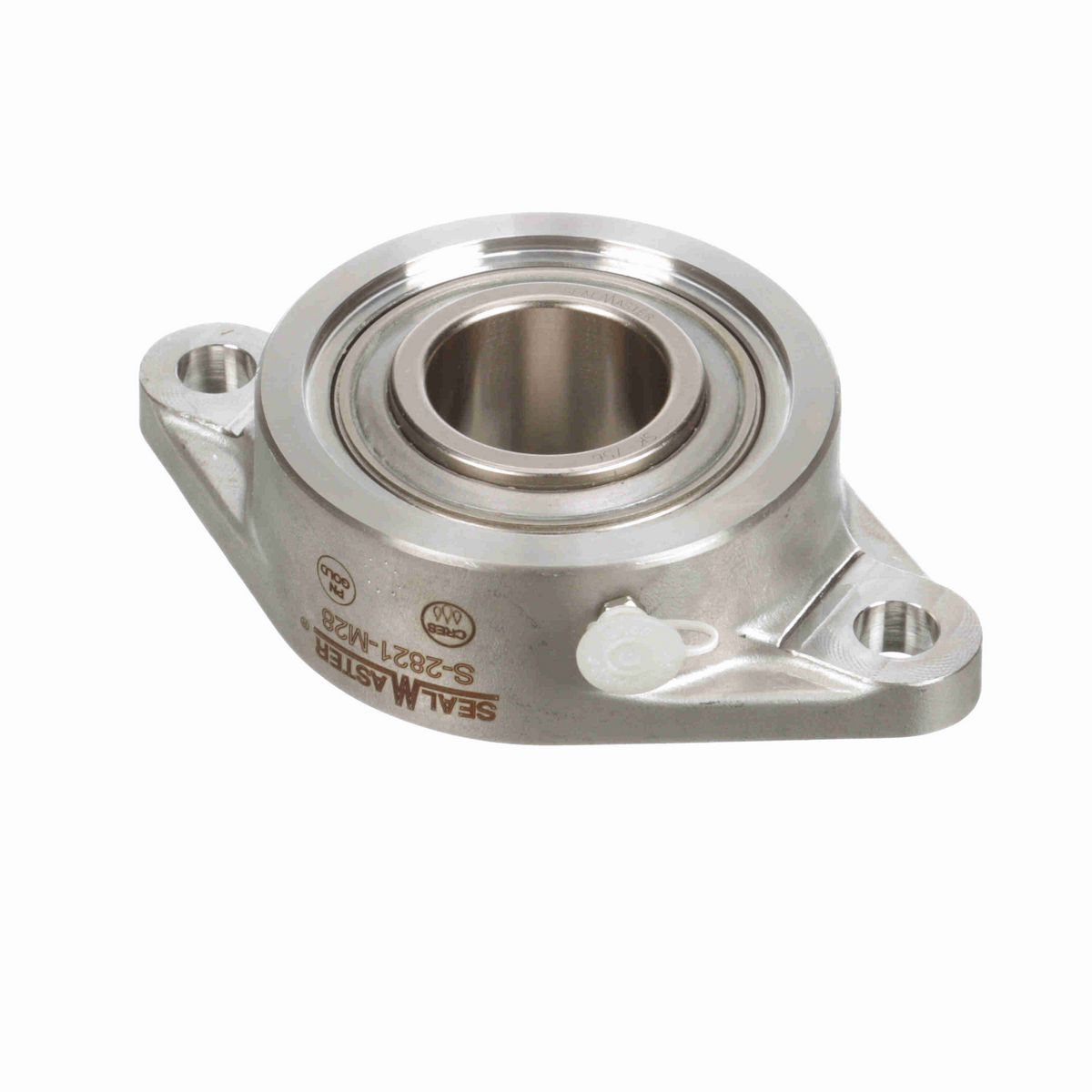

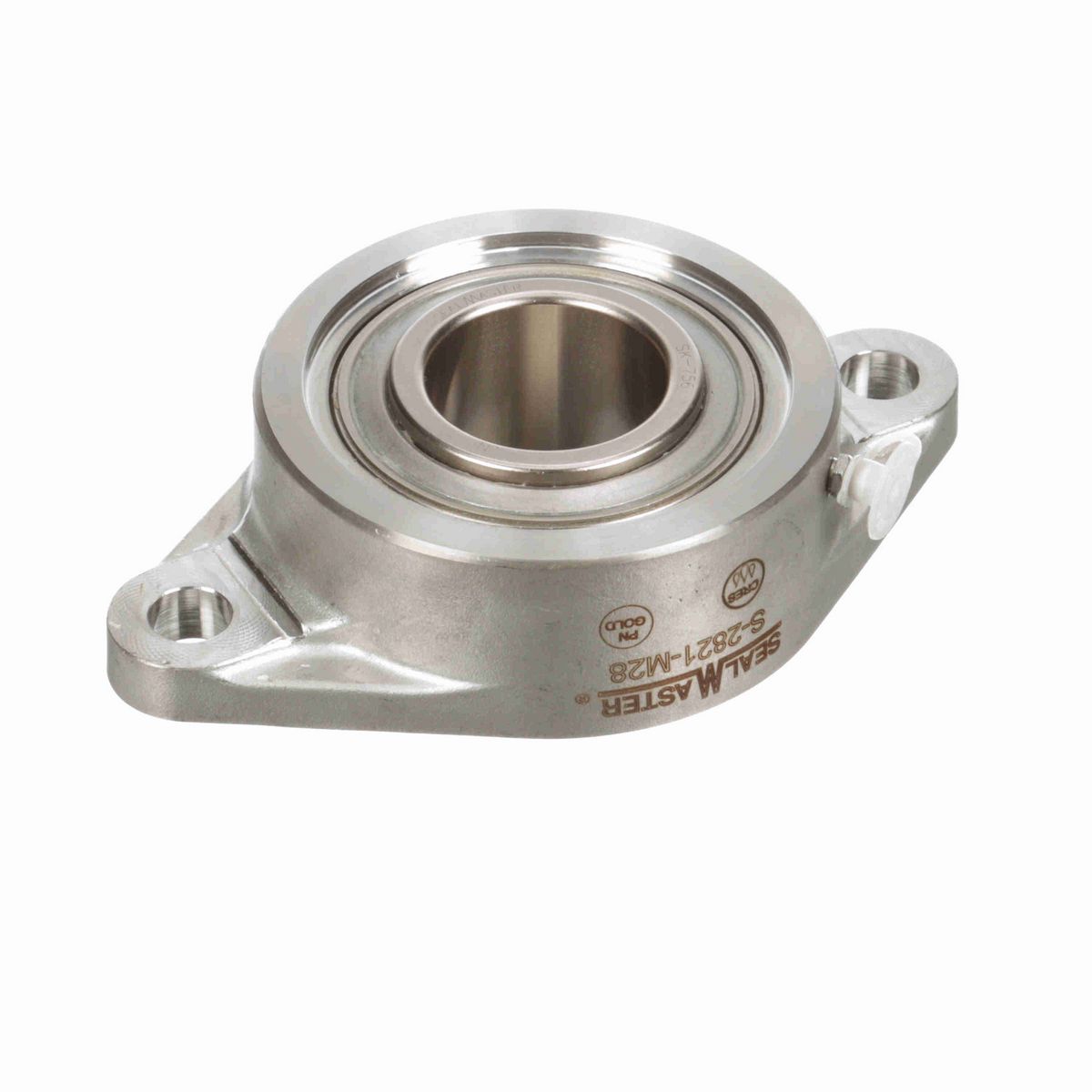

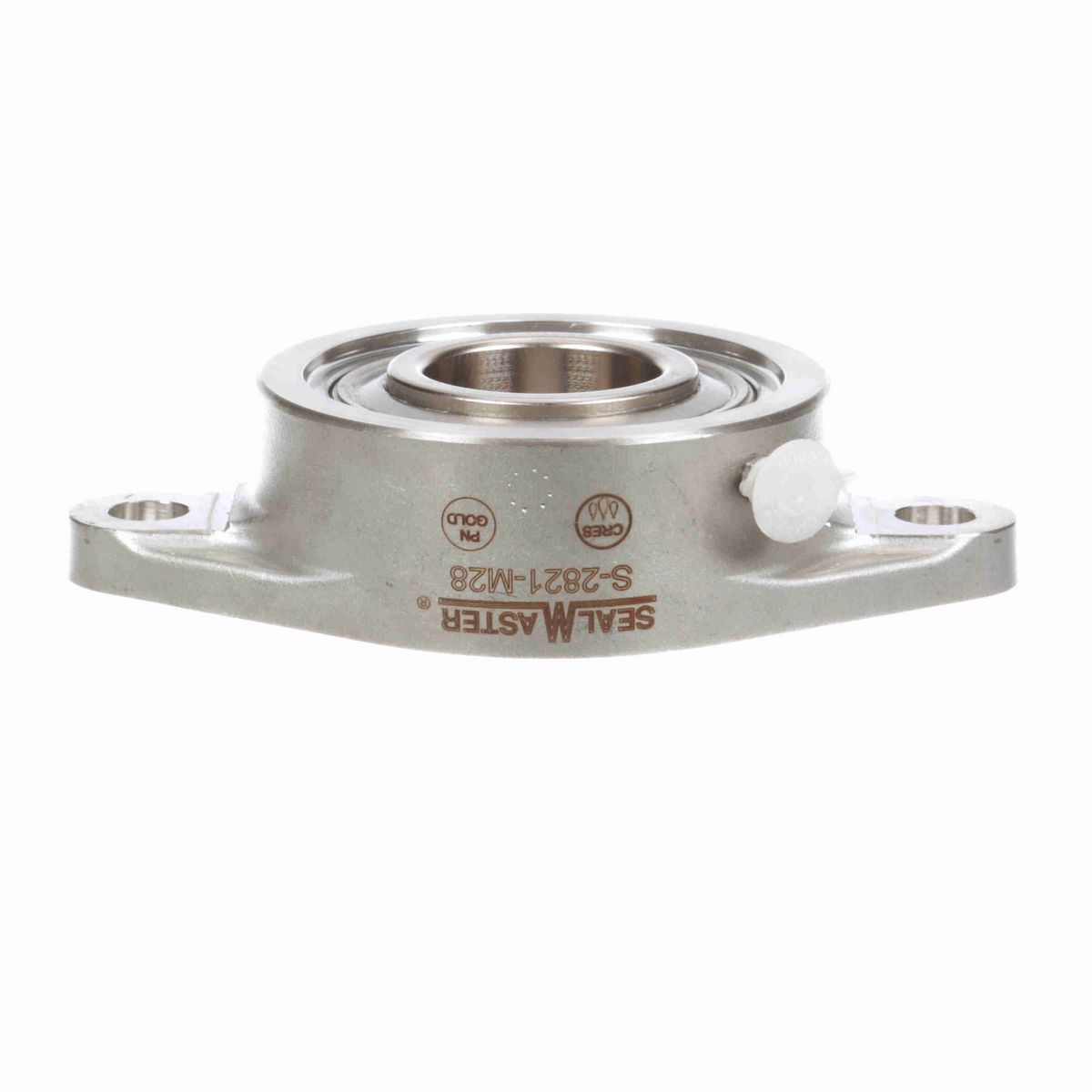

• Custom Sealmaster® mounted bearing assembly with application specific features

Dimensions

Bolt Size (in)	9/16 in
Overall Width (in)	4.38 in
Overall Height (in)	1.938 in
Overall Length (in)	7.06 in
Bore Diameter (in)	1.75 in
Foot Height (in)	0.56 in
Length Through Bore (in)	1.930 in
Bolt Spacing (in)	5.8438 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Bore Shape	Straight
Housing Color	Silver
Options	Corrosion Resistant
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Two Bolt
Seal Type	Multi-Lip Contact Seal
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Dynamic Load Rating (lb)	7,901 lb
Max Operating Temperature (C)	104 °C
Maximum Speed (RPM)	1600 rpm
Cage Type	Land Riding Retainer
Fixed vs. Expansion	Fixed
Insert	SK-756
End Cap Available	No
Inner Ring Outside Diameter (in)	2.307 in
Housing Material	Stainless Steel
Shaft Locking Type	No Locking
Radial Clearance	Standard
Misalignment Capability	±3.0° Misalignment - Static Only
Static Load Rating (lb)	5,139 lb
Bearing Insert Material	52100 Bearing Steel
Lubricant	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Max Operating Temperature (F)	220 °F
Size Code	2-111
Bearing Insert Finish	Phosphorus Nickel Coated
Bearing Type	Standard Duty
Grease Fitting Thread Size	1/4-28

General Specifications

UPC	662461169339
Weight	4.75 LB
Packaged Length	9.00 IN
Packaged Width	5.19 IN
Packaged Height	2.38 IN
HTC	8483.20.4040
Country of Origin	United States of America
