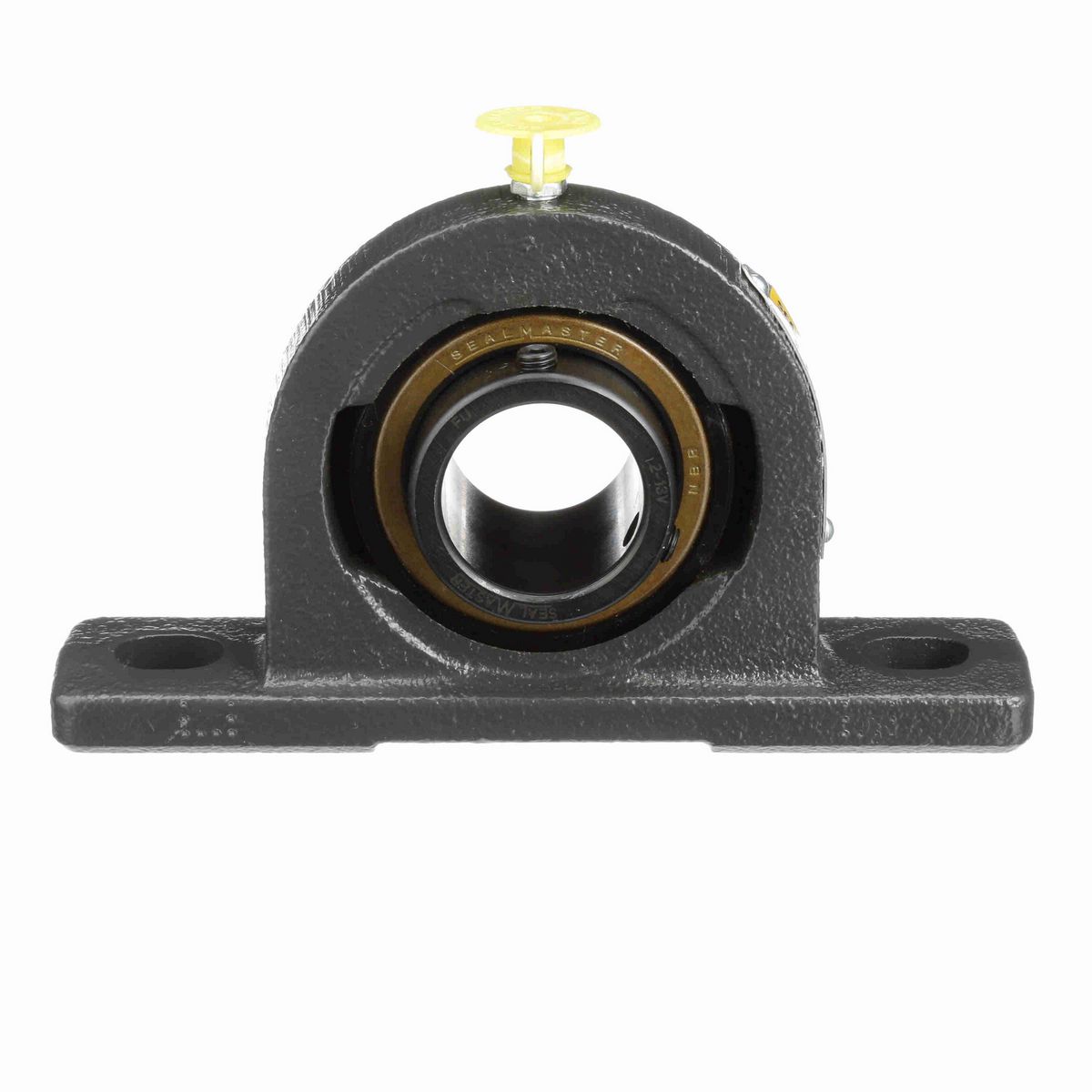

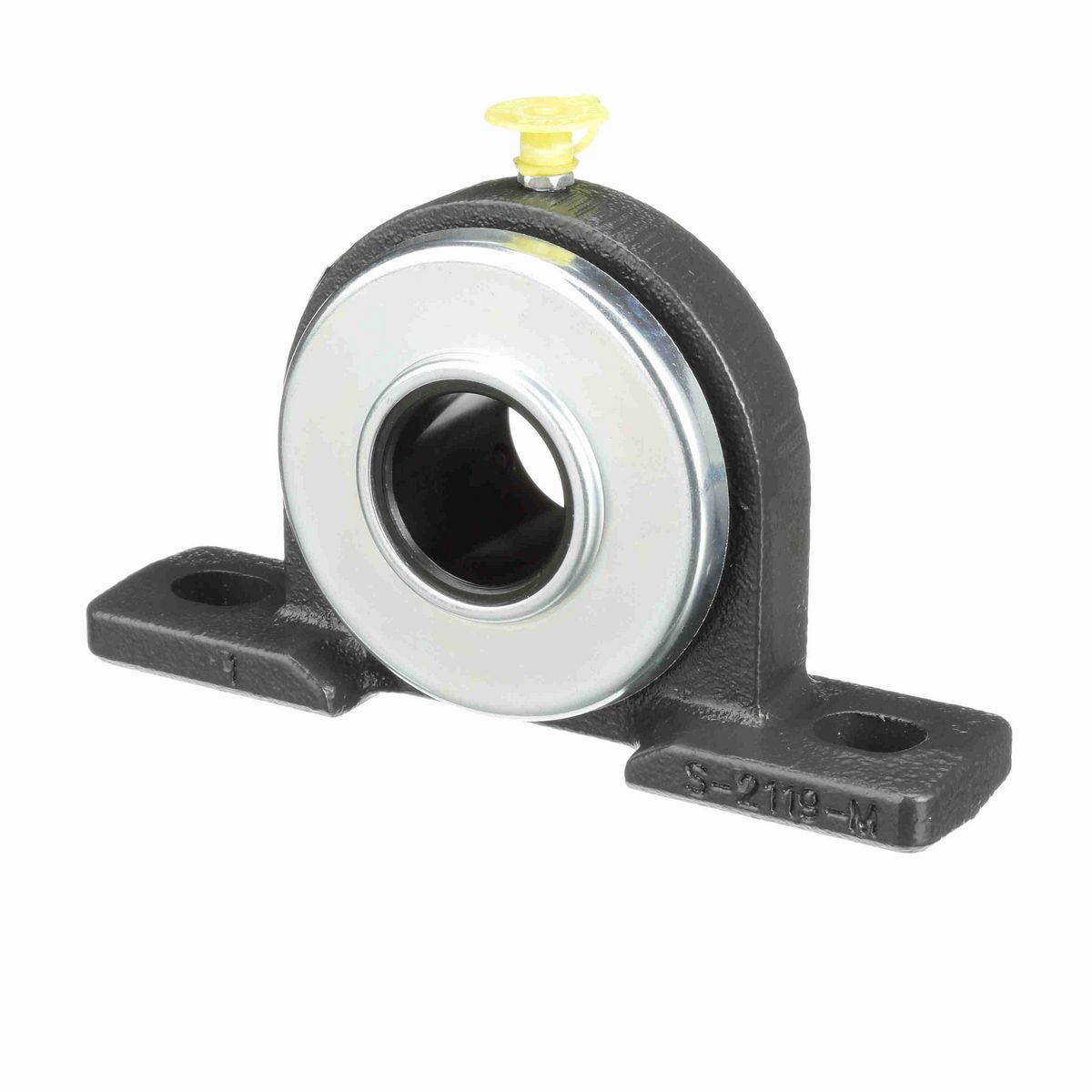

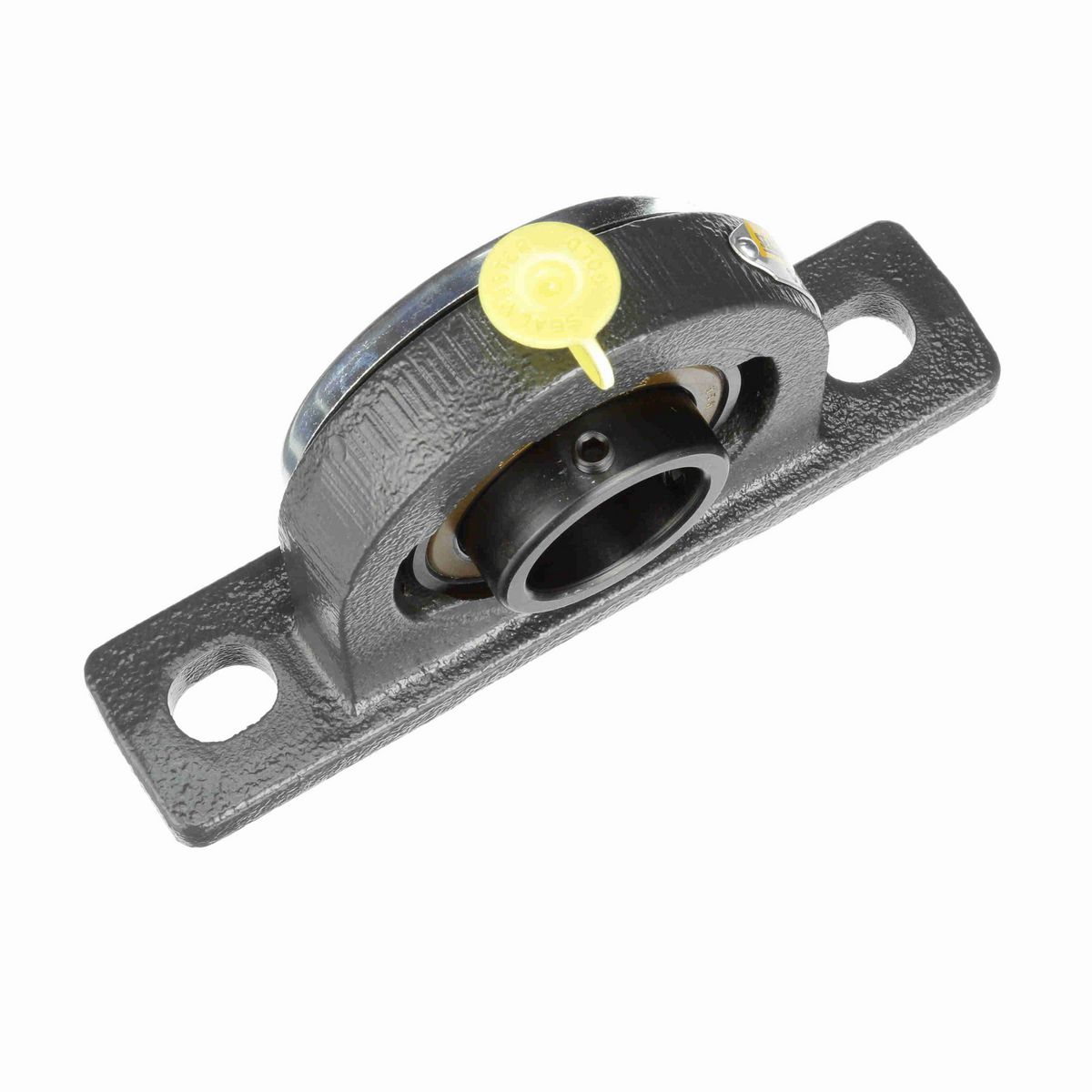

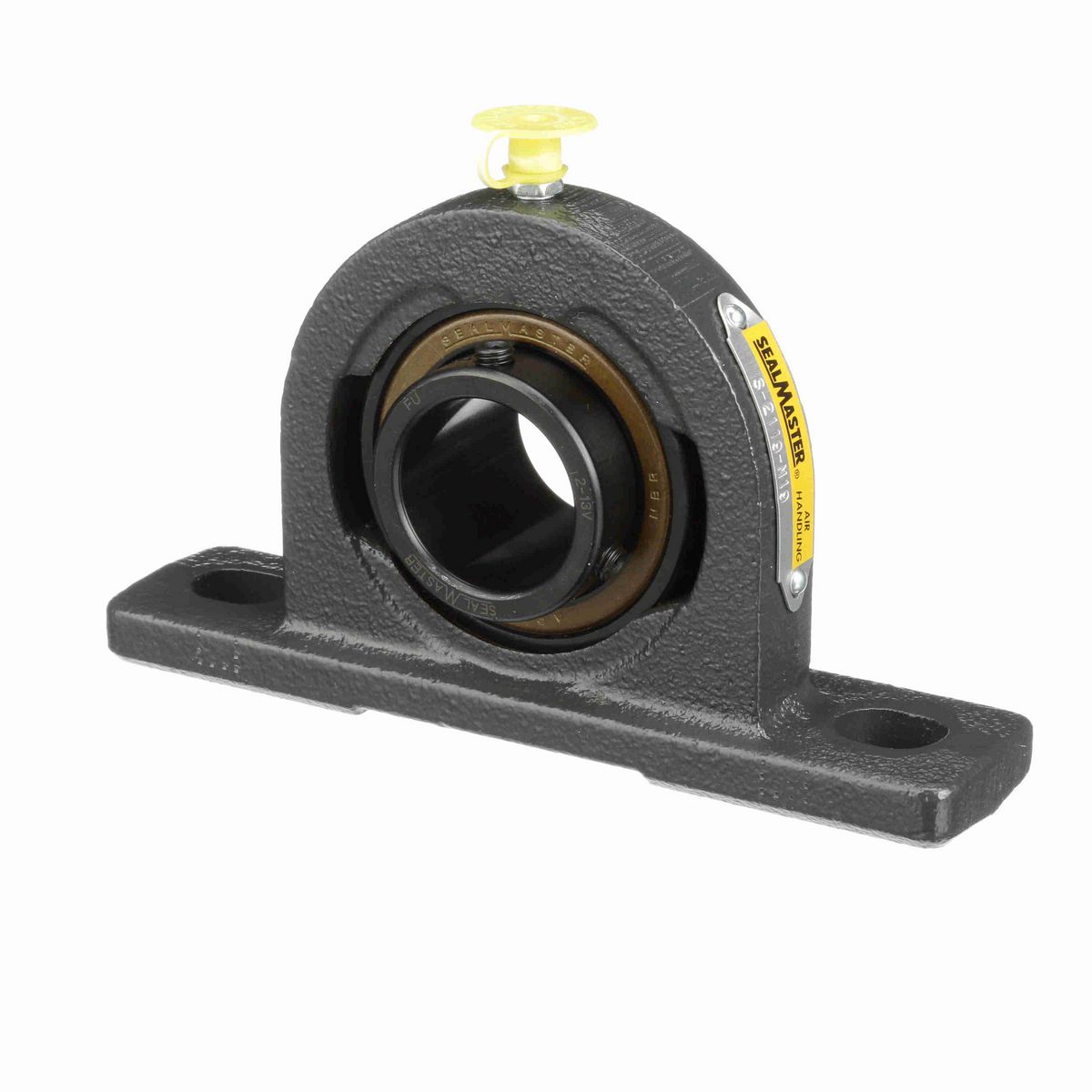

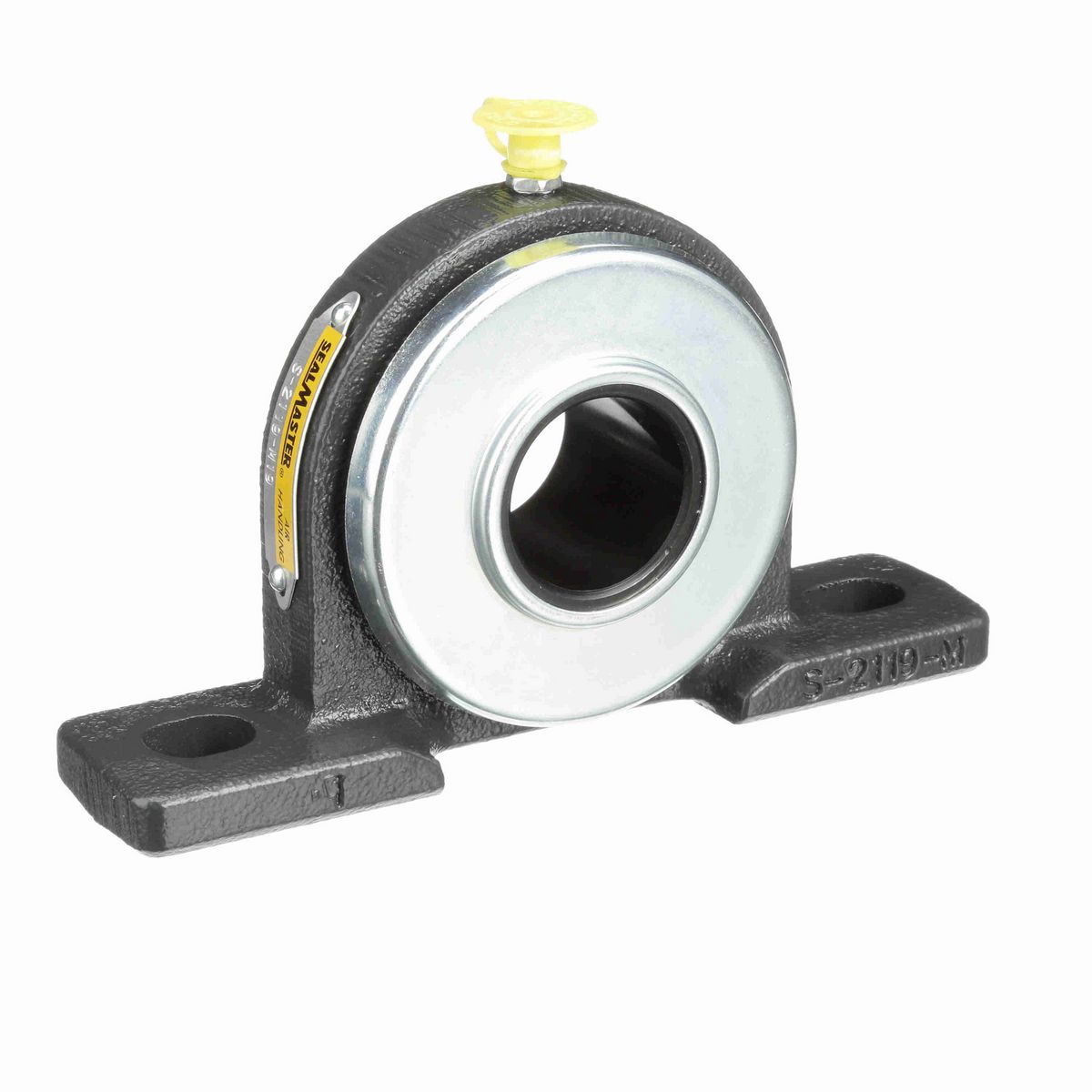

• Custom Sealmaster® mounted bearing assembly with application specific features

Dimensions

Overall Height (in)	3.38 in
Overall Length (in)	6 in
Overall Width (in)	1.5 in
Base Width (in)	1.38 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.1875 in
Foot Height (in)	0.44 in
Base to Center Height (in)	1.6875 in
Length Through Bore (in)	1.497 in
Bolt Spacing (in)	4.63 in
Bolt Spacing Min (in)	4.19 in
Centerline to Outermost Bearing Face (in)	0.875 in
Bolt Spacing Max (in)	5.06 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Special Seal Combination
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Static Load Rating (lb)	2,567 lb
Misalignment Capability	±3.0° Misalignment - Static Only
Shaft Locking Type	Set Screw
Inner Ring Outside Diameter (in)	1.594 in
Vibration Frequency Fundamental Train	0.0066 cps
Vibration Frequency Outer Ring Defect	0.0595 cps
Housing Material	Cast Iron
Cage Type	Land Riding Retainer
Lubricant	Lithium Complex NLGI 2 Grease
Vibration Frequency Roller Spin	0.0385 cps
Housing Coating	Powder Coated
Base Length (in)	6 in
Fixed vs. Expansion	Fixed
Vibration Frequency Inner Ring Defect	0.0905 cps
Bearing Type	Standard Duty
Size Code	2-13
End Cap Available	No
Max Operating Temperature (F)	220 °F
Bearing Insert Material	52100 Bearing Steel
Grease Fitting Thread Size	1/4-28
Bearing Insert Finish	Black Oxide
Radial Clearance	Standard
Maximum Speed (RPM)	2200 rpm
Dynamic Load Rating (lb)	4,381 lb
Insert	2-13V

General Specifications

UPC	662461162637
Weight	2.41 LB
Packaged Length	4.38 IN
Packaged Width	2.06 IN
Packaged Height	6.81 IN
HTC	8483.20.8040
Country of Origin	United States of America
