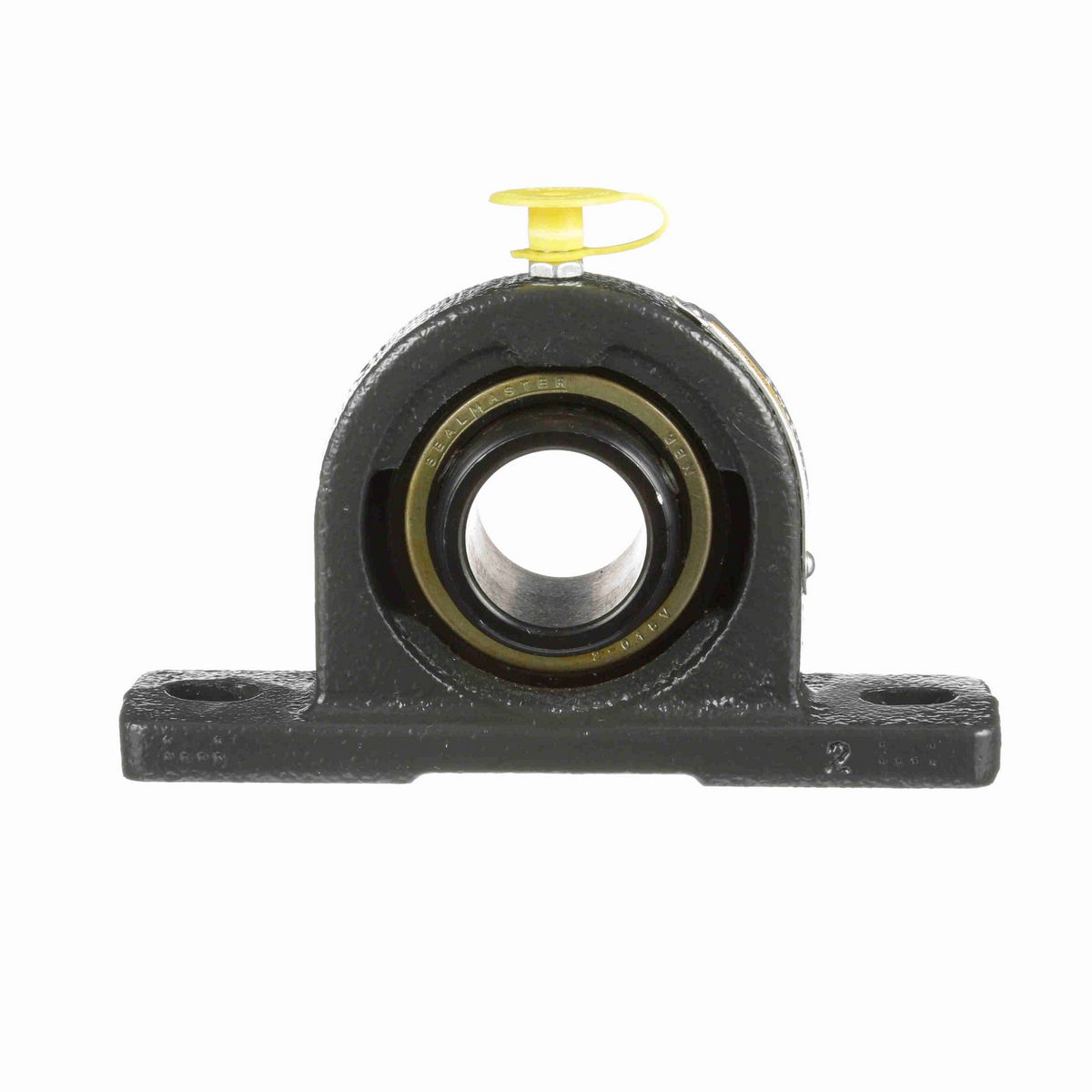

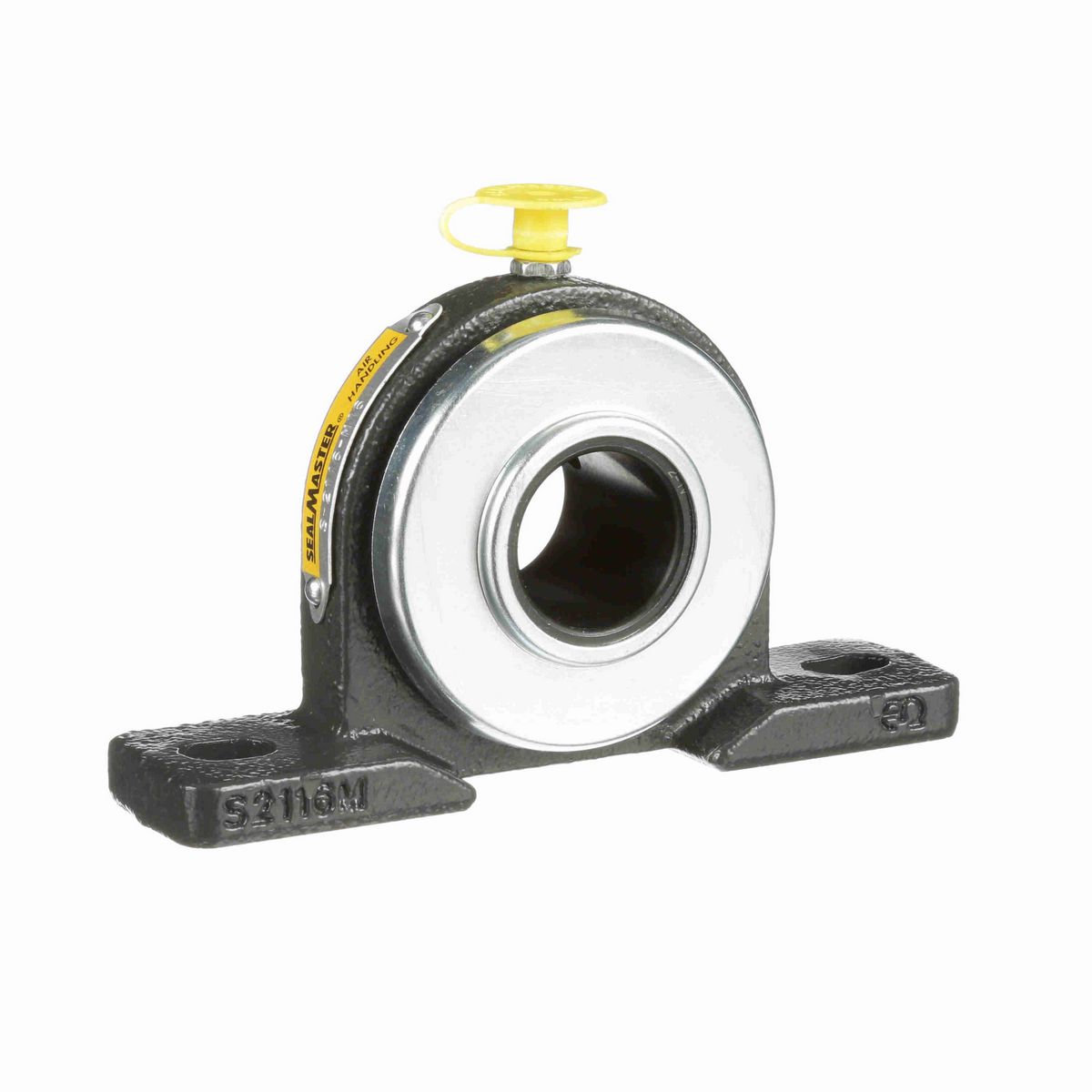

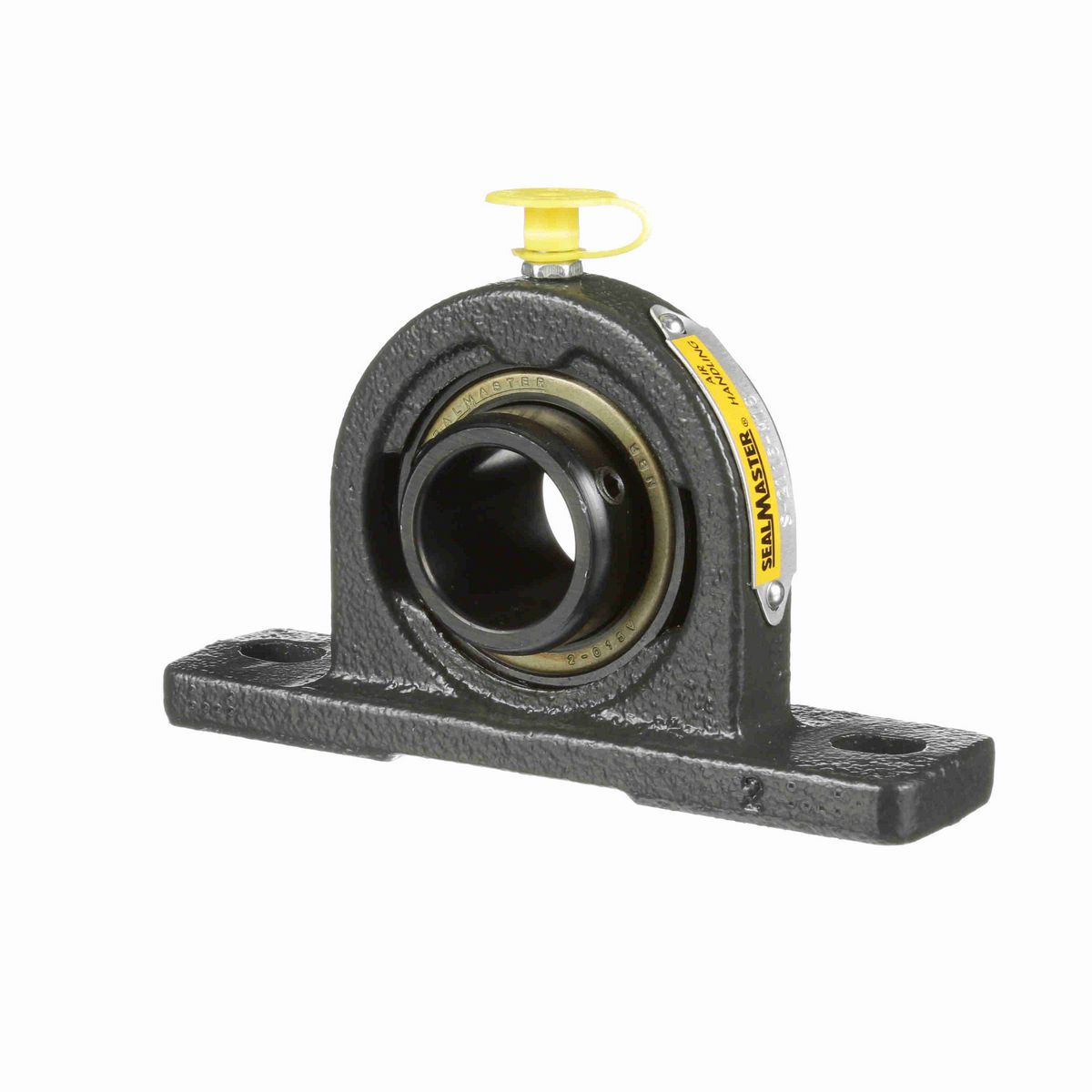

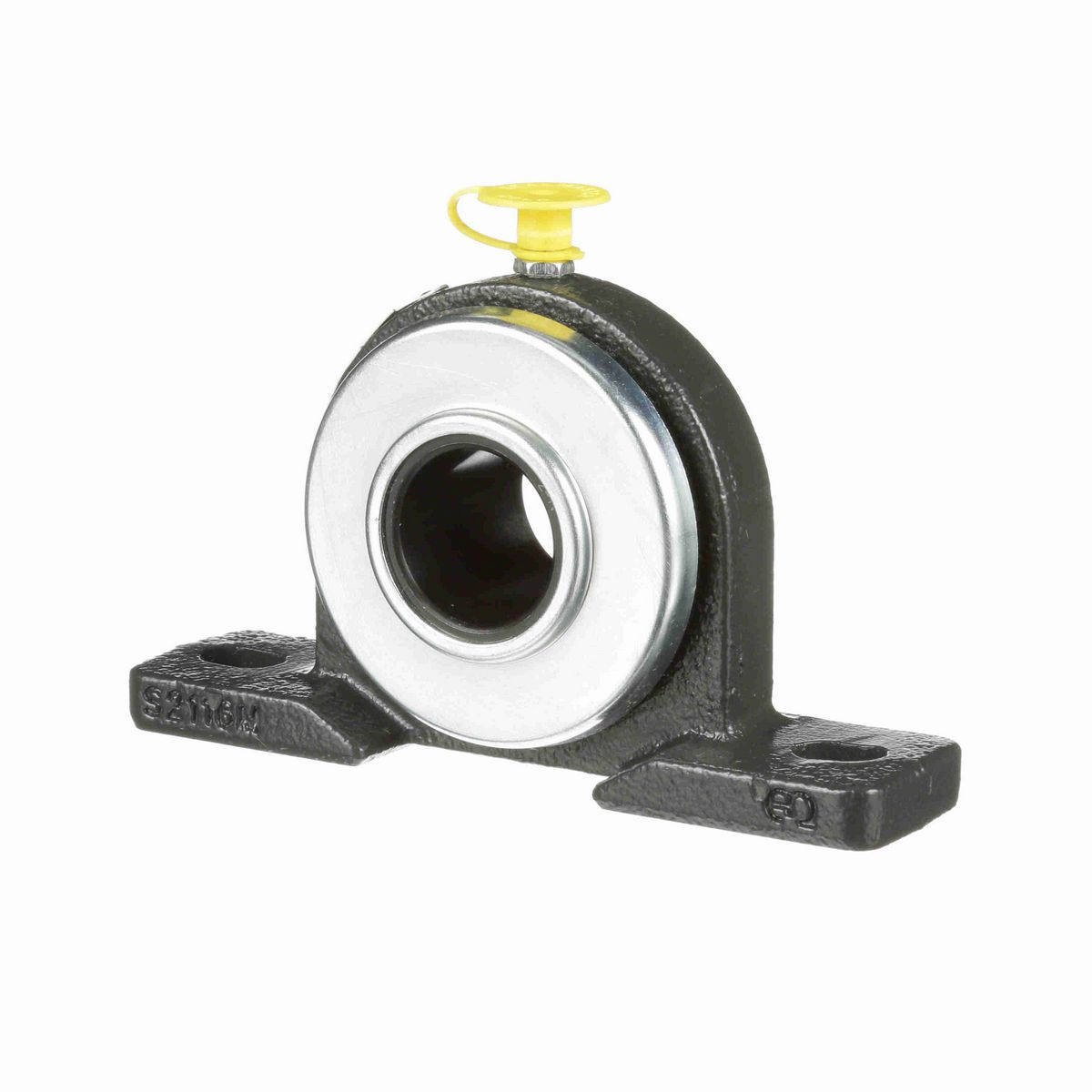

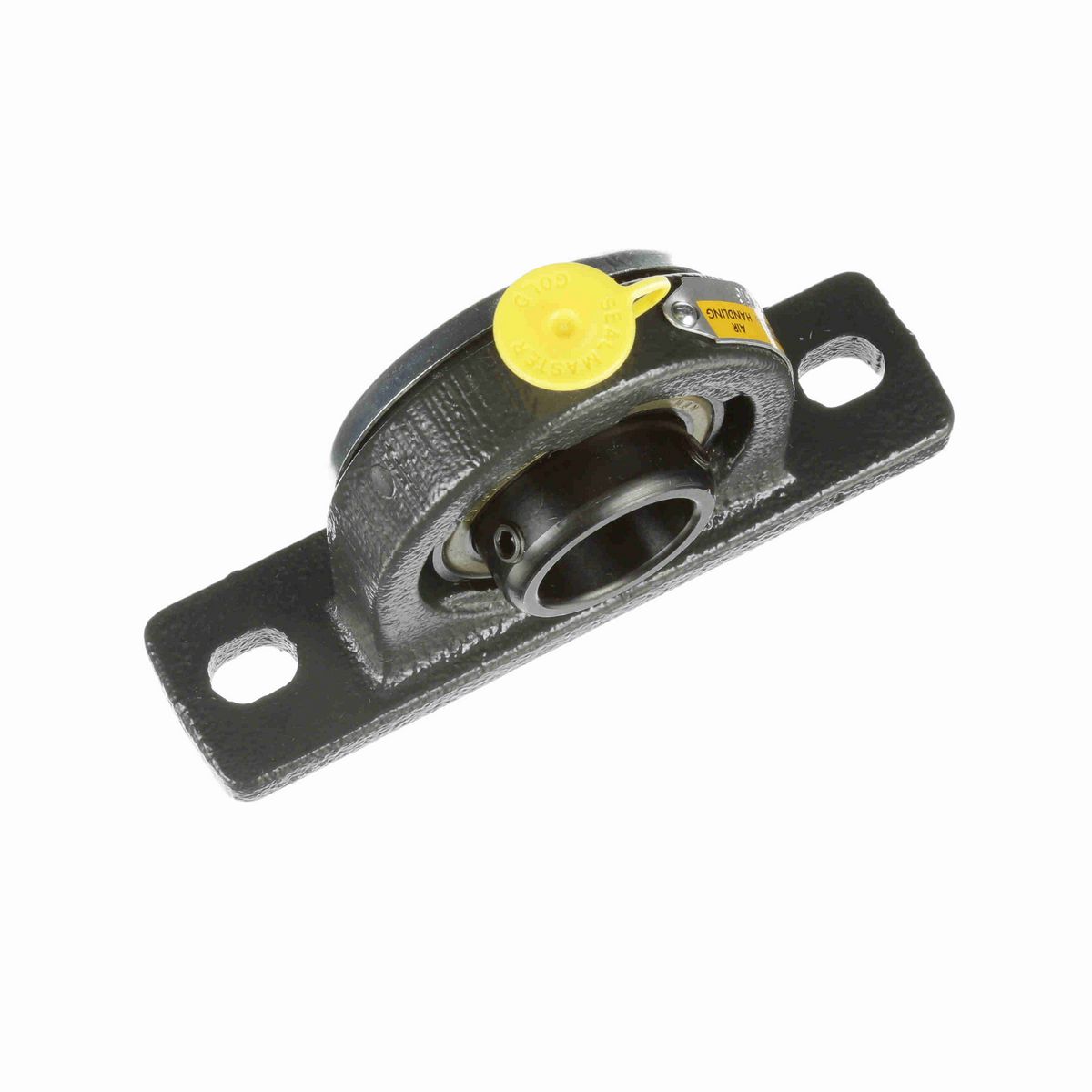

• Custom Sealmaster® mounted bearing assembly with application specific features

Dimensions

Base Width (in)	1.25 in
Overall Width (in)	1.38 in
Overall Height (in)	2.8125 in
Overall Length (in)	5 in
Bolt Size (in)	3/8 in
Bore Diameter (in)	1 in
Base to Center Height (in)	1.5000 in
Foot Height (in)	0.38 in
Length Through Bore (in)	1.373 in
Bolt Spacing (in)	4.00 in
Centerline to Outermost Bearing Face (in)	0.813 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Special Seal Combination
Housing Type	Pillow Block, Two Bolt
Slot Length (in)	0.56 in
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Bearing Type	Standard Duty
Bearing Insert Material	52100 Bearing Steel
Grease Fitting Thread Size	1/4-28
Housing Material	Cast Iron
End Cap Available	No
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Insert Finish	Black Oxide
Fixed vs. Expansion	Fixed
Misalignment Capability	±3.0° Misalignment - Static Only
Shaft Locking Type	Set Screw
Static Load Rating (lb)	1,651 lb
Size Code	2-015
Radial Clearance	Standard
Insert	2-1V
Maximum Speed (RPM)	2500 rpm
Dynamic Load Rating (lb)	2,801 lb
Max Operating Temperature (F)	220 °F
Base Length (in)	5.00 in
Vibration Frequency Roller Spin	0.0442 cps
Vibration Frequency Fundamental Train	0.0068 cps
Housing Coating	Powder Coated
Inner Ring Outside Diameter (in)	1.375 in
Cage Type	Land Riding Retainer
Vibration Frequency Outer Ring Defect	0.0682 cps
Vibration Frequency Inner Ring Defect	0.0985 cps

General Specifications

UPC	662461162606
Weight	1.52 LB
Packaged Length	3.50 IN
Packaged Width	1.69 IN
Packaged Height	5.75 IN
HTC	8483.20.8040
Country of Origin	United States of America
