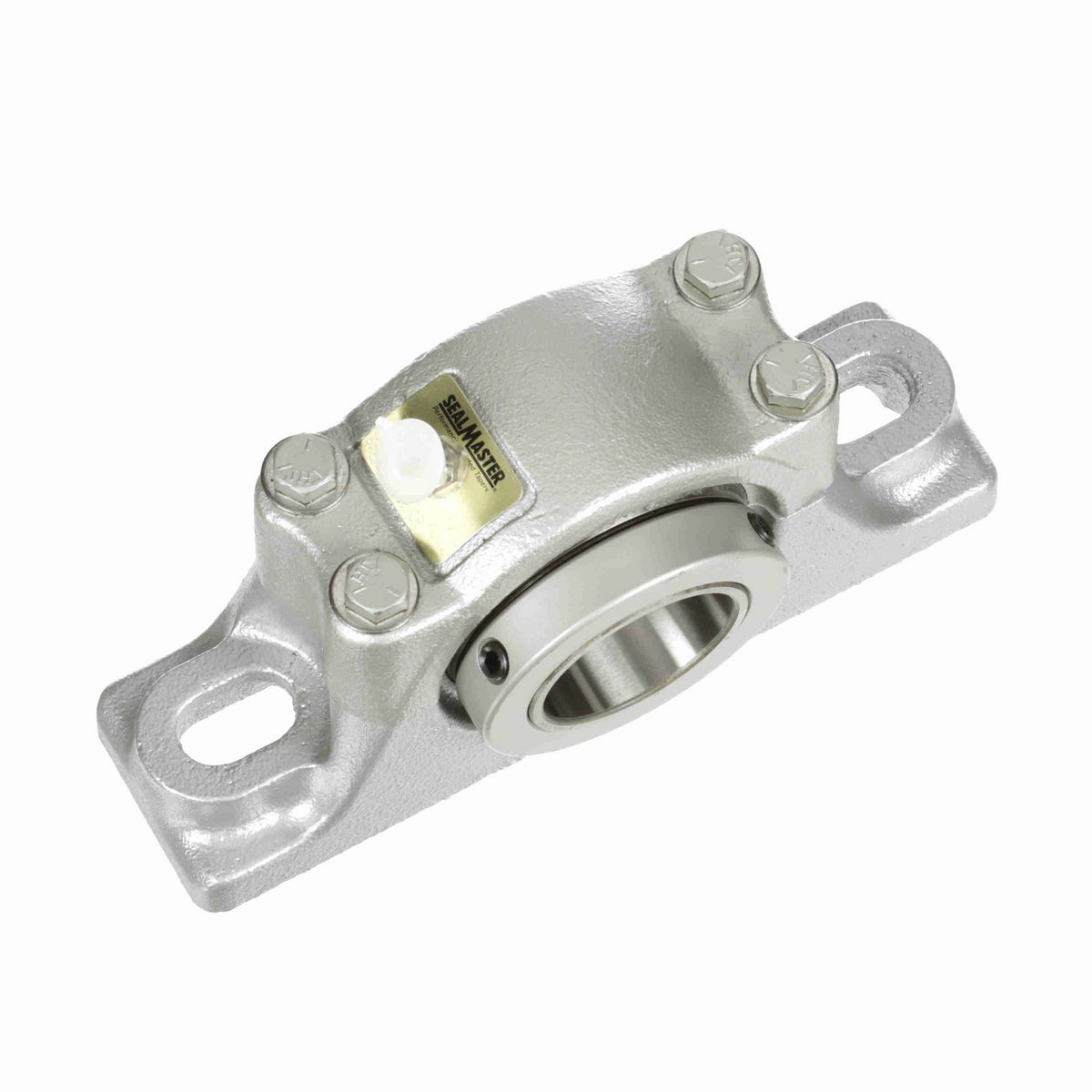

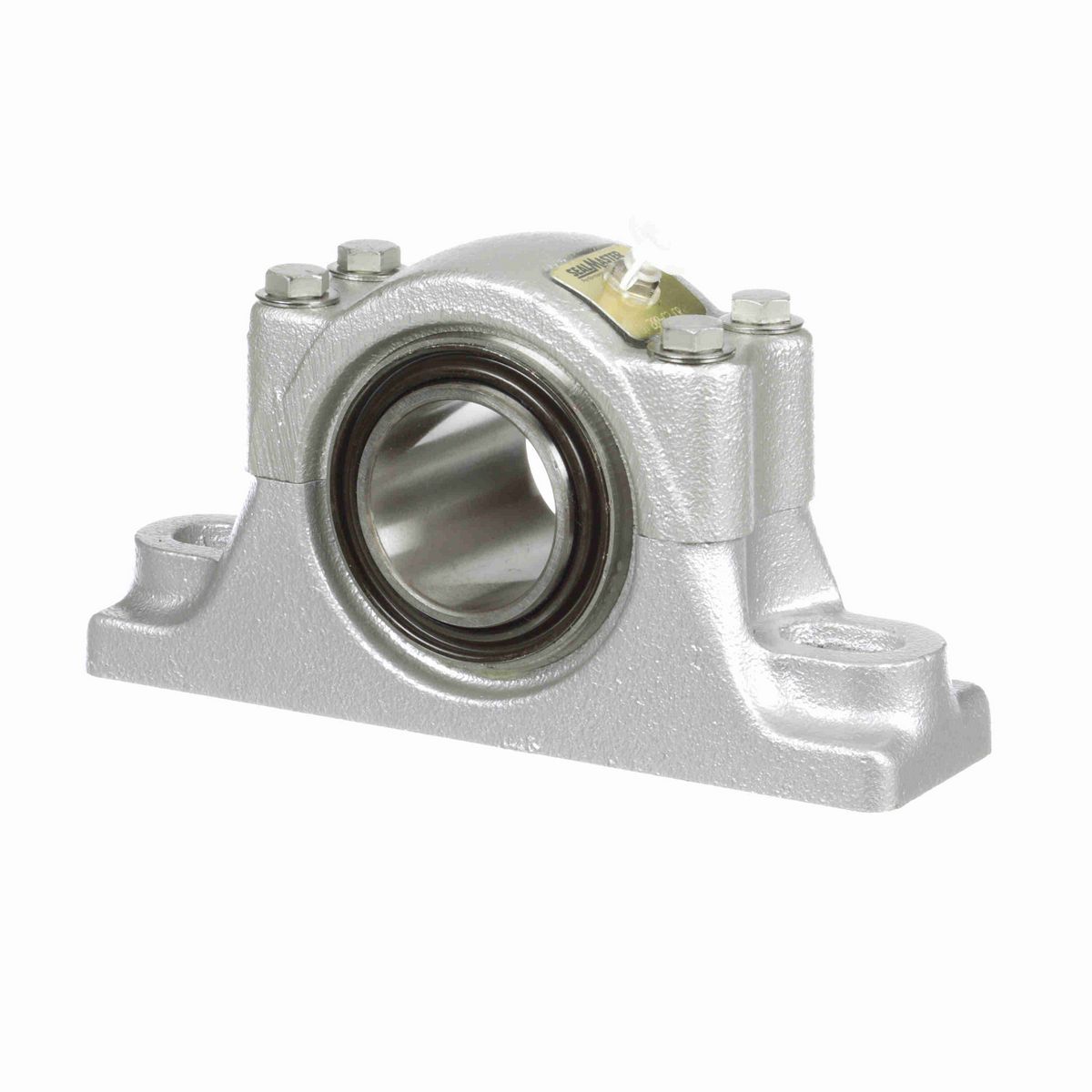

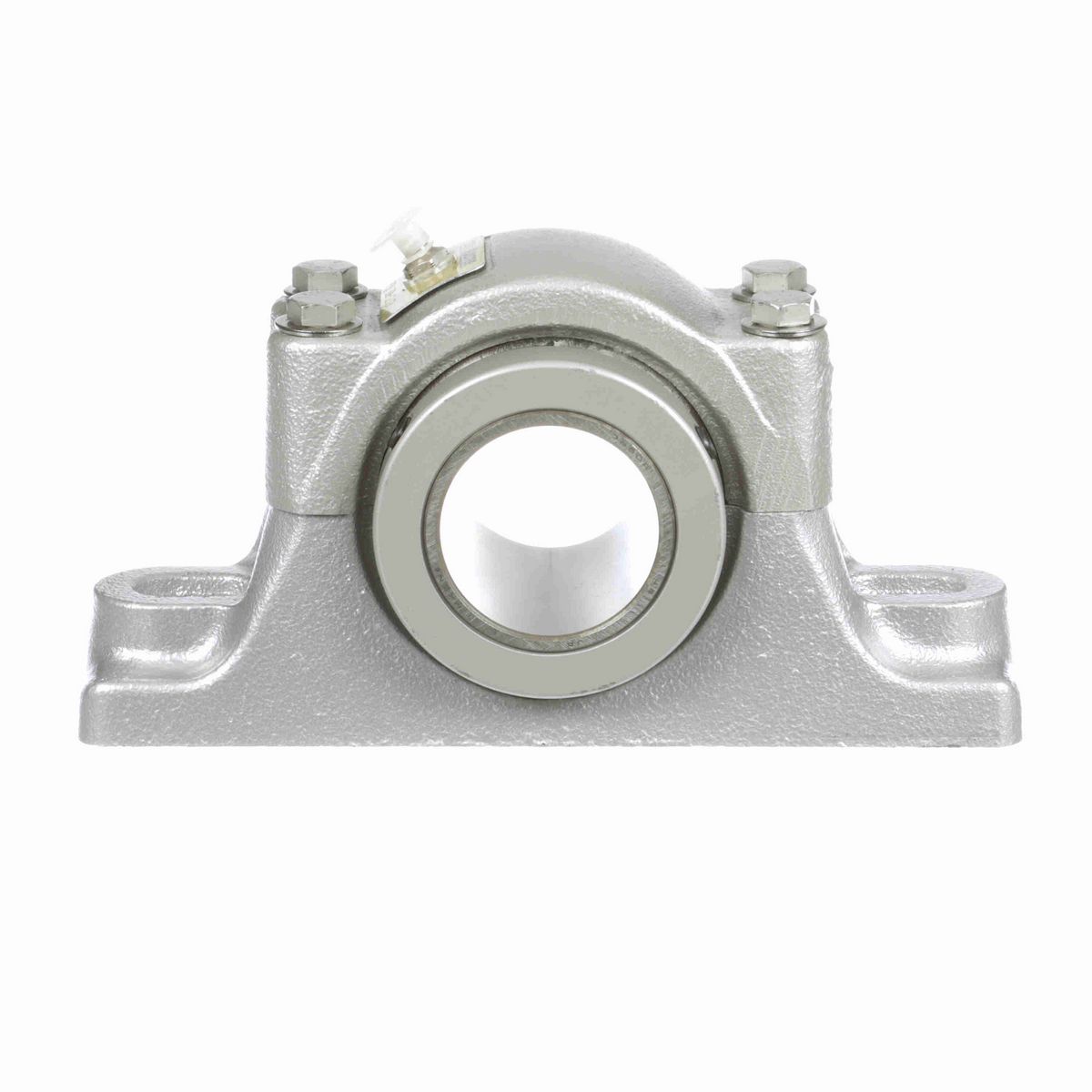

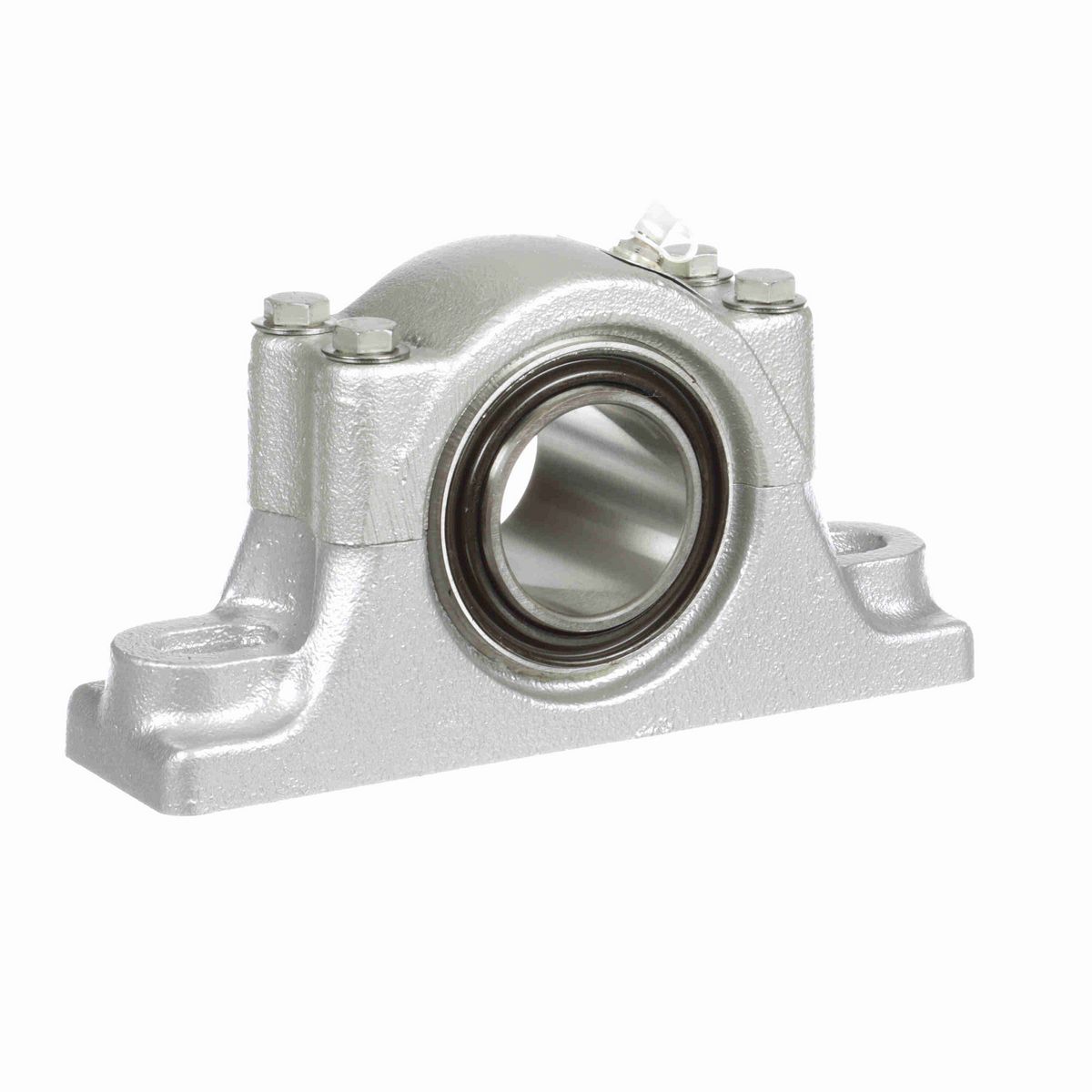

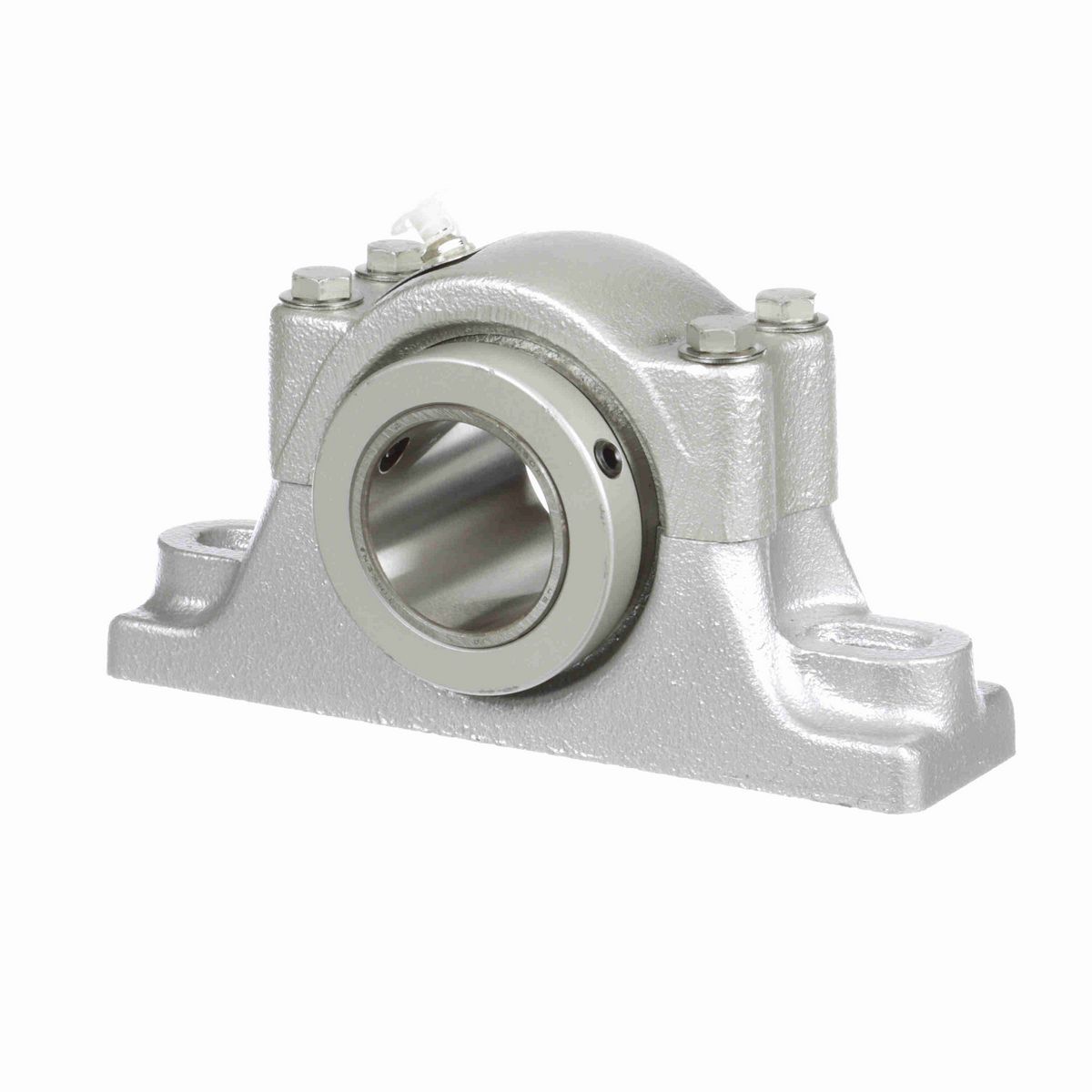

• Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
• Race-mounted contact flinger seal
• Single-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
• Fluoropolymer-coated 2-bolt split cast iron housing for improved corrosion resistance
• USDA H-1 approved Food-grade grease

Dimensions

Overall Height (in)	4.625 in
Base Width (in)	2.438 in
Overall Length (in)	8.875 in
Bolt Size (in)	0.625 in
Overall Width (in)	2.95 in
Bore Size (in)	2 in
Centerline to Front Face (in)	1.203 in
Inner Race Length (in)	2.953 in
Foot Height (in)	1.25 in
Bolt Center Max (in)	7.188 in
Base to Center Height (in)	2.25 in
Bolt Center Min (in)	6.313 in
Collar Outer Diameter (in)	3.25 in

Technical Specifications

Rolling Element	Tapered Roller
Measure Units	Inch
Seal Type	Single Lip Contact Seal
Housing Material	Flouropolymer Coated Cast Iron
Housing Type	Pillow Block, Two Bolt
Housing Base	Solid
Insert Material	52100 Bearing Steel
Expansion	No
Housing Construction	Split Two Piece
Locking Type	Collar Mount
Bore Shape	Straight
Radial Dynamic Load Capacity (lb)	8,070 lb
Internal Clearance	Standard
Speed (Max)	2500
Misalignment	±3.0° Misalignment - Static Only
Bearing Insert Coating	Uncoated
Housing Color	Silver/Gray
Outer Ring Land Profile	Standard
Replaceable Insert	Yes
Options	Corrosion Resistant
End Cap	No
Retainer Material	Steel
Misalignment Type	Static Only
Platform	CR Series
Series	RPBA
Grease Fitting Thread Size	1/8 NPT
Duty/Series	Standard
Inner Race Heat Treat Method	Case Carburized Inner Ring
Maximum Operating Temperature (F)	220 °F
Ability to Relubricate	Yes
Insert Number	RCIA-200C FG1
Housing Style	Pillow Block
Lubrication Type	Lithium; EP; NLGI#2

General Specifications

UPC	662461288733
Weight	13.20 LB
Packaged Length	10.50 IN
Packaged Width	5.88 IN
Packaged Height	4.13 IN
HTC	8483.20.8080
Country of Origin	United States of America
