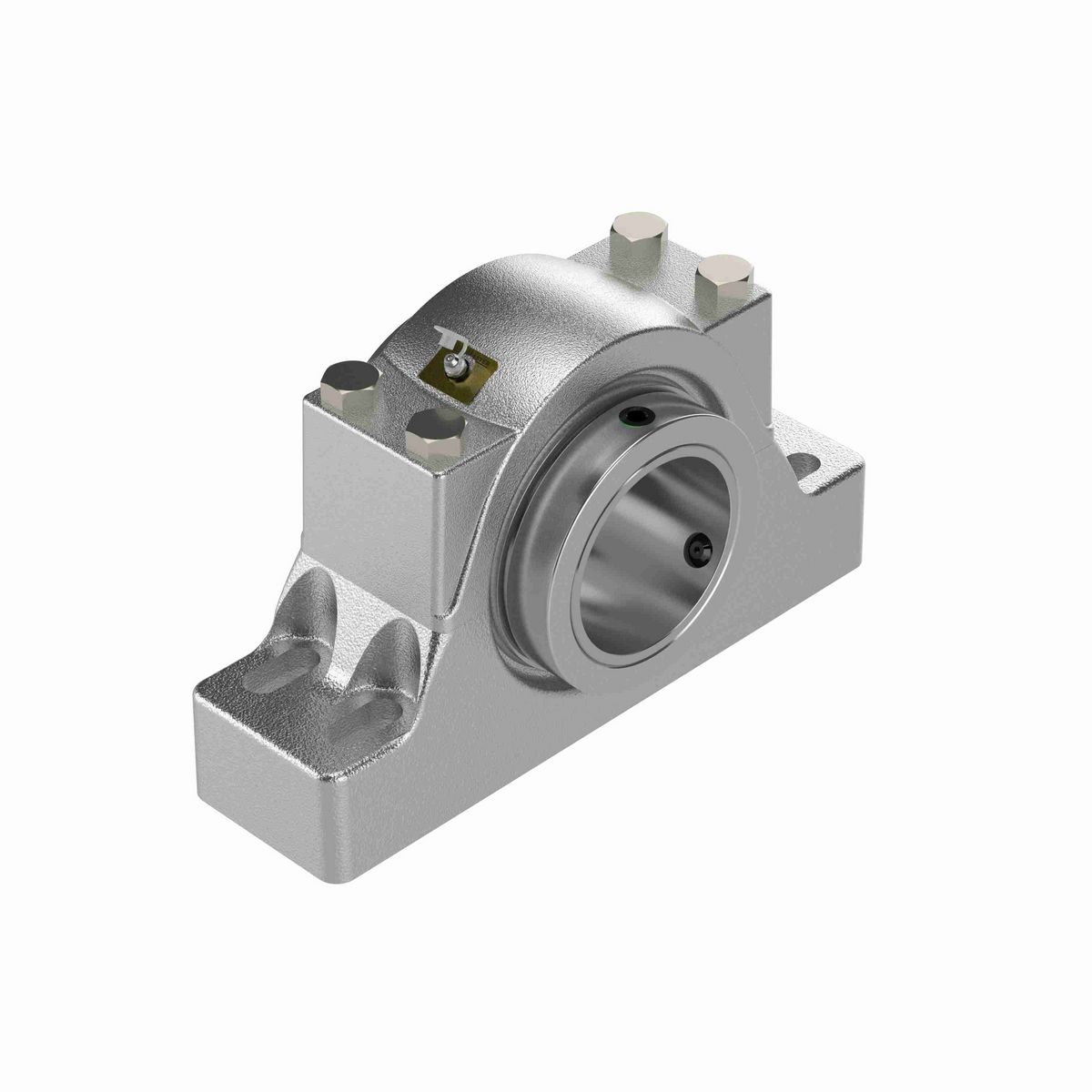

• Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
• Race-mounted contact flinger seal
• Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
• Fluoropolymer-coated 4-bolt split cast iron housing for improved corrosion resistance
• USDA H-1 approved Food-grade grease

Dimensions

Overall Length (in)	18.5 in
Overall Width (in)	7.25 in
Bolt Size (in)	0.875 in
Base Width (in)	5.125 in
Overall Height (in)	11 in
Bore Size (in)	5 in
Inner Race Length (in)	7.25 in
Base to Center Height (in)	5.5 in
Bolt Center Max (in)	15.875 in
Bolt Center Min (in)	13.5 in
Centerline to Front Face (in)	3.625 in
Foot Height (in)	3.125 in
Collar Outer Diameter (in)	7.313 in

Technical Specifications

Insert Material	52100 Bearing Steel
Housing Type	Pillow Block, Four Bolt
Housing Base	Solid
Seal Type	Single Lip Contact Seal
Measure Units	Inch
Expansion	No
Rolling Element	Tapered Roller
Housing Material	Flouropolymer Coated Cast Iron
Misalignment	±3.0° Misalignment - Static Only
Housing Construction	Split Two Piece
Internal Clearance	Standard
Speed (Max)	1000
Radial Dynamic Load Capacity (lb)	35,520 lb
Locking Type	Double Collar Mount
Bore Shape	Straight
Retainer Material	Steel
Misalignment Type	Static Only
Replaceable Insert	Yes
Outer Ring Land Profile	Standard
Platform	CR Series
Bearing Insert Coating	Uncoated
Housing Color	Silver/Gray
Options	Corrosion Resistant
End Cap	No
Series	RPB
Grease Fitting Thread Size	1/8 NPT
Duty/Series	Standard
Maximum Operating Temperature (F)	220 °F
Inner Race Heat Treat Method	Case Carburized Inner Ring
Lubrication Type	Lithium; EP; NLGI#2
Ability to Relubricate	Yes
Housing Style	Pillow Block
Insert Number	RCI-500C FG1

General Specifications

UPC	662288745631
Weight	143.60 LB
Packaged Length	18.75 IN
Packaged Width	7.50 IN
Packaged Height	11.00 IN
HTC	8483.20.8080
Country of Origin	United States of America
