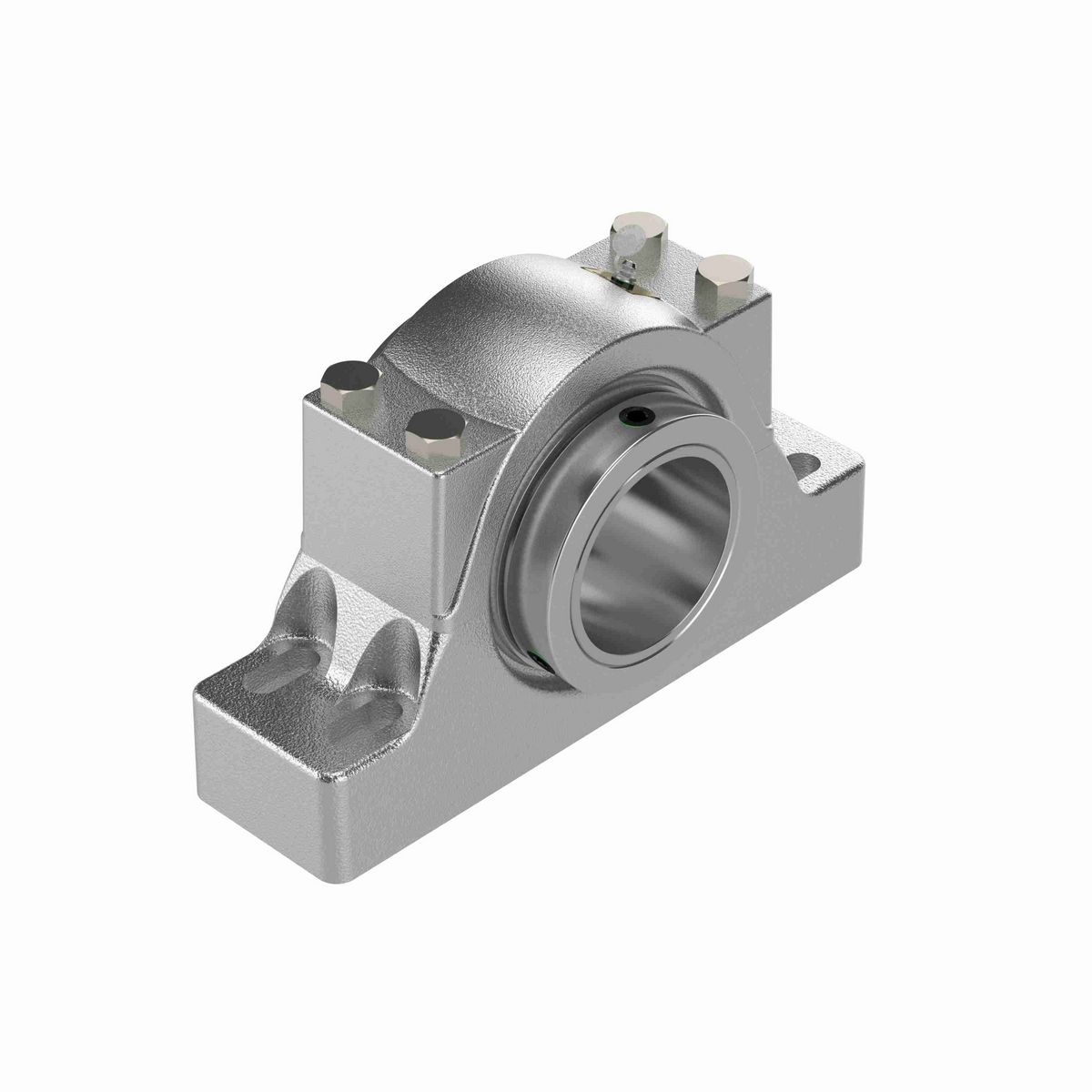

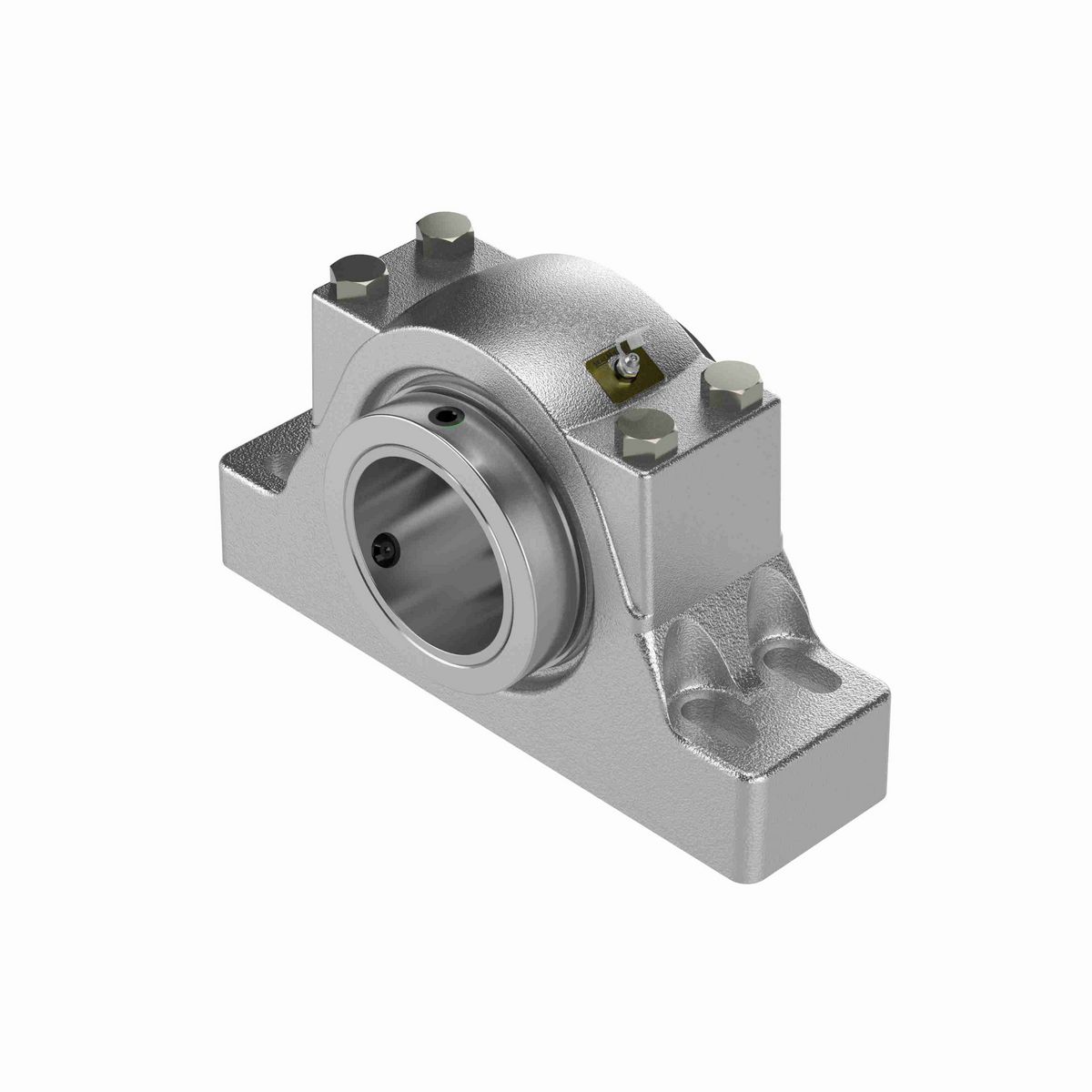

• Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
• Race-mounted contact flinger seal
• Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
• Fluoropolymer-coated 4-bolt split cast iron housing for improved corrosion resistance
• USDA H-1 approved Food-grade grease

Dimensions

Overall Length (in)	16.5 in
Overall Height (in)	9.625 in
Overall Width (in)	6.75 in
Bolt Size (in)	0.75 in
Base Width (in)	4.625 in
Bolt Center-to-Center Length (in)	12.815 in
Bore Size (in)	4.4375 in
Bolt Center Max (in)	13.875 in
Inner Race Length (in)	6.75 in
Bolt Center Min (in)	11.75 in
Foot Height (in)	2.75 in
Centerline to Front Face (in)	3.375 in
Base to Center Height (in)	4.75 in
Collar Outer Diameter (in)	6.5 in

Technical Specifications

Seal Type	Single Lip Contact Seal
Measure Units	Inch
Housing Type	Pillow Block, Four Bolt
Expansion	No
Rolling Element	Tapered Roller
Housing Material	Flouropolymer Coated Cast Iron
Housing Base	Solid
Insert Material	52100 Bearing Steel
Locking Type	Double Collar Mount
Bore Shape	Straight
Speed (Max)	1250
Radial Dynamic Load Capacity (lb)	25,750 lb
Housing Construction	Split Two Piece
Misalignment	±3.0° Misalignment - Static Only
Internal Clearance	Standard
Replaceable Insert	Yes
Platform	CR Series
Housing Color	Silver/Gray
End Cap	No
Bearing Insert Coating	Uncoated
Options	Corrosion Resistant
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Retainer Material	Steel
Series	RPB
Grease Fitting Thread Size	1/8 NPT
Inner Race Heat Treat Method	Case Carburized Inner Ring
Lubrication Type	Lithium; EP; NLGI#2
Maximum Operating Temperature (F)	220 °F
Ability to Relubricate	Yes
Housing Style	Pillow Block
Duty/Series	Standard
Insert Number	RCI-407C FG1

General Specifications

UPC	662288745624
Weight	95.60 LB
Packaged Length	16.50 IN
Packaged Width	6.75 IN
Packaged Height	9.63 IN
HTC	8483.20.8080
Country of Origin	United States of America
