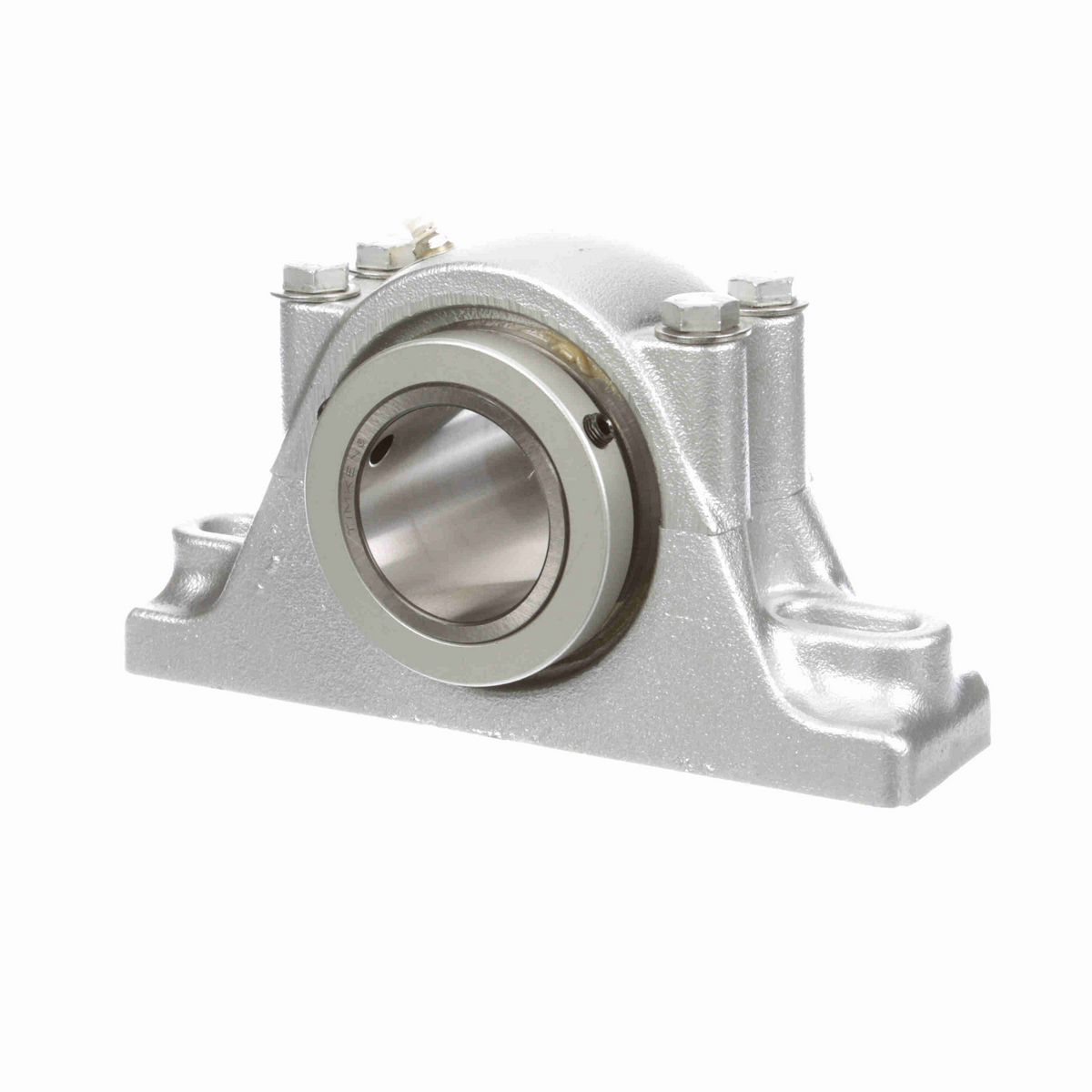

• Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
• Race-mounted contact flinger seal
• Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
• Fluoropolymer-coated 2-bolt split cast iron housing for improved corrosion resistance
• USDA H-1 approved Food-grade grease

Dimensions

Overall Length (in)	11.75 in
Overall Width (in)	4.5 in
Base Width (in)	3 in
Bolt Size (in)	0.75 in
Overall Height (in)	6.375 in
Bore Size (in)	2.9375 in
Inner Race Length (in)	4.5 in
Centerline to Front Face (in)	2.25 in
Bolt Center Max (in)	9.688 in
Foot Height (in)	1.75 in
Base to Center Height (in)	3.125 in
Bolt Center Min (in)	8.063 in
Collar Outer Diameter (in)	4.719 in

Technical Specifications

Housing Type	Pillow Block, Two Bolt
Housing Base	Solid
Seal Type	Single Lip Contact Seal
Expansion	No
Measure Units	Inch
Housing Material	Flouropolymer Coated Cast Iron
Rolling Element	Tapered Roller
Insert Material	52100 Bearing Steel
Housing Construction	Split Two Piece
Bore Shape	Straight
Locking Type	Double Collar Mount
Speed (Max)	1750
Misalignment	±3.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	9,630 lb
Internal Clearance	Standard
Bearing Insert Coating	Uncoated
Outer Ring Land Profile	Standard
Housing Color	Silver/Gray
Options	Corrosion Resistant
Misalignment Type	Static Only
End Cap	No
Replaceable Insert	Yes
Platform	CR Series
Retainer Material	Steel
Series	RPB
Grease Fitting Thread Size	1/8 NPT
Duty/Series	Standard
Inner Race Heat Treat Method	Case Carburized Inner Ring
Lubrication Type	Lithium; EP; NLGI#2
Housing Style	Pillow Block
Insert Number	RCI-215C FG1
Maximum Operating Temperature (F)	220 °F
Ability to Relubricate	Yes

General Specifications

UPC	662461298190
Weight	29.30 LB
Packaged Length	12.13 IN
Packaged Width	6.75 IN
Packaged Height	4.63 IN
HTC	8483.20.8080
Country of Origin	United States of America
