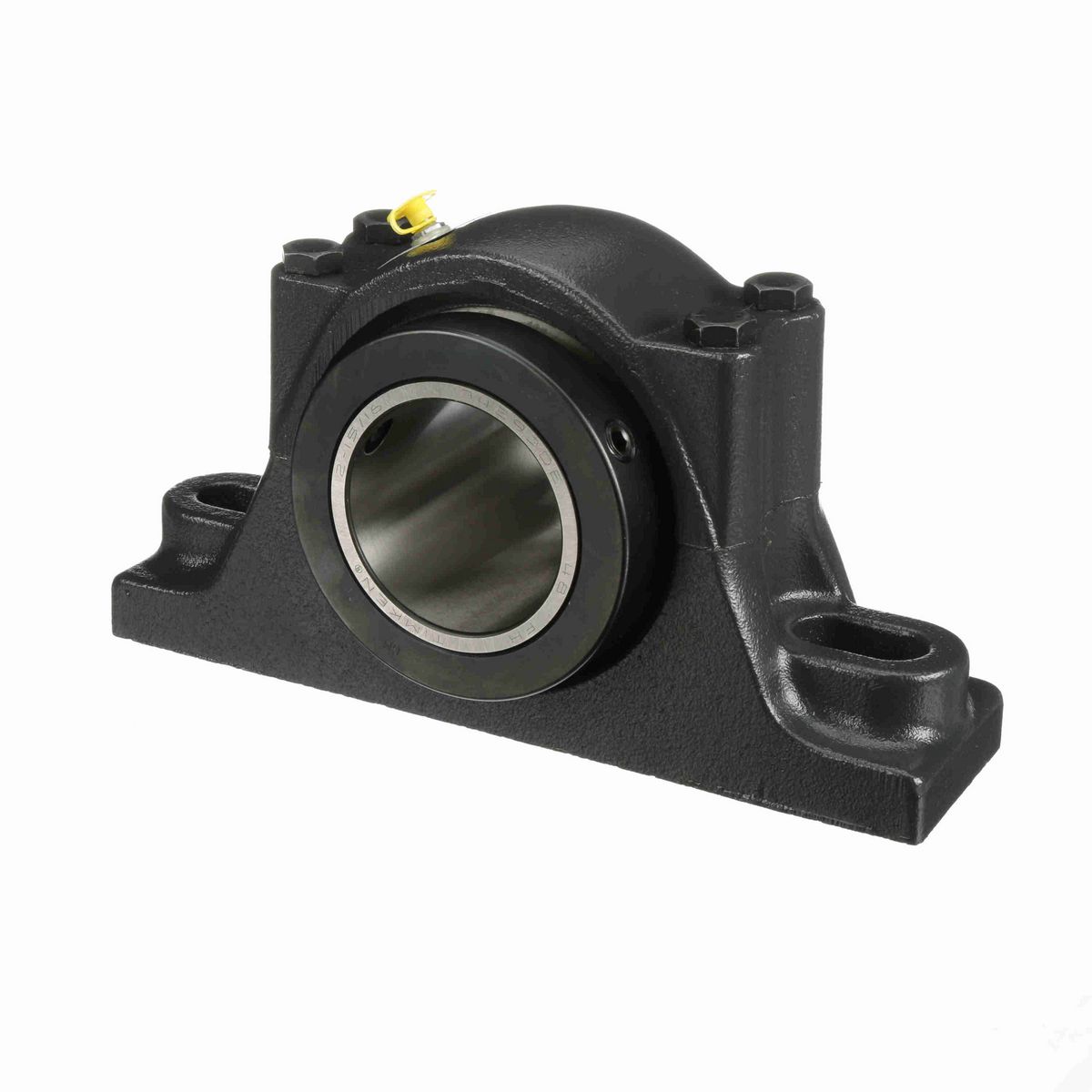

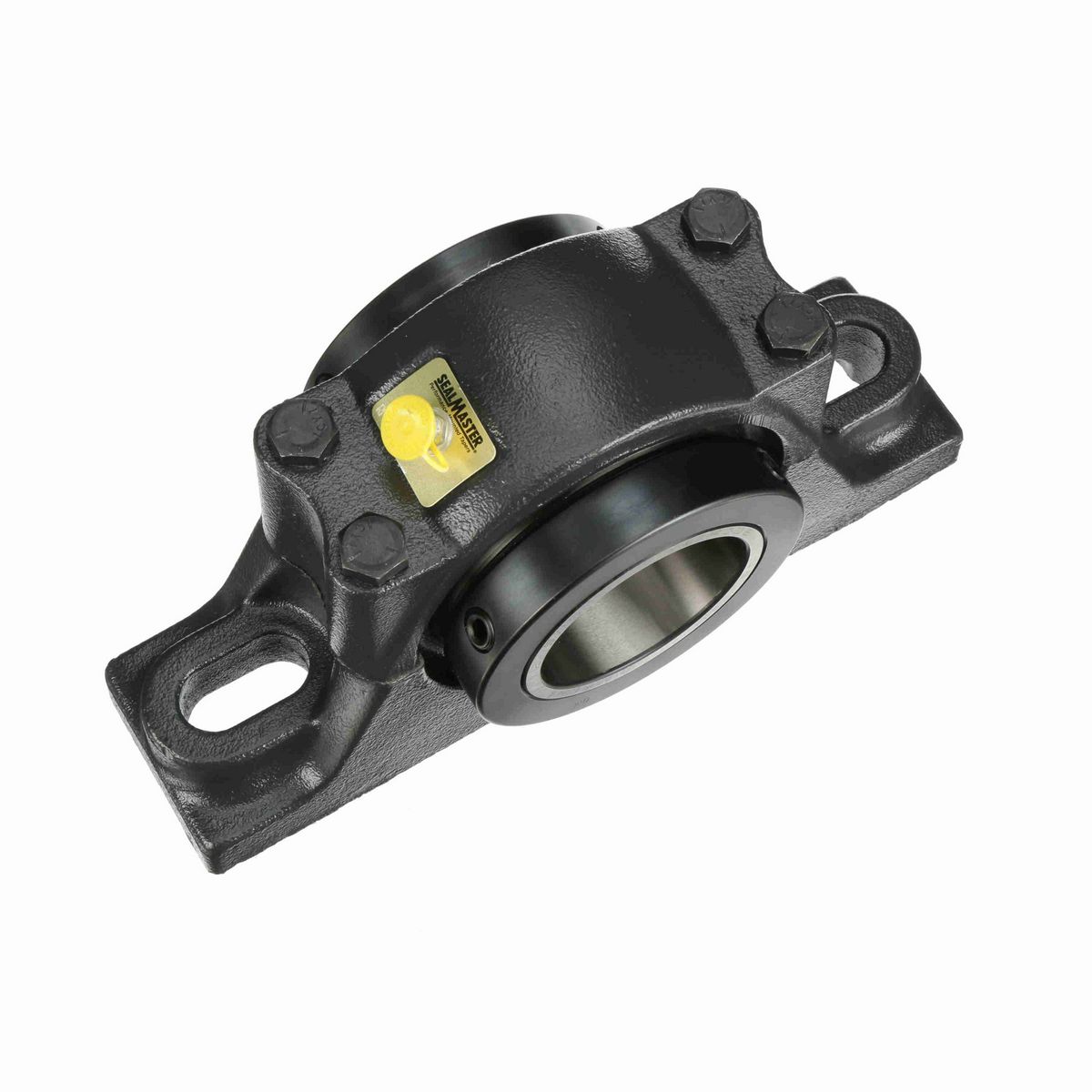

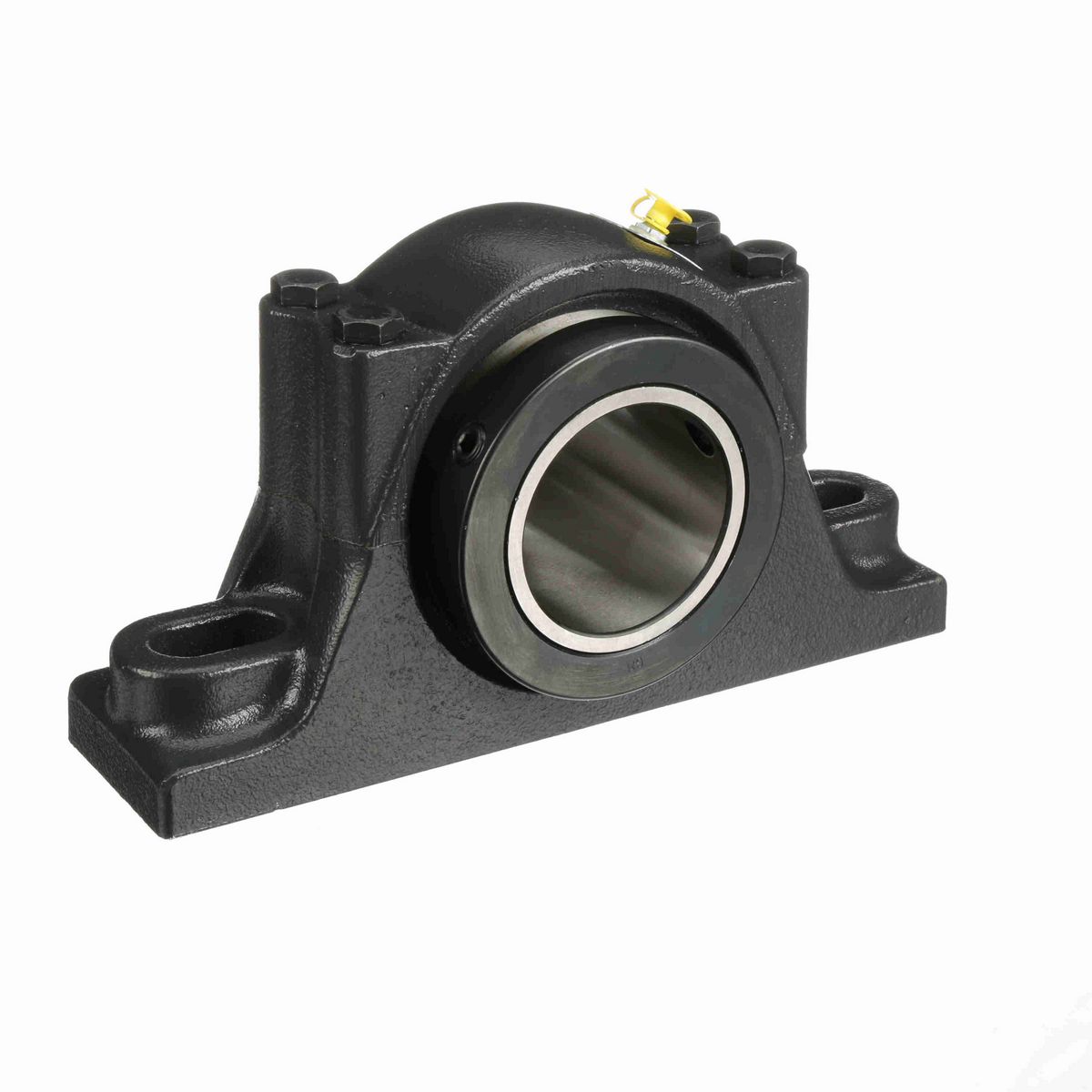

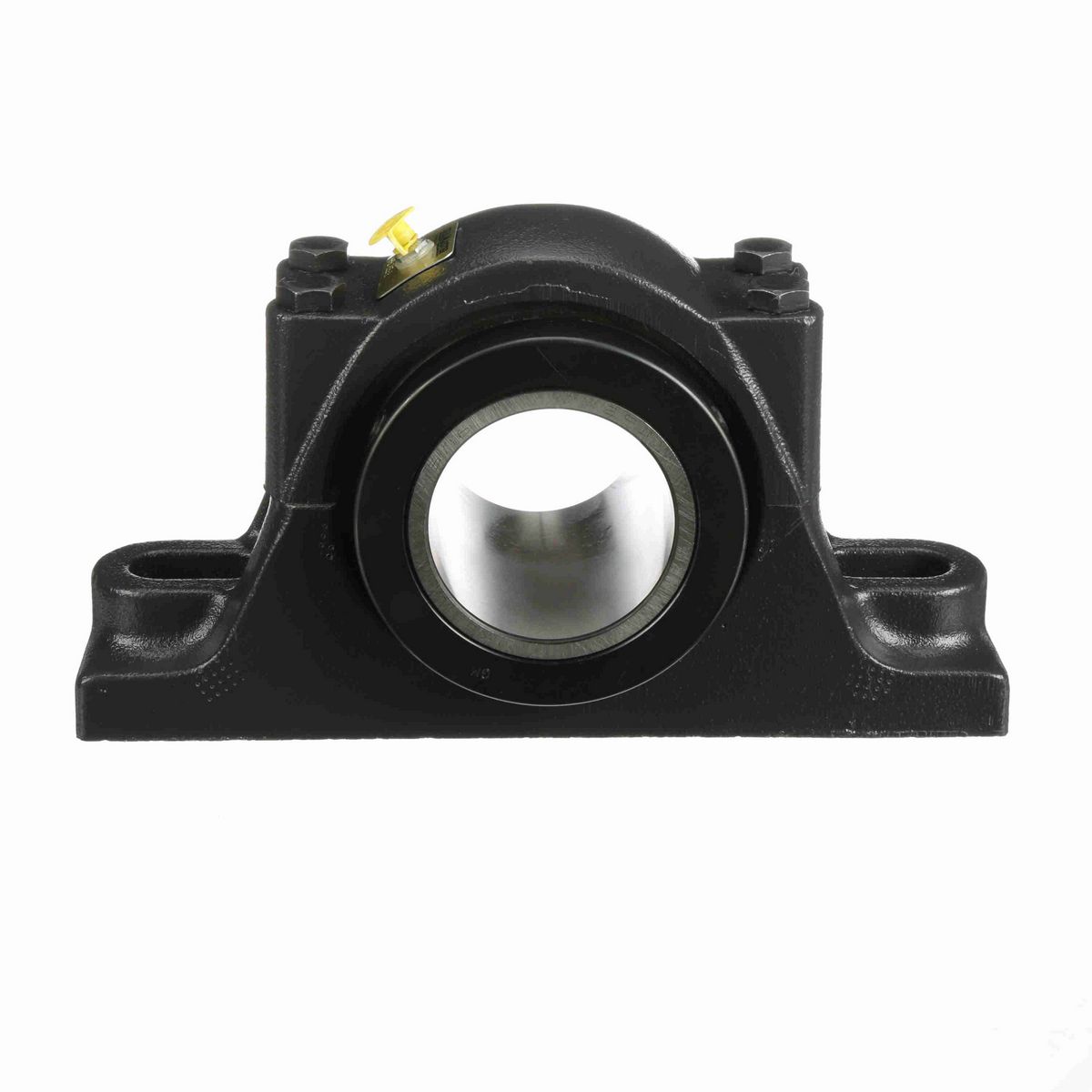

• Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
• Race-mounted felt-lined flinger seal
• Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
• Powder coat epoxy 2-bolt split cast iron housing

Dimensions

Overall Width (in)	4.5 in
Overall Length (in)	11.75 in
Base Width (in)	3 in
Bolt Size (in)	0.75 in
Overall Height (in)	6.375 in
Bore Size (in)	2.9375 in
Foot Height (in)	1.75 in
Bolt Center Max (in)	9.688 in
Inner Race Length (in)	4.5 in
Centerline to Front Face (in)	2.25 in
Bolt Center Min (in)	8.063 in
Base to Center Height (in)	3.125 in
Collar Outer Diameter (in)	4.719 in

Technical Specifications

Housing Type	Pillow Block, Two Bolt
Housing Base	Solid
Seal Type	Felt Labyrinth Seal
Insert Material	52100 Bearing Steel
Housing Material	Cast Iron
Expansion	No
Rolling Element	Tapered Roller
Measure Units	Inch
Housing Construction	Split Two Piece
Speed (Max)	1750
Internal Clearance	Standard
Bore Shape	Straight
Locking Type	Double Collar Mount
Misalignment	±3.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	9,630 lb
Housing Color	Gray
Replaceable Insert	Yes
Misalignment Type	Static Only
Platform	RPB Series
Retainer Material	Steel
Outer Ring Land Profile	Standard
End Cap	No
Bearing Insert Coating	Uncoated
Series	RPB
Grease Fitting Thread Size	1/8 NPT
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Case Carburized Inner Ring
Maximum Operating Temperature (F)	220 °F
Duty/Series	Standard
Insert Number	RCI-215
Lubrication Type	Lithium; EP; NLGI#2
Housing Style	Pillow Block

General Specifications

UPC	662288480075
Weight	29.30 LB
Packaged Length	12.13 IN
Packaged Width	6.75 IN
Packaged Height	4.63 IN
HTC	8483.20.8080
Country of Origin	United States of America
