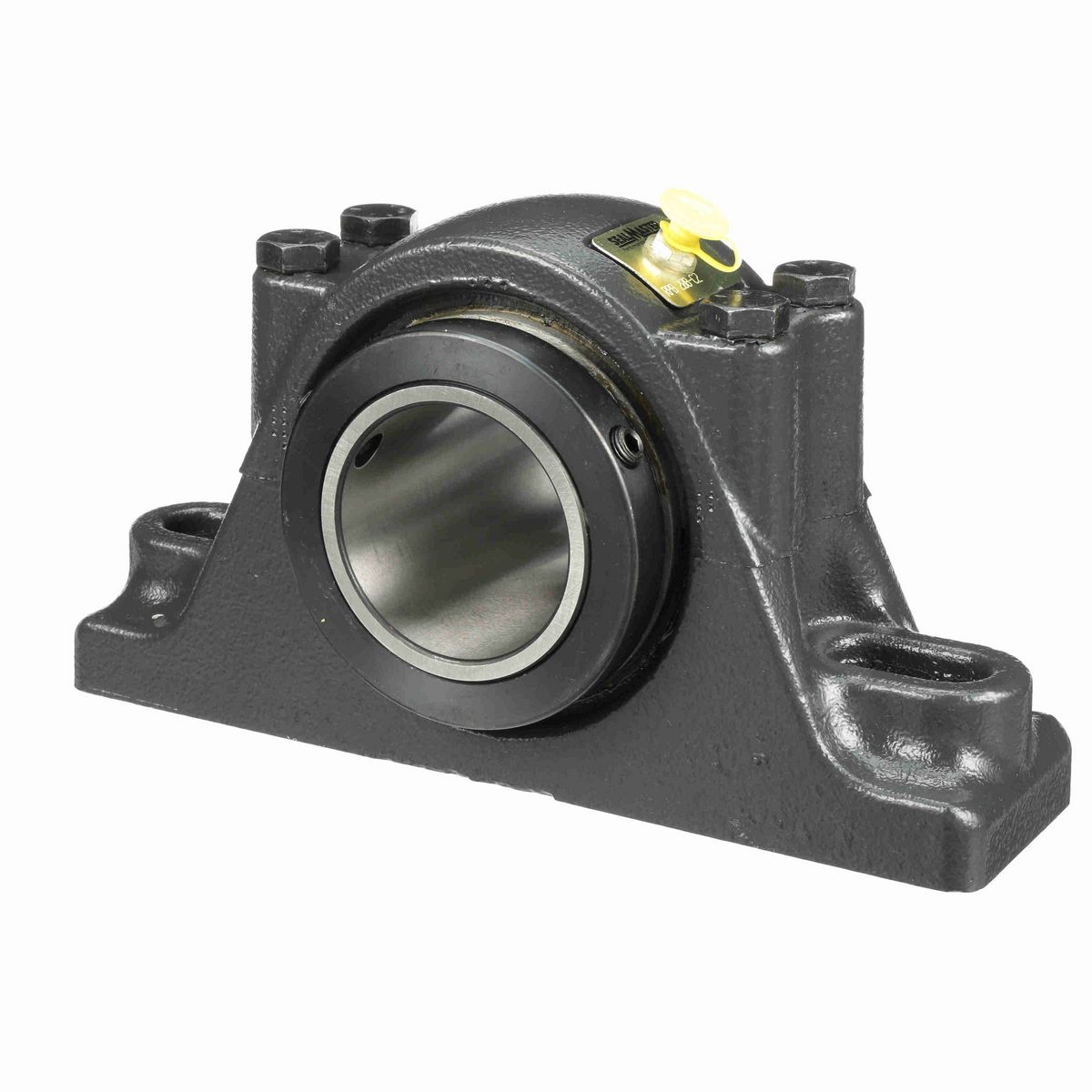

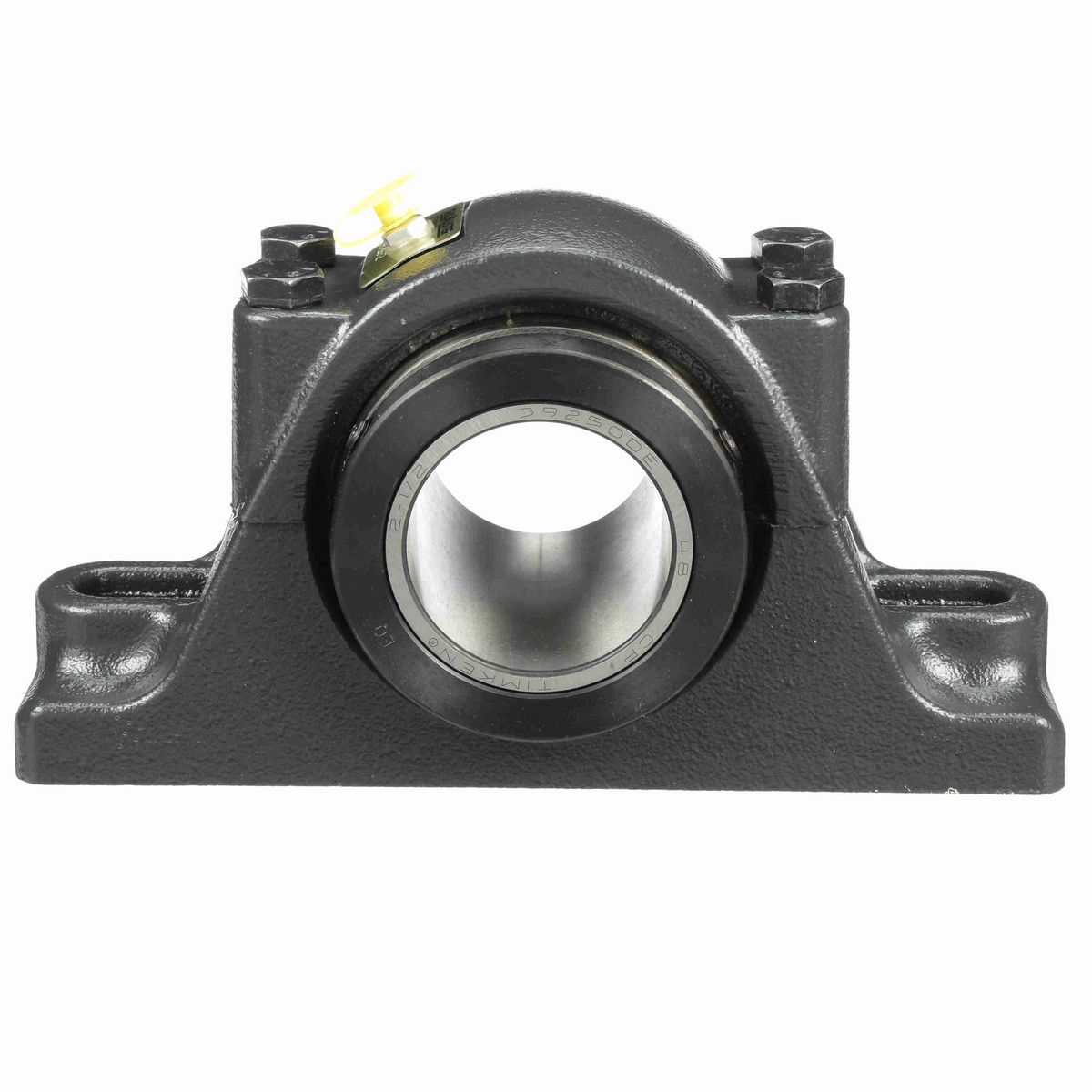

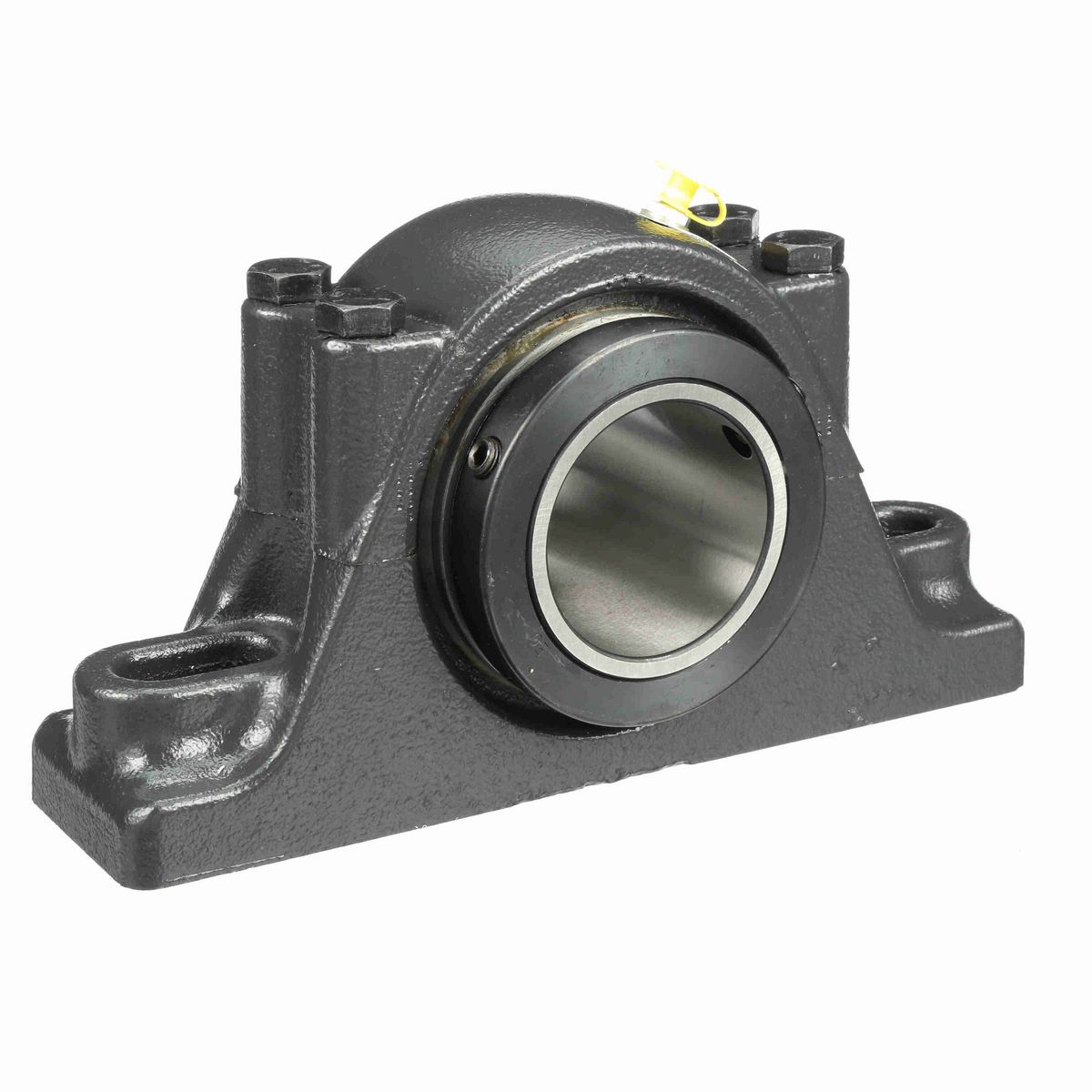

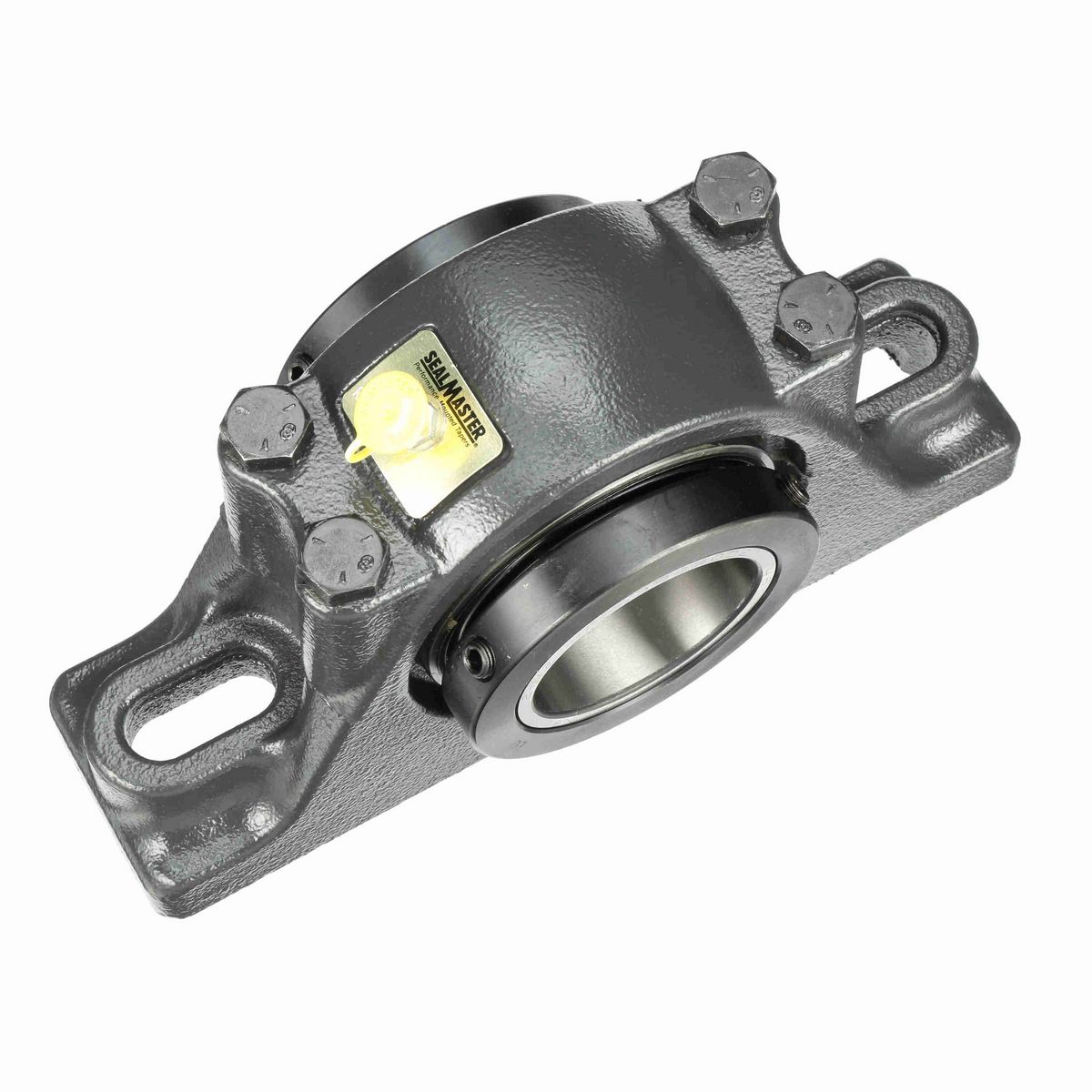

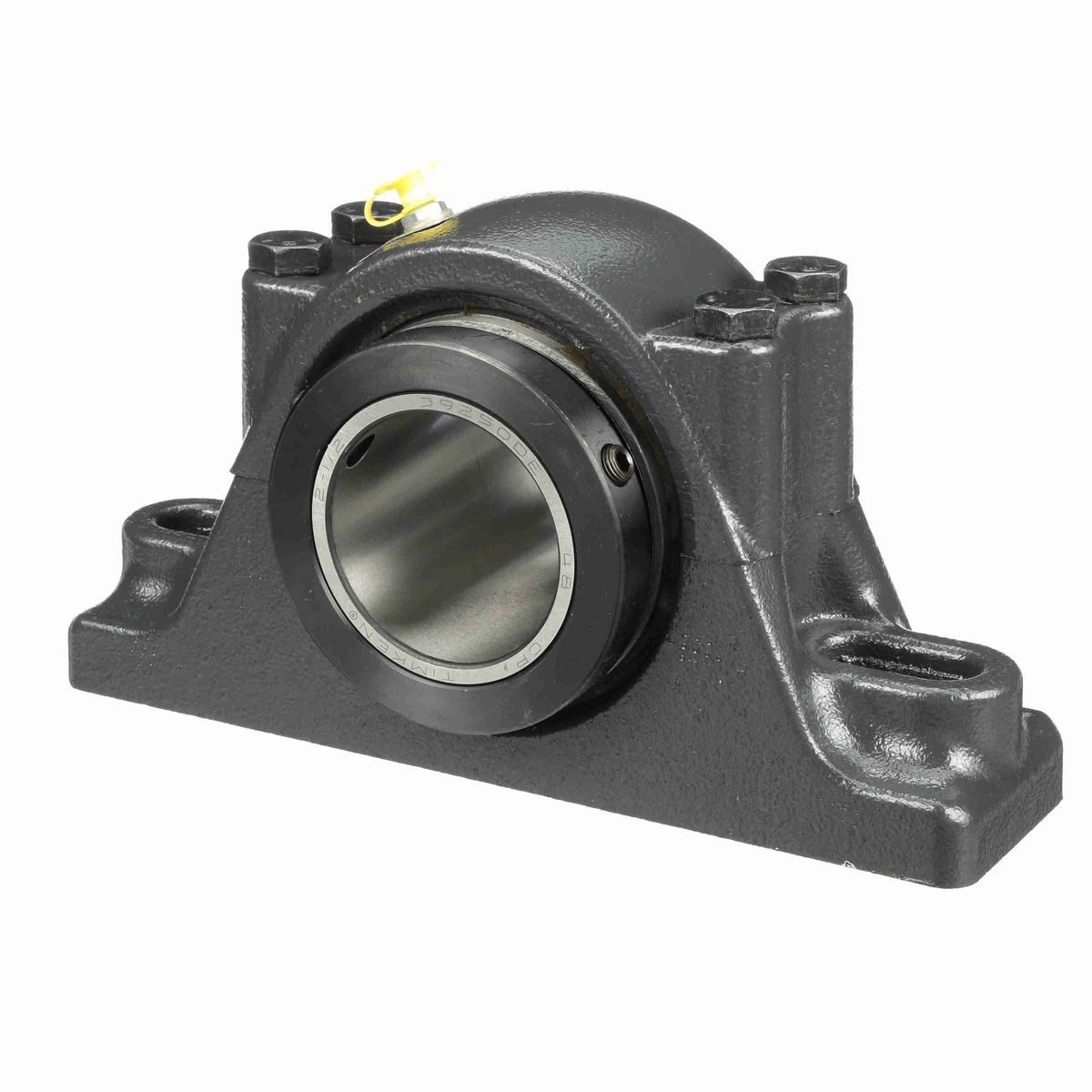

• Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
• Race-mounted contact flinger seal
• Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
• Powder coat epoxy 2-bolt split cast iron housing

Dimensions

Overall Width (in)	4 in
Overall Length (in)	10.375 in
Overall Height (in)	5.625 in
Base Width (in)	2.75 in
Bolt Size (in)	0.625 in
Bolt Center-to-Center Length (in)	7.815 in
Bore Size (in)	2.5000 in
Foot Height (in)	1.625 in
Bolt Center Max (in)	8.688 in
Centerline to Front Face (in)	2 in
Base to Center Height (in)	2.75 in
Bolt Center Min (in)	6.938 in
Inner Race Length (in)	4 in
Collar Outer Diameter (in)	3.938 in

Technical Specifications

Seal Type	Single Lip Contact Seal
Insert Material	52100 Bearing Steel
Housing Material	Cast Iron
Measure Units	Inch
Expansion	No
Housing Base	Solid
Rolling Element	Tapered Roller
Housing Type	Pillow Block, Two Bolt
Housing Construction	Split Two Piece
Bore Shape	Straight
Radial Dynamic Load Capacity (lb)	9,030 lb
Misalignment	±3.0° Misalignment - Static Only
Locking Type	Double Collar Mount
Speed (Max)	2000
Internal Clearance	Standard
Housing Color	Gray
End Cap	No
Replaceable Insert	Yes
Misalignment Type	Static Only
Platform	RPB Series
Retainer Material	Steel
Bearing Insert Coating	Uncoated
Outer Ring Land Profile	Standard
Series	RPB
Grease Fitting Thread Size	1/8 NPT
Housing Style	Pillow Block
Duty/Series	Standard
Lubrication Type	Lithium; EP; NLGI#2
Inner Race Heat Treat Method	Case Carburized Inner Ring
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Insert Number	RCI-208C

General Specifications

UPC	662288493587
Weight	19.50 LB
Packaged Length	5.88 IN
Packaged Width	10.50 IN
Packaged Height	4.13 IN
HTC	8483.20.8080
Country of Origin	United States of America
