• Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
• Race-mounted felt-lined flinger seal
• Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews

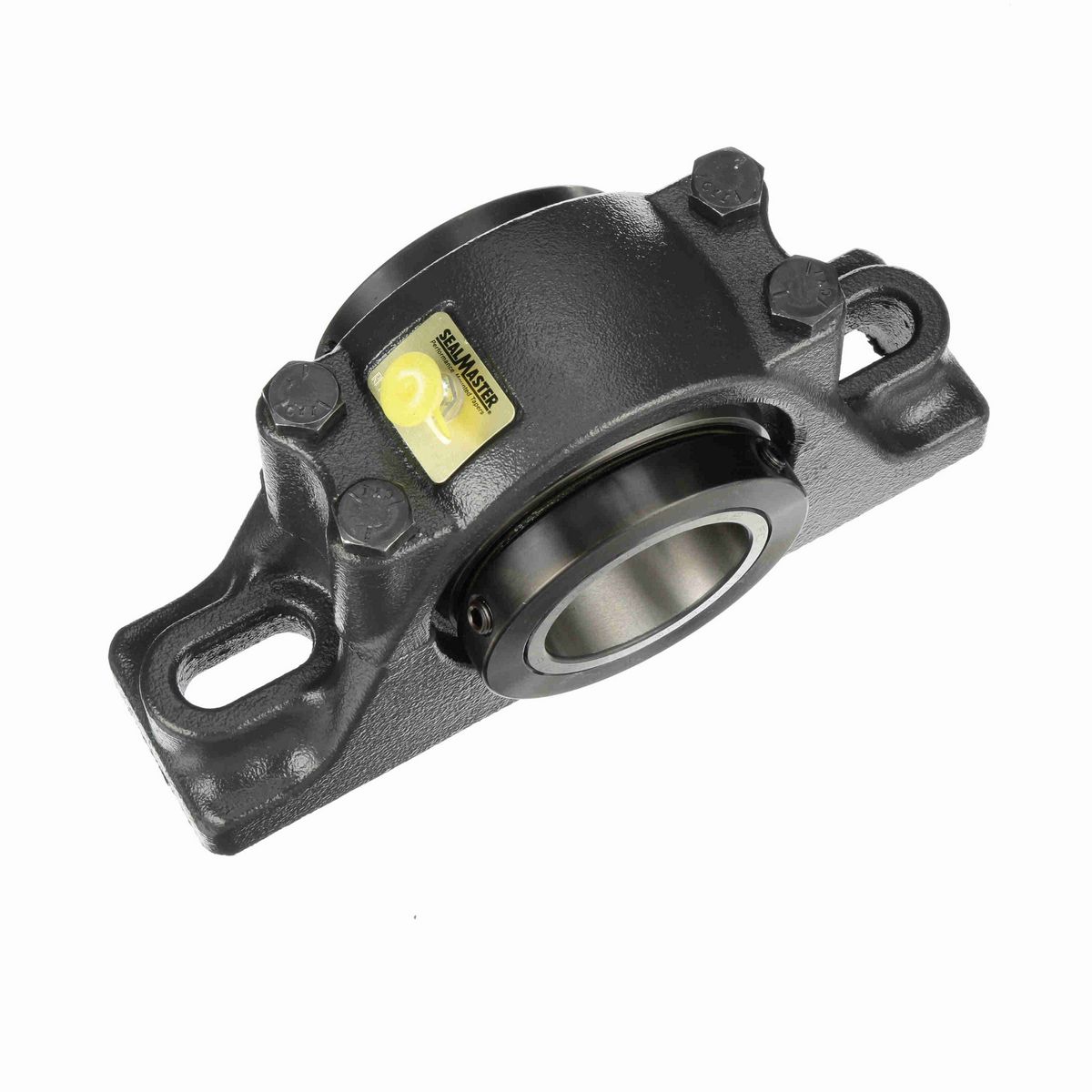

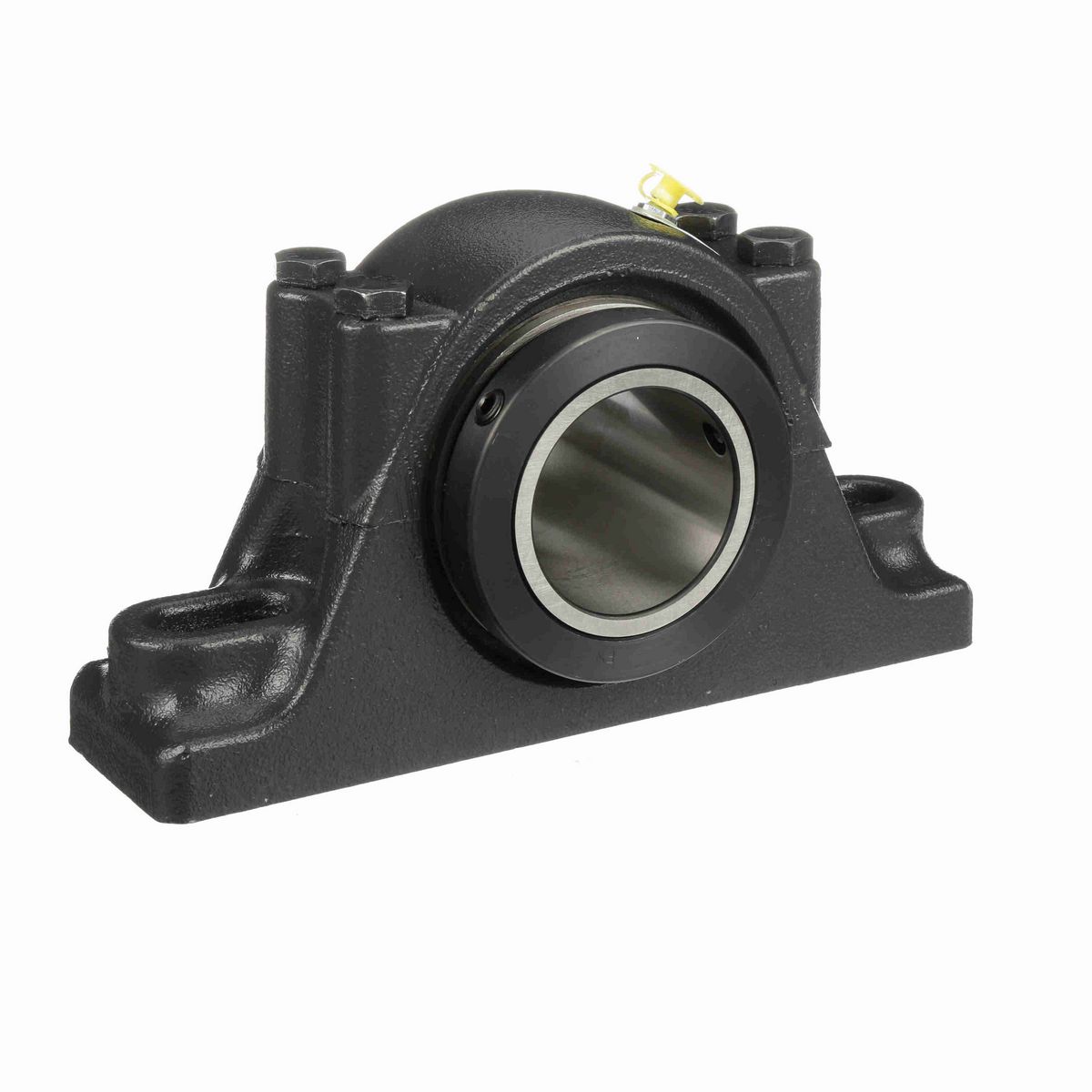

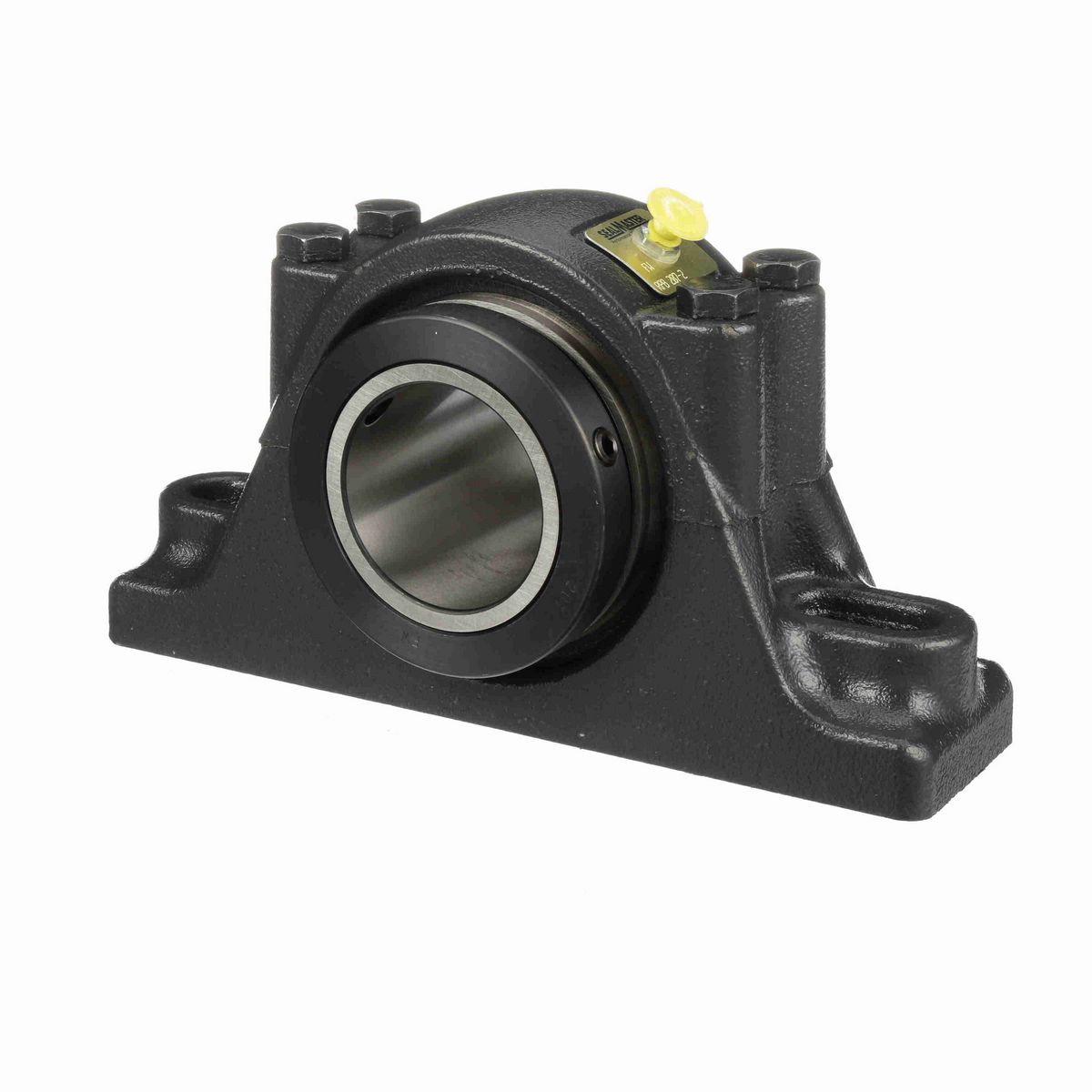

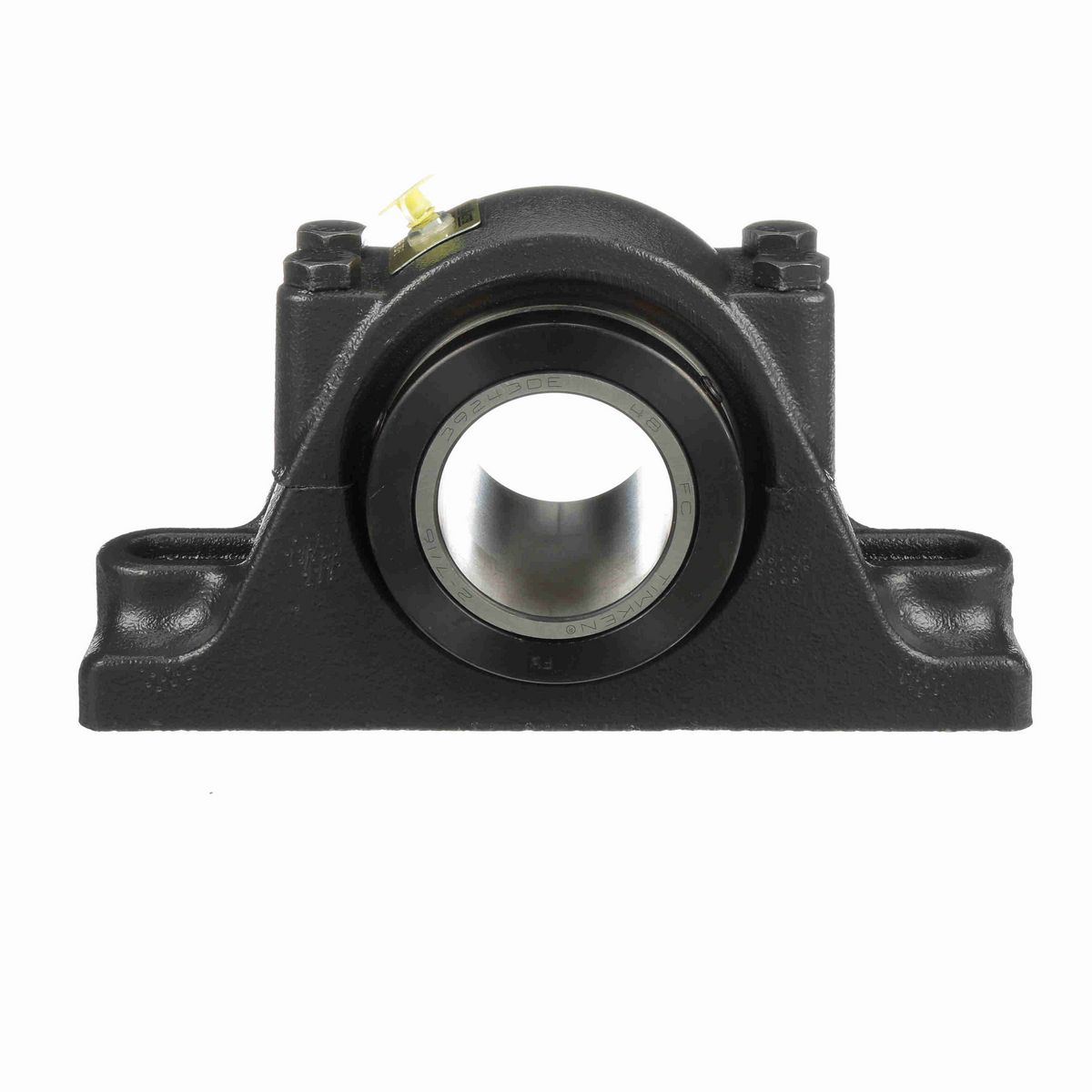

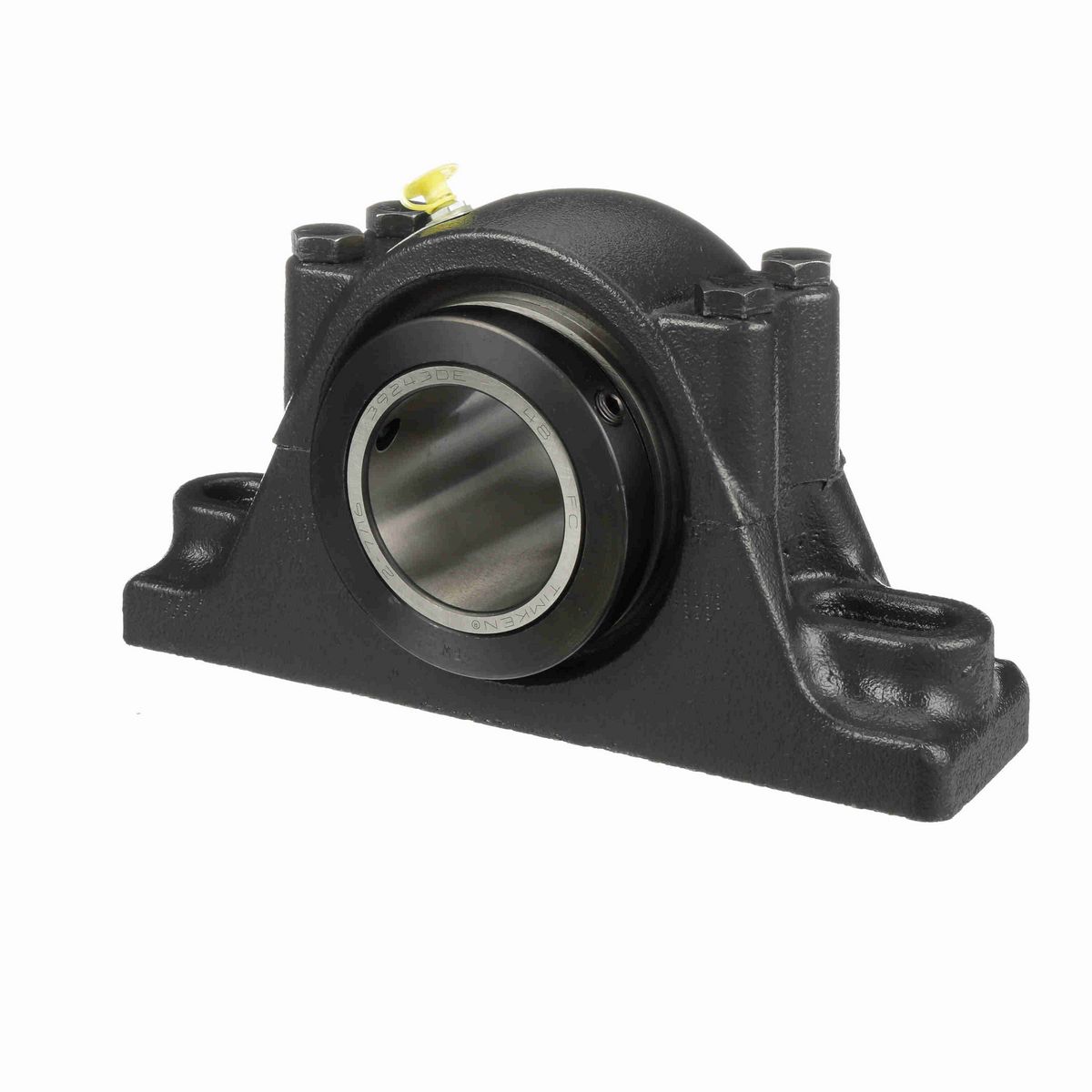

• Powder coat epoxy 2-bolt split cast iron housing

Dimensions

Overall Length (in)	10.375 in
Bolt Center-to-Center Length (in)	7.815 in
Base Width (in)	2.75 in
Bolt Size (in)	0.625 in
Overall Height (in)	5.625 in
Overall Width (in)	4 in
Bore Size (in)	2.4375 in
Centerline to Front Face (in)	2 in
Foot Height (in)	1.625 in
Inner Race Length (in)	4 in
Bolt Center Min (in)	6.938 in
Bolt Center Max (in)	8.688 in
Base to Center Height (in)	2.75 in
Collar Outer Diameter (in)	3.938 in

Technical Specifications

Seal Type	Felt Labyrinth Seal
Rolling Element	Tapered Roller
Housing Type	Pillow Block, Two Bolt
Housing Base	Solid
Expansion	No
Measure Units	Inch
Insert Material	52100 Bearing Steel
Housing Material	Cast Iron
Housing Construction	Split Two Piece
Misalignment	±3.0° Misalignment - Static Only
Locking Type	Double Collar Mount
Speed (Max)	2000
Radial Dynamic Load Capacity (lb)	9,030 lb
Bore Shape	Straight
Internal Clearance	Standard
Outer Ring Land Profile	Standard
End Cap	No
Bearing Insert Coating	Uncoated
Retainer Material	Steel
Housing Color	Gray
Misalignment Type	Static Only
Replaceable Insert	Yes
Platform	RPB Series
Series	RPB
Grease Fitting Thread Size	1/8 NPT
Duty/Series	Standard
Inner Race Heat Treat Method	Case Carburized Inner Ring
Maximum Operating Temperature (F)	220 °F
Lubrication Type	Lithium; EP; NLGI#2
Insert Number	RCI-207
Ability to Relubricate	Yes
Housing Style	Pillow Block

General Specifications

UPC	662288480037
Weight	19.96 LB
Packaged Length	10.50 IN
Packaged Width	5.88 IN
Packaged Height	4.13 IN
HTC	8483.20.8080
Country of Origin	United States of America
