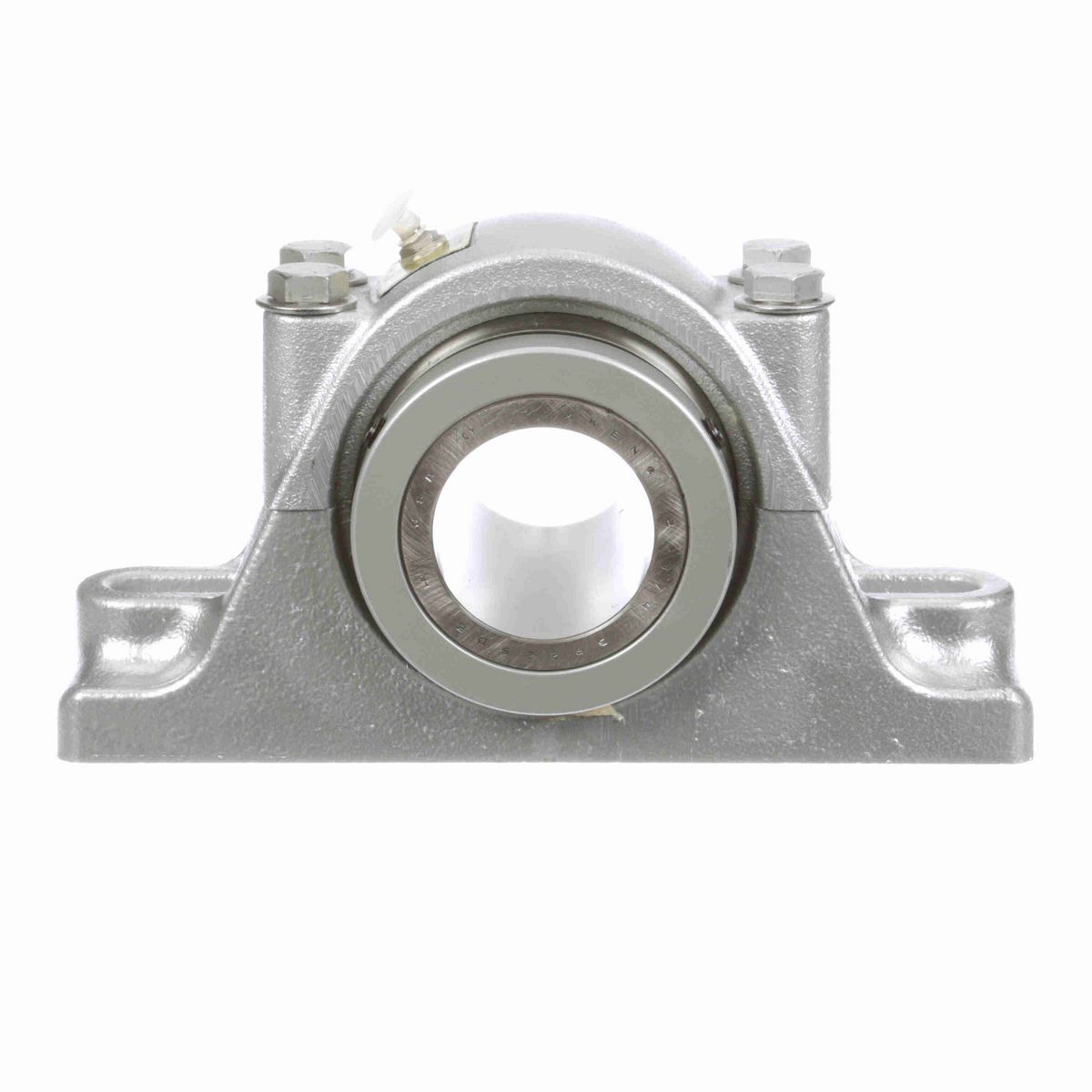

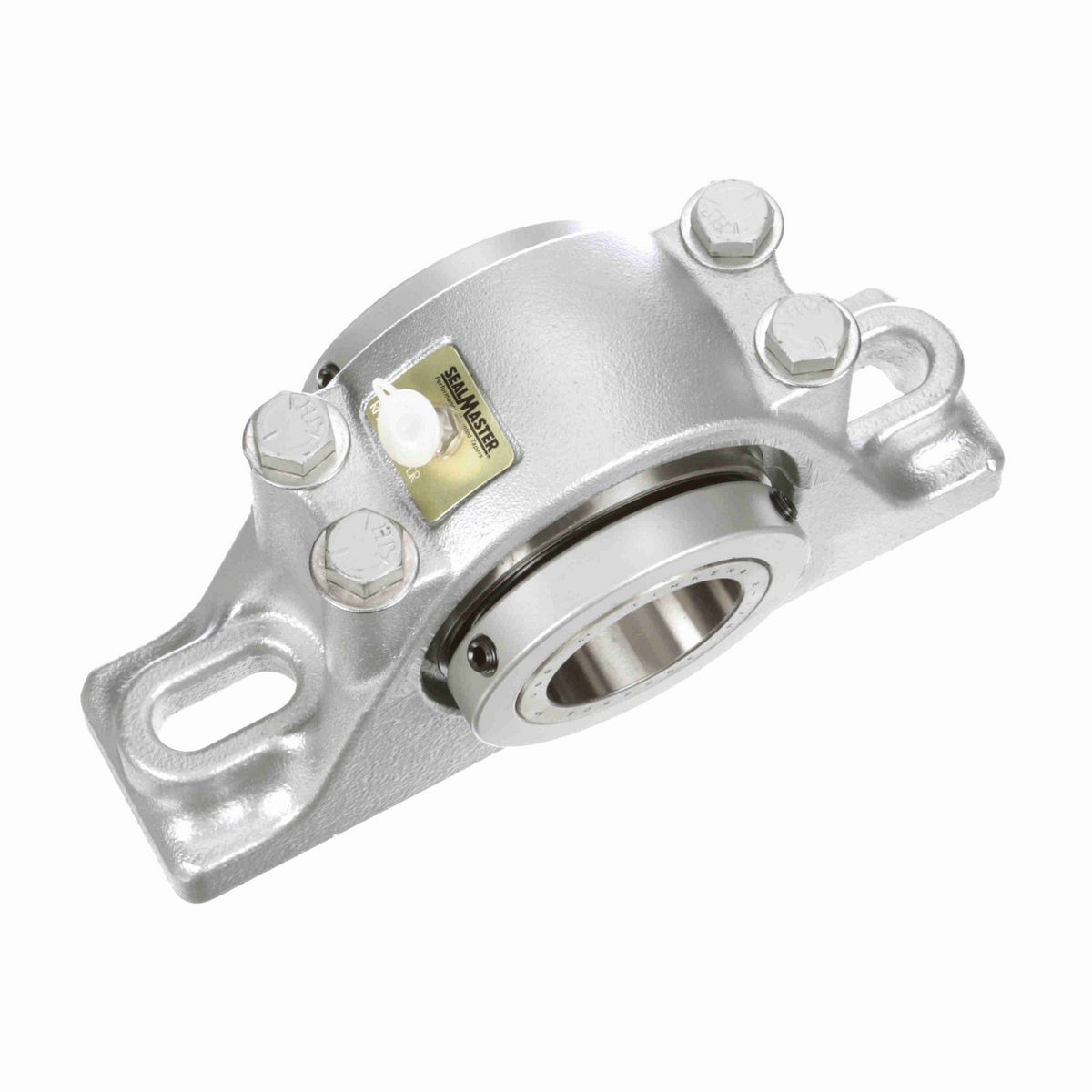

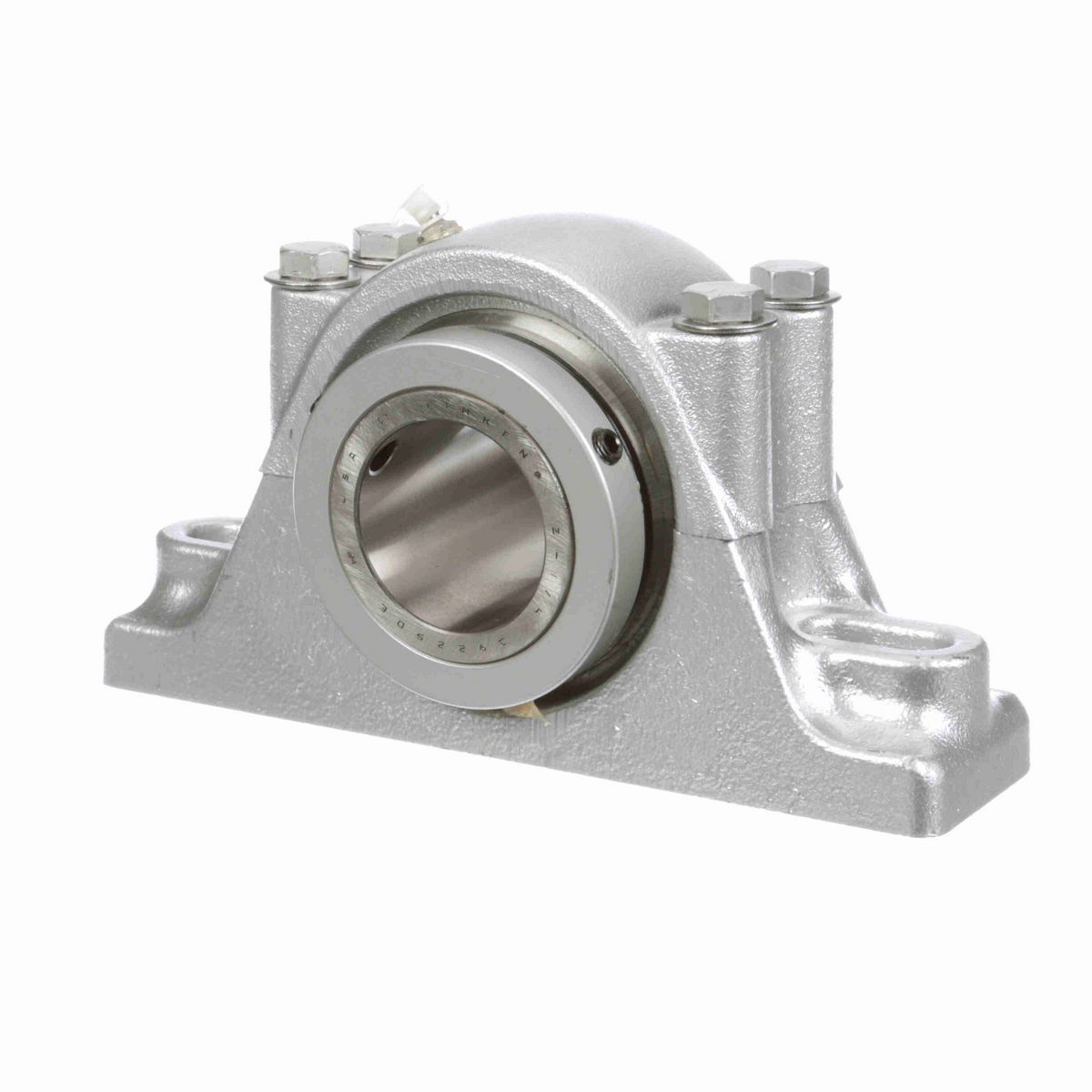

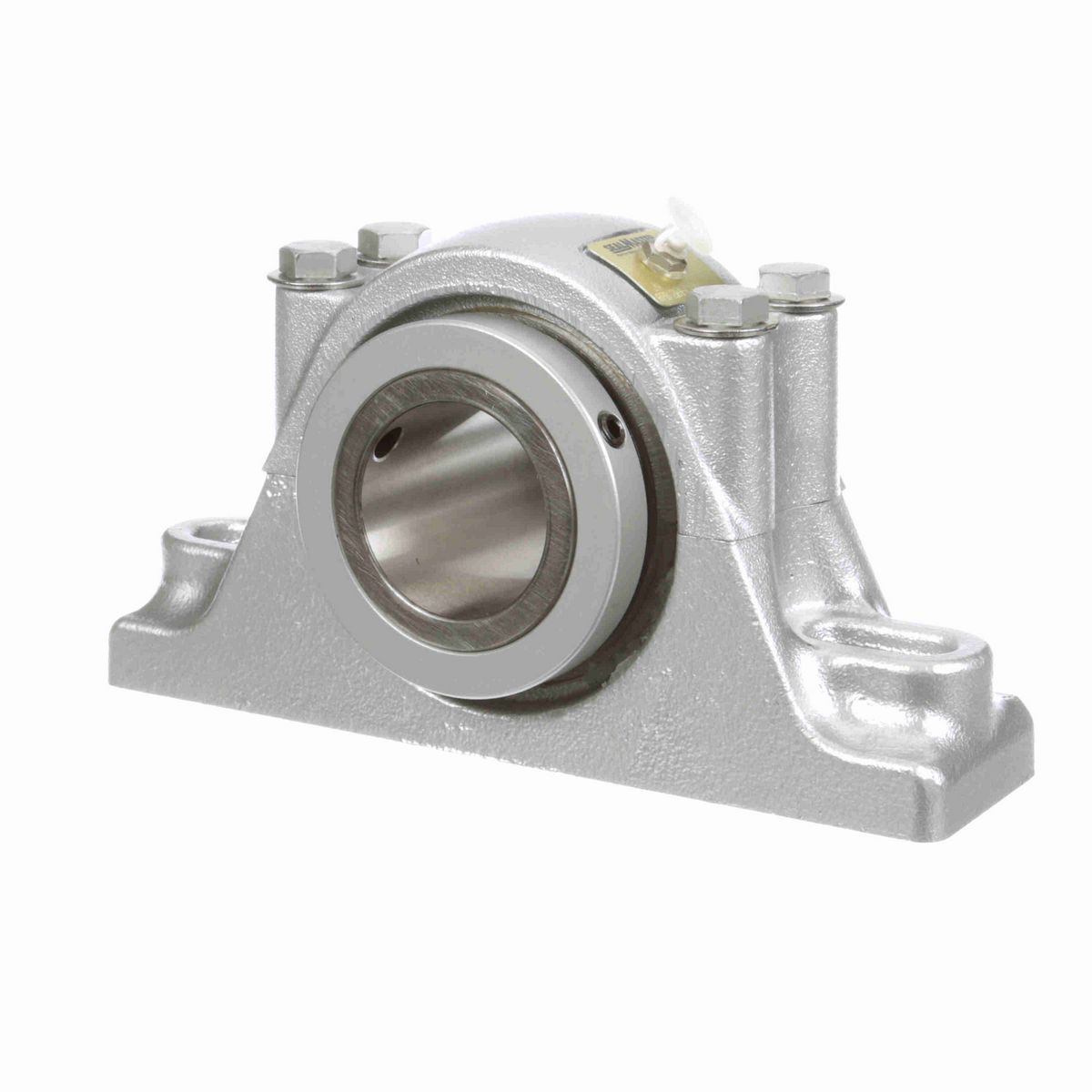

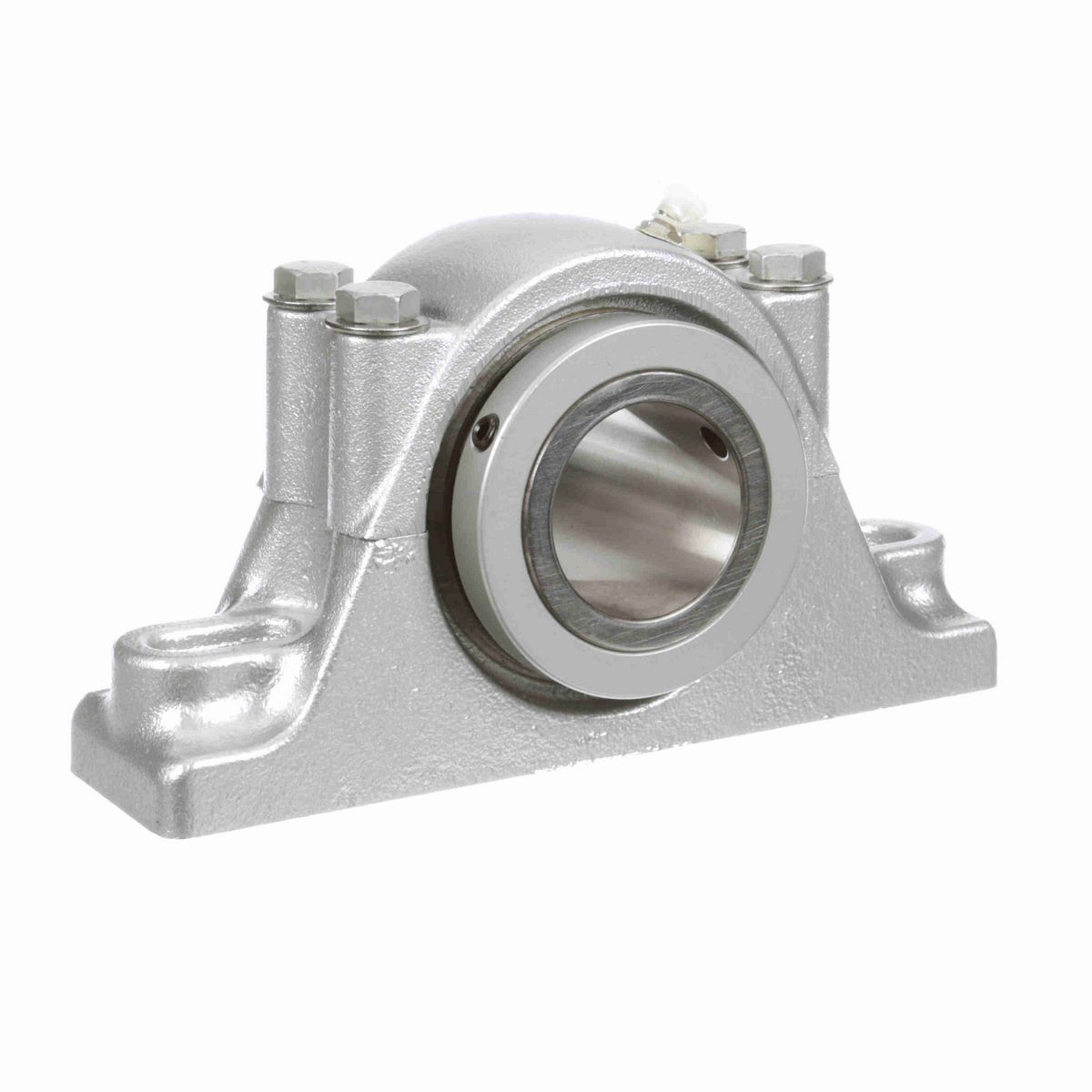

• Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
• Race-mounted contact flinger seal
• Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
• Fluoropolymer-coated 2-bolt split cast iron housing for improved corrosion resistance
• USDA H-1 approved Food-grade grease

Dimensions

Bolt Size (in)	0.625 in
Base Width (in)	2.75 in
Overall Length (in)	10.375 in
Overall Width (in)	4 in
Bolt Center-to-Center Length (in)	7.815 in
Overall Height (in)	5.625 in
Bore Size (in)	2.2500 in
Bolt Center Max (in)	8.688 in
Base to Center Height (in)	2.75 in
Centerline to Front Face (in)	2 in
Foot Height (in)	1.625 in
Bolt Center Min (in)	6.938 in
Inner Race Length (in)	4 in
Collar Outer Diameter (in)	3.938 in

Technical Specifications

Seal Type	Single Lip Contact Seal
Housing Material	Flouropolymer Coated Cast Iron
Insert Material	52100 Bearing Steel
Housing Base	Solid
Rolling Element	Tapered Roller
Expansion	No
Measure Units	Inch
Housing Type	Pillow Block, Two Bolt
Housing Construction	Split Two Piece
Locking Type	Double Collar Mount
Misalignment	±3.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	9,030 lb
Internal Clearance	Standard
Speed (Max)	2000
Bore Shape	Straight
Outer Ring Land Profile	Standard
Retainer Material	Steel
Misalignment Type	Static Only
Housing Color	Silver/Gray
Platform	CR Series
Replaceable Insert	Yes
Options	Corrosion Resistant
Bearing Insert Coating	Uncoated
End Cap	No
Series	RPB
Grease Fitting Thread Size	1/8 NPT
Duty/Series	Standard
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Inner Race Heat Treat Method	Case Carburized Inner Ring
Housing Style	Pillow Block
Lubrication Type	Lithium; EP; NLGI#2
Insert Number	RCI-204C FG1

General Specifications

UPC	662461298114
Weight	20.70 LB
Packaged Length	10.50 IN
Packaged Width	5.88 IN
Packaged Height	4.13 IN
HTC	8483.20.8080
Country of Origin	United States of America
