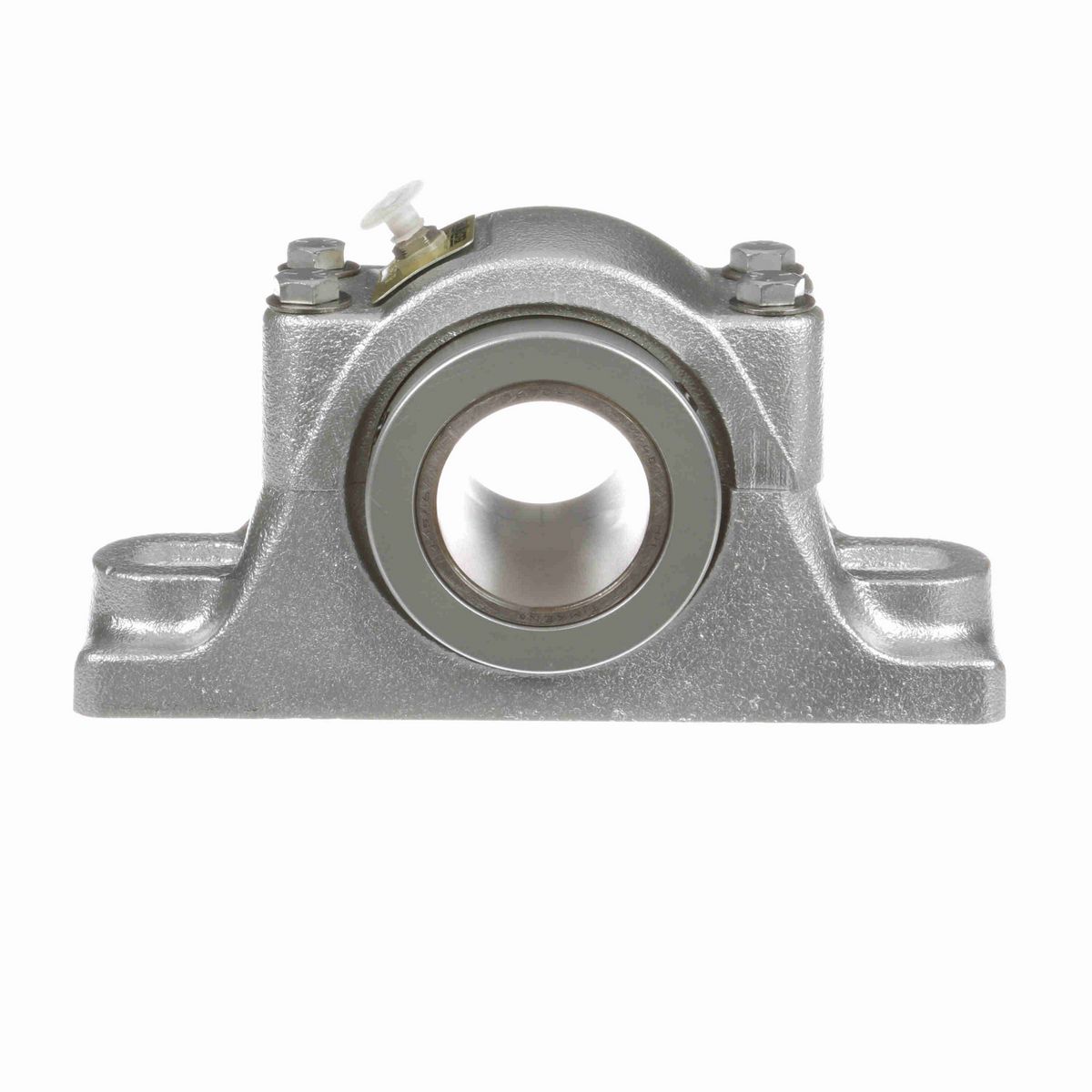

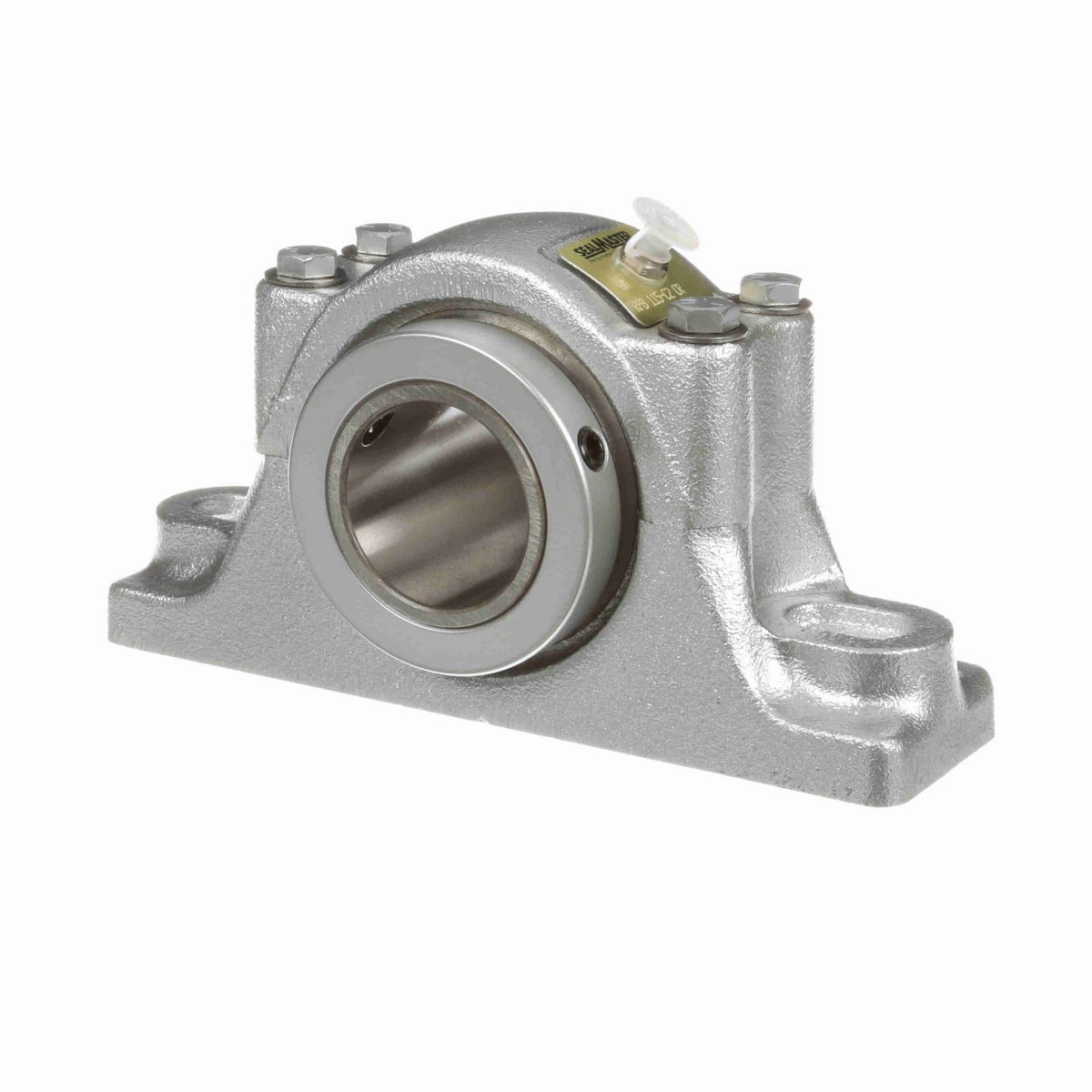

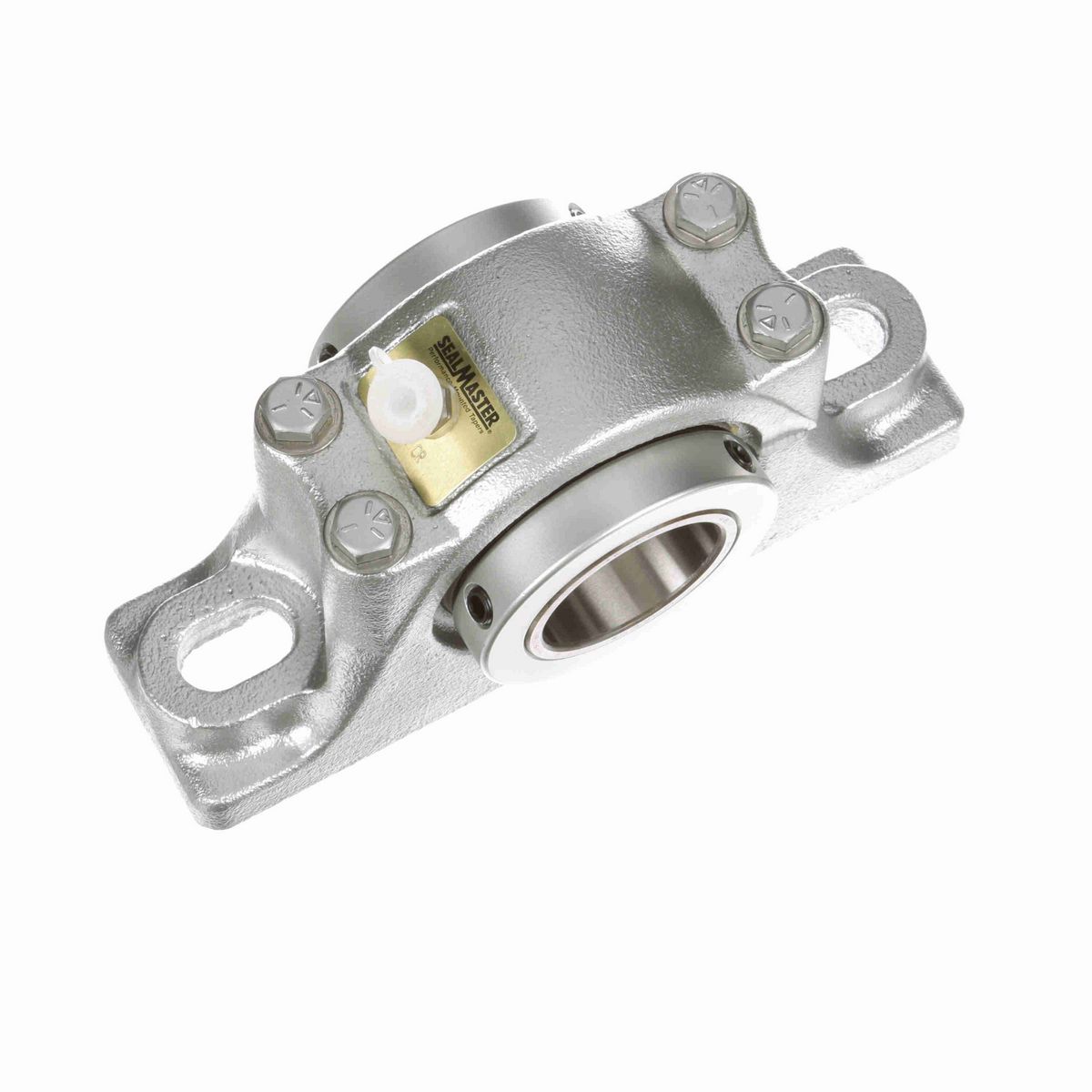

• Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
• Race-mounted contact flinger seal
• Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
• Fluoropolymer-coated 2-bolt split cast iron housing for improved corrosion resistance
• USDA H-1 approved Food-grade grease

Dimensions

Overall Length (in)	8.875 in
Overall Height (in)	4.625 in
Base Width (in)	2.438 in
Overall Width (in)	3.5 in
Bolt Center-to-Center Length (in)	6.75 in
Bolt Size (in)	0.625 in
Bore Size (in)	1.9375 in
Centerline to Front Face (in)	1.75 in
Bolt Center Min (in)	6.313 in
Bolt Center Max (in)	7.188 in
Inner Race Length (in)	3.5 in
Base to Center Height (in)	2.25 in
Foot Height (in)	1.25 in
Collar Outer Diameter (in)	3.25 in

Technical Specifications

Rolling Element	Tapered Roller
Housing Material	Flouropolymer Coated Cast Iron
Expansion	No
Seal Type	Single Lip Contact Seal
Insert Material	52100 Bearing Steel
Housing Type	Pillow Block, Two Bolt
Measure Units	Inch
Housing Base	Solid
Housing Construction	Split Two Piece
Bore Shape	Straight
Speed (Max)	2500
Radial Dynamic Load Capacity (lb)	8,070 lb
Internal Clearance	Standard
Locking Type	Double Collar Mount
Misalignment	±3.0° Misalignment - Static Only
Bearing Insert Coating	Uncoated
Platform	CR Series
End Cap	No
Outer Ring Land Profile	Standard
Retainer Material	Steel
Options	Corrosion Resistant
Replaceable Insert	Yes
Misalignment Type	Static Only
Housing Color	Silver/Gray
Series	RPB
Grease Fitting Thread Size	1/8 NPT
Lubrication Type	Lithium; EP; NLGI#2
Duty/Series	Standard
Inner Race Heat Treat Method	Case Carburized Inner Ring
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Housing Style	Pillow Block
Insert Number	RCI-115C FG1

General Specifications

UPC	662288865612
Weight	13.20 LB
Packaged Length	10.50 IN
Packaged Width	5.88 IN
Packaged Height	4.13 IN
HTC	8483.20.8080
Country of Origin	United States of America
