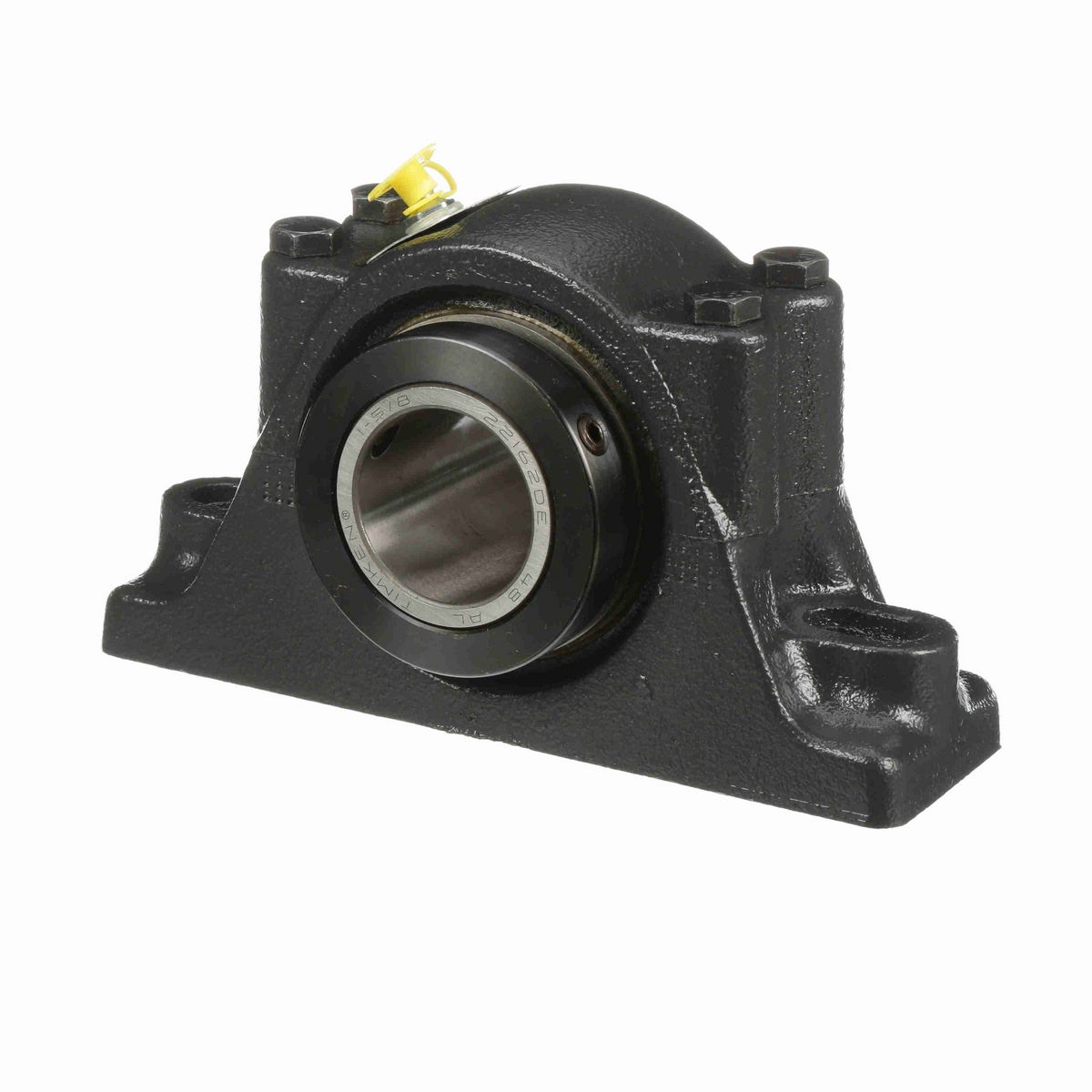

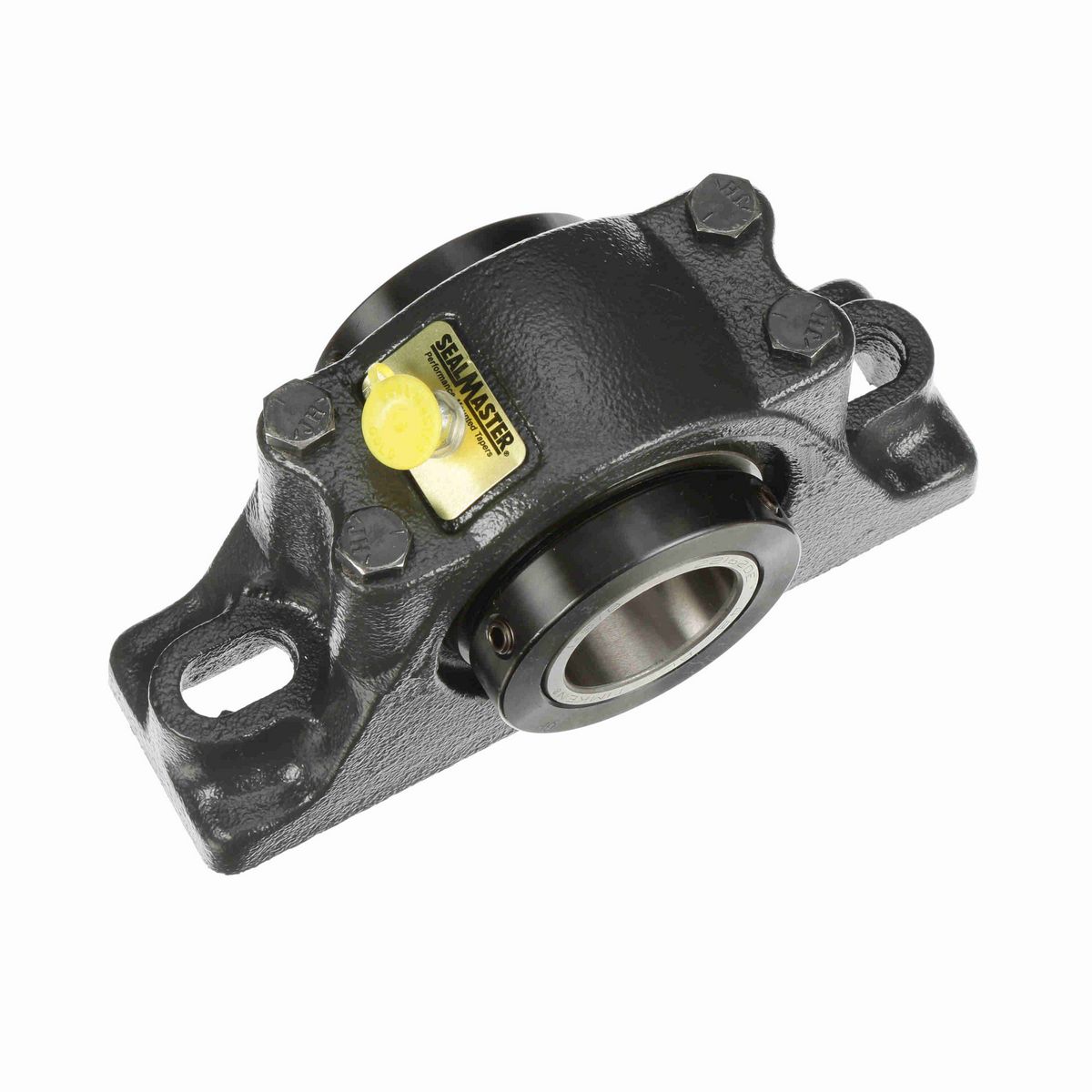

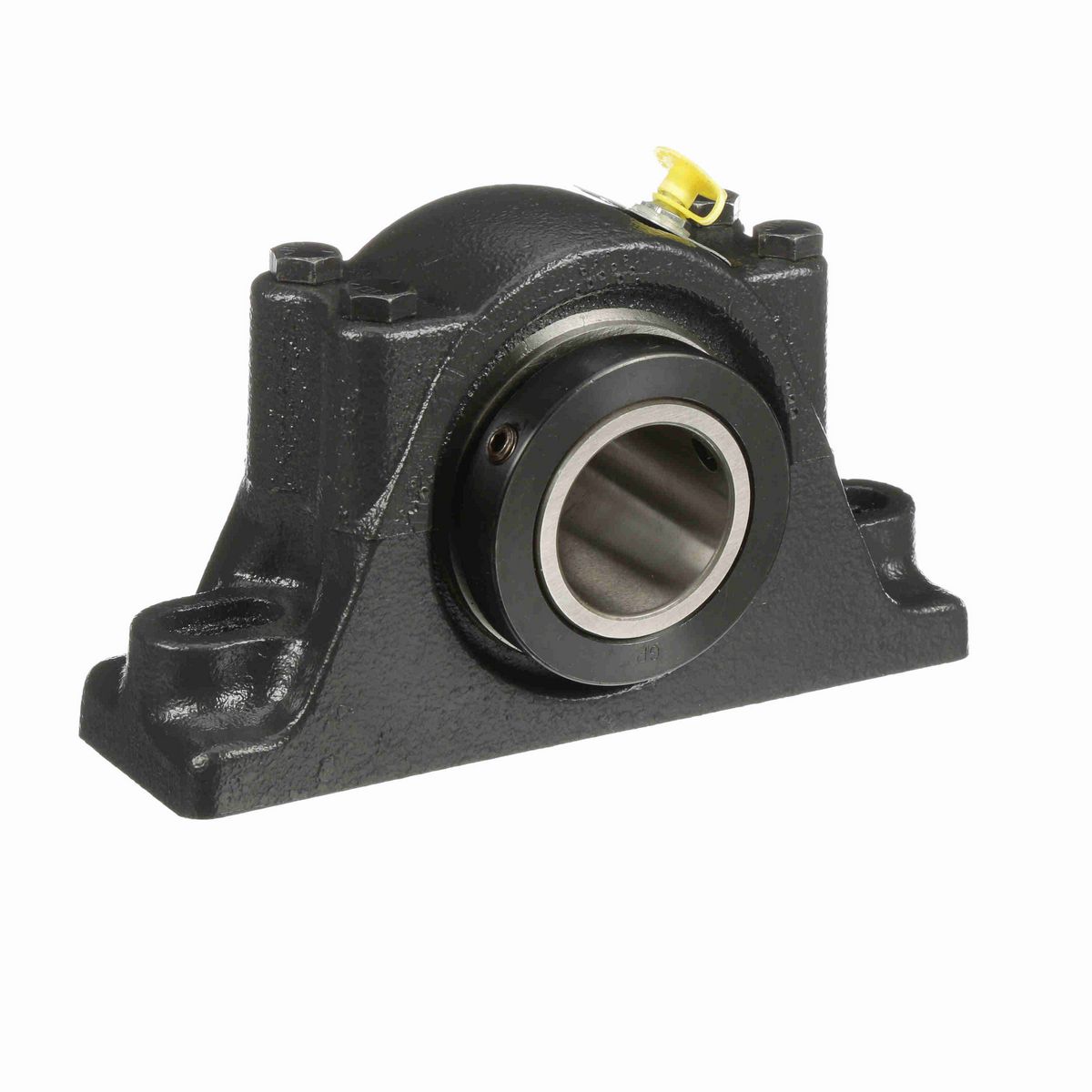

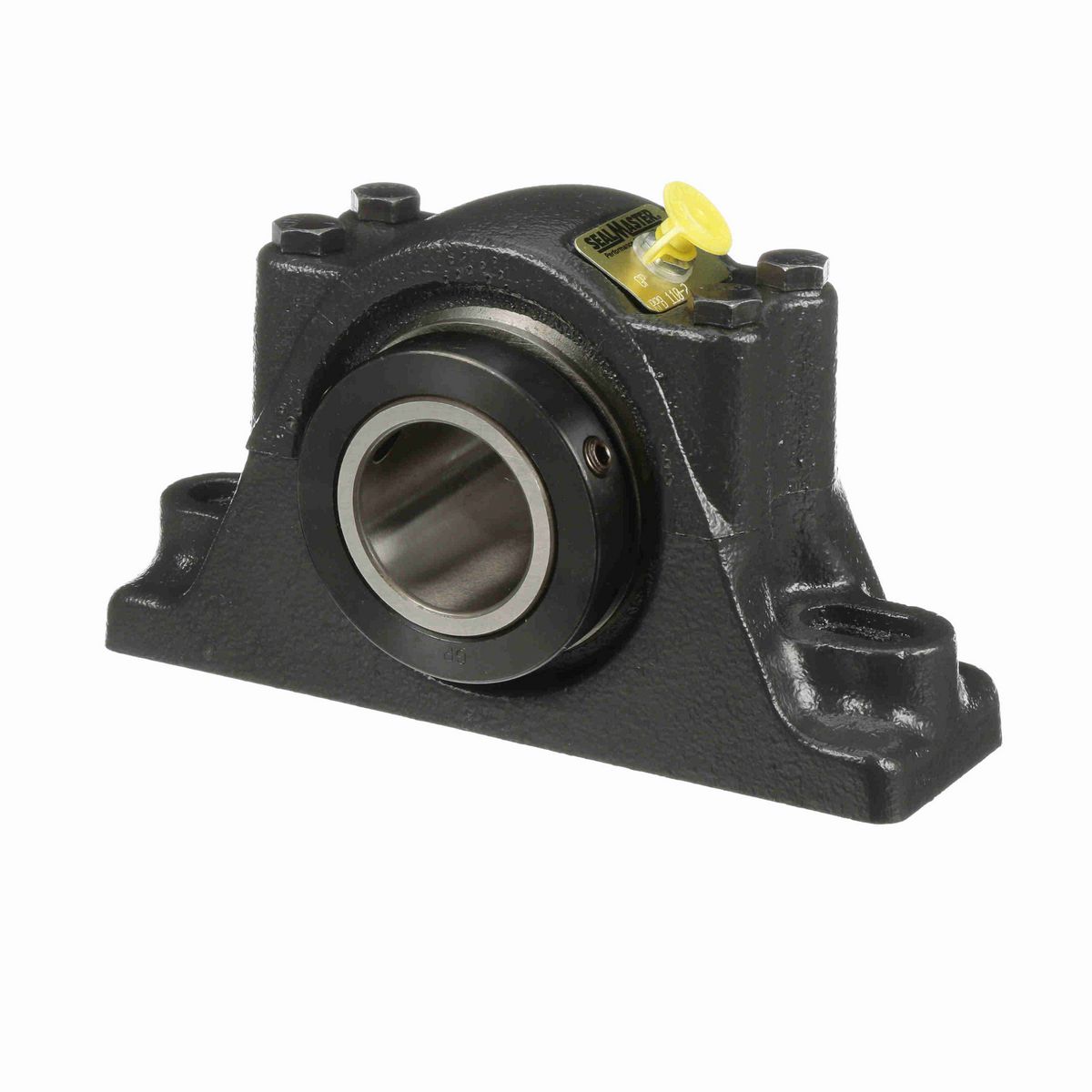

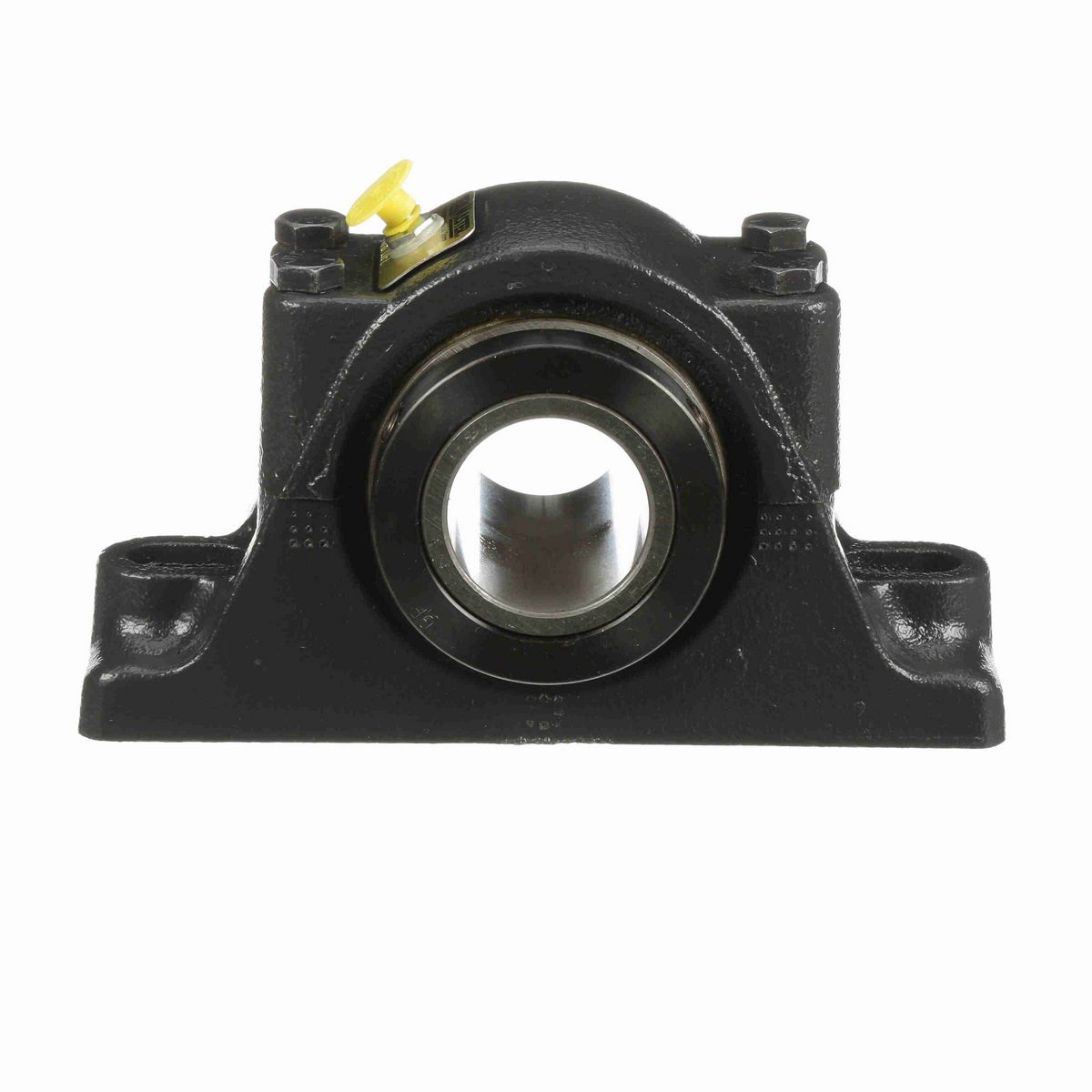

• Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
• Race-mounted felt-lined flinger seal
• Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
• Powder coat epoxy 2-bolt split cast iron housing

Dimensions

Base Width (in)	2.313 in
Overall Height (in)	4.375 in
Overall Width (in)	3.38 in
Bolt Center-to-Center Length (in)	6 in
Bolt Size (in)	0.5 in
Overall Length (in)	7.75 in
Bore Size (in)	1.6250 in
Foot Height (in)	1.25 in
Base to Center Height (in)	2.13 in
Centerline to Front Face (in)	1.688 in
Bolt Center Min (in)	5.563 in
Bolt Center Max (in)	6.438 in
Inner Race Length (in)	3.375 in
Collar Outer Diameter (in)	2.875 in

Technical Specifications

Housing Base	Solid
Insert Material	52100 Bearing Steel
Measure Units	Inch
Rolling Element	Tapered Roller
Housing Material	Cast Iron
Expansion	No
Housing Type	Pillow Block, Two Bolt
Seal Type	Felt Labyrinth Seal
Housing Construction	Split Two Piece
Radial Dynamic Load Capacity (lb)	6,140 lb
Locking Type	Double Collar Mount
Speed (Max)	3000
Internal Clearance	Standard
Bore Shape	Straight
Misalignment	±3.0° Misalignment - Static Only
Retainer Material	Steel
Housing Color	Gray
End Cap	No
Outer Ring Land Profile	Standard
Bearing Insert Coating	Uncoated
Misalignment Type	Static Only
Platform	RPB Series
Replaceable Insert	Yes
Series	RPB
Grease Fitting Thread Size	1/8 NPT
Insert Number	RCI-110
Maximum Operating Temperature (F)	220 °F
Lubrication Type	Lithium; EP; NLGI#2
Duty/Series	Standard
Housing Style	Pillow Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Case Carburized Inner Ring

General Specifications

UPC	662288479963
Weight	10.90 LB
Packaged Length	9.00 IN
Packaged Width	5.00 IN
Packaged Height	3.38 IN
HTC	8483.20.8080
Country of Origin	United States of America
