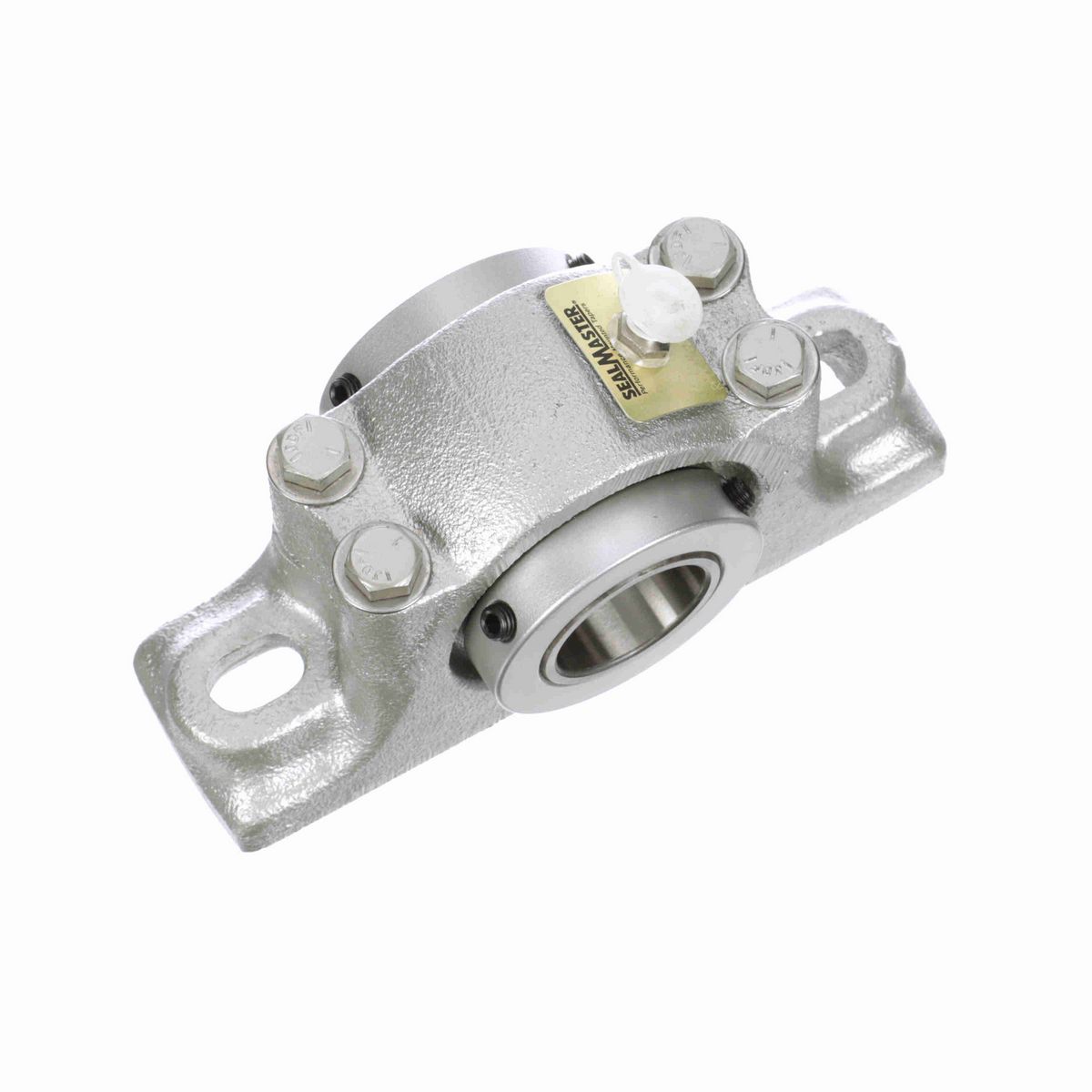

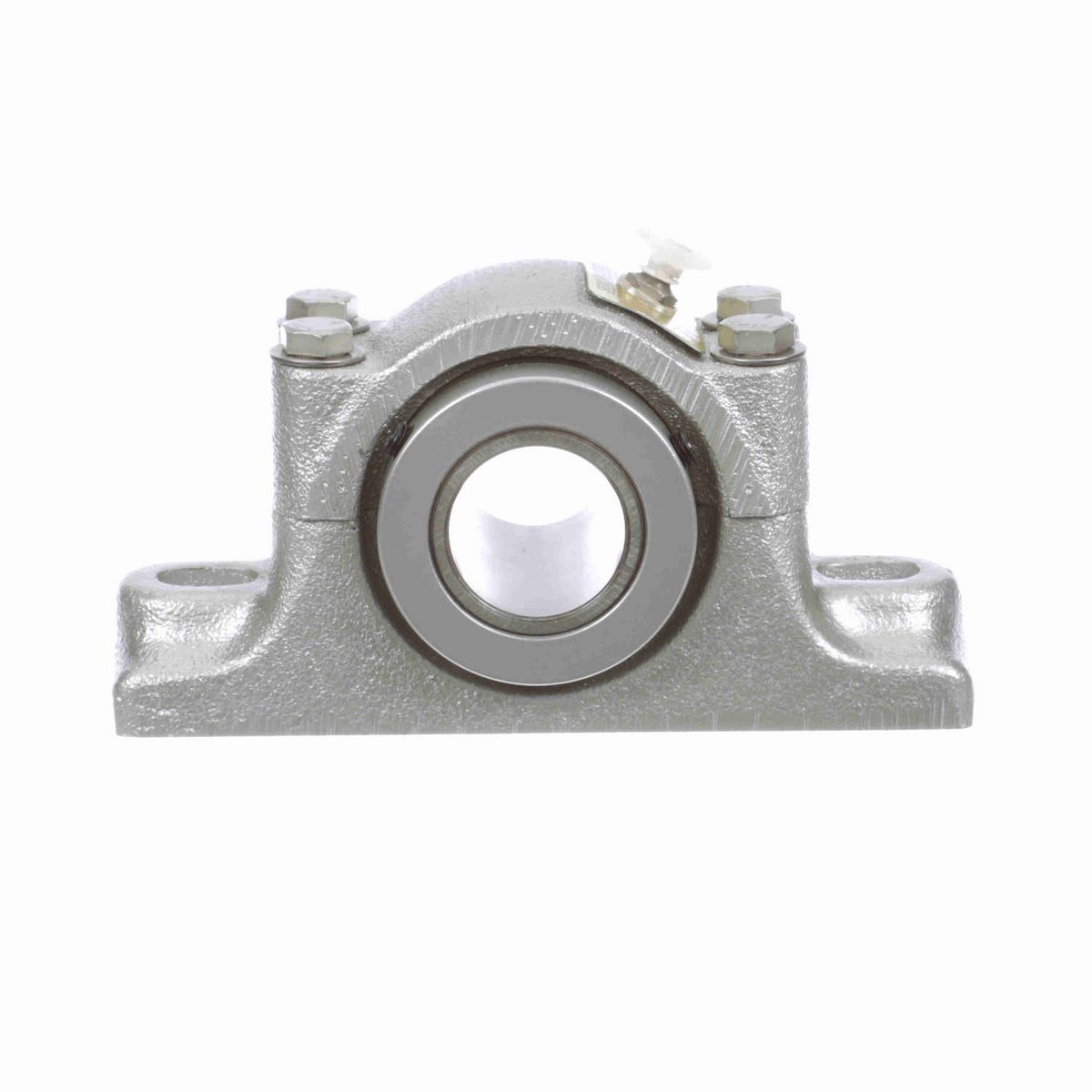

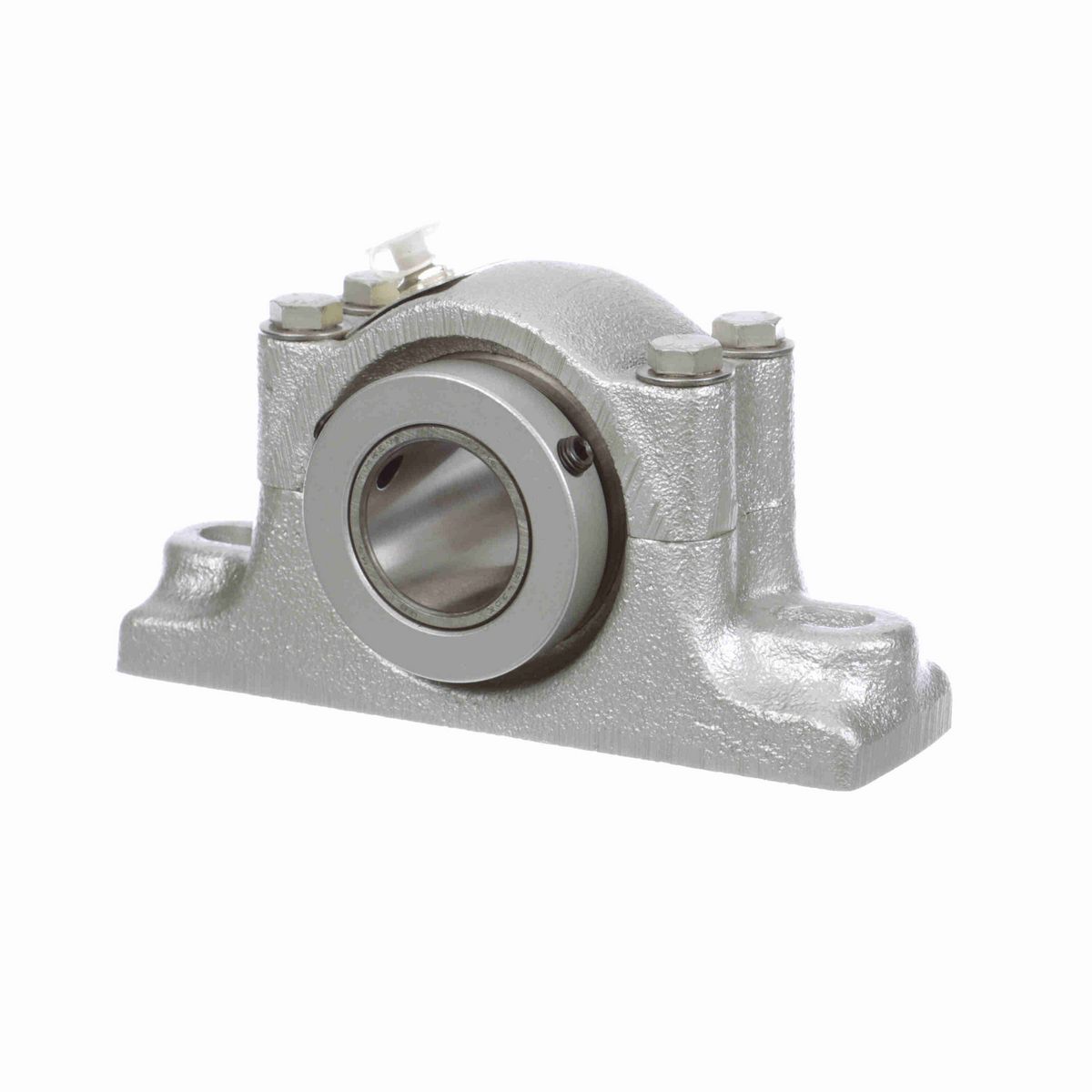

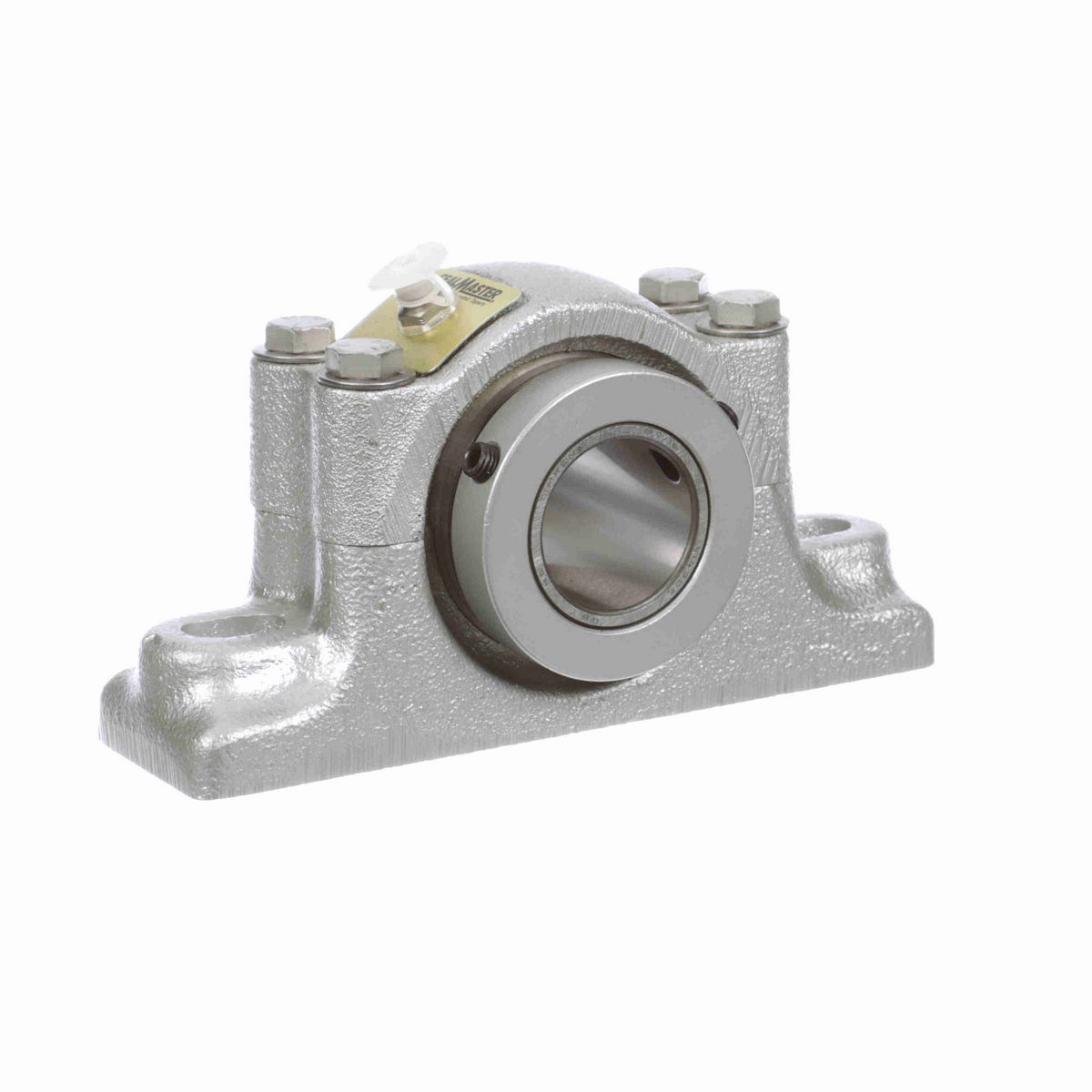

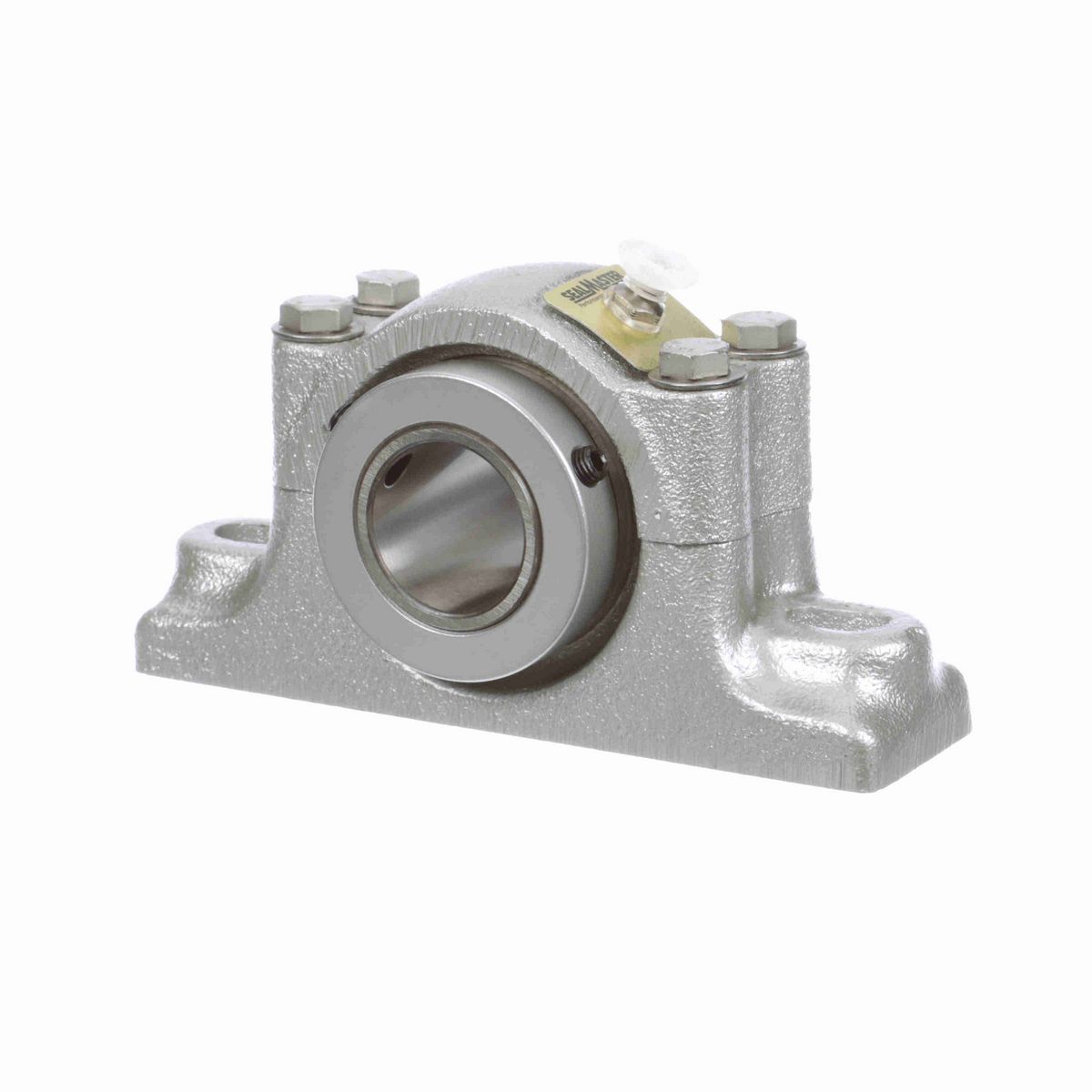

• Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
• Race-mounted contact flinger seal
• Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
• Fluoropolymer-coated 2-bolt split cast iron housing for improved corrosion resistance
• USDA H-1 approved Food-grade grease

Dimensions

Overall Width (in)	3 in
Overall Length (in)	7.25 in
Overall Height (in)	3.813 in
Bolt Size (in)	0.5 in
Base Width (in)	2.063 in
Bore Size (in)	1.4375 in
Bolt Center Min (in)	5.313 in
Base to Center Height (in)	1.875 in
Centerline to Front Face (in)	1.5 in
Foot Height (in)	1.125 in
Bolt Center Max (in)	5.938 in
Inner Race Length (in)	3 in
Collar Outer Diameter (in)	2.625 in

Technical Specifications

Housing Base	Solid
Housing Type	Pillow Block, Two Bolt
Insert Material	52100 Bearing Steel
Expansion	No
Measure Units	Inch
Seal Type	Single Lip Contact Seal
Rolling Element	Tapered Roller
Housing Material	Flouropolymer Coated Cast Iron
Housing Construction	Split Two Piece
Bore Shape	Straight
Speed (Max)	3500
Locking Type	Double Collar Mount
Misalignment	±3.0° Misalignment - Static Only
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	4,760 lb
Platform	CR Series
Options	Corrosion Resistant
Bearing Insert Coating	Uncoated
End Cap	No
Replaceable Insert	Yes
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Silver/Gray
Retainer Material	Steel
Series	RPB
Grease Fitting Thread Size	1/8 NPT
Maximum Operating Temperature (F)	220 °F
Duty/Series	Standard
Housing Style	Pillow Block
Insert Number	RCI-107C FG1
Inner Race Heat Treat Method	Case Carburized Inner Ring
Lubrication Type	Lithium; EP; NLGI#2
Ability to Relubricate	Yes

General Specifications

UPC	662461298077
Weight	7.70 LB
Packaged Length	9.00 IN
Packaged Width	5.00 IN
Packaged Height	3.38 IN
HTC	8483.20.8080
Country of Origin	United States of America
