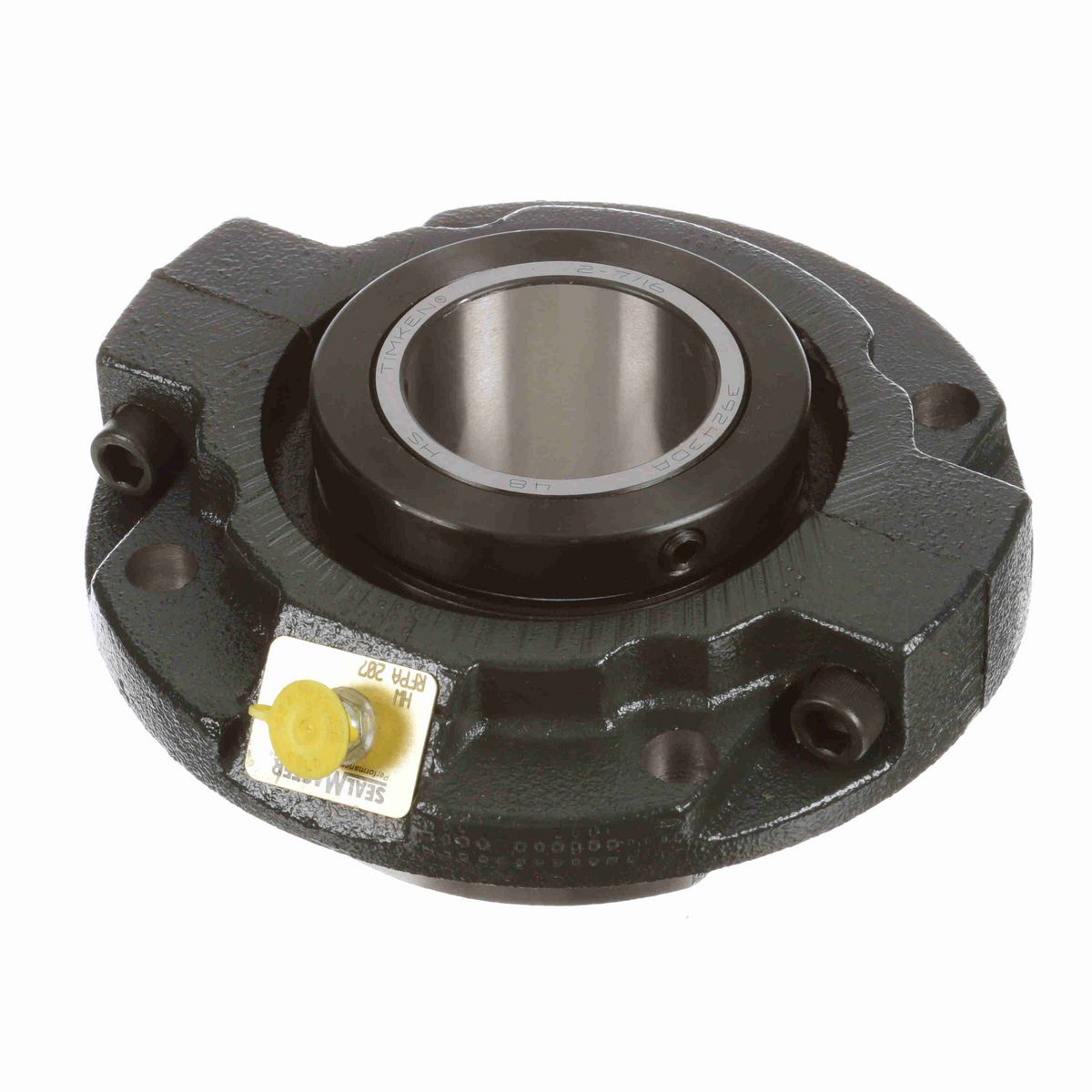

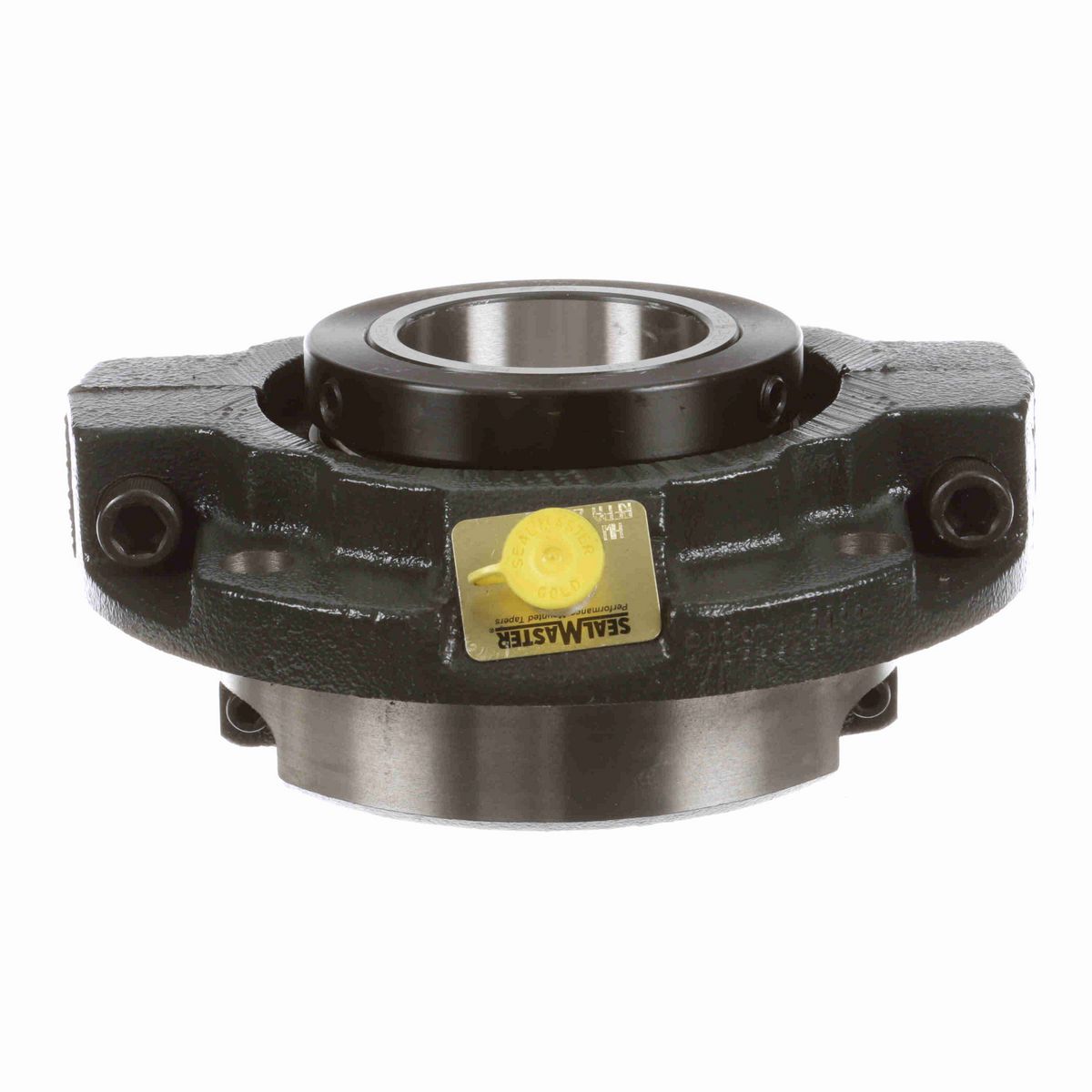

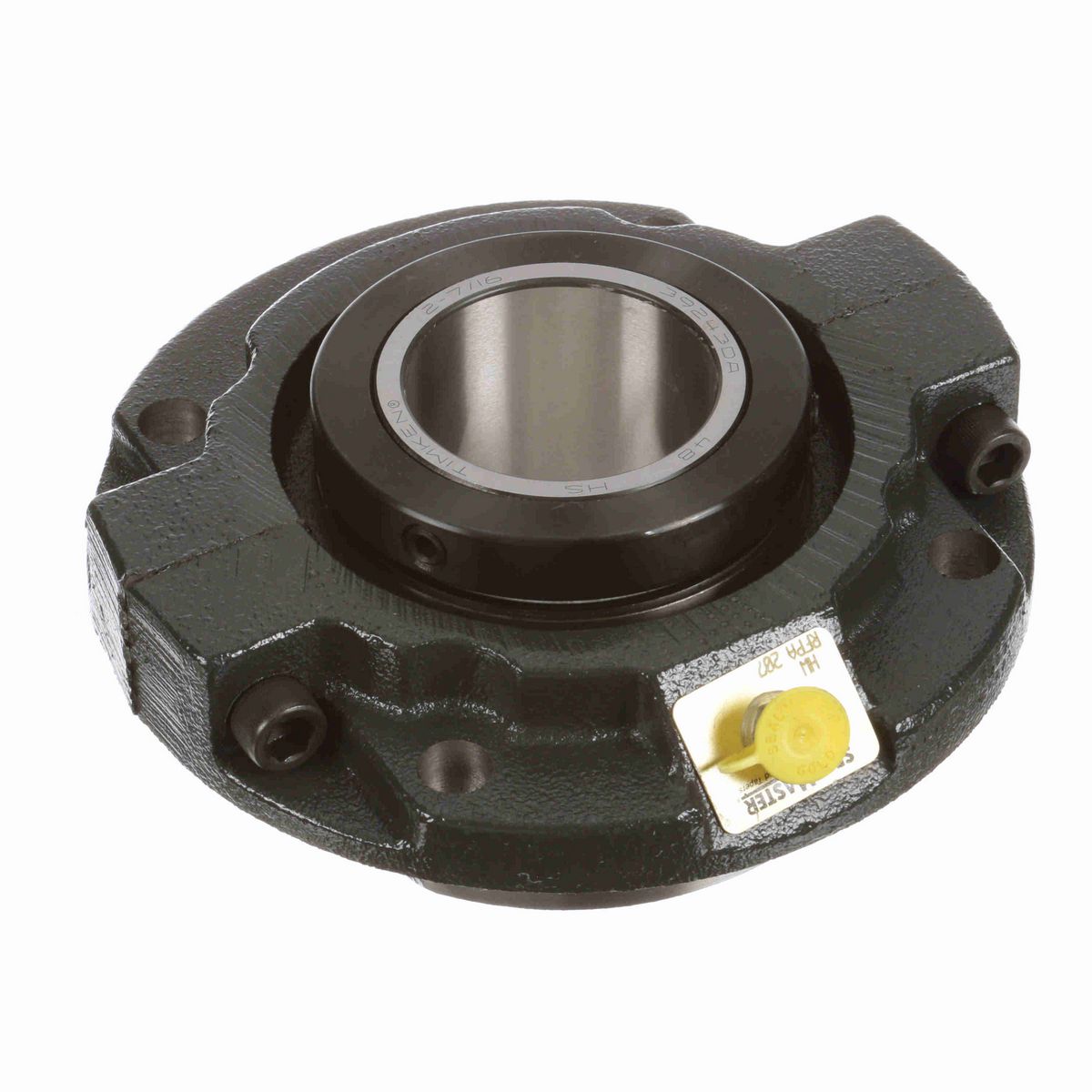

• Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
• Race-mounted felt-lined flinger seal
• Single-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
• Powder coat epoxy split cast iron housing

Dimensions

Bolt Center Diameter (in)	6.5 in
Bolt Size (in)	0.5 in
Overall Length (in)	7.625 in
Overall Width (in)	1.8125 in
Bore Size (in)	2.4375 in
Centerline to Front Face (in)	1.875 in
Inner Race Length (in)	3.313 in
Foot Height (in)	0.625 in
Housing OD (in)	7.625 in
Pilot Diameter (in)	5.5 in
Collar Outer Diameter (in)	3.938 in

Technical Specifications

Housing Type	Flange, Piloted
Seal Type	Felt Labyrinth Seal
Measure Units	Inch
Expansion	Non-Expansion Bearing (Fixed)
Bore Shape	Straight
Housing Material	Cast Iron
Rolling Element	Tapered Roller
Insert Material	52100 Bearing Steel
Pilot Configuration	With Pilot
Housing Construction	Split Two Piece
Locking Type	Collar Mount
Speed (Max)	2000
Internal Clearance	Standard
Misalignment	±3.0° Misalignment - Static Only
Retainer Material	Steel
Outer Ring Land Profile	Standard
Platform	RPB Series
Misalignment Type	Static Only
End Cap	No
Bearing Insert Coating	Uncoated
Housing Color	Gray
Replaceable Insert	Yes
Series	RFPA
Grease Fitting Thread Size	1/8 NPT
Maximum Operating Temperature (F)	220 °F
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Case Carburized Inner Ring
Insert Number	RCIA-207
Duty/Series	Standard
Lubrication Type	Lithium; EP; NLGI#2

General Specifications

UPC	662288483557
Weight	19.00 LB
Packaged Length	8.88 IN
Packaged Width	8.88 IN
Packaged Height	8.63 IN
HTC	8483.20.4080
Country of Origin	United States of America
