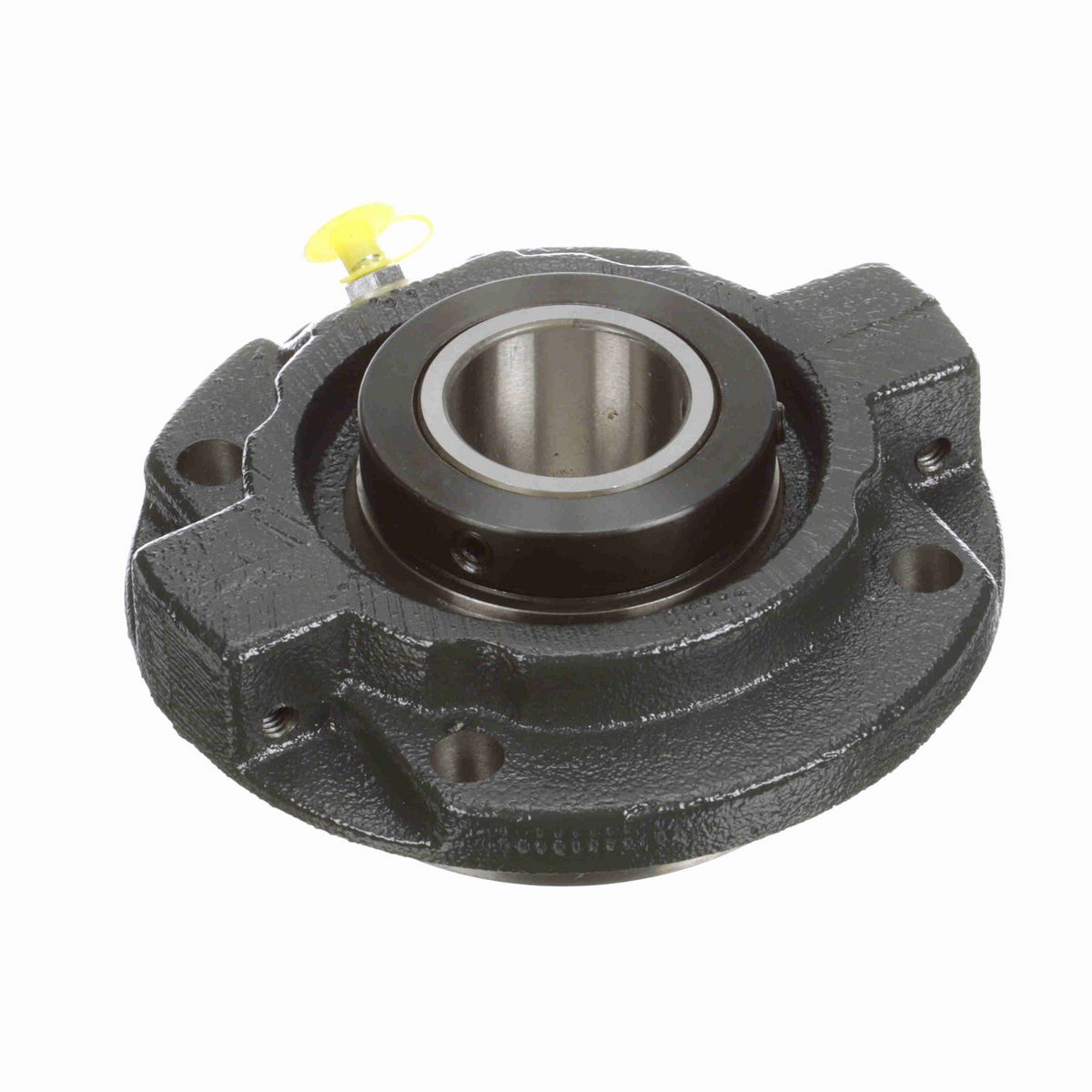

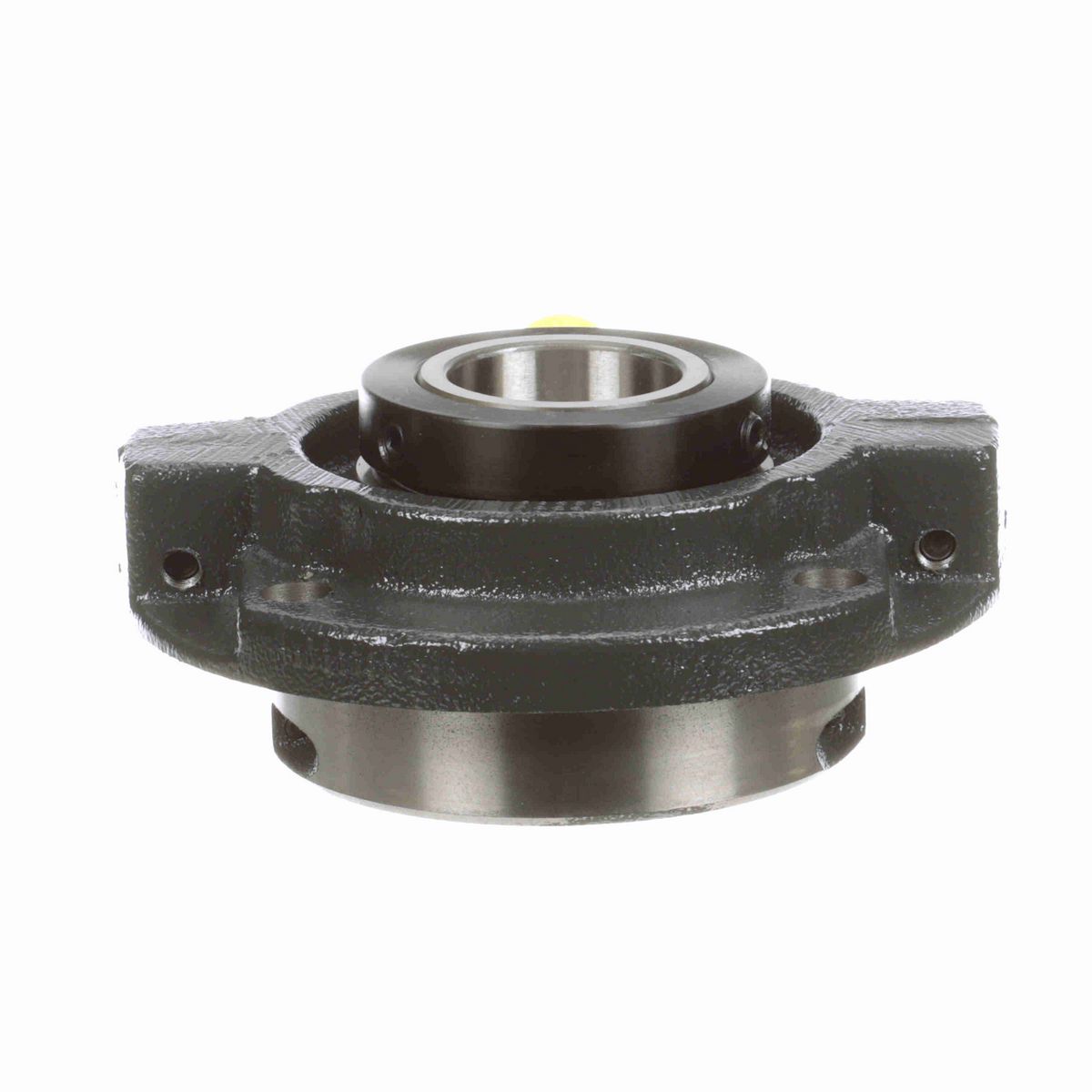

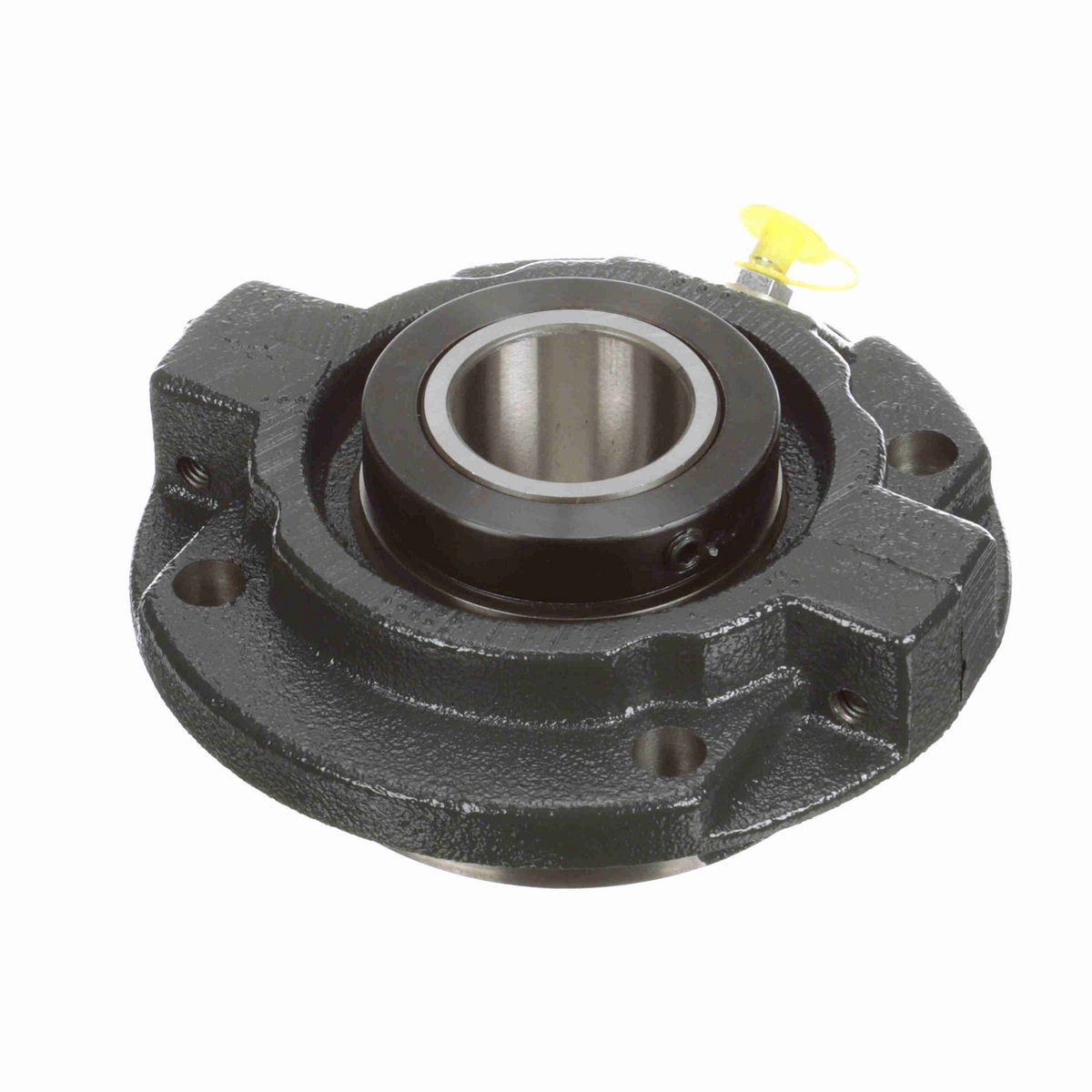

• Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
• Race-mounted felt-lined flinger seal
• Single-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
• Powder coat epoxy split cast iron housing

Dimensions

Overall Length (in)	6.125 in
Bolt Center Diameter (in)	5.125 in
Overall Width (in)	1.5625 in
Bolt Size (in)	0.4375 in
Bore Size (in)	1.6250 in
Foot Height (in)	0.5 in
Housing OD (in)	6.125 in
Centerline to Front Face (in)	1.719 in
Pilot Diameter (in)	4.25 in
Inner Race Length (in)	2.844 in
Collar Outer Diameter (in)	2.875 in

Technical Specifications

Bore Shape	Straight
Expansion	Non-Expansion Bearing (Fixed)
Rolling Element	Tapered Roller
Seal Type	Felt Labyrinth Seal
Insert Material	52100 Bearing Steel
Measure Units	Inch
Housing Type	Flange, Piloted
Housing Material	Cast Iron
Pilot Configuration	With Pilot
Internal Clearance	Standard
Housing Construction	Split Two Piece
Misalignment	±3.0° Misalignment - Static Only
Speed (Max)	3000
Locking Type	Collar Mount
Retainer Material	Steel
Housing Color	Gray
Misalignment Type	Static Only
End Cap	No
Replaceable Insert	Yes
Bearing Insert Coating	Uncoated
Platform	RPB Series
Outer Ring Land Profile	Standard
Series	RFPA
Grease Fitting Thread Size	1/8 NPT
Insert Number	RCIA-110
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Housing Style	Flange Block
Inner Race Heat Treat Method	Case Carburized Inner Ring
Lubrication Type	Lithium; EP; NLGI#2
Duty/Series	Standard

General Specifications

UPC	662461291207
Weight	10.10 LB
Packaged Length	6.38 IN
Packaged Width	6.38 IN
Packaged Height	3.63 IN
HTC	8483.20.4080
Country of Origin	United States of America
