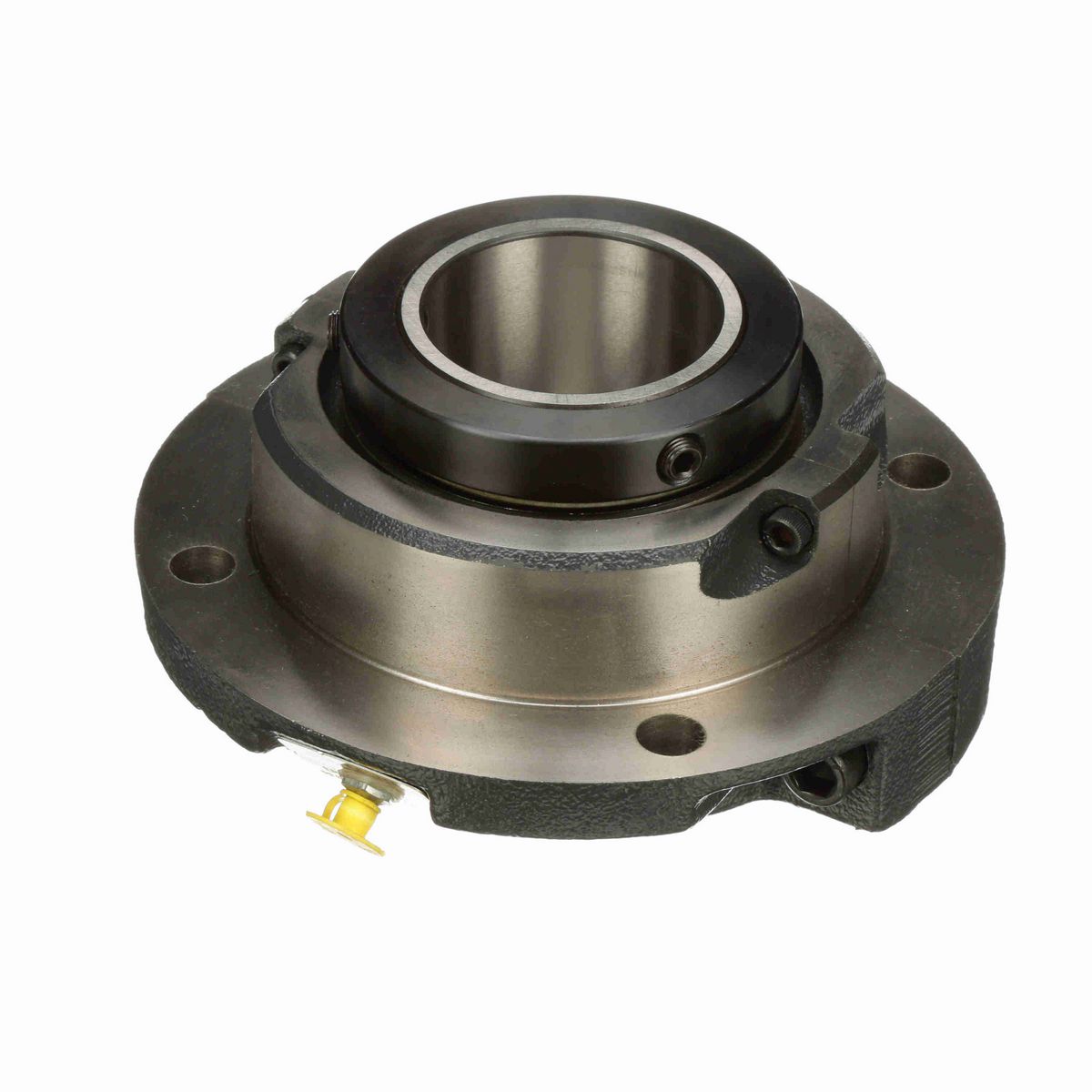

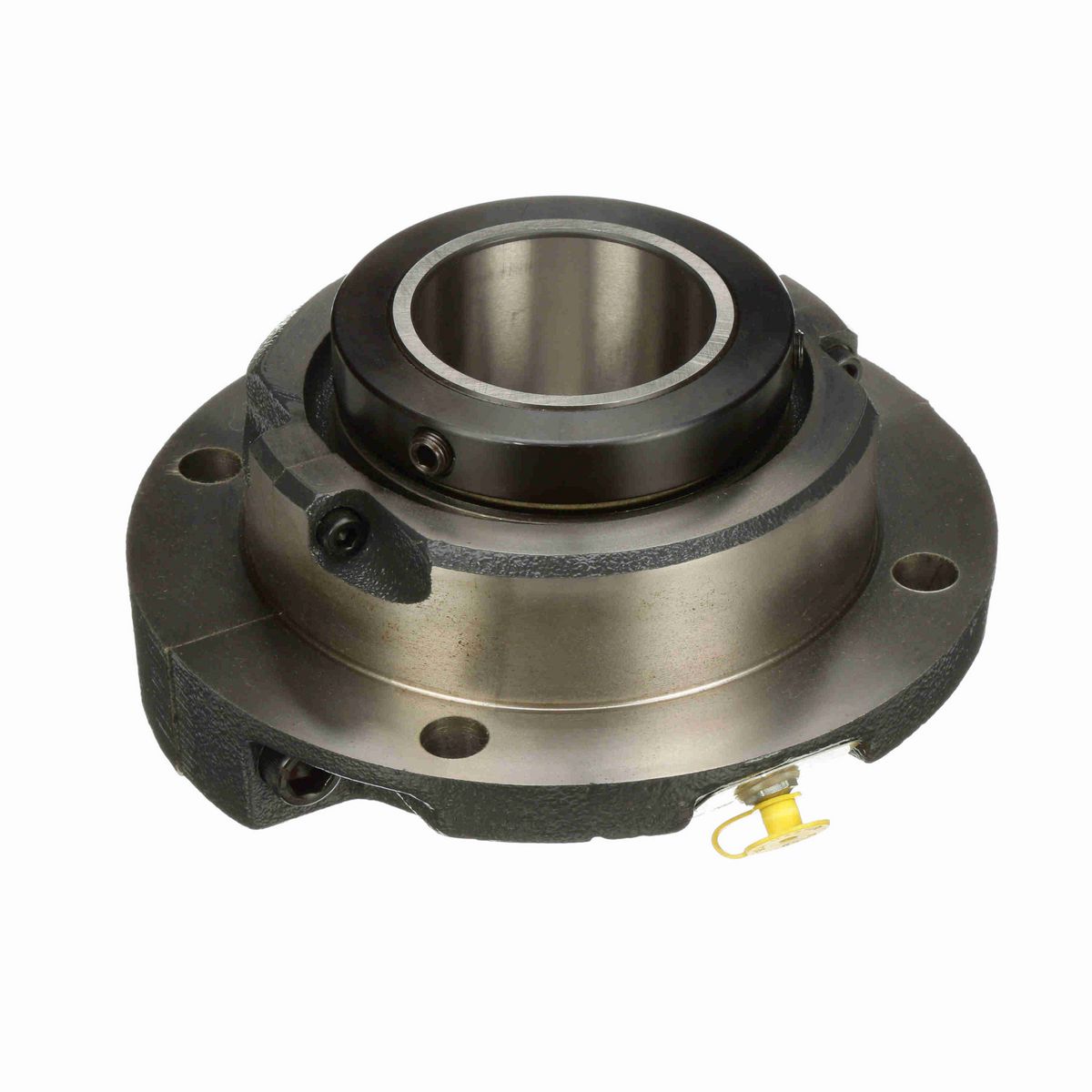

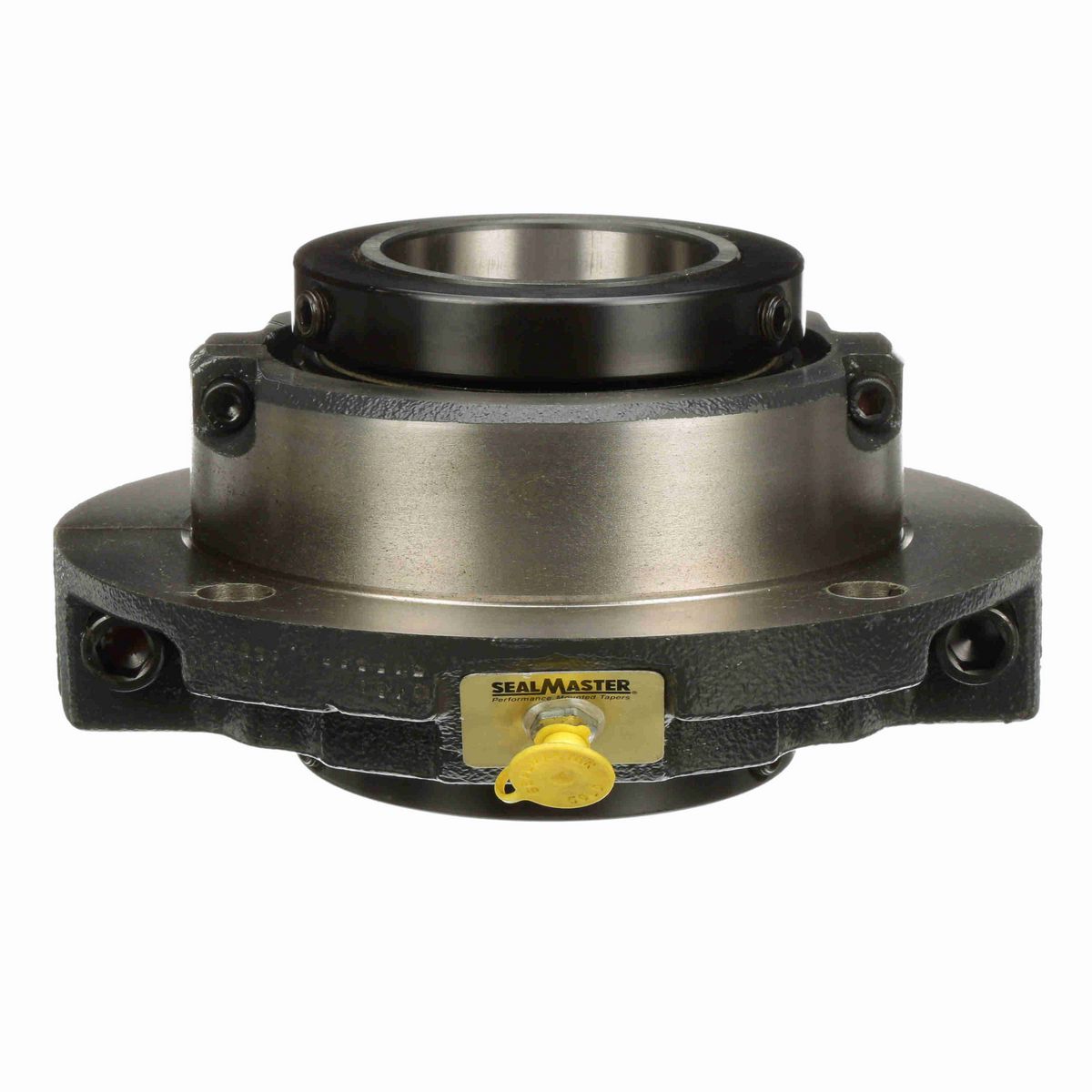

• Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
• Race-mounted contact flinger seal
• Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
• Powder coat epoxy split cast iron housing

Dimensions

Overall Height (in)	4 in
Bolt Center Diameter (in)	6.5 in
Bolt Size (in)	0.5 in
Overall Width (in)	1.8125 in
Overall Length (in)	7.625 in
Bolt Center-to-Center Length (in)	4.5960 in
Bore Size (in)	2.5000 in
Inner Race Length (in)	4 in
Centerline to Front Face (in)	2.563 in
Housing OD (in)	7.625 in
Pilot Diameter (in)	5.5 in
Foot Height (in)	0.625 in
Collar Outer Diameter (in)	3.938 in

Technical Specifications

Seal Type	Single Lip Contact Seal
Insert Material	52100 Bearing Steel
Bore Shape	Straight
Rolling Element	Tapered Roller
Housing Base	Solid
Expansion	Non-Expansion Bearing (Fixed)
Measure Units	Inch
Housing Type	Flange, Piloted
Housing Material	Cast Iron
Pilot Configuration	With Pilot
Speed (Max)	2000
Radial Dynamic Load Capacity (lb)	9,030 lb
Housing Construction	Split Two Piece
Internal Clearance	Standard
Locking Type	Double Collar Mount
Misalignment	±3.0° Misalignment - Static Only
Retainer Material	Steel
Housing Color	Gray
Bearing Insert Coating	Uncoated
Platform	RPB Series
Misalignment Type	Static Only
End Cap	No
Replaceable Insert	Yes
Outer Ring Land Profile	Standard
Series	RFP
Grease Fitting Thread Size	1/8 NPT
Inner Race Heat Treat Method	Case Carburized Inner Ring
Duty/Series	Standard
Housing Style	Flange Block
Ability to Relubricate	Yes
Insert Number	RCI 208C
Maximum Operating Temperature (F)	220 °F
Lubrication Type	Lithium; EP; NLGI#2

General Specifications

UPC	662288494089
Weight	19.00 LB
Packaged Length	8.88 IN
Packaged Width	8.88 IN
Packaged Height	8.63 IN
HTC	8483.20.4080
Country of Origin	United States of America
