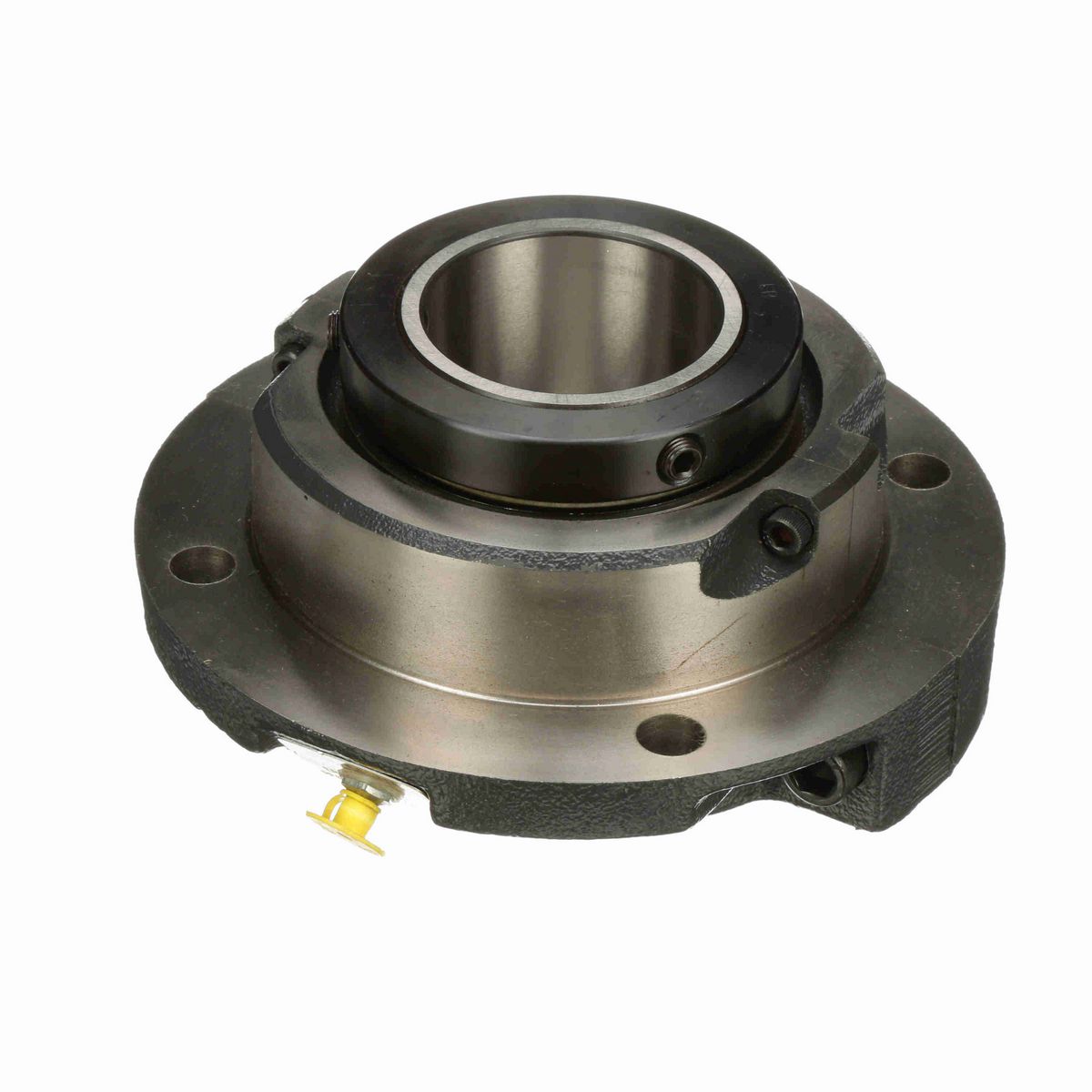

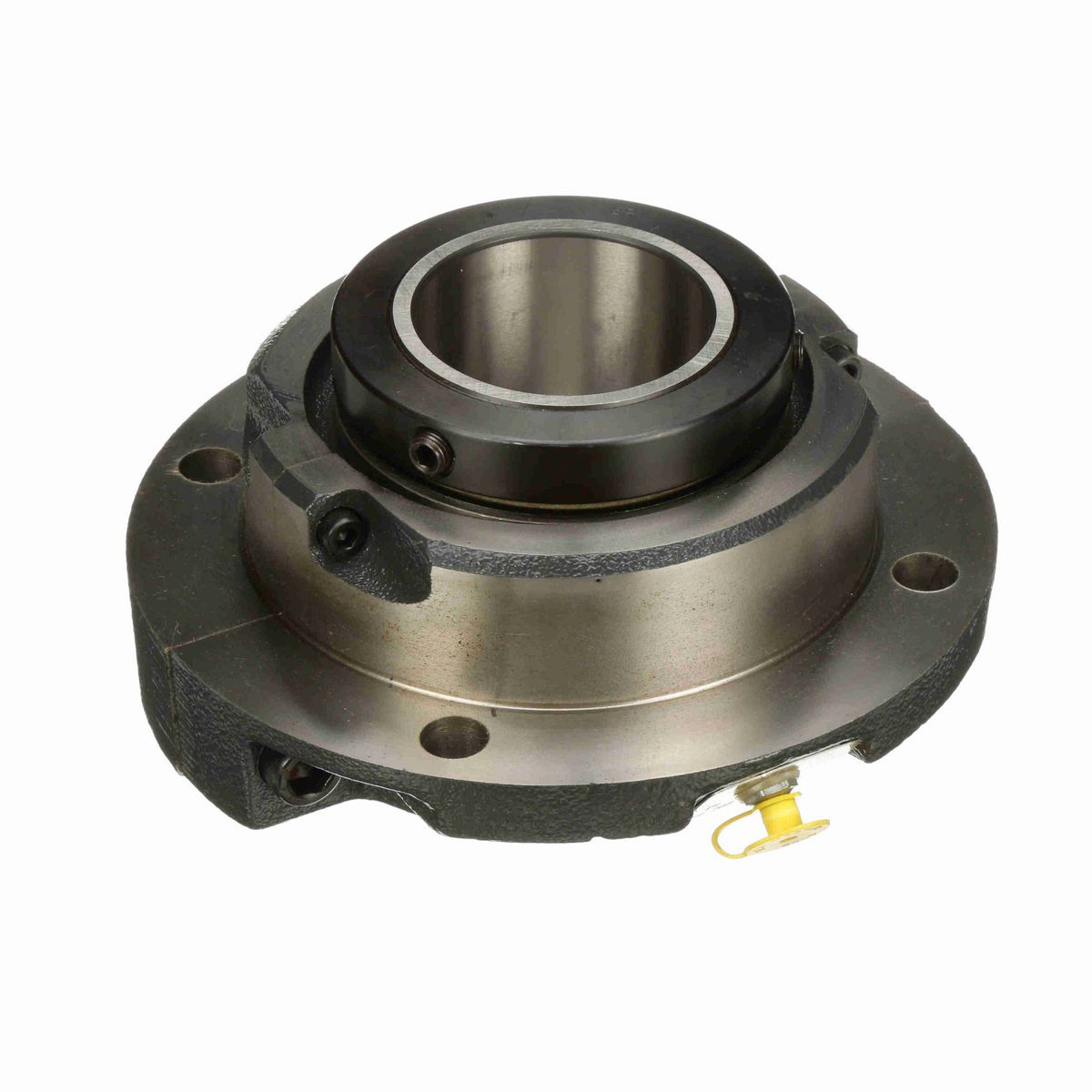

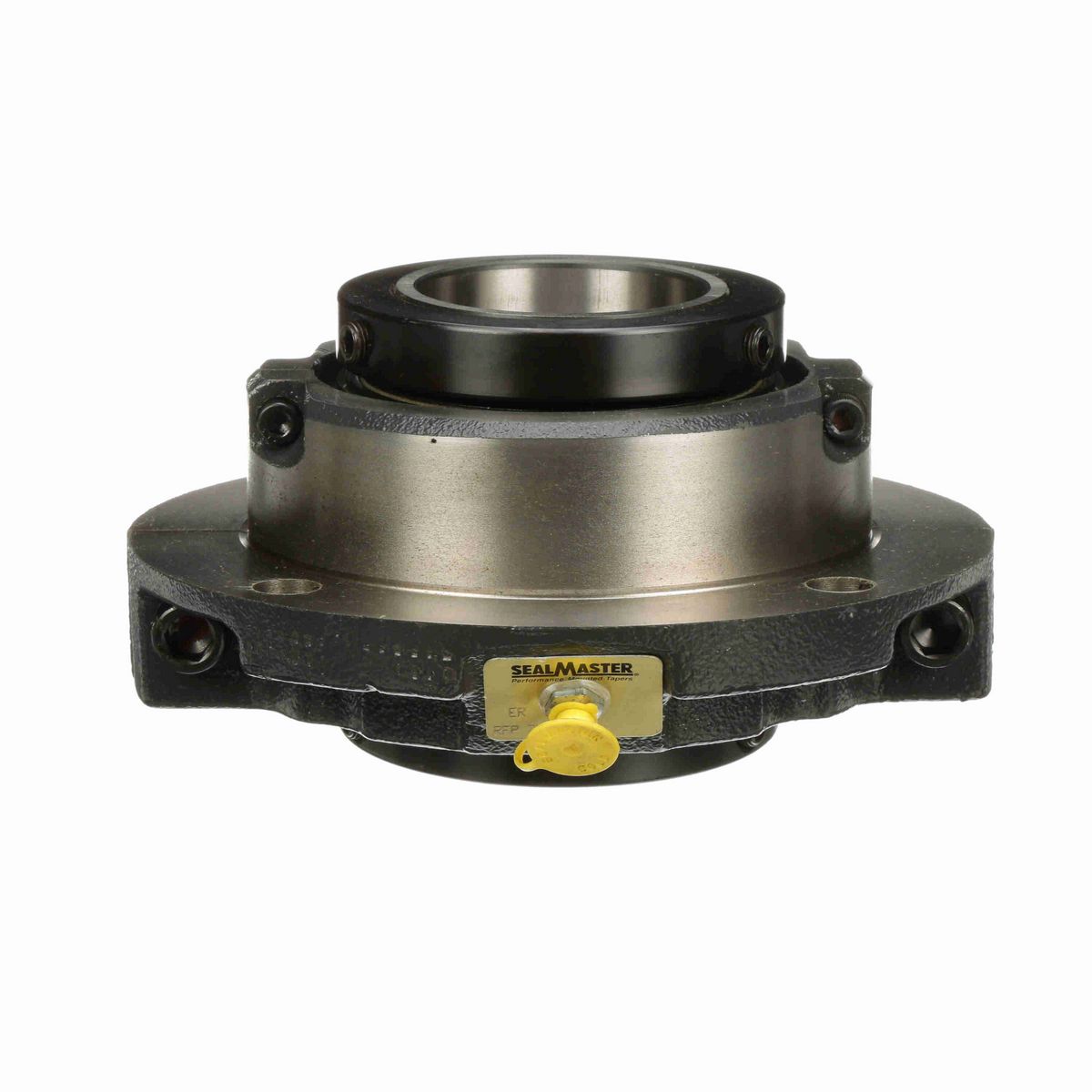

• Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
• Race-mounted felt-lined flinger seal
• Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
• Powder coat epoxy split cast iron housing

Dimensions

Overall Length (in)	7.625 in
Bolt Center Diameter (in)	6.5 in
Bolt Size (in)	0.5 in
Bolt Center-to-Center Length (in)	4.5960 in
Overall Height (in)	4 in
Overall Width (in)	1.8125 in
Bore Size (in)	2.5000 in
Inner Race Length (in)	4 in
Centerline to Front Face (in)	2.563 in
Housing OD (in)	7.625 in
Foot Height (in)	0.625 in
Pilot Diameter (in)	5.5 in
Collar Outer Diameter (in)	3.938 in

Technical Specifications

Expansion	Non-Expansion Bearing (Fixed)
Insert Material	52100 Bearing Steel
Rolling Element	Tapered Roller
Seal Type	Felt Labyrinth Seal
Bore Shape	Straight
Housing Base	Solid
Housing Type	Flange, Piloted
Housing Material	Cast Iron
Measure Units	Inch
Pilot Configuration	With Pilot
Housing Construction	Split Two Piece
Radial Dynamic Load Capacity (lb)	9,030 lb
Misalignment	±3.0° Misalignment - Static Only
Locking Type	Double Collar Mount
Speed (Max)	2000
Internal Clearance	Standard
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
End Cap	No
Replaceable Insert	Yes
Housing Color	Gray
Retainer Material	Steel
Bearing Insert Coating	Uncoated
Platform	RPB Series
Series	RFP
Grease Fitting Thread Size	1/8 NPT
Ability to Relubricate	Yes
Housing Style	Flange Block
Maximum Operating Temperature (F)	220 °F
Duty/Series	Standard
Insert Number	RCI-208
Inner Race Heat Treat Method	Case Carburized Inner Ring
Lubrication Type	Lithium; EP; NLGI#2

General Specifications

UPC	662288480570
Weight	18.00 LB
Packaged Length	8.88 IN
Packaged Width	8.88 IN
Packaged Height	8.63 IN
HTC	8483.20.4080
Country of Origin	United States of America
