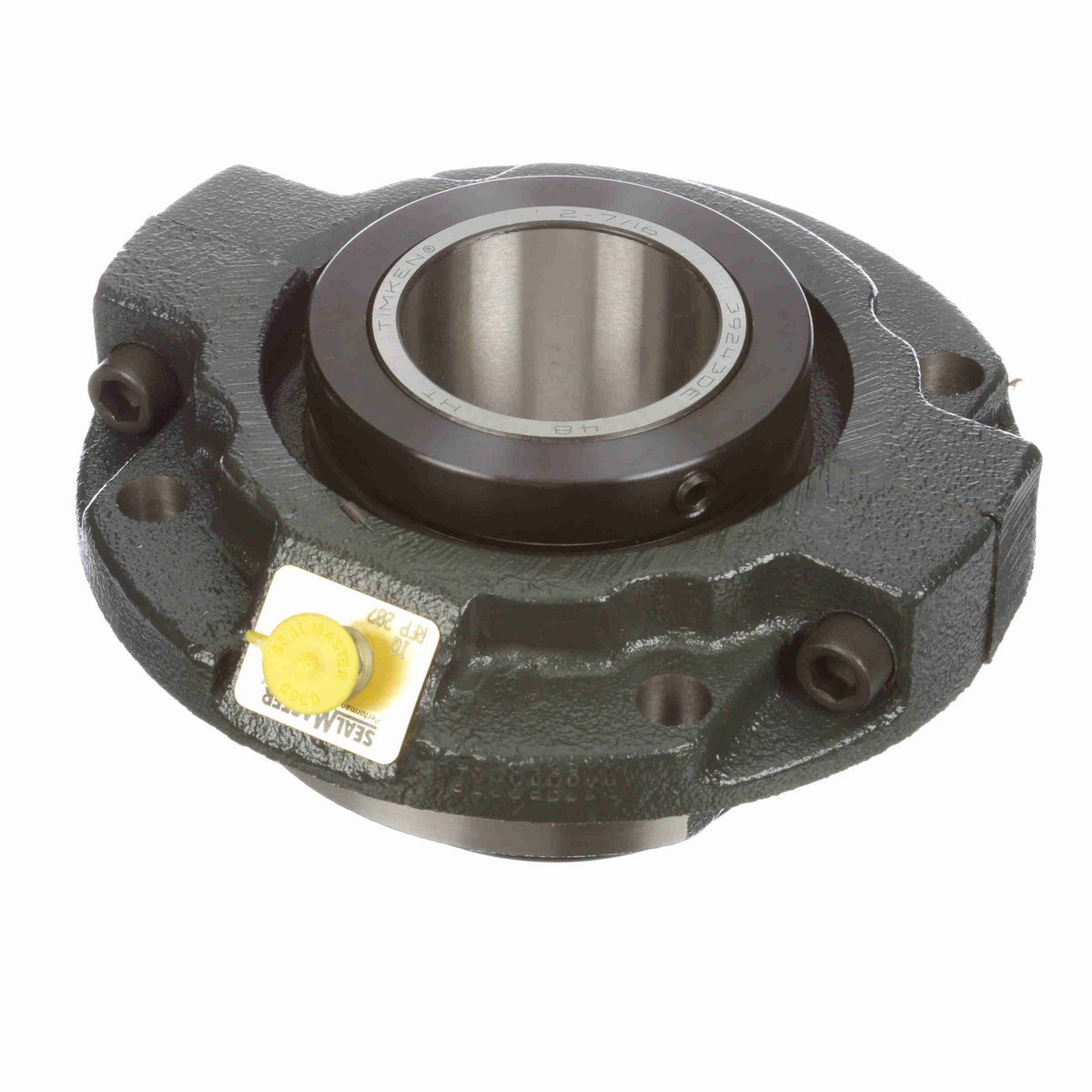

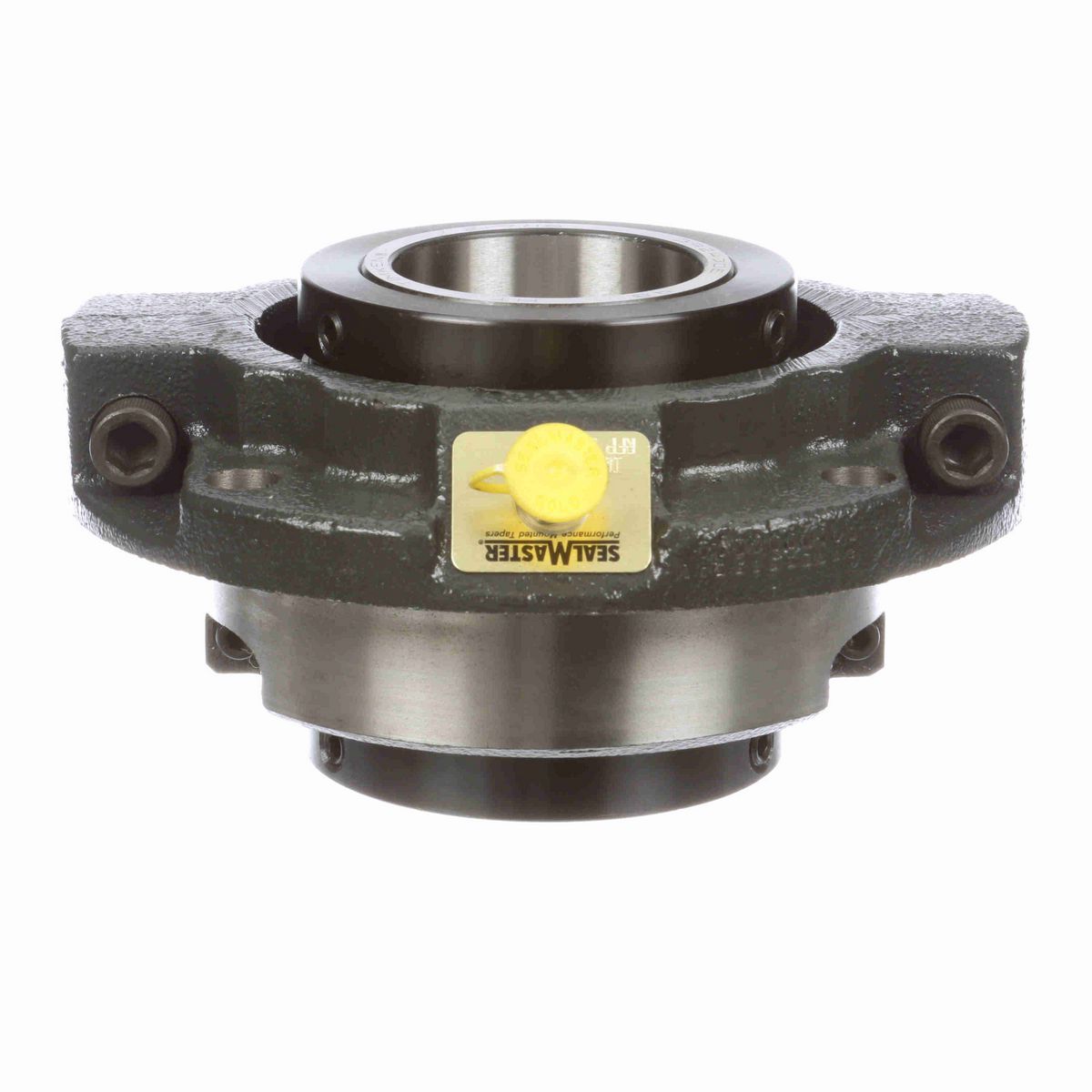

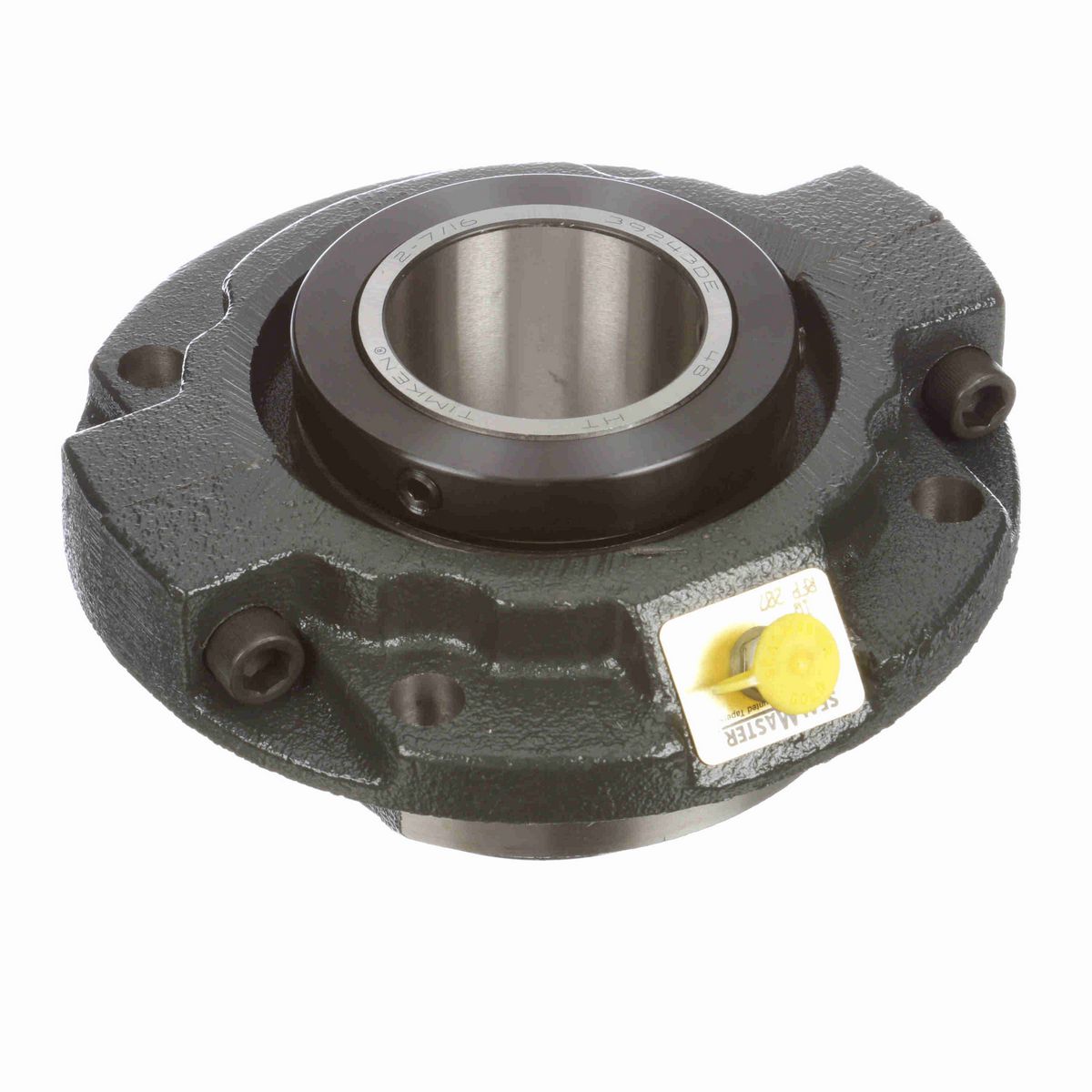

• Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
• Race-mounted felt-lined flinger seal
• Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
• Powder coat epoxy split cast iron housing

Dimensions

Overall Height (in)	4 in
Overall Width (in)	1.8125 in
Overall Length (in)	7.625 in
Bolt Size (in)	0.5 in
Bolt Center Diameter (in)	6.5 in
Bolt Center-to-Center Length (in)	4.5960 in
Bore Size (in)	2.4375 in
Inner Race Length (in)	4 in
Housing OD (in)	7.625 in
Pilot Diameter (in)	5.5 in
Centerline to Front Face (in)	2.563 in
Foot Height (in)	0.625 in
Collar Outer Diameter (in)	3.938 in

Technical Specifications

Housing Base	Solid
Expansion	Non-Expansion Bearing (Fixed)
Insert Material	52100 Bearing Steel
Seal Type	Felt Labyrinth Seal
Rolling Element	Tapered Roller
Housing Type	Flange, Piloted
Housing Material	Cast Iron
Measure Units	Inch
Bore Shape	Straight
Pilot Configuration	With Pilot
Speed (Max)	2000
Locking Type	Double Collar Mount
Housing Construction	Split Two Piece
Radial Dynamic Load Capacity (lb)	9,030 lb
Internal Clearance	Standard
Misalignment	±3.0° Misalignment - Static Only
Housing Color	Gray
Outer Ring Land Profile	Standard
Bearing Insert Coating	Uncoated
Platform	RPB Series
End Cap	No
Misalignment Type	Static Only
Retainer Material	Steel
Replaceable Insert	Yes
Series	RFP
Grease Fitting Thread Size	1/8 NPT
Inner Race Heat Treat Method	Case Carburized Inner Ring
Insert Number	RCI-207
Lubrication Type	Lithium; EP; NLGI#2
Maximum Operating Temperature (F)	220 °F
Housing Style	Flange Block
Duty/Series	Standard
Ability to Relubricate	Yes

General Specifications

UPC	662288480563
Weight	19.00 LB
Packaged Length	8.88 IN
Packaged Width	8.88 IN
Packaged Height	8.63 IN
HTC	8483.20.4080
Country of Origin	United States of America
