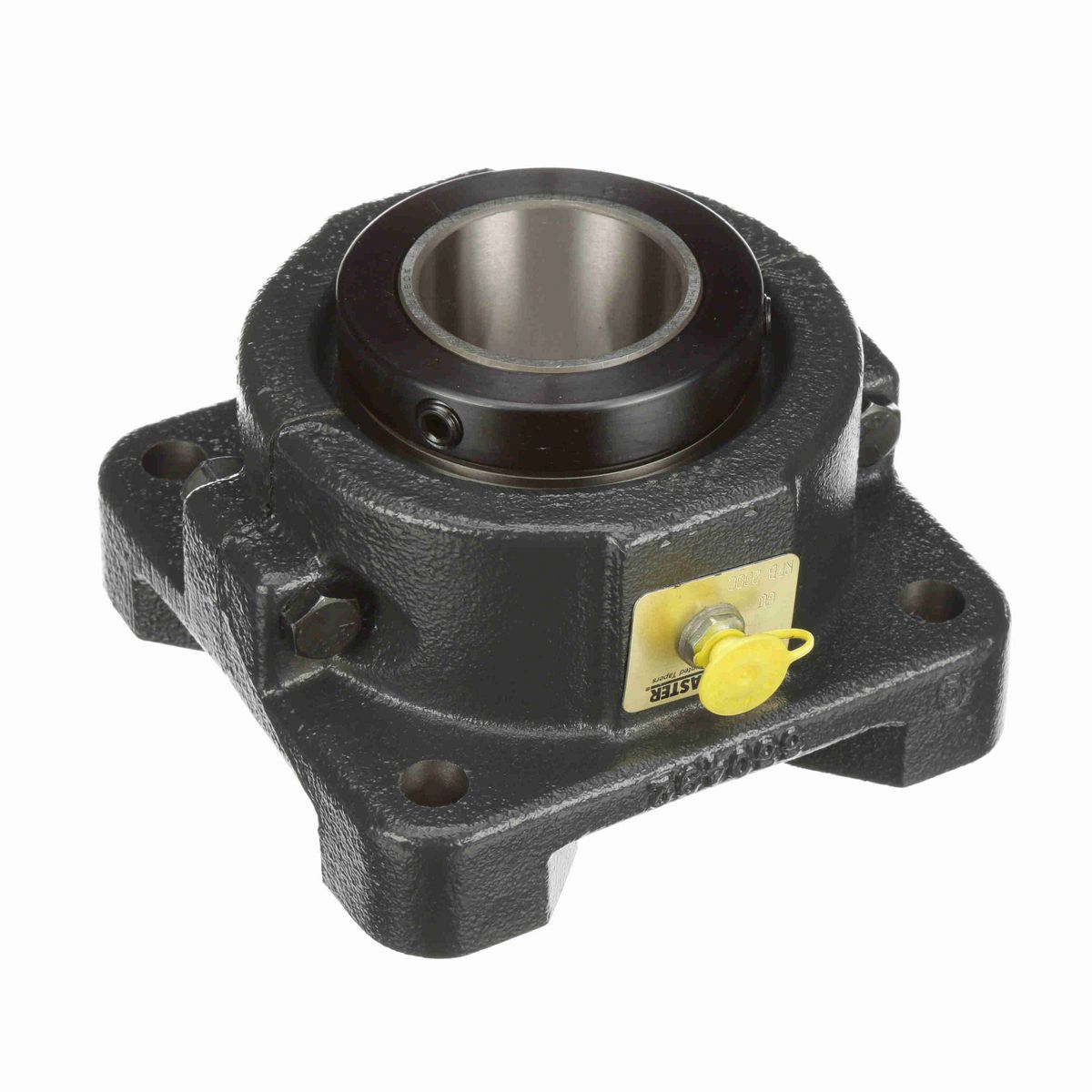

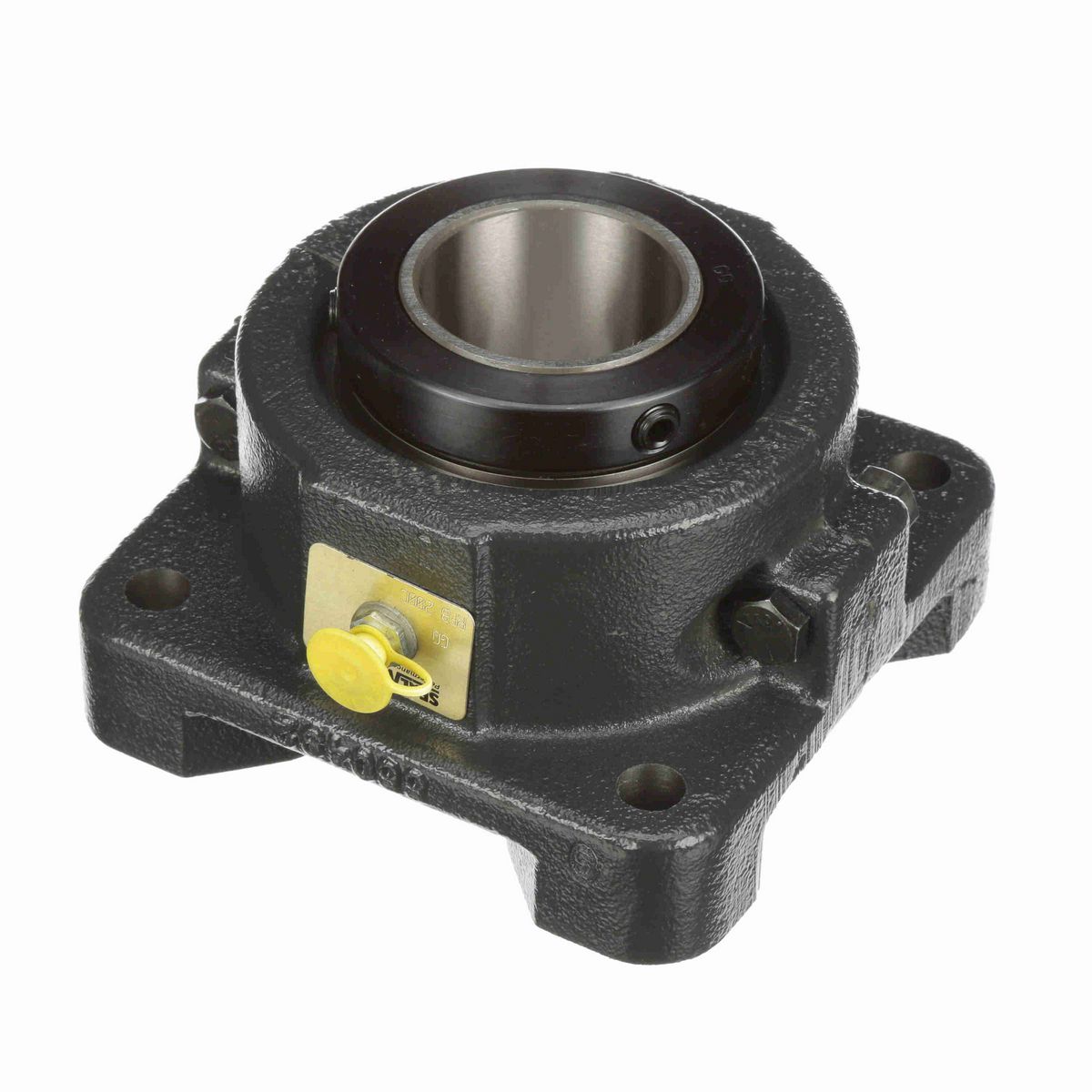

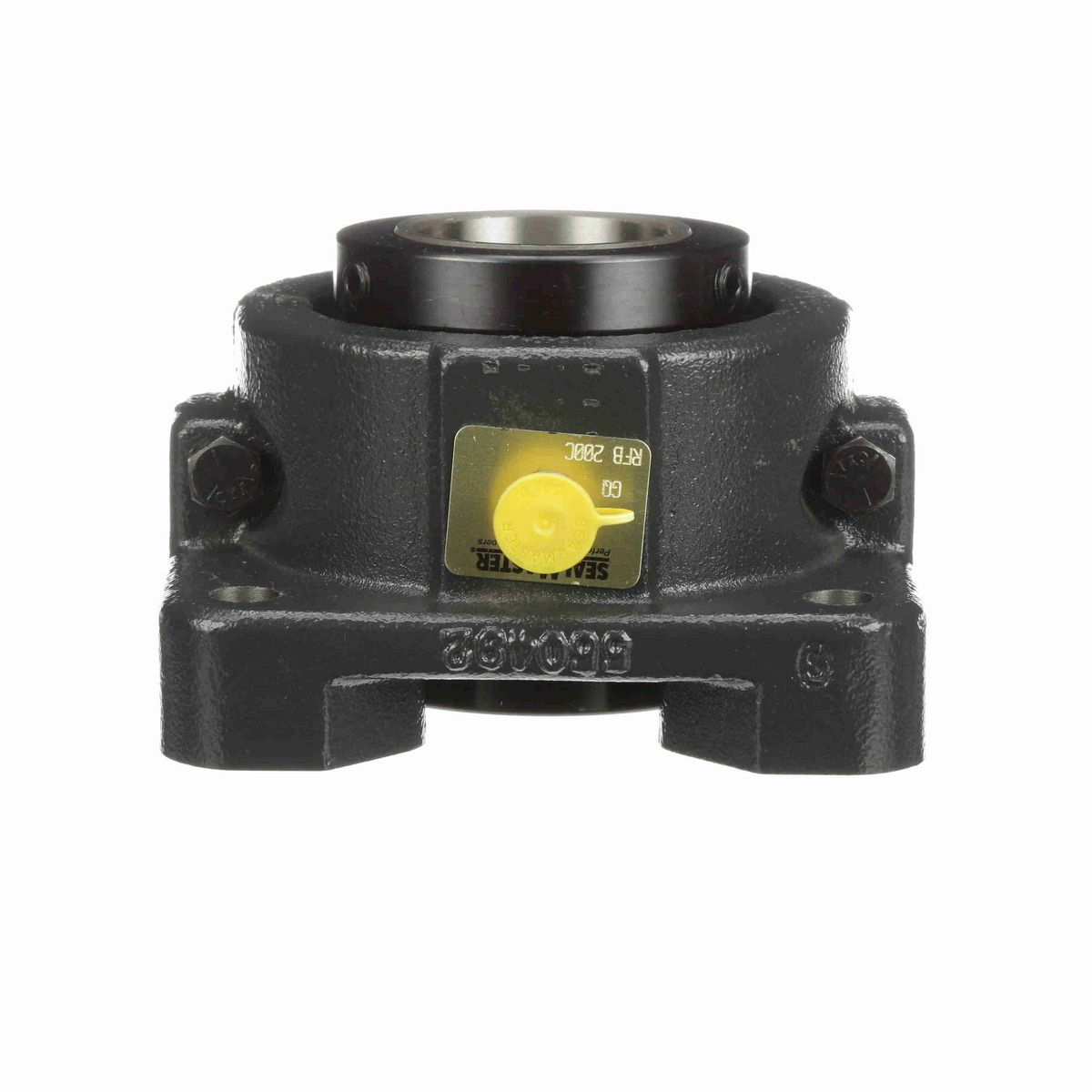

• Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
• Race-mounted contact flinger seal
• Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
• Powder coat epoxy split cast iron housing

Dimensions

Overall Length (in)	5.625 in
Housing Width (in)	5.625 in
Overall Width (in)	3.625 in
Bolt Center-to-Center Length (in)	4.375 in
Bolt Center Diameter (in)	6.1875 in
Bolt Size (in)	0.5 in
Overall Height (in)	3.625 in
Bore Size (in)	2 in
Centerline to Front Face (in)	1.75 in
Foot Height (in)	1.188 in
Inner Race Length (in)	3.5 in
Collar Outer Diameter (in)	3.25 in

Technical Specifications

Measure Units	Inch
Speed (Max)	2500
Housing Base	Solid
Bore Shape	Straight
Housing Material	Cast Iron
Seal Type	Single Lip Contact Seal
Expansion	Non-Expansion Bearing (Fixed)
Housing Type	Flange, Four Bolt
Insert Material	52100 Bearing Steel
Rolling Element	Tapered Roller
Pilot Configuration	No Pilot
Misalignment	±3.0° Misalignment - Static Only
Internal Clearance	Standard
Locking Type	Double Collar Mount
Housing Construction	Split Two Piece
Housing Color	Gray
Platform	RPB Series
Replaceable Insert	Yes
End Cap	No
Misalignment Type	Static Only
Retainer Material	Steel
Bearing Insert Coating	Uncoated
Outer Ring Land Profile	Standard
Series	RFB
Grease Fitting Thread Size	1/8 NPT
Duty/Series	Standard
Lubrication Type	Lithium; EP; NLGI#2
Maximum Operating Temperature (F)	220 °F
Ability to Relubricate	Yes
Insert Number	RCI-200C
Inner Race Heat Treat Method	Case Carburized Inner Ring
Housing Style	Flange Block

General Specifications

UPC	662288493815
Weight	14.50 LB
Packaged Length	6.38 IN
Packaged Width	6.38 IN
Packaged Height	3.63 IN
HTC	8483.20.4080
Country of Origin	United States of America
