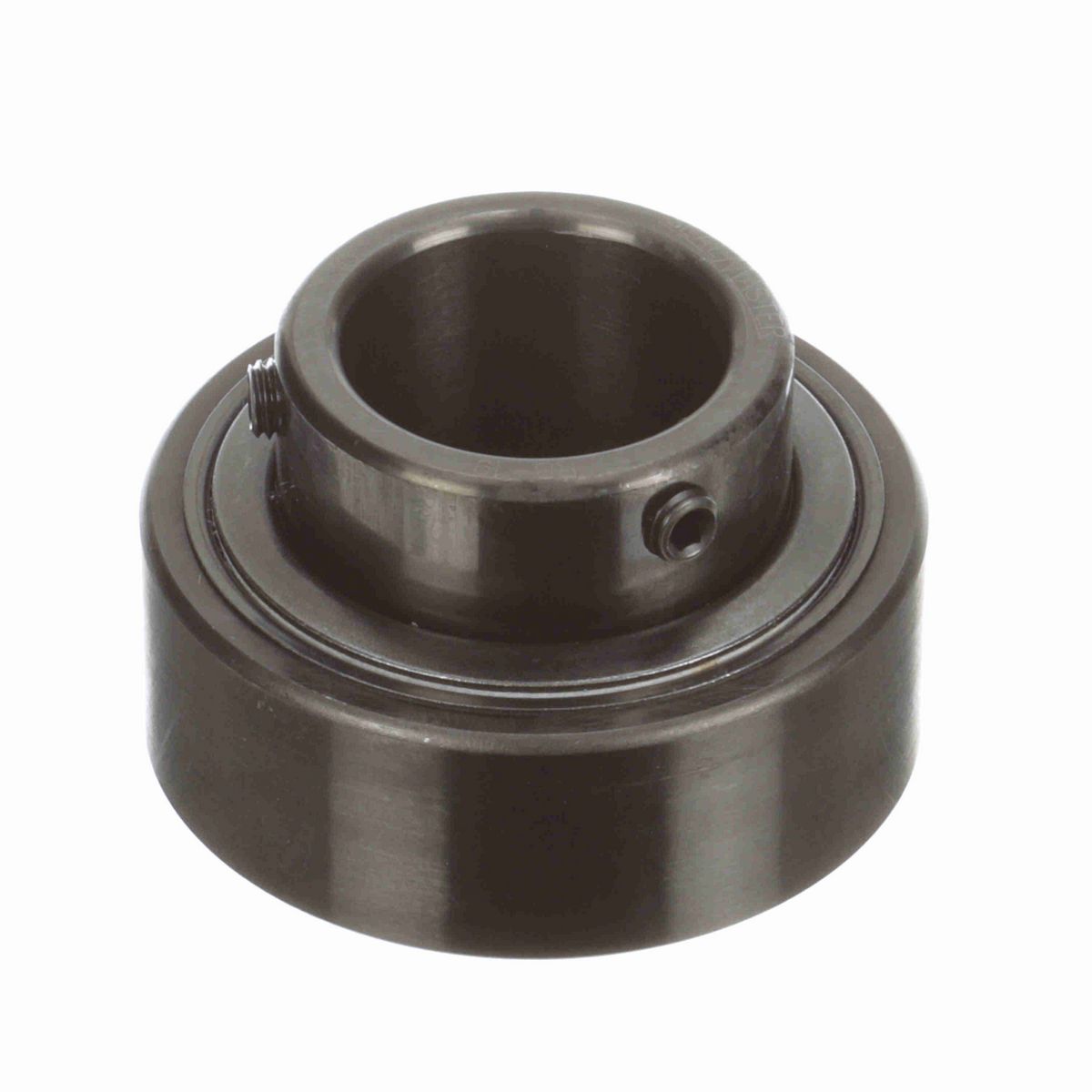

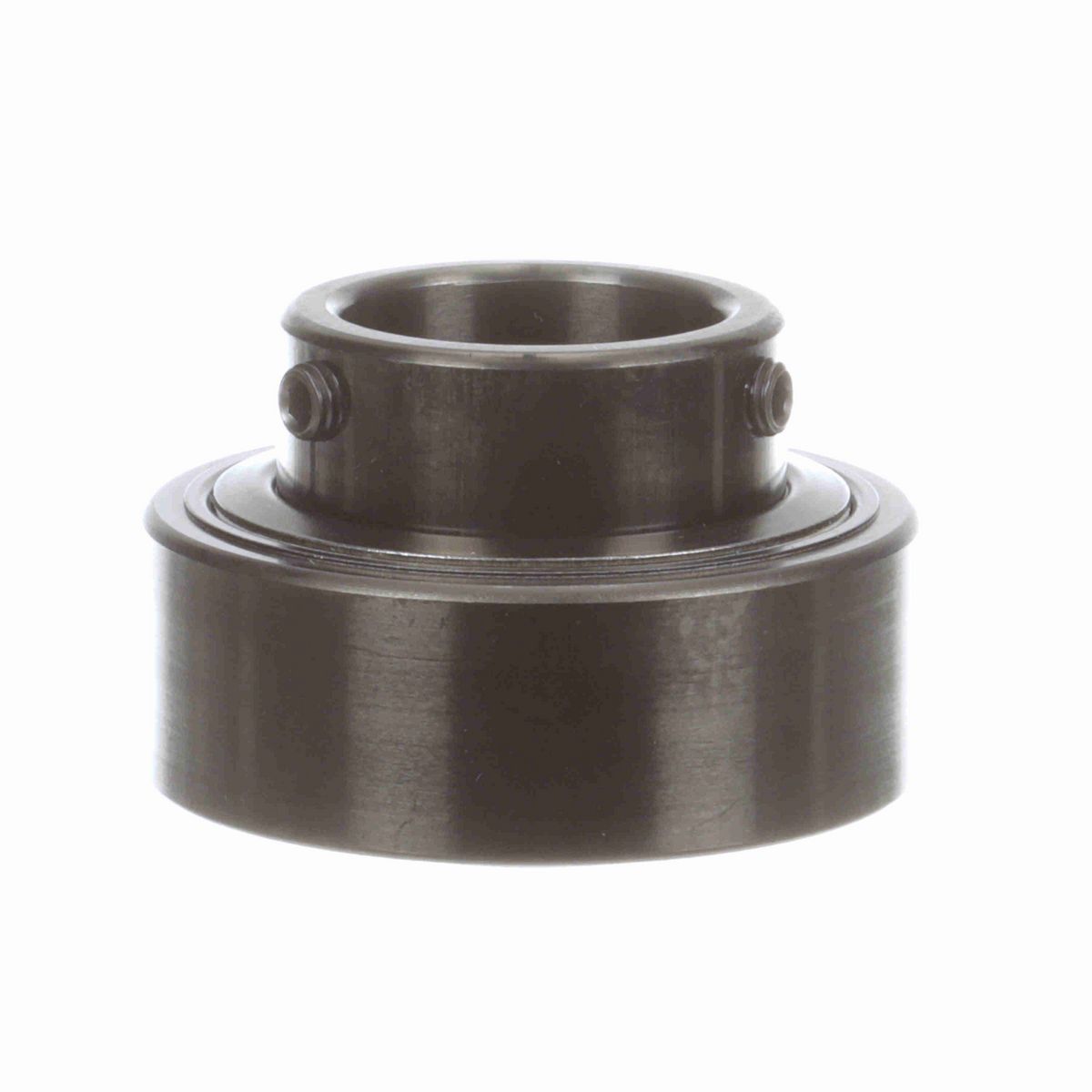

• Cylindrical O.D. wide inner ring bearing insert with no lubrication holes
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.625 in
Bore Size (in)	1.1875 in
Outer Race OD (in)	2.441 in
Inner Ring OD (in)	1.281 in
Inner Race Length (in)	1.625 in
Outer Race Width (in)	0.875 in
Centerline to Front Face (in)	1.063 in

Technical Specifications

Insert Material	52100 Bearing Steel, Black Oxided
Measure Units	Inch
Set Screw Thread	1/4-28
Housing Type	Insert Only
Rolling Element	Ball Bearing
Bore Shape	Straight
Radius	0.04
Speed (Max) (RPM)	5450 rpm
Radial Dynamic Load Capacity (lb)	4,381 lb
Misalignment	None
Internal Clearance	Standard
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Replaceable Insert	No
End Cap	No
Outer Ring Land Profile	Standard
Bearing Insert Coating	Black Oxide Coated
Radial Static Load Capacity (lb)	2,567 lb
Cage Material	Molded Nylon
Precision Rating	ABEC 1
Series	RB
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Inner Race Heat Treat Method	Zone-Hardened
Fixed vs. Expansion	No
Ability to Relubricate	No
Locking Type	Set Screw
Lubrication Type	Lithium Complex NLGI 2 Grease
Duty/Series	Standard
Type of Seal	Felt Labyrinth Seal
Retainer Type	Land Riding Retainer
Maximum Operating Temperature (F)	220 °F

General Specifications

UPC	662461009376
Weight	0.80 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5052
Country of Origin	Mexico
