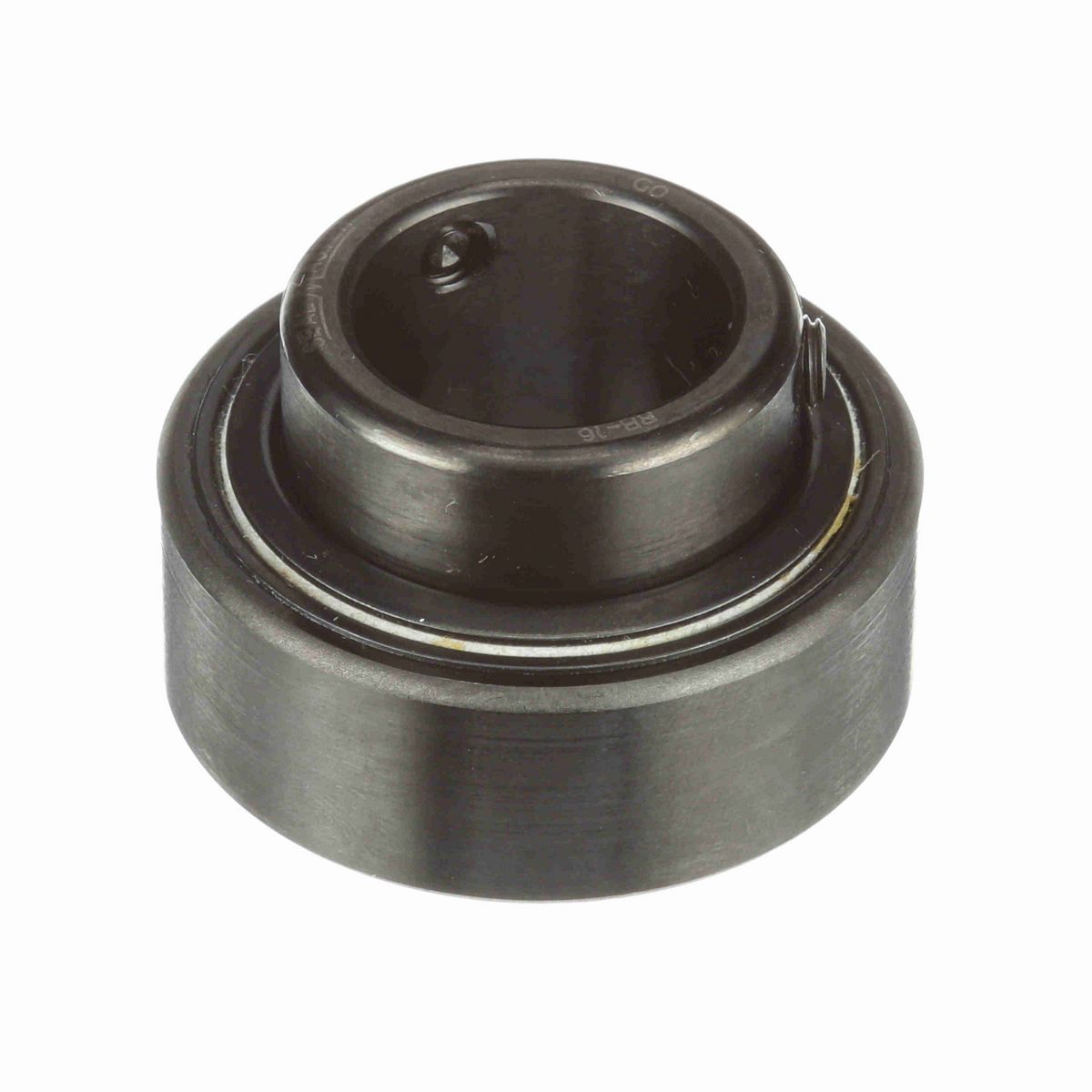

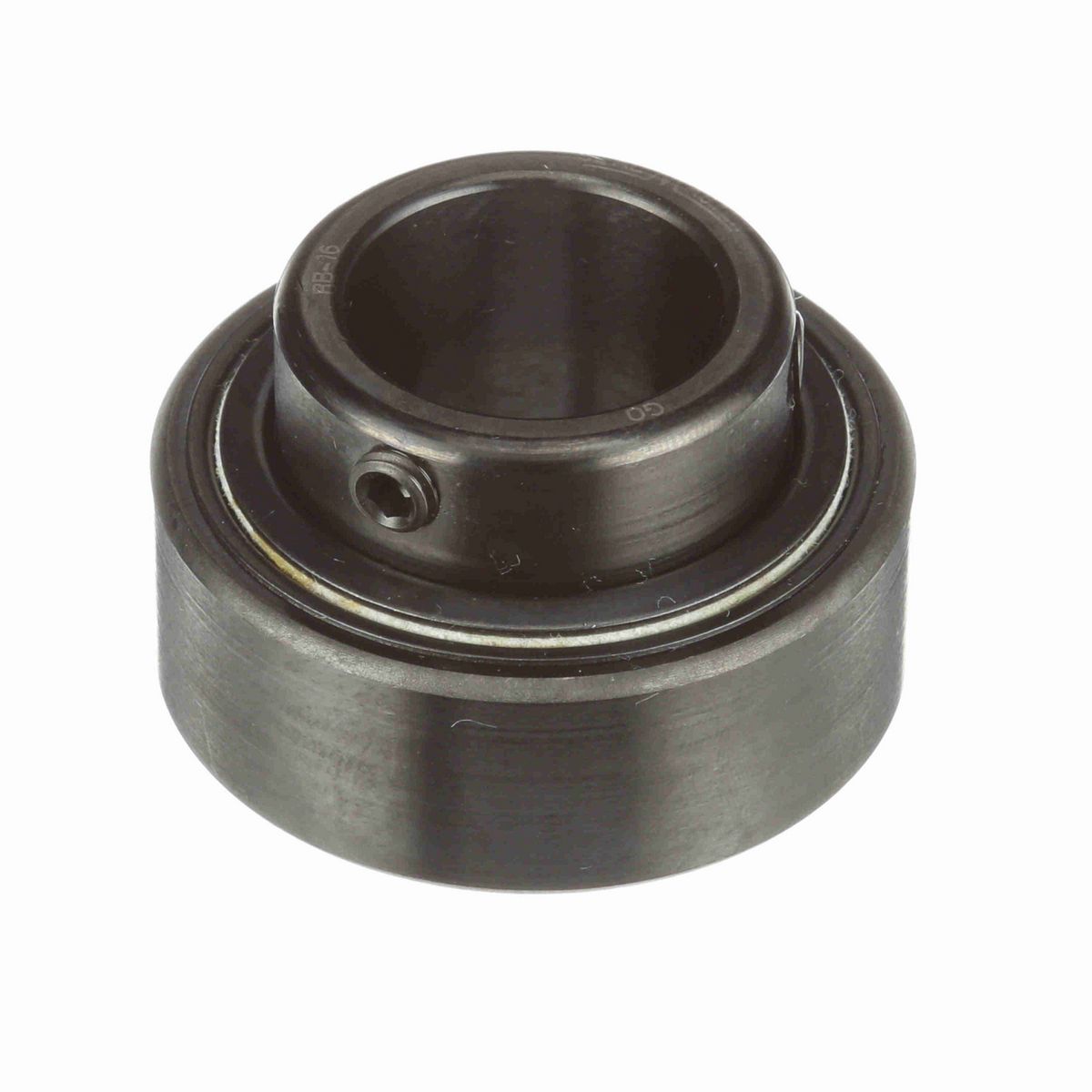

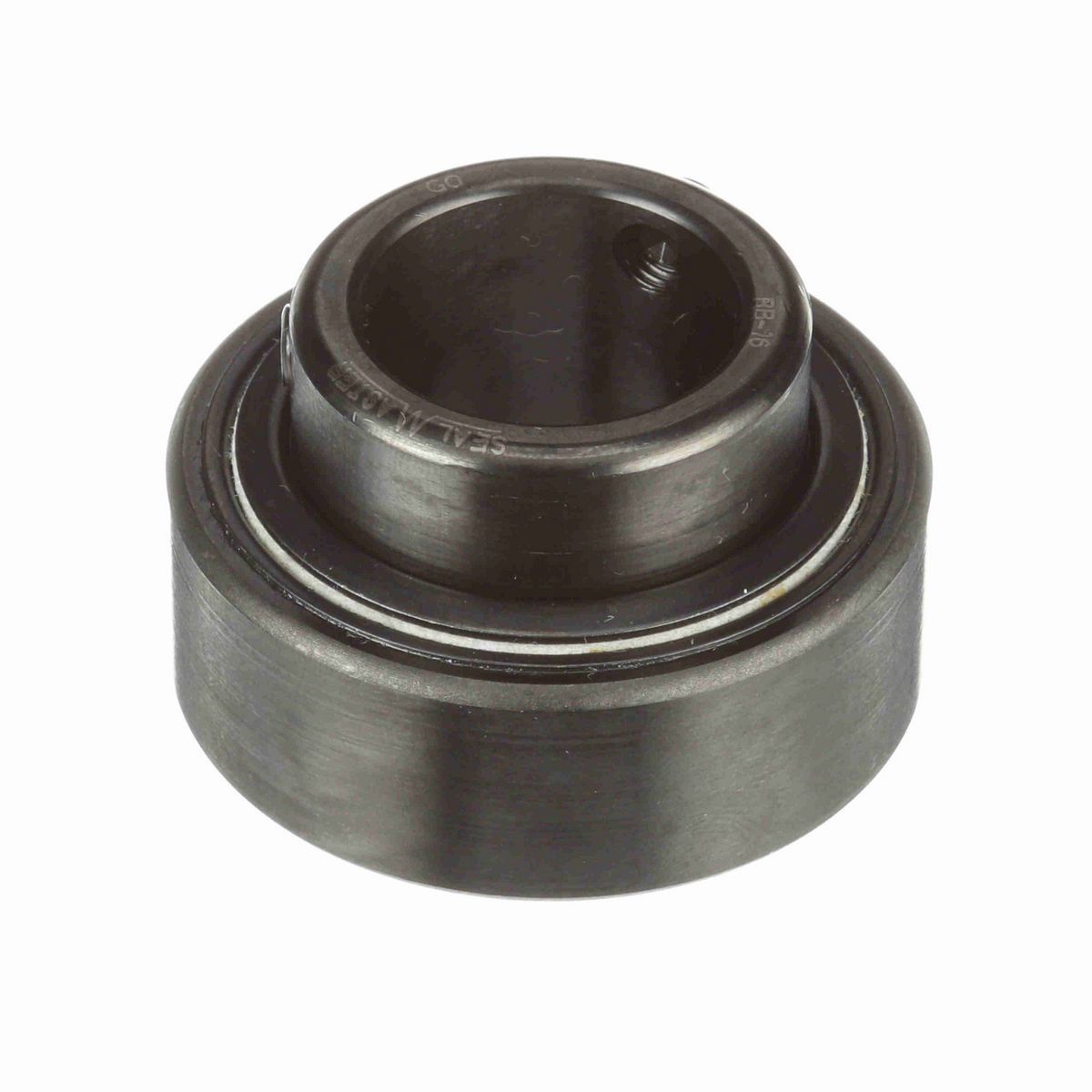

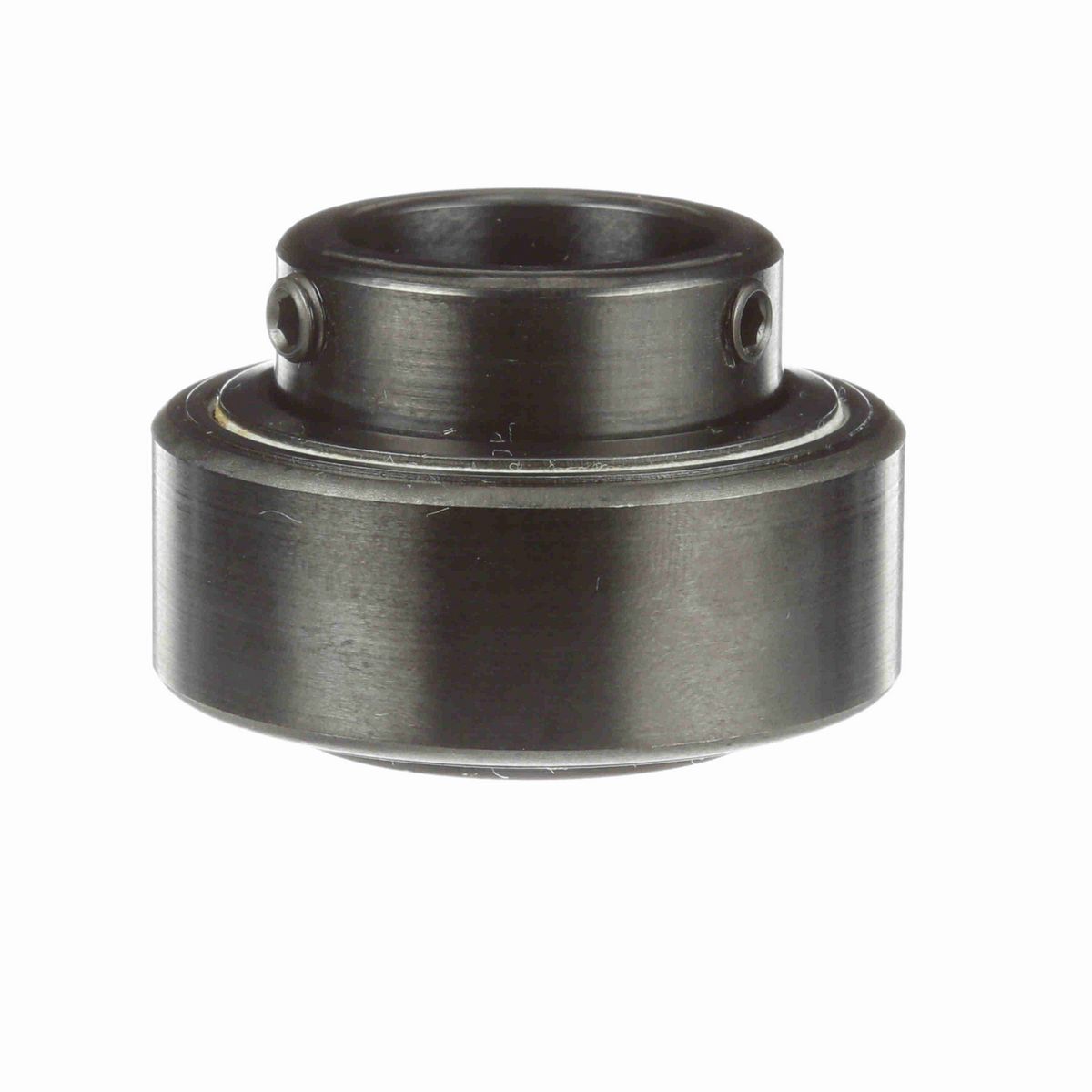

• Cylindrical O.D. wide inner ring bearing insert with no lubrication holes
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.375 in
Bore Size (in)	1 in
Inner Race Length (in)	1.375 in
Outer Race OD (in)	2.047 in
Outer Race Width (in)	0.75 in
Inner Ring OD (in)	1.375 in
Centerline to Front Face (in)	0.875 in

Technical Specifications

Radius	0.04
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Type	Insert Only
Measure Units	Inch
Insert Material	52100 Bearing Steel, Black Oxided
Set Screw Thread	1/4-28
Speed (Max) (RPM)	6350 rpm
Radial Dynamic Load Capacity (lb)	2,801 lb
Misalignment	None
Internal Clearance	Standard
Outer Ring Land Profile	Standard
Bearing Insert Coating	Black Oxide Coated
Platform	Gold Line Ball Bearing
End Cap	No
Replaceable Insert	No
Misalignment Type	Static Only
Radial Static Load Capacity (lb)	1,651 lb
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Fixed vs. Expansion	No
Retainer Type	Land Riding Retainer
Maximum Operating Temperature (F)	220 °F
Lubrication Type	Lithium Complex NLGI 2 Grease
Ability to Relubricate	No
Type of Seal	Felt Labyrinth Seal
Inner Race Heat Treat Method	Zone-Hardened
Duty/Series	Standard
Locking Type	Set Screw

General Specifications

UPC	662461009338
Weight	0.53 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
