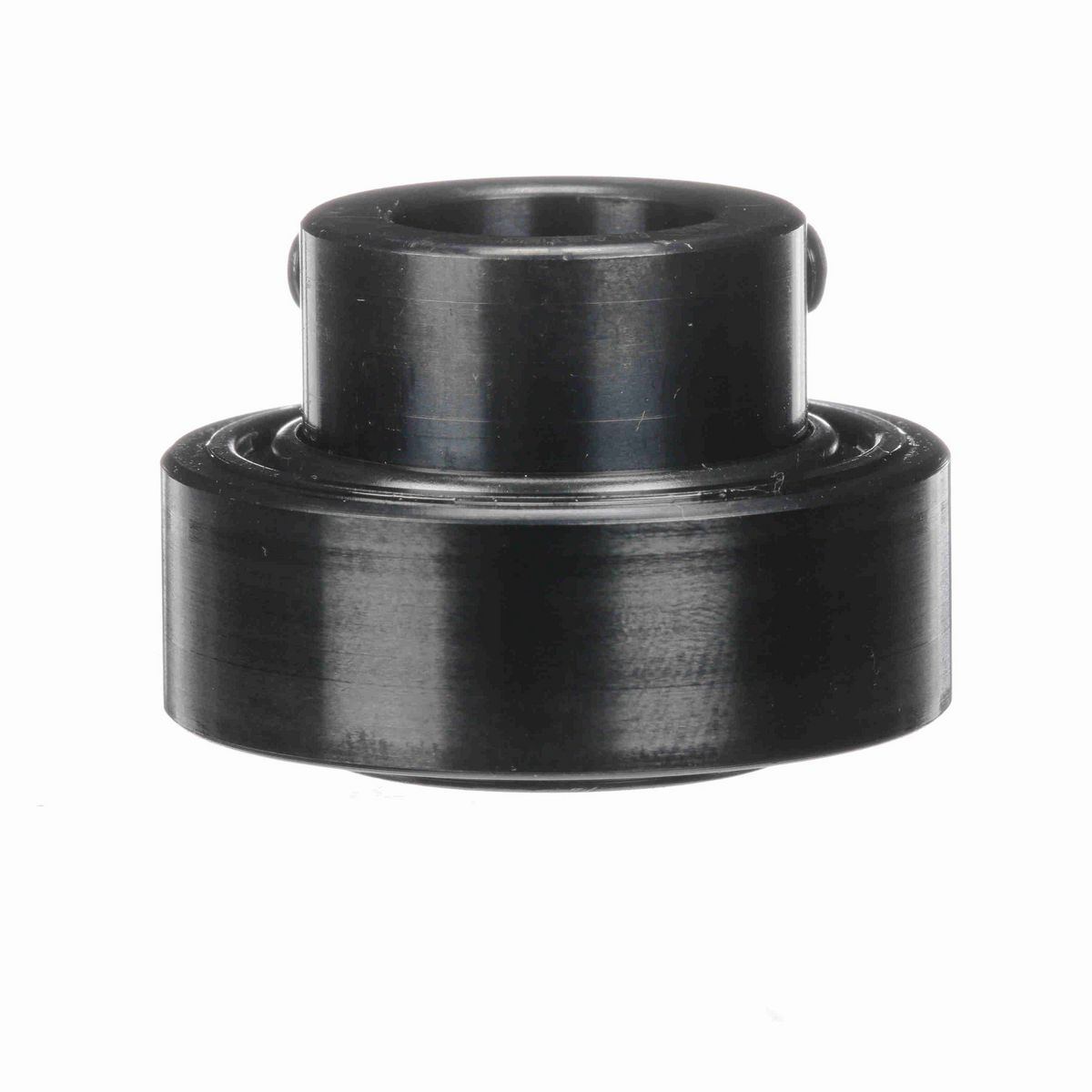

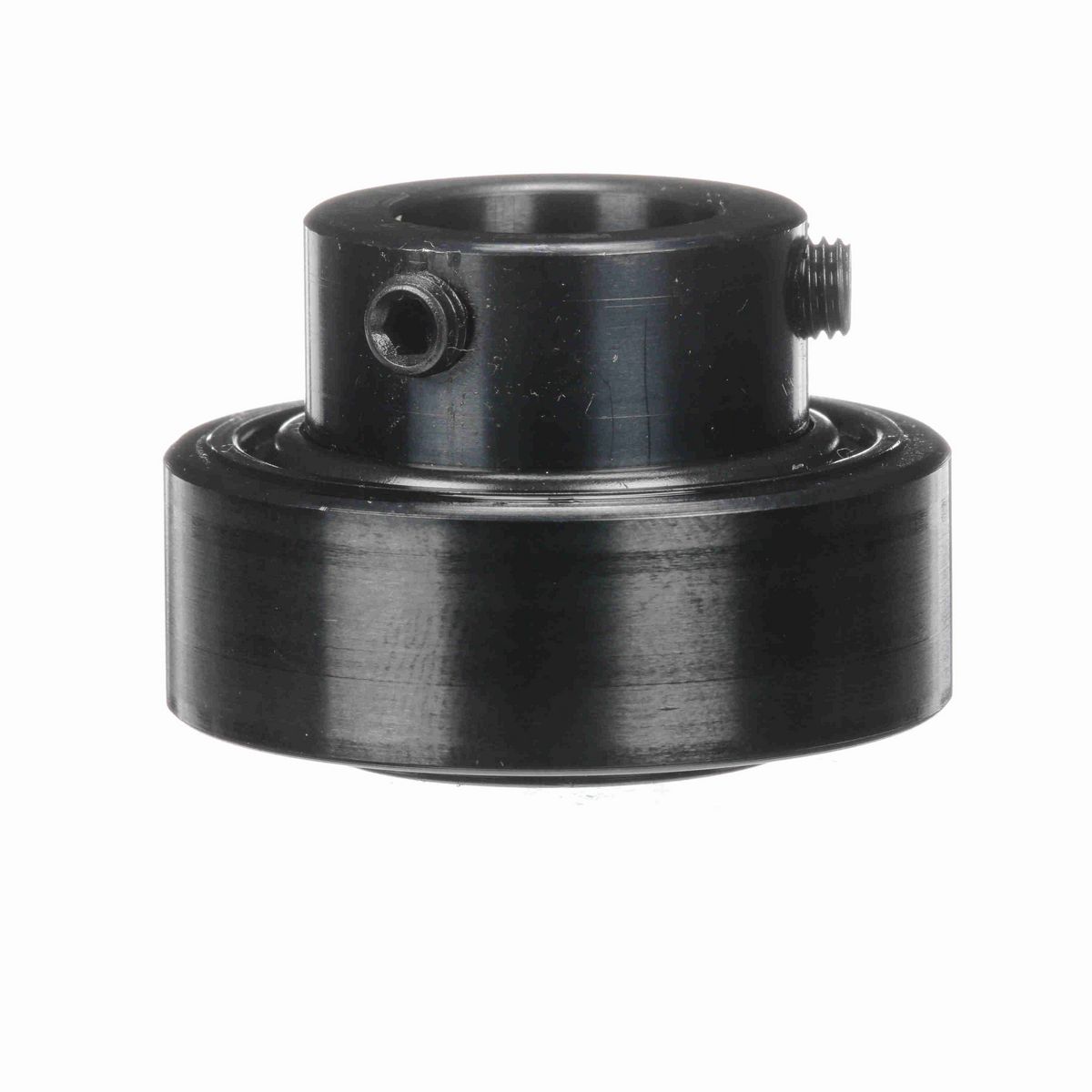

• Cylindrical O.D. wide inner ring bearing insert with no lubrication holes
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.281 in
Bore Size (in)	0.7500 in
Inner Race Length (in)	1.281 in
Inner Ring OD (in)	1.188 in
Outer Race OD (in)	1.85 in
Outer Race Width (in)	0.625 in
Centerline to Front Face (in)	0.875 in

Technical Specifications

Measure Units	Inch
Rolling Element	Ball Bearing
Housing Type	Insert Only
Set Screw Thread	1/4-28
Insert Material	52100 Bearing Steel, Black Oxided
Radius	0.04
Bore Shape	Straight
Speed (Max) (RPM)	6450 rpm
Radial Dynamic Load Capacity (lb)	2,611 lb
Internal Clearance	Standard
Misalignment	None
End Cap	No
Replaceable Insert	No
Bearing Insert Coating	Black Oxide Coated
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Radial Static Load Capacity (lb)	1,444 lb
Cage Material	Molded Nylon
Series	RB
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Retainer Type	Land Riding Retainer
Duty/Series	Standard
Ability to Relubricate	No
Lubrication Type	Lithium Complex NLGI 2 Grease
Type of Seal	Single Lip Contact Seal
Locking Type	Set Screw
Fixed vs. Expansion	No
Maximum Operating Temperature (F)	220 °F
Inner Race Heat Treat Method	Zone-Hardened

General Specifications

UPC	662461025178
Weight	0.87 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
