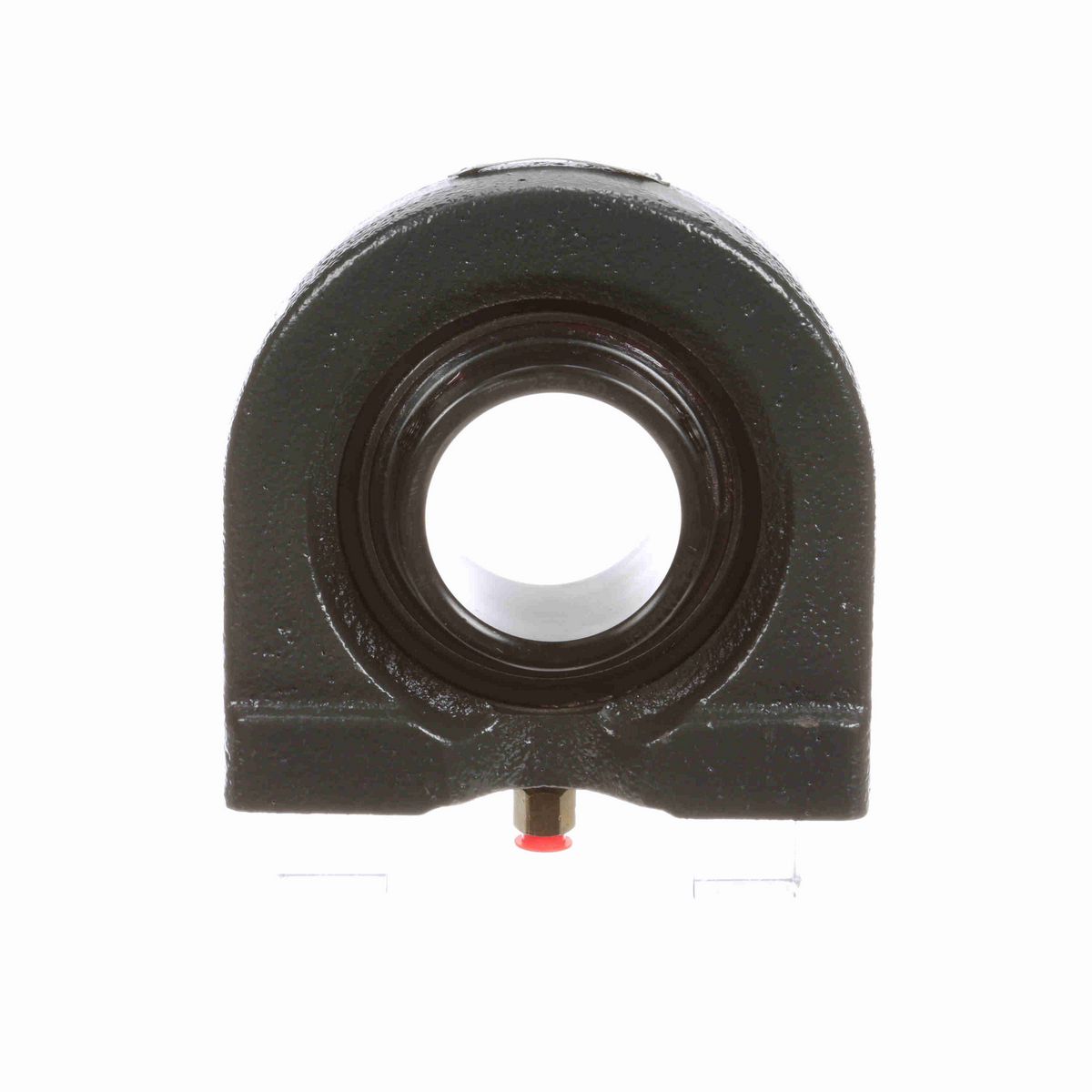

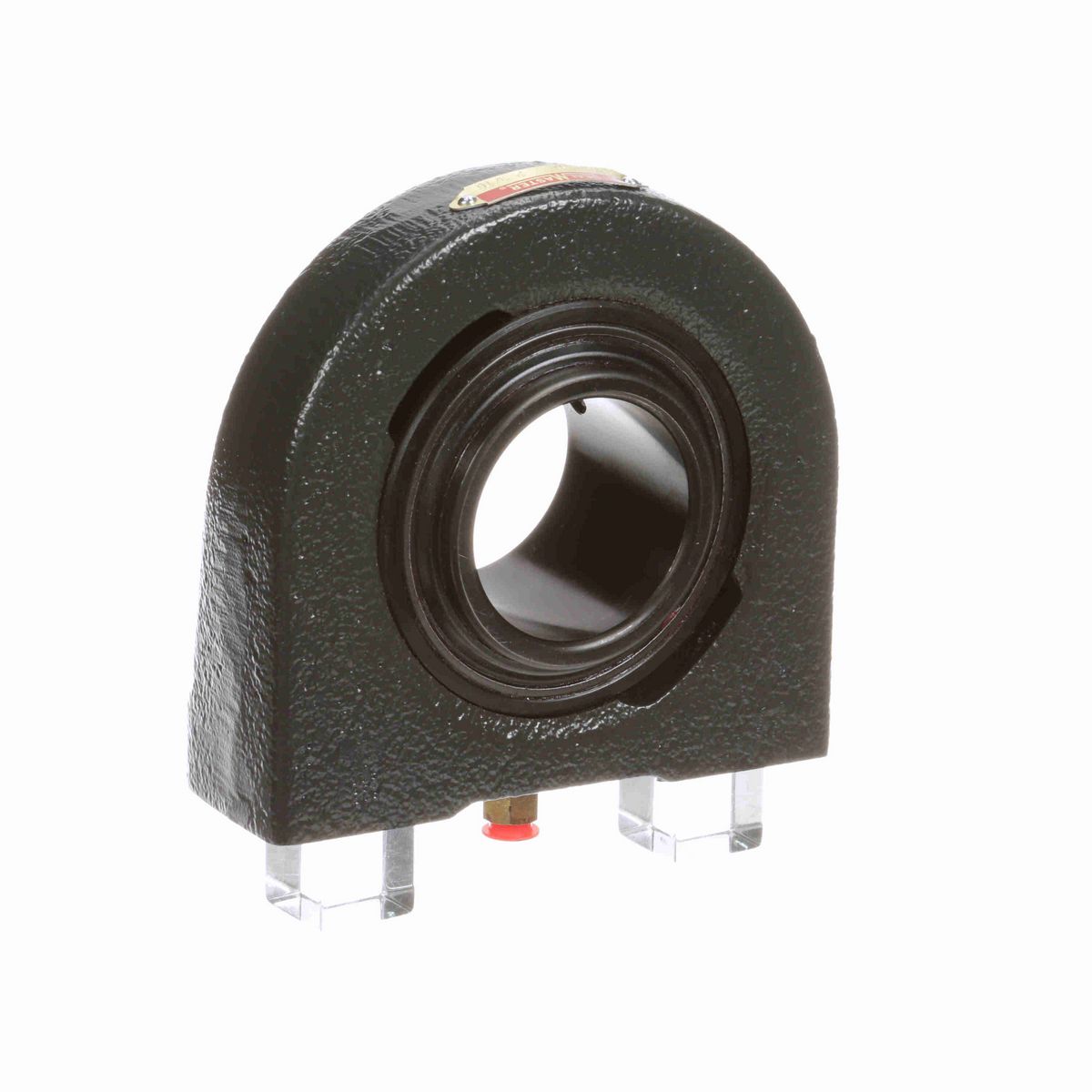

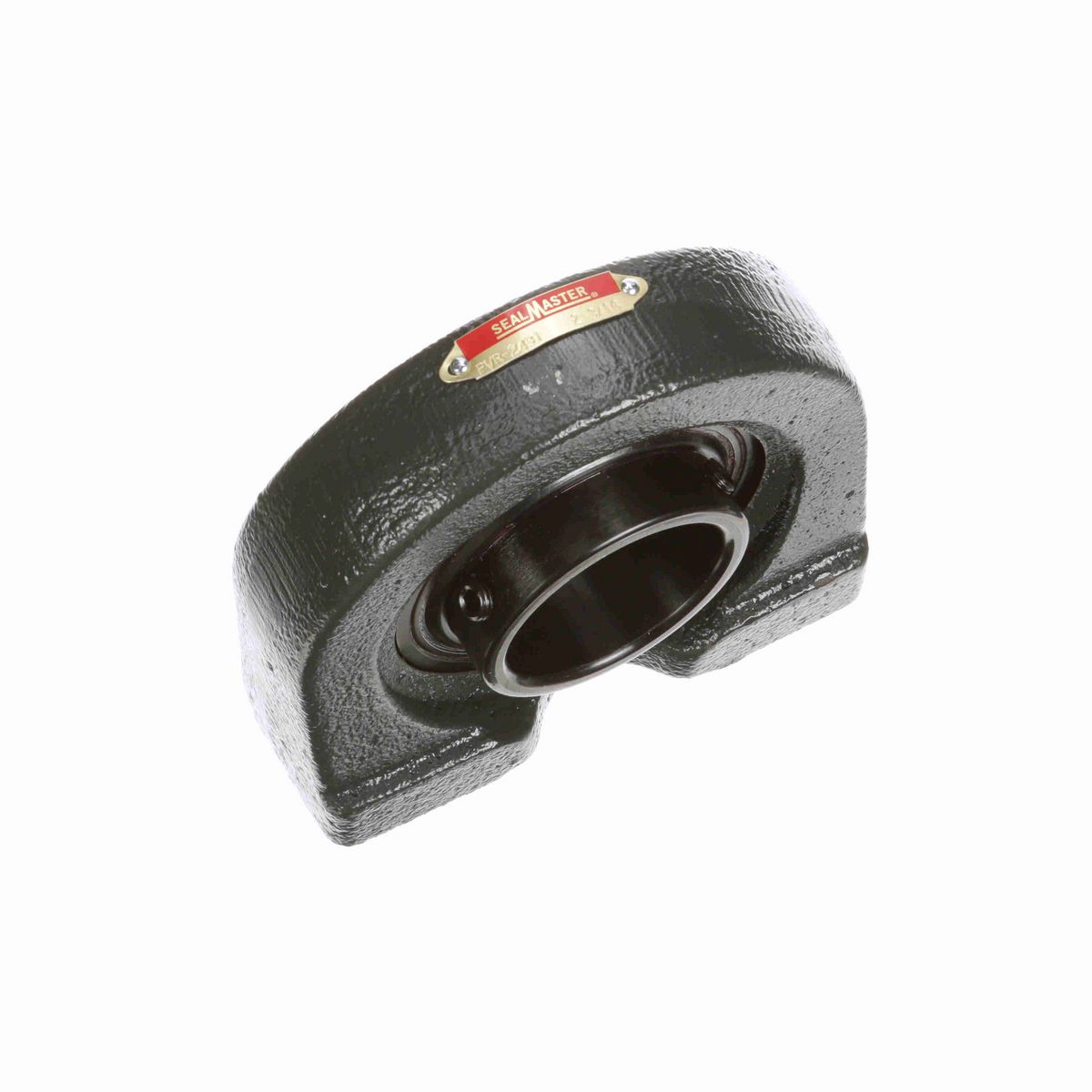

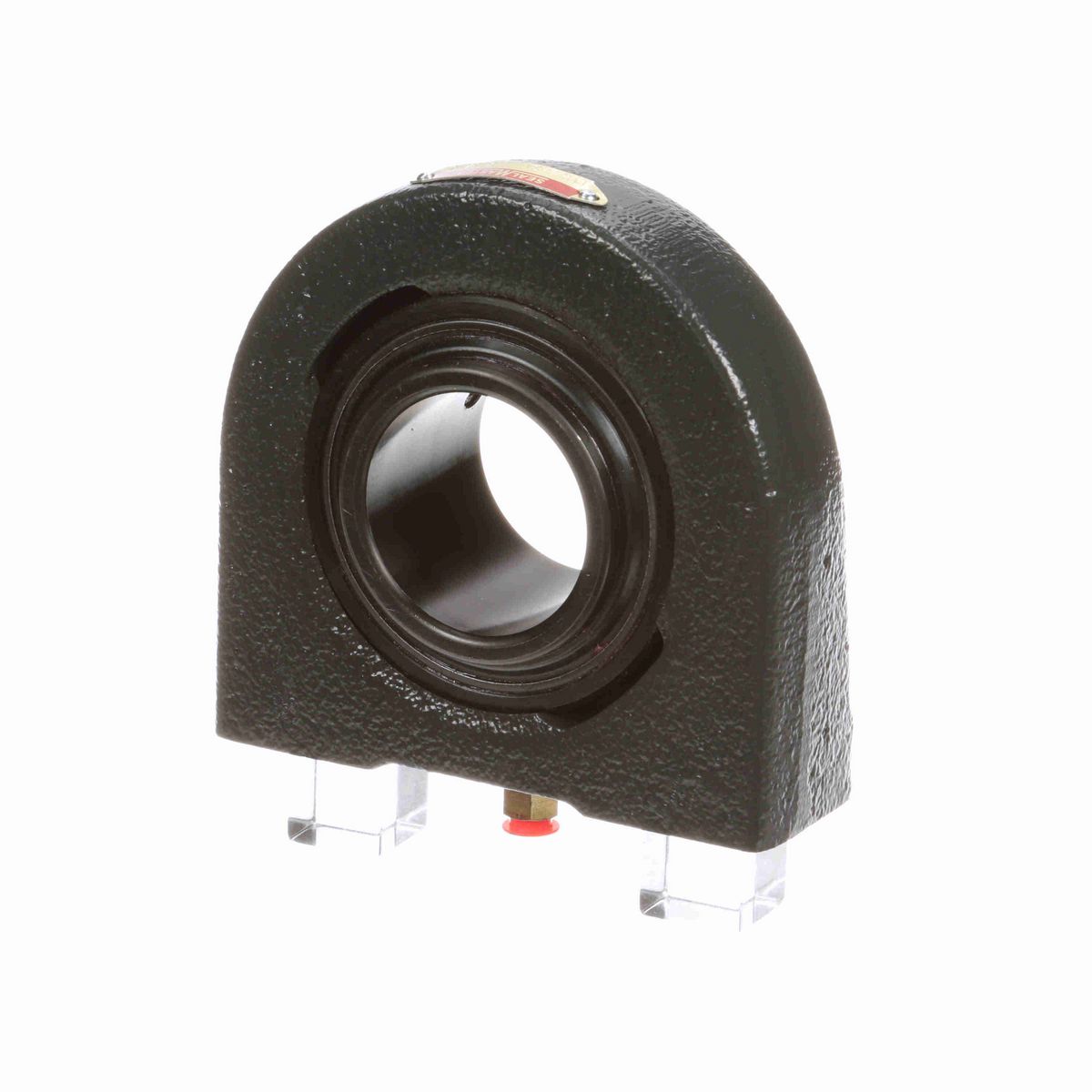

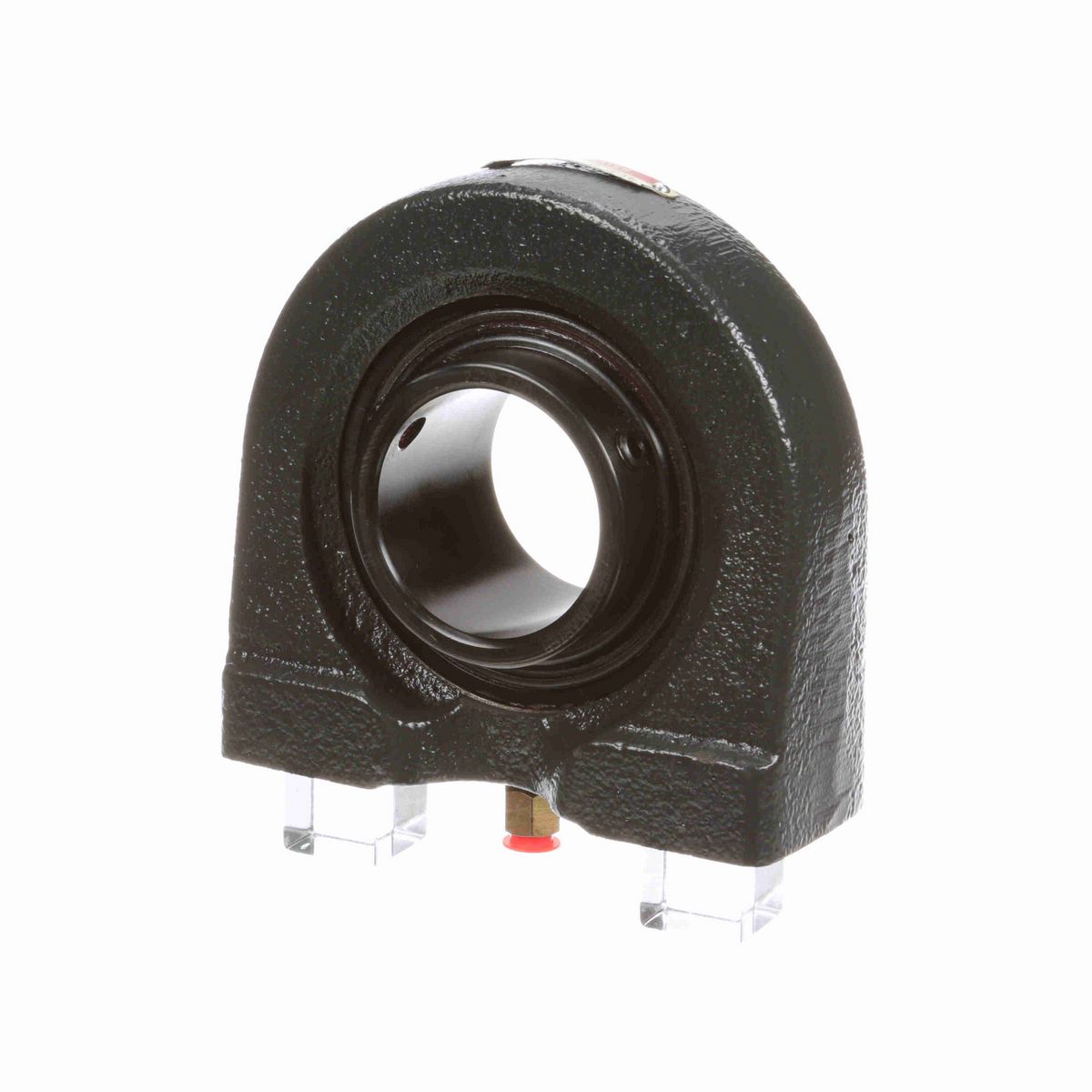

• Sealmaster® custom designed bearing for performance on paving equipment
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Base Width (in)	1.94 in
Overall Height (in)	5.44 in
Thread Size	5/8-11
Overall Length (in)	5.63 in
Overall Width (in)	2.19 in
Bore Diameter (in)	2.1875 in
Thread Depth (in)	1.13 in
Base to Center Height (in)	2.625 in
Length Through Bore (in)	2.19 in
Bolt Spacing (in)	4.375 in
Centerline to Outermost Bearing Face (in)	1.31 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Seal Type	Single Lip Contact Seal
Housing Type	Pillow Block, Tapped Base
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Housing Material	Cast Iron
Inner Ring Outside Diameter (in)	2.71 in
Bearing Insert Material	52100 Bearing Steel
Lubricant	Lithium Complex Grease With Synthetic Oil
Shaft Locking Type	Set Screw
Cage Type	Land Riding Retainer
Housing Coating	Powder Coated
Maximum Speed (RPM)	3250 rpm
Fixed vs. Expansion	Fixed
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Insert Finish	Black Oxide
Radial Clearance	Standard
Size Code	2-23
Base Length (in)	5.63 in
Dynamic Load Rating (lb)	9,752 lb
End Cap Available	No
Bearing Type	Standard Duty
Insert	2-23 AHD
Static Load Rating (lb)	6,601 lb
Max Operating Temperature (F)	220 °F
Housing Width (in)	1.94 in

General Specifications

UPC	662461241479
Weight	9.06 LB
Packaged Length	6.75 IN
Packaged Width	6.50 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
