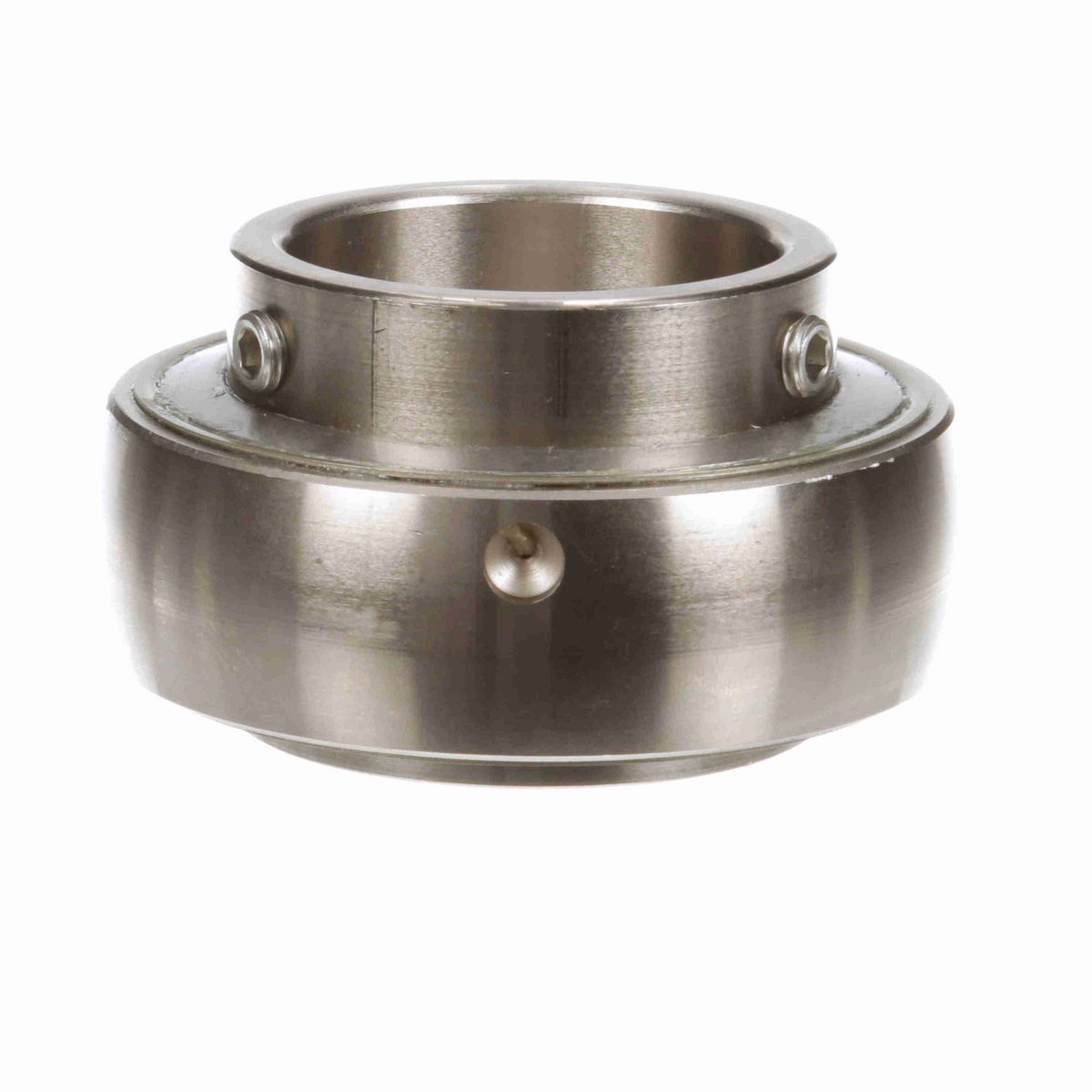

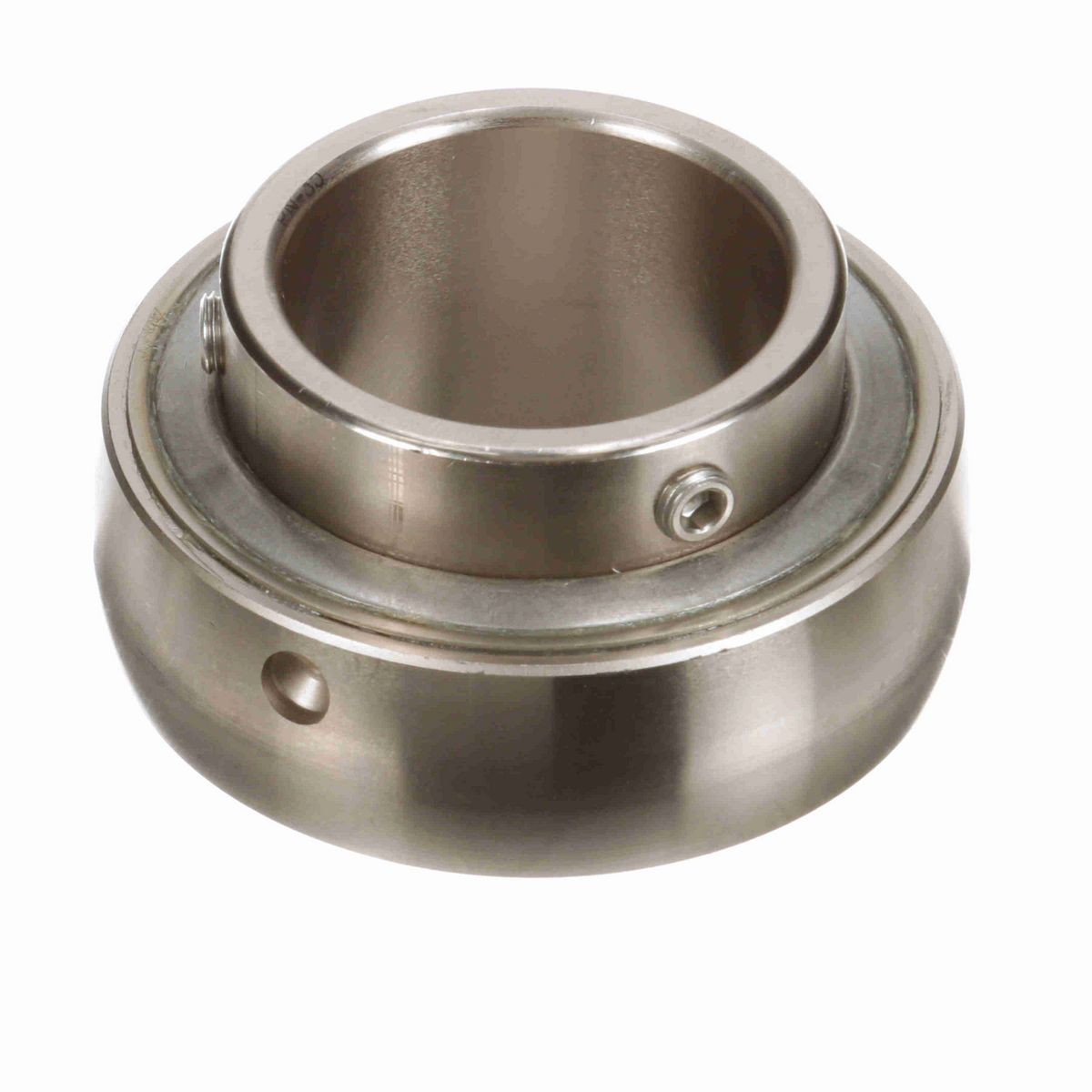

Sealmaster Mounted Insert Only Ball Bearing - 52100 Bearing Steel, Phosphorus Nickel Coated - Setscrew Lock - Corrosion Resistant - PN-35
(0) |
0 руб.
До конца акции осталось:
00дн.
00час.
00мин.
Поделиться
Sealmaster Mounted Insert Only Ball Bearing - 52100 Bearing Steel, Phosphorus Nickel Coated - Setscrew Lock - Corrosion Resistant - PN-35
(0) |
0 руб.
- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
| Overall Width (in) | 2.188 in |
| Bore Size (in) | 2.1875 in |
| Inner Race Length (in) | 2.188 in |
| Outer Race Width (in) | 1.188 in |
| Outer Race OD (in) | 3.937 in |
| Centerline to Front Face (in) | 1.313 in |
| Inner Ring OD (in) | 2.719 in |
| Housing Type | Insert Only |
| Insert Material | 52100 Bearing Steel, Phosphorus Nickel Coated |
| Bore Shape | Straight |
| Set Screw Thread | 3/8-24 |
| Measure Units | Inch |
| Rolling Element | Ball Bearing |
| Radius | 0.08 |
| Speed (Max) (RPM) | 1350 rpm |
| Internal Clearance | Standard |
| Misalignment | ±2.0° Misalignment - Static Only |
| Radial Dynamic Load Capacity (lb) | 9,752 lb |
| Bearing Insert Coating | Phosphorus Nickel Coated |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| End Cap | No |
| Platform | PN Gold |
| Replaceable Insert | No |
| Certifications | IP69K |
| Radial Static Load Capacity (lb) | 6,601 lb |
| Precision Rating | ABEC 1 |
| Cage Material | PPS |
| Outer Race Profile | Spherical |
| Inner Race Profile | Wide Inner Ring |
| Lubrication Type | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease |
| Locking Type | Set Screw |
| Duty/Series | Standard |
| Type of Seal | Triple Lip Contact Seal |
| Retainer Type | Land Riding Retainer |
| Inner Race Heat Treat Method | Zone-Hardened |
| Maximum Operating Temperature (F) | 220 °F |
| Fixed vs. Expansion | No |
| Ability to Relubricate | Yes |
| UPC | 662461341841 |
| Weight | 2.80 LB |
| Packaged Length | 4.25 IN |
| Packaged Width | 2.25 IN |
| Packaged Height | 4.25 IN |
| HTC | 8482.10.5052 |
| Country of Origin | Mexico |
