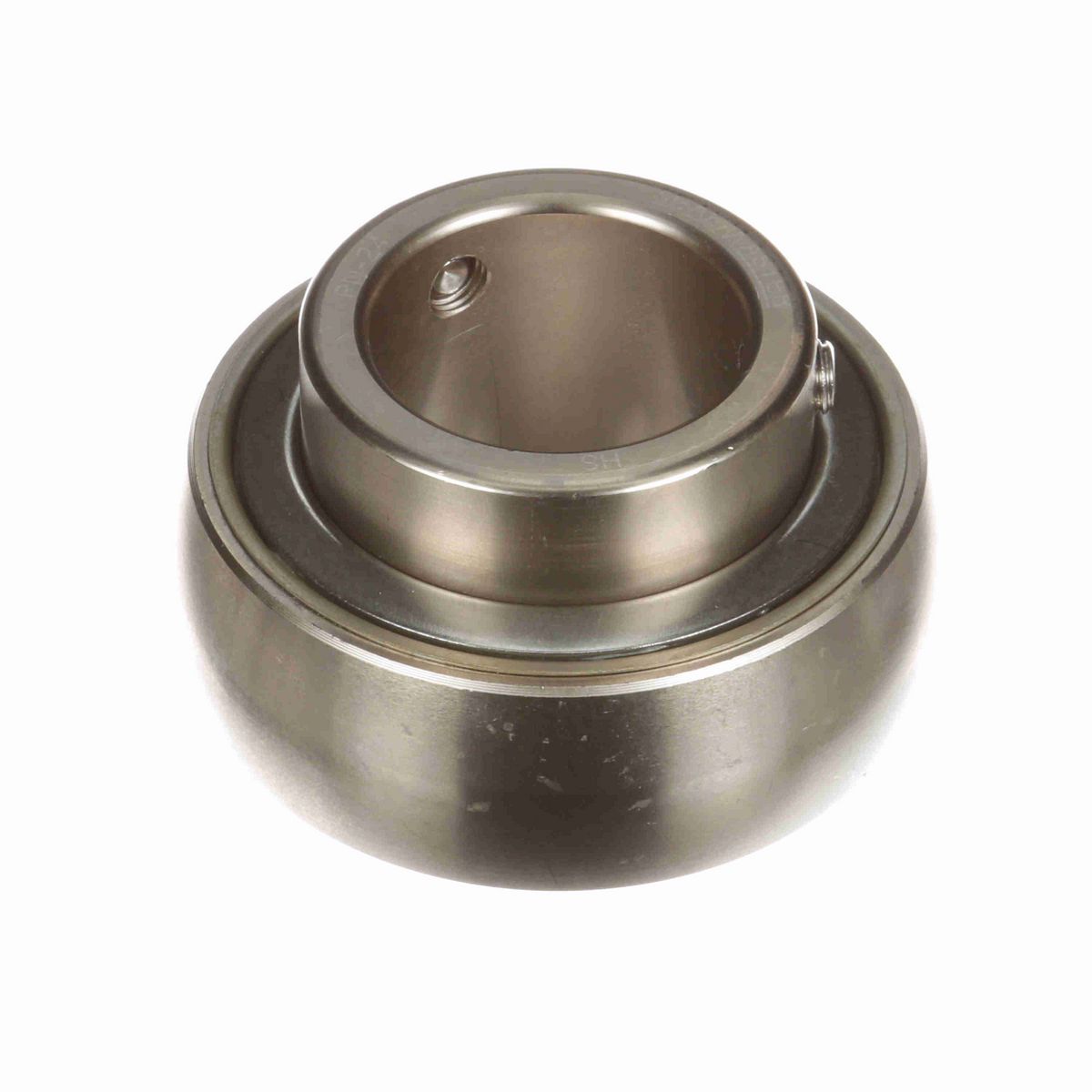

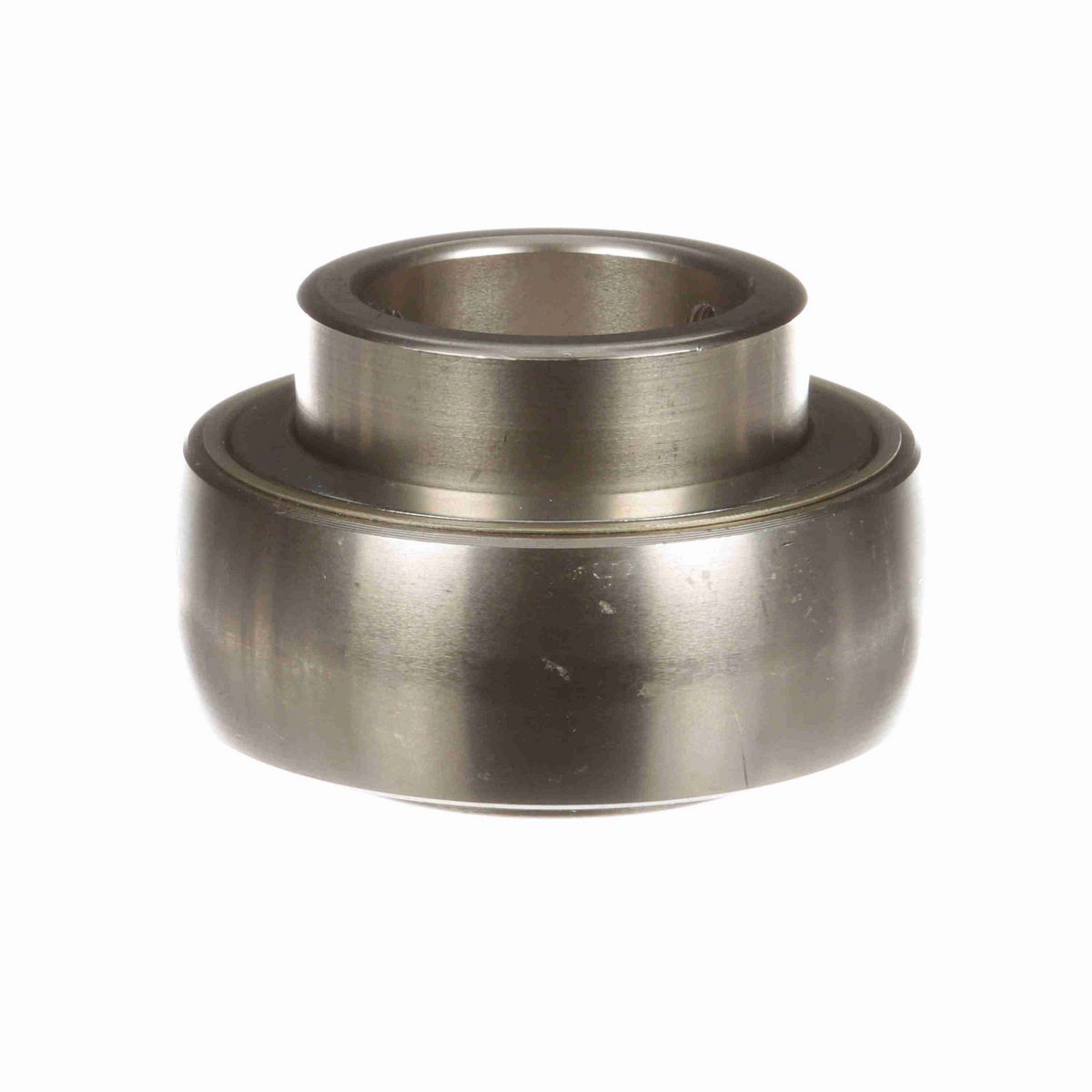

• High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
• High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
• Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
• USDA H1 complaint food grade grease

Dimensions

Overall Width (in)	1.938 in
Bore Size (in)	1.5000 in
Centerline to Front Face (in)	1.188 in
Outer Race OD (in)	3.15 in
Outer Race Width (in)	1.094 in
Inner Ring OD (in)	2.063 in
Inner Race Length (in)	1.938 in

Technical Specifications

Insert Material	52100 Bearing Steel, Phosphorus Nickel Coated
Radius	0.062
Housing Type	Insert Only
Set Screw Thread	5/16-24
Rolling Element	Ball Bearing
Measure Units	Inch
Bore Shape	Straight
Speed (Max) (RPM)	1750 rpm
Misalignment	±2.0° Misalignment - Static Only
Internal Clearance	Standard
Radial Dynamic Load Capacity (lb)	7,340 lb
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Bearing Insert Coating	Phosphorus Nickel Coated
Platform	PN Gold
End Cap	No
Replaceable Insert	No
Certifications	IP69K
Radial Static Load Capacity (lb)	4,467 lb
Series	PN
Precision Rating	ABEC 1
Cage Material	PPS
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Fixed vs. Expansion	No
Type of Seal	Triple Lip Contact Seal
Maximum Operating Temperature (F)	220 °F
Locking Type	Set Screw
Inner Race Heat Treat Method	Zone-Hardened
Retainer Type	Land Riding Retainer
Duty/Series	Standard
Lubrication Type	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Ability to Relubricate	Yes

General Specifications

UPC	662461335963
Weight	1.90 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
