• High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
• High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication

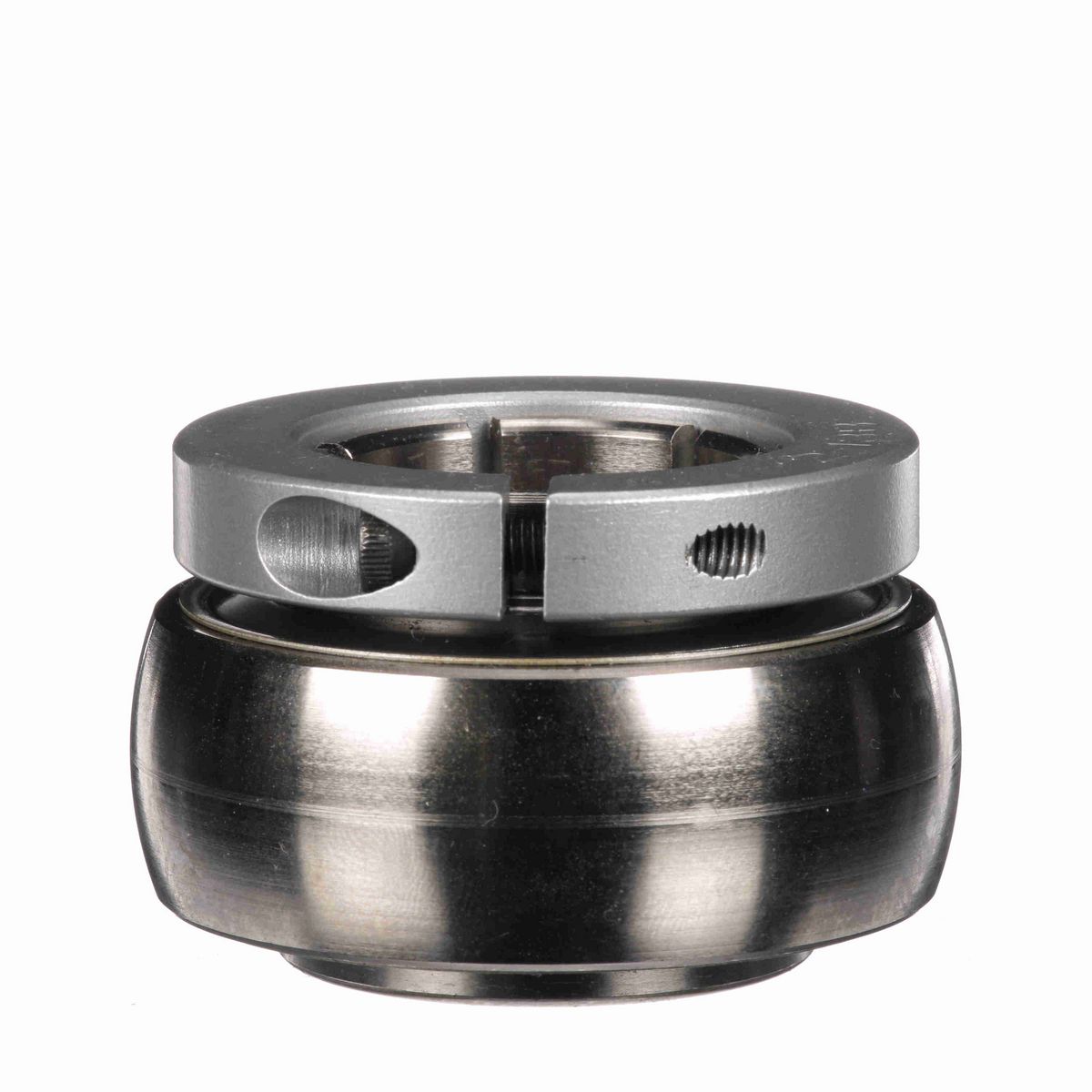

• Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
• USDA H1 complaint food grade grease

Dimensions

Overall Width (in)	1.563 in
Bore Size (in)	1.1875 in
Centerline to Front Face (in)	0.875 in
Inner Race Length (in)	1.563 in
Outer Race OD (in)	2.441 in
Outer Race Width (in)	0.875 in
Collar OD (in)	2.188 in
Inner Ring OD (in)	2.188 in

Technical Specifications

Torx Cap Screw	8-32 X 5/8
Radius	0.04
Insert Material	52100 Bearing Steel, Phosphorus Nickel Coated
Bore Shape	Straight
Rolling Element	Ball Bearing
Measure Units	Inch
Housing Type	Insert Only
Internal Clearance	Standard
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	4,381 lb
Speed (Max) (RPM)	2300 rpm
Platform	PN Gold
End Cap	No
Outer Ring Land Profile	Standard
Bearing Insert Coating	Phosphorus Nickel Coated
Misalignment Type	Static Only
Replaceable Insert	No
Certifications	IP69K
Radial Static Load Capacity (lb)	2,567 lb
Precision Rating	ABEC 1
Cage Material	PPS
Series	PN-T
Outer Race Profile	Spherical
Inner Race Profile	Wide Inner Ring
Duty/Series	Standard
Retainer Type	Land Riding Retainer
Locking Type	Concentric
Lubrication Type	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Fixed vs. Expansion	No
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Maximum Operating Temperature (F)	220 °F
Type of Seal	Triple Lip Contact Seal

General Specifications

UPC	662461348239
Weight	1.00 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5052
Country of Origin	Mexico
