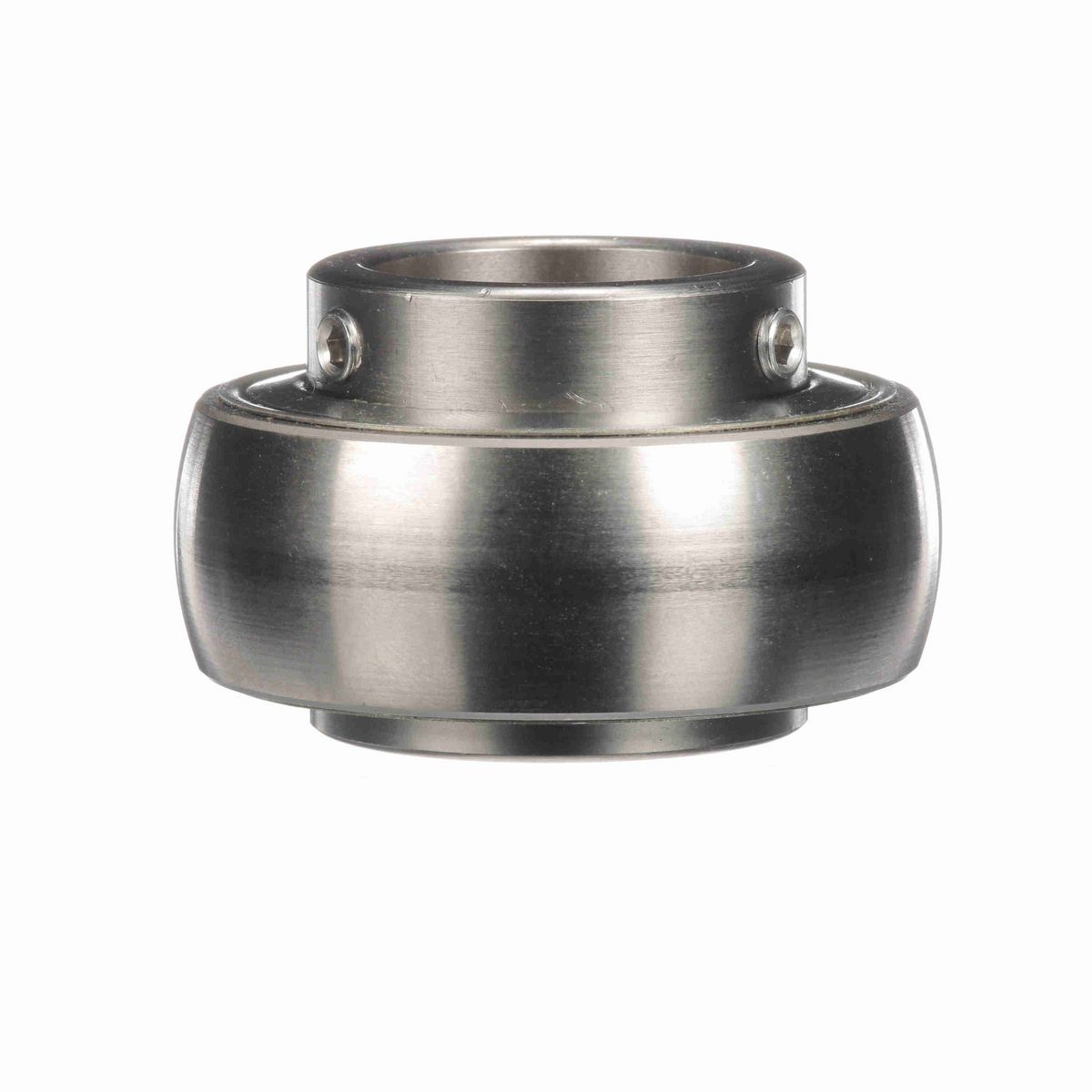

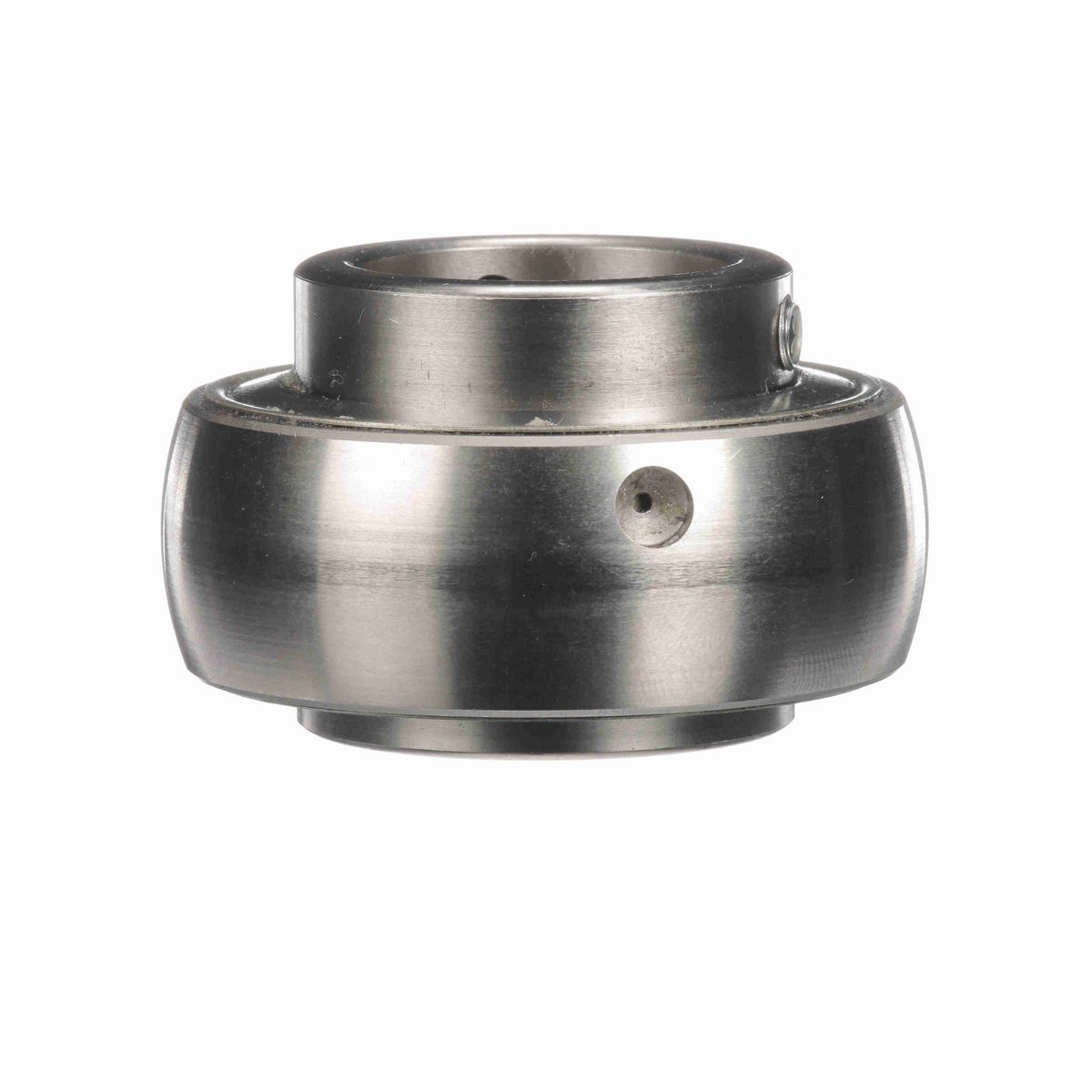

• High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
• High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
• Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
• USDA H1 complaint food grade grease

Dimensions

Overall Width (in)	1.5 in
Bore Size (in)	1.1875 in
Inner Ring OD (in)	1.594 in
Outer Race OD (in)	2.441 in
Centerline to Front Face (in)	0.875 in
Inner Race Length (in)	1.5 in
Outer Race Width (in)	0.875 in

Technical Specifications

Bore Shape	Straight
Set Screw Thread	1/4-28
Housing Type	Insert Only
Measure Units	Inch
Radius	0.04
Insert Material	52100 Bearing Steel, Phosphorus Nickel Coated
Rolling Element	Ball Bearing
Speed (Max) (RPM)	2300 rpm
Internal Clearance	Standard
Misalignment	±2.0° Misalignment - Static Only
Radial Dynamic Load Capacity (lb)	4,381 lb
Platform	PN Gold
Misalignment Type	Static Only
Bearing Insert Coating	Phosphorus Nickel Coated
End Cap	No
Outer Ring Land Profile	Standard
Replaceable Insert	No
Certifications	IP69K
Radial Static Load Capacity (lb)	2,567 lb
Cage Material	PPS
Precision Rating	ABEC 1
Series	PN
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Spherical
Lubrication Type	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Type of Seal	Triple Lip Contact Seal
Duty/Series	Standard
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Locking Type	Set Screw
Retainer Type	Land Riding Retainer
Inner Race Heat Treat Method	Zone-Hardened
Fixed vs. Expansion	No

General Specifications

UPC	662461341742
Weight	1.00 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5052
Country of Origin	Mexico
