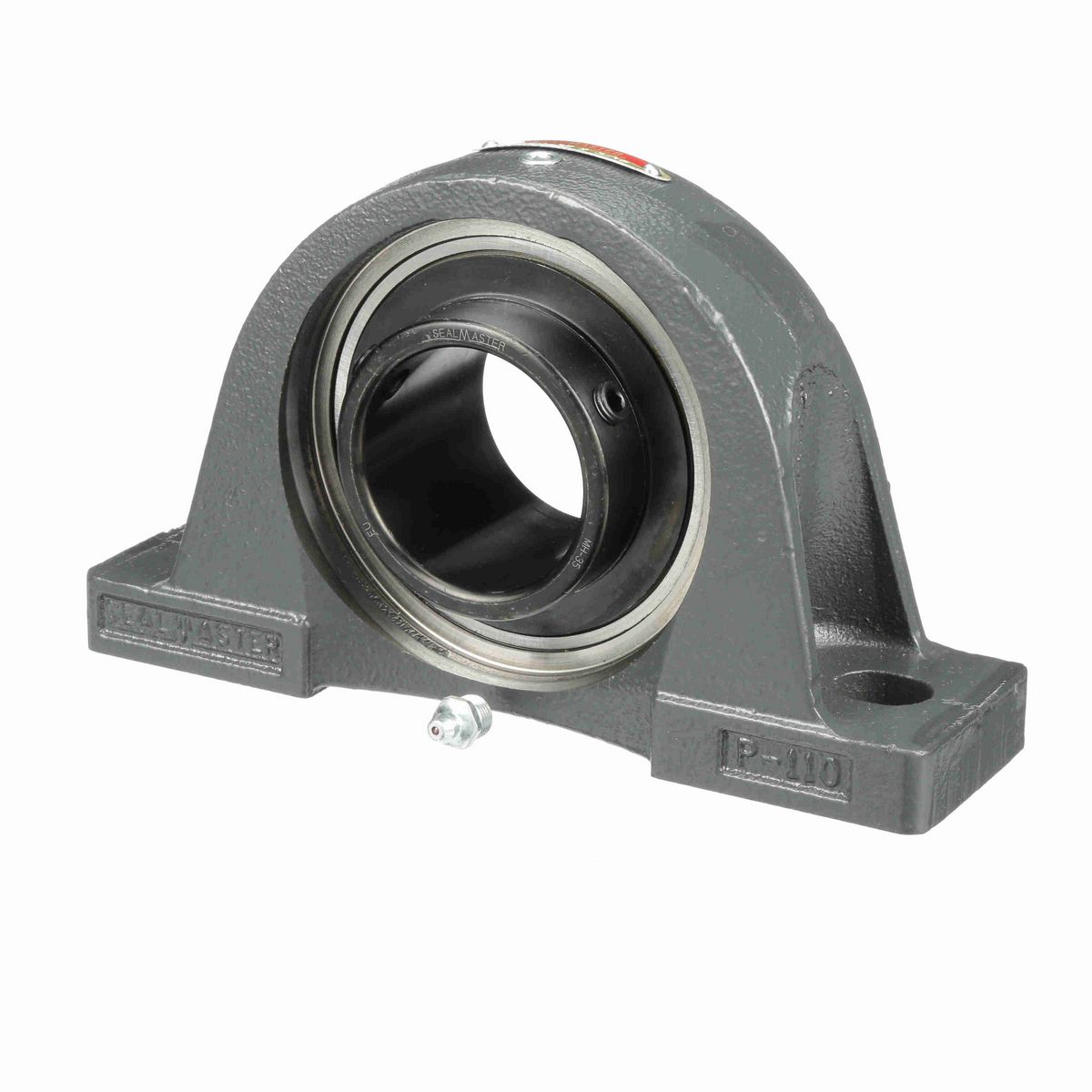

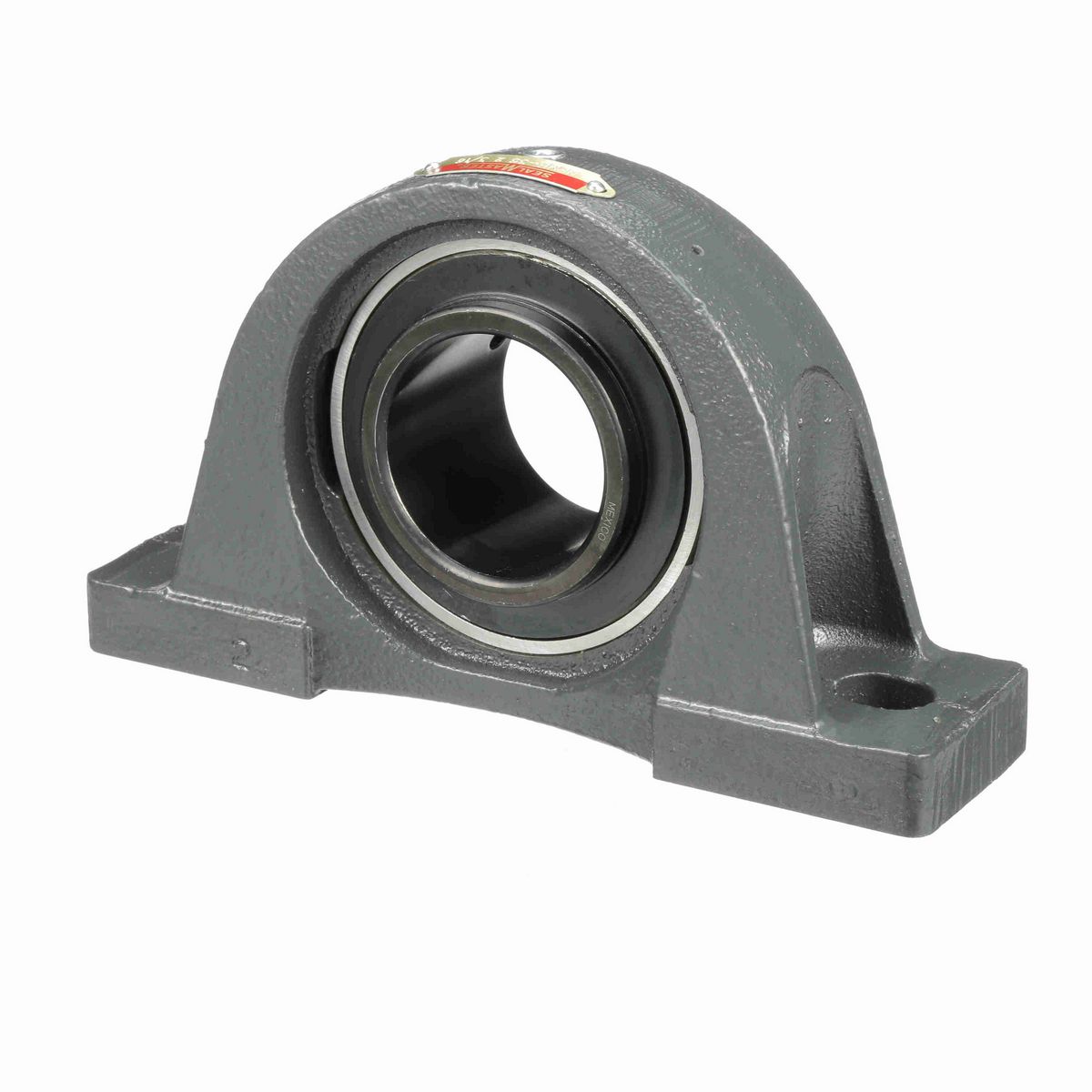

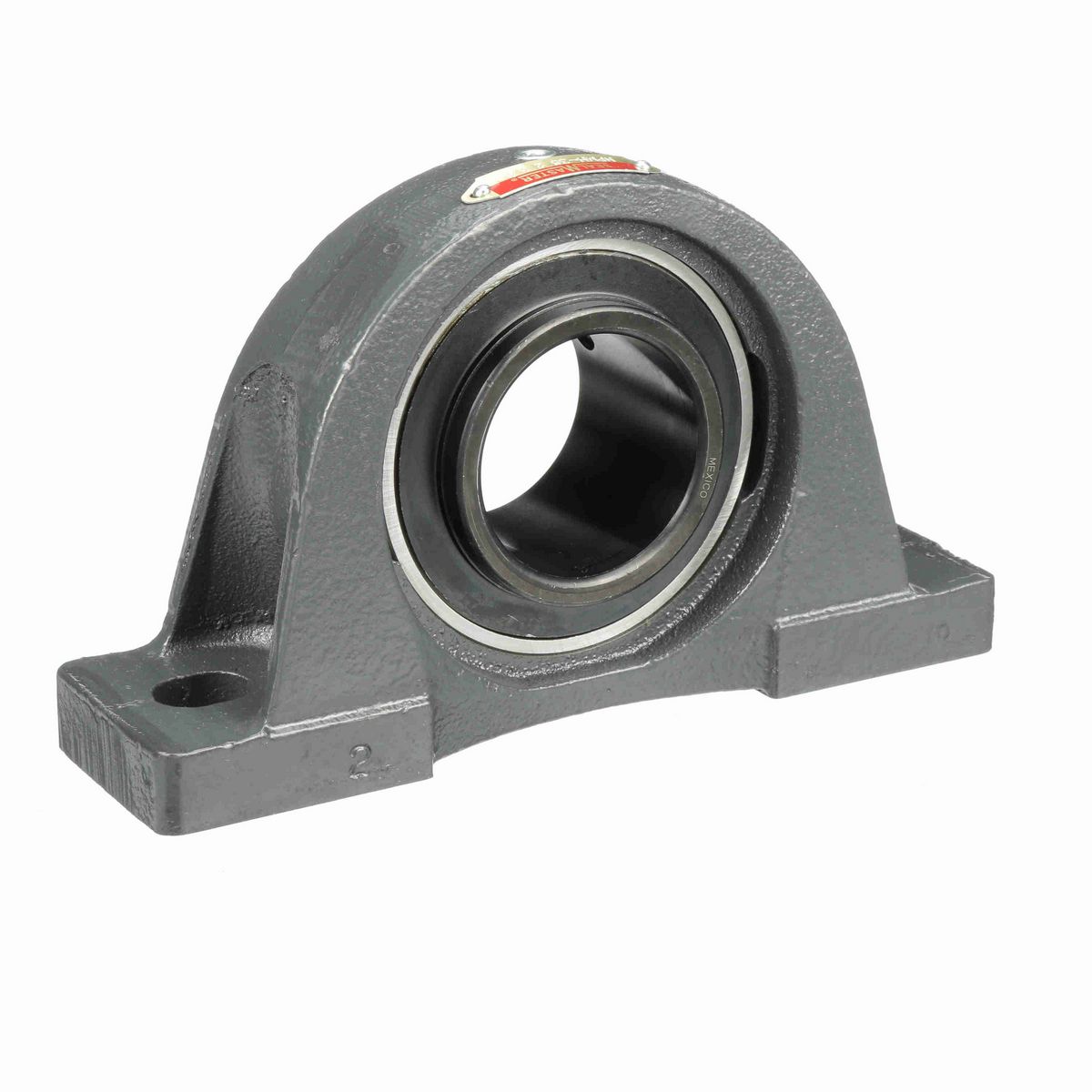

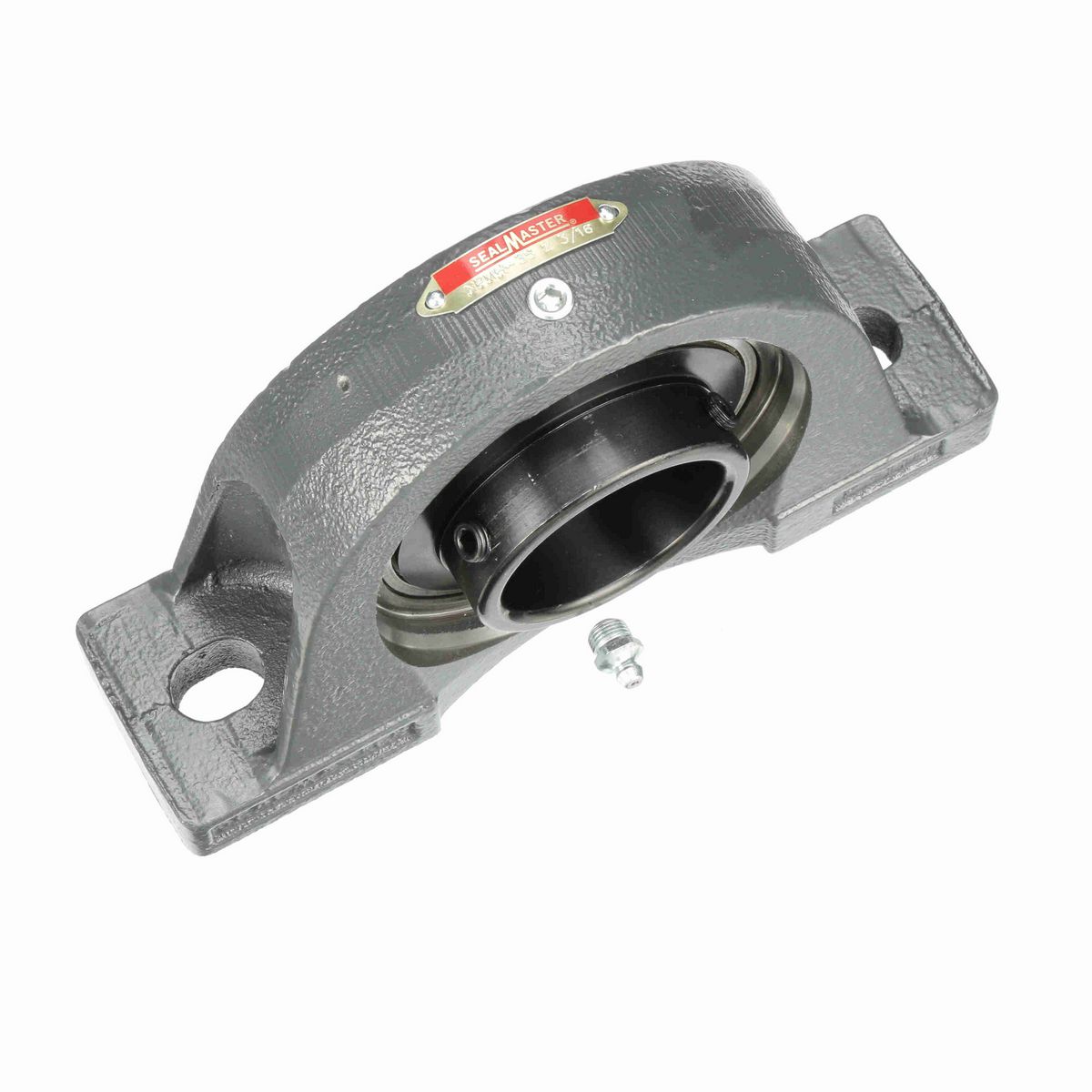

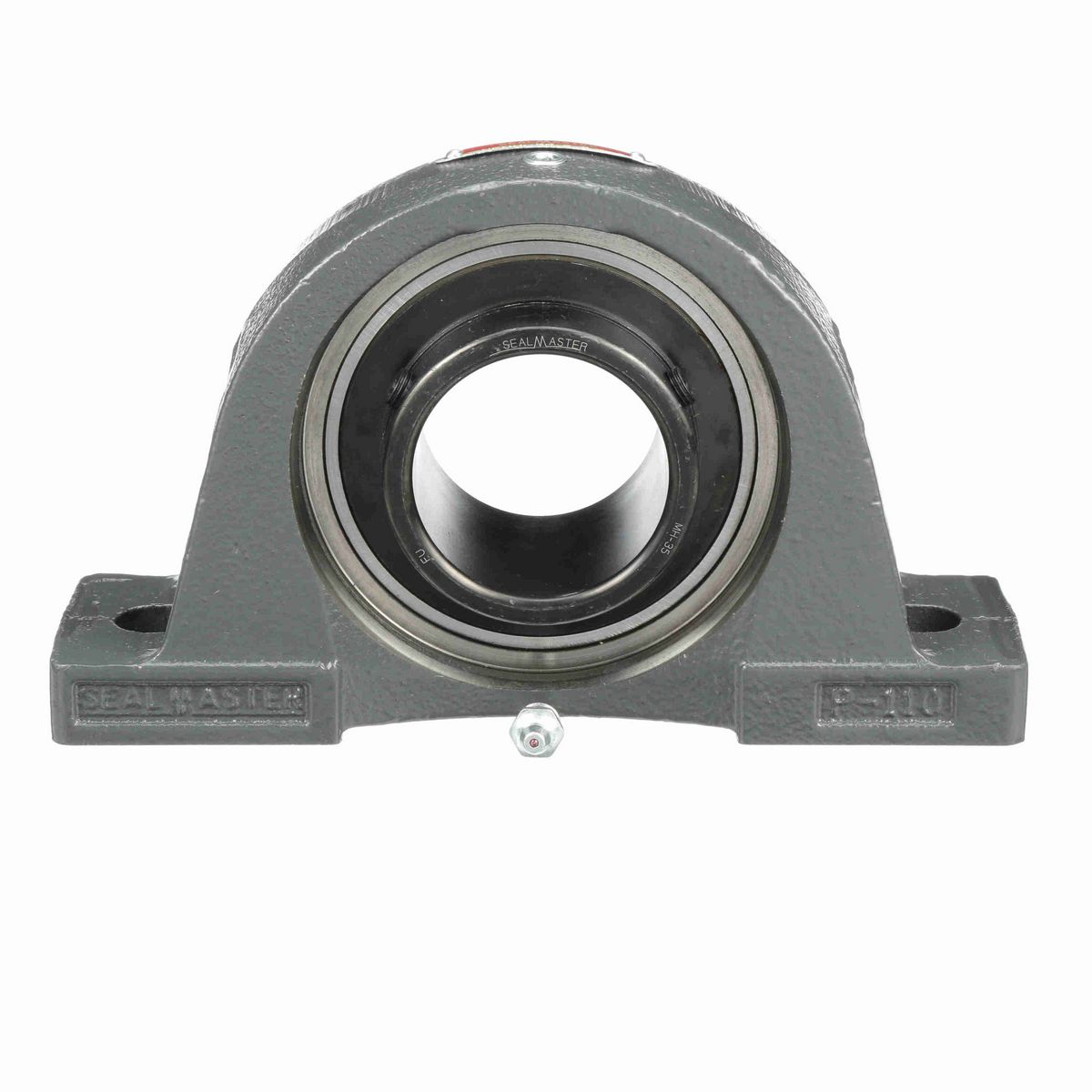

• Cast iron housed, extended inner ring bearing with ball riding nylon retainer
• Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Single lip contact seal and flinger
• Supplied sealed for life with optional lubrication fitting in the box

Dimensions

Overall Height (in)	4.94 in
Overall Width (in)	2.38 in
Overall Length (in)	8.63 in
Base Width (in)	2.38 in
Bolt Size (in)	5/8 in
Bore Diameter (in)	2.1875 in
Foot Height (in)	0.69 in
Base to Center Height (in)	2.5000 in
Length Through Bore (in)	2.1875 in
Centerline to Outermost Bearing Face (in)	1.313 in
Bolt Spacing Min (in)	6.5 in
Bolt Spacing Max (in)	7 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal with Flinger
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Outer Ring Defect	0.068 cps
Inner Ring Outside Diameter (in)	2.719 in
Bearing Insert Material	52100 Bearing Steel
Max Operating Temperature (F)	220 °F
Base Length (in)	8.63 in
Radial Clearance	Standard
Vibration Frequency Fundamental Train	0.0068 cps
Lubricant	Lithium Complex NLGI 2 Grease
Insert	MH-35
Bearing Type	Standard Duty
Static Load Rating (lb)	6,601 lb
Dynamic Load Rating (lb)	9,752 lb
Misalignment Capability	±2.0° Misalignment - Static Only
Housing Coating	Powder Coated
End Cap Available	No
Shaft Locking Type	Set Screw
Vibration Frequency Roller Spin	0.0437 cps
Cage Type	Land Riding Retainer
Size Code	2-23
Vibration Frequency Inner Ring Defect	0.0987 cps
Grease Fitting Thread Size	1/8 NPT
Housing Material	Cast Iron
Fixed vs. Expansion	Fixed
Bearing Insert Finish	Black Oxide
Maximum Speed (RPM)	2500 rpm

General Specifications

UPC	662461342749
Weight	8.96 LB
Packaged Length	8.88 IN
Packaged Width	5.94 IN
Packaged Height	2.63 IN
HTC	8483.20.8040
Country of Origin	Mexico
