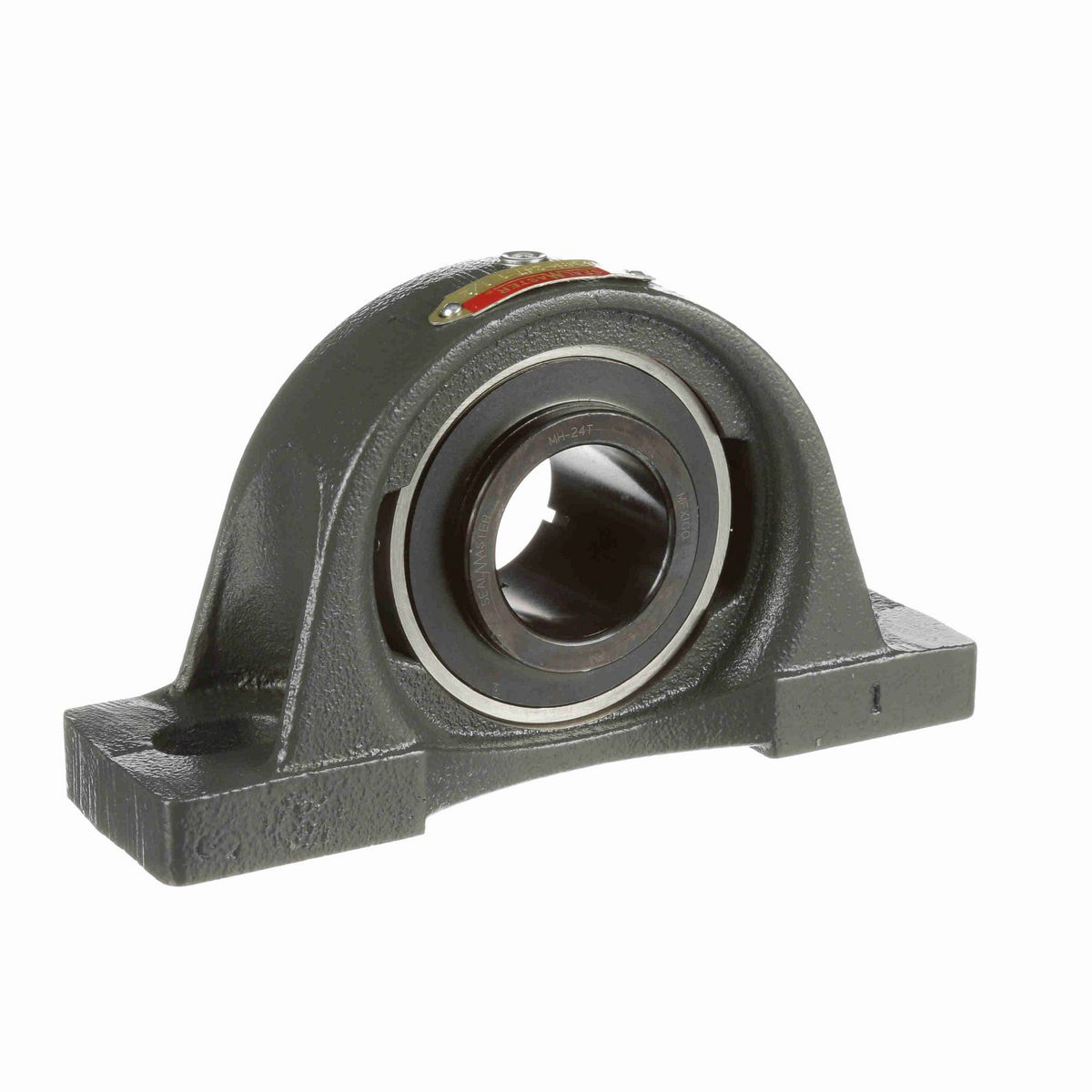

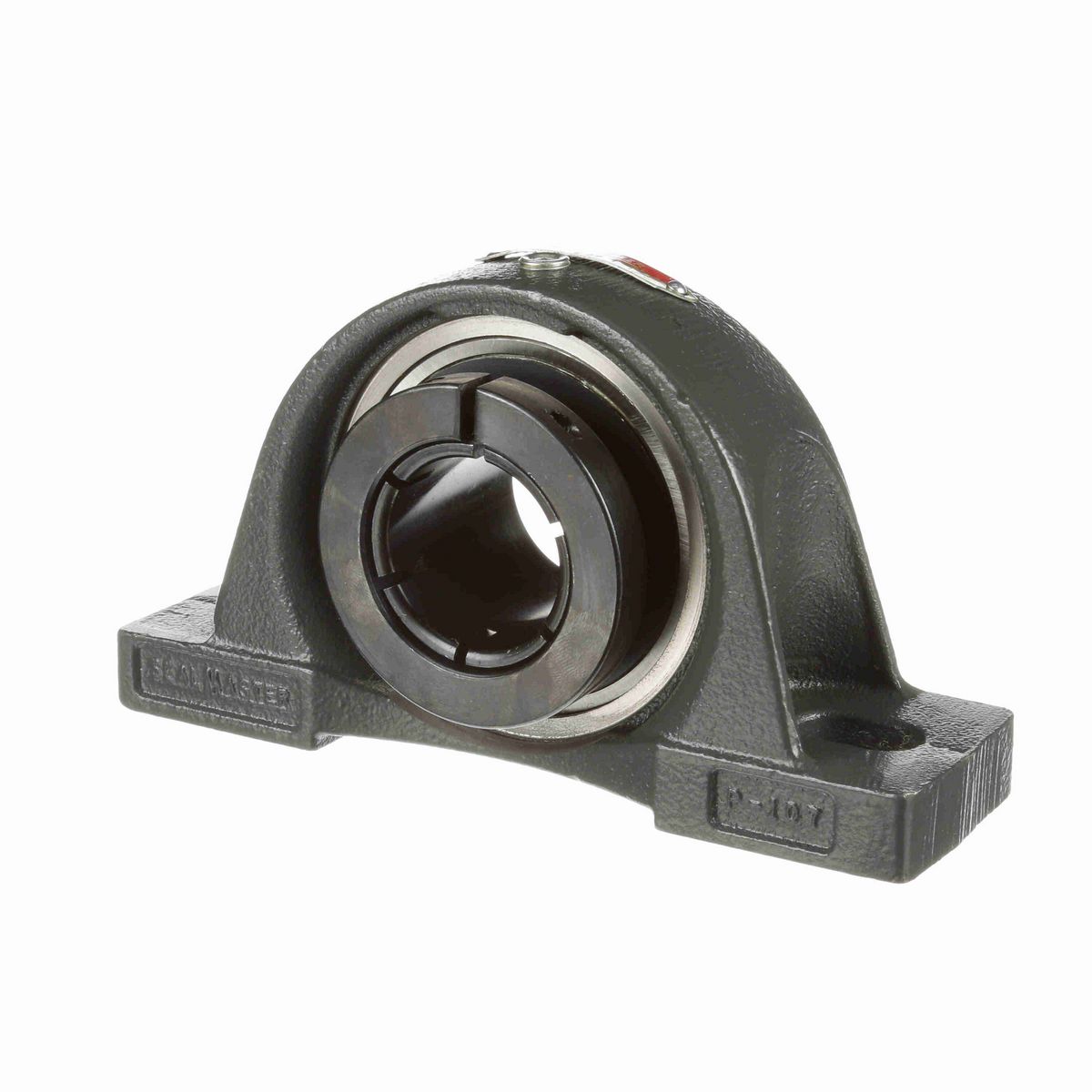

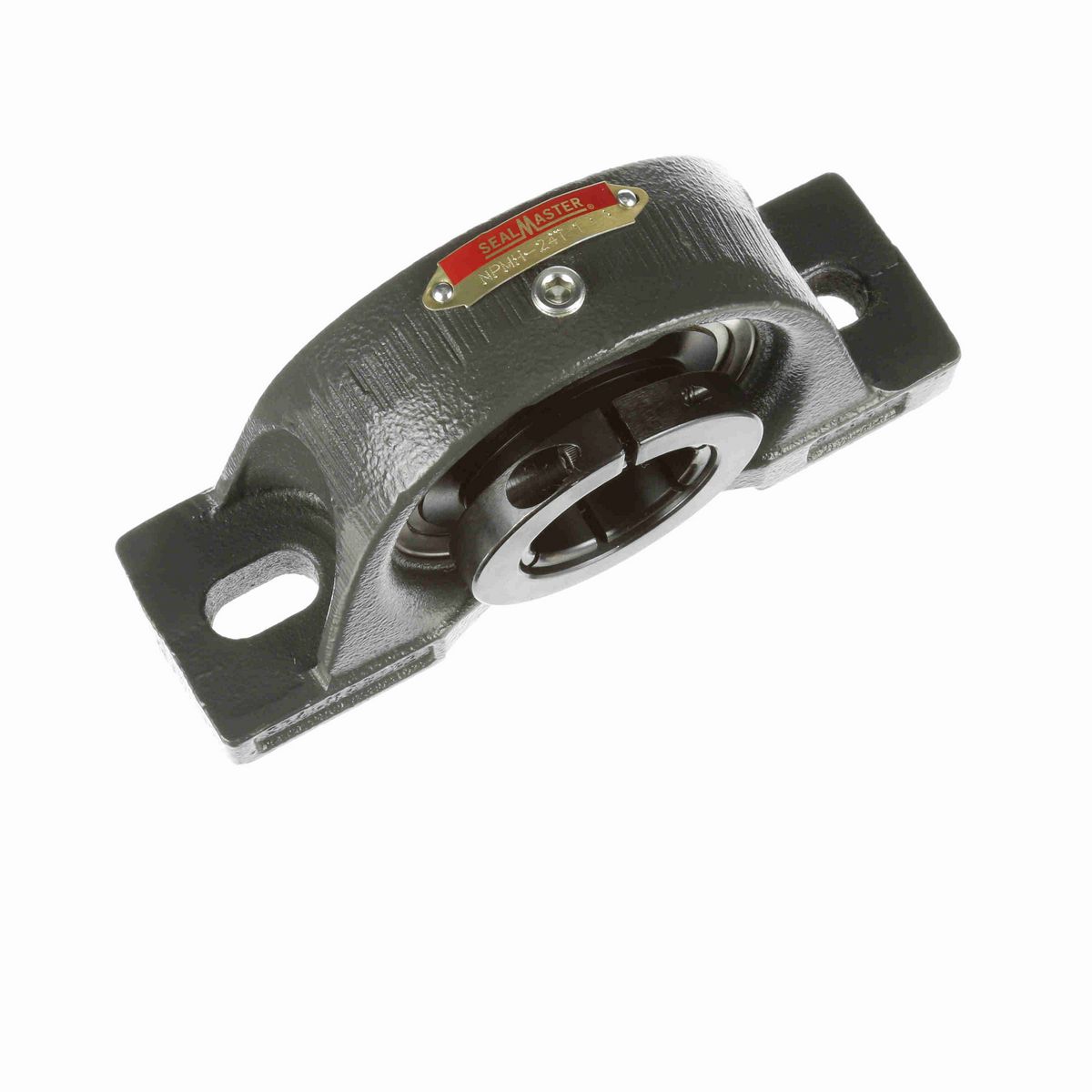

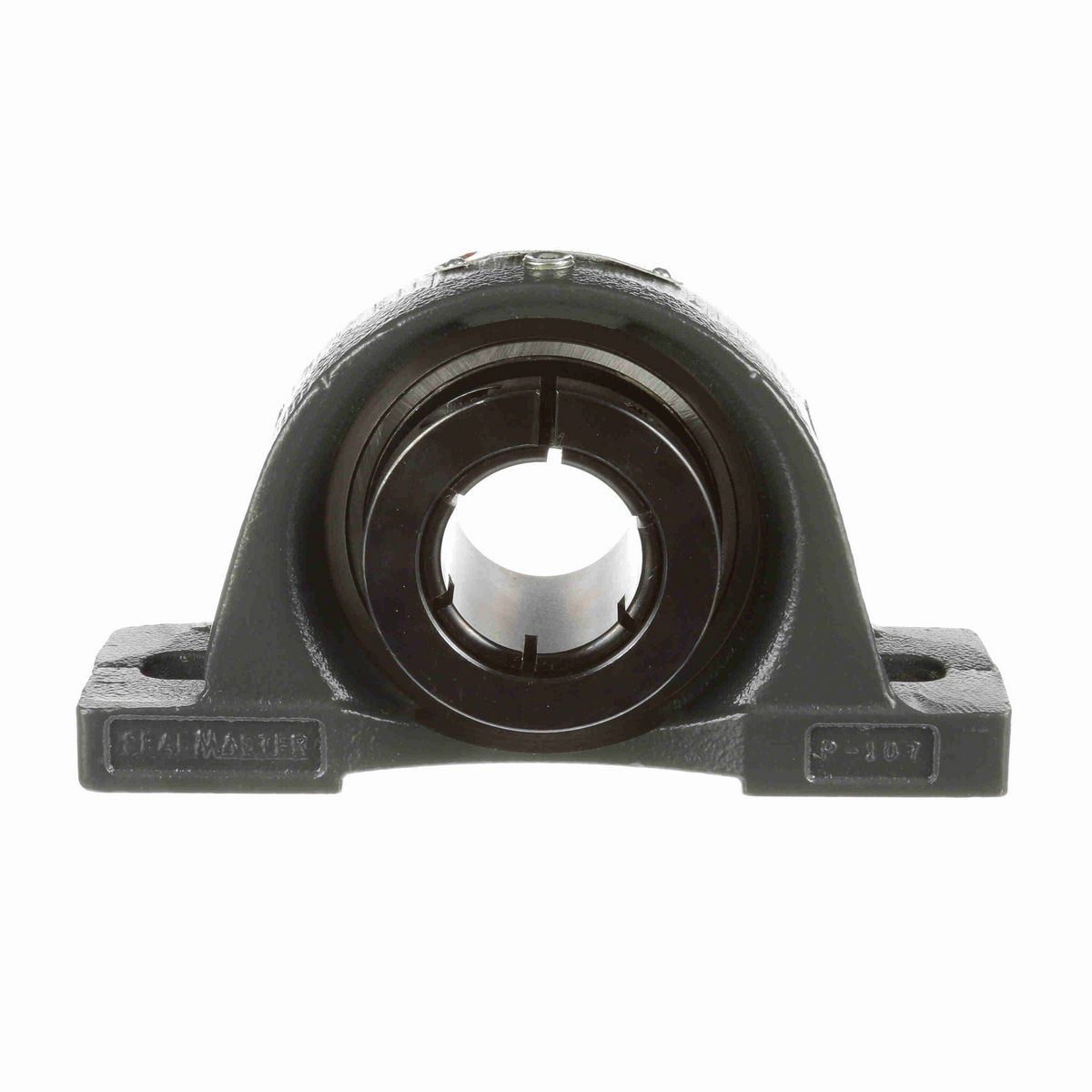

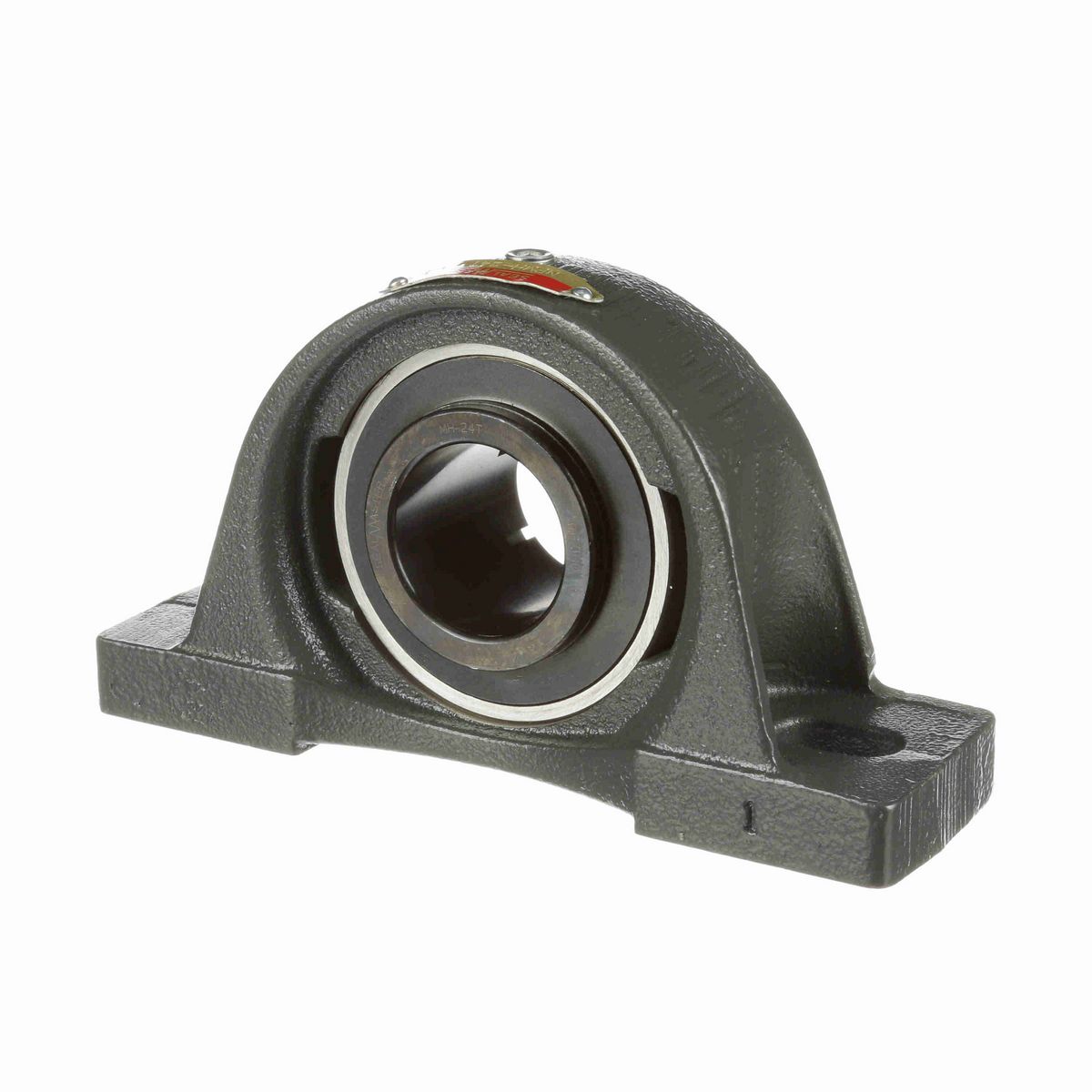

• Cast iron housed, extended inner ring bearing with ball riding nylon retainer
• Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
• Skwezloc® Concentric locking for near perfect concentricity
• Single lip contact seal and flinger
• Supplied sealed for life with optional lubrication fitting in the box

Dimensions

Overall Height (in)	3.94 in
Overall Length (in)	7.25 in
Overall Width (in)	2.13 in
Base Width (in)	2.13 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.5 in
Foot Height (in)	0.69 in
Base to Center Height (in)	1.9375 in
Length Through Bore (in)	2 in
Bolt Spacing Max (in)	5.88 in
Bolt Spacing (in)	5.38 in
Bolt Spacing Min (in)	4.88 in
Centerline to Outermost Bearing Face (in)	1.31 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Housing Construction	One Piece
Bore Shape	Straight
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt
Seal Type	Single Lip Contact Seal with Flinger
Housing Style	Pillow Block
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.75 in
Inner Race Heat Treat Method	Zone-Hardened
Housing Material	Cast Iron
Vibration Frequency Roller Spin	0.0376 cps
Max Operating Temperature (F)	220 °F
Size Code	2-19
Bearing Insert Finish	Black Oxide
Static Load Rating (lb)	4,467 lb
Fixed vs. Expansion	Fixed
Inner Ring Outside Diameter (in)	2.07 in
Maximum Speed (RPM)	3500 rpm
Misalignment Capability	±2.0° Misalignment - Static Only
Dynamic Load Rating (lb)	7,340 lb
Vibration Frequency Inner Ring Defect	0.0909 cps
Base Length (in)	7.25 in
End Cap Available	No
Insert	MH-24T
Lubricant	Lithium Complex NLGI 2 Grease
Radial Clearance	Standard
Bearing Type	Standard Duty
Housing Coating	Powder Coated
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Fundamental Train	0.0066 cps
Grease Fitting Thread Size	1/4-28
Cage Type	Land Riding Retainer
Shaft Locking Type	Concentric
Vibration Frequency Outer Ring Defect	0.0591 cps

General Specifications

UPC	662461340592
Weight	5.53 LB
Packaged Length	7.80 IN
Packaged Width	4.80 IN
Packaged Height	2.40 IN
HTC	8483.20.8040
Country of Origin	Mexico
