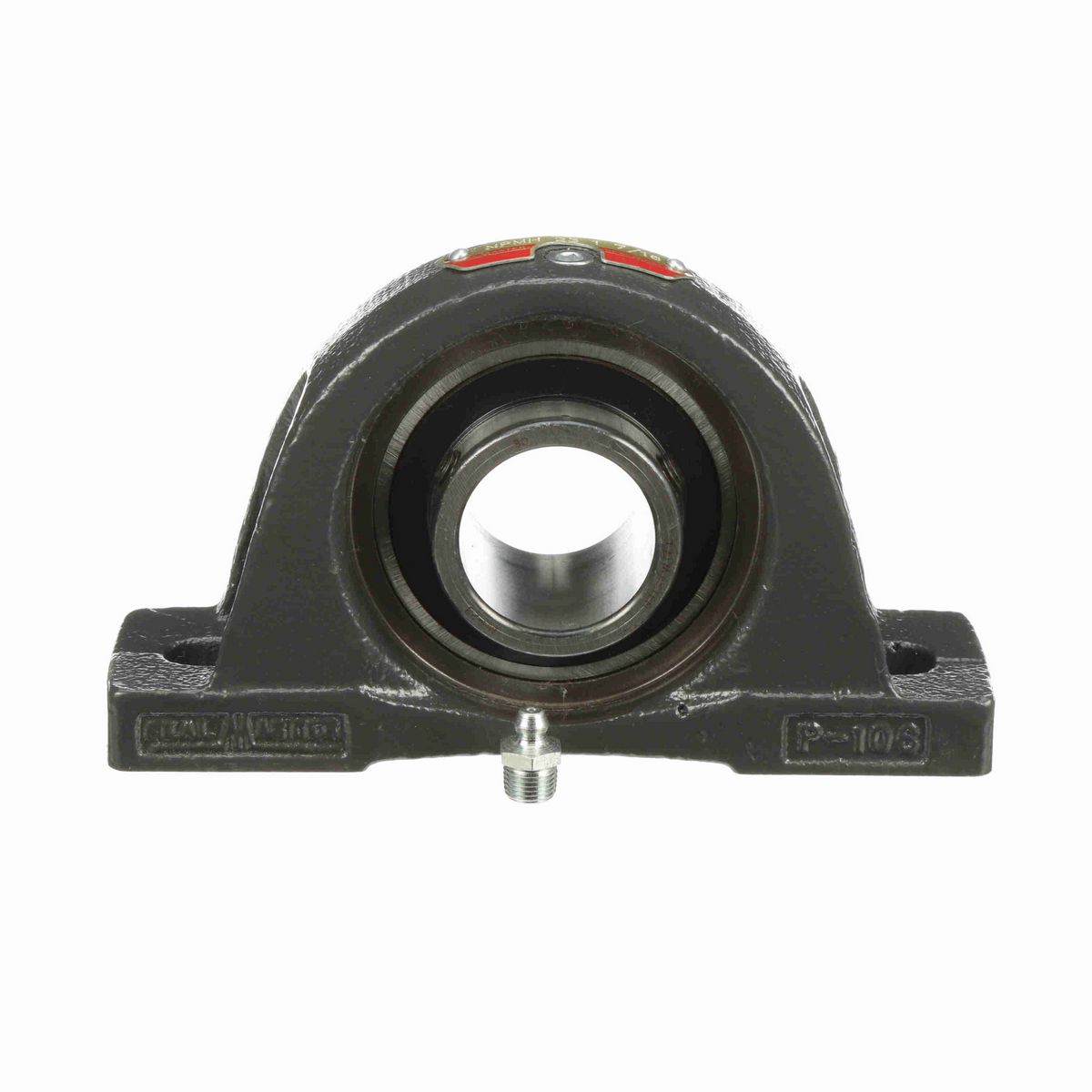

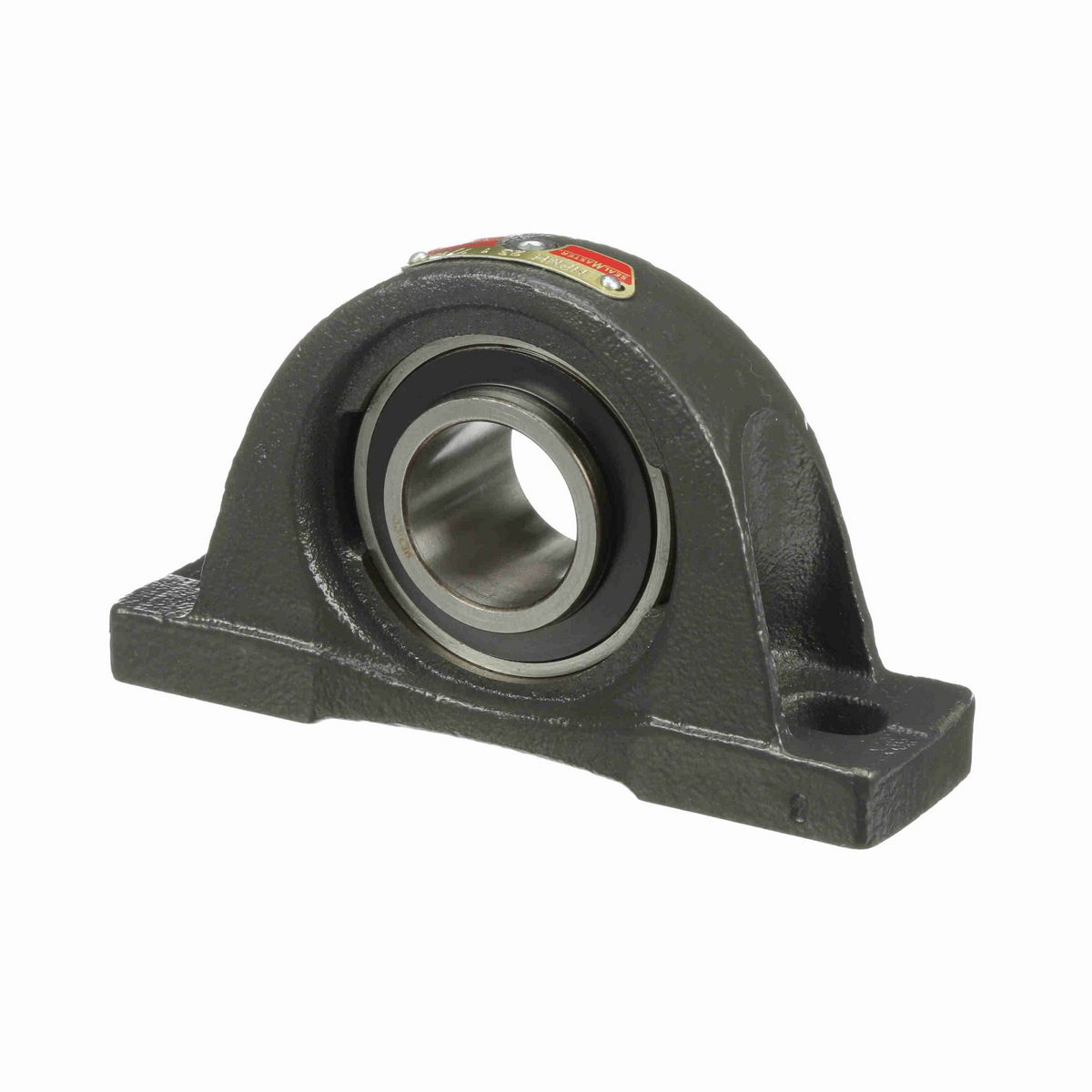

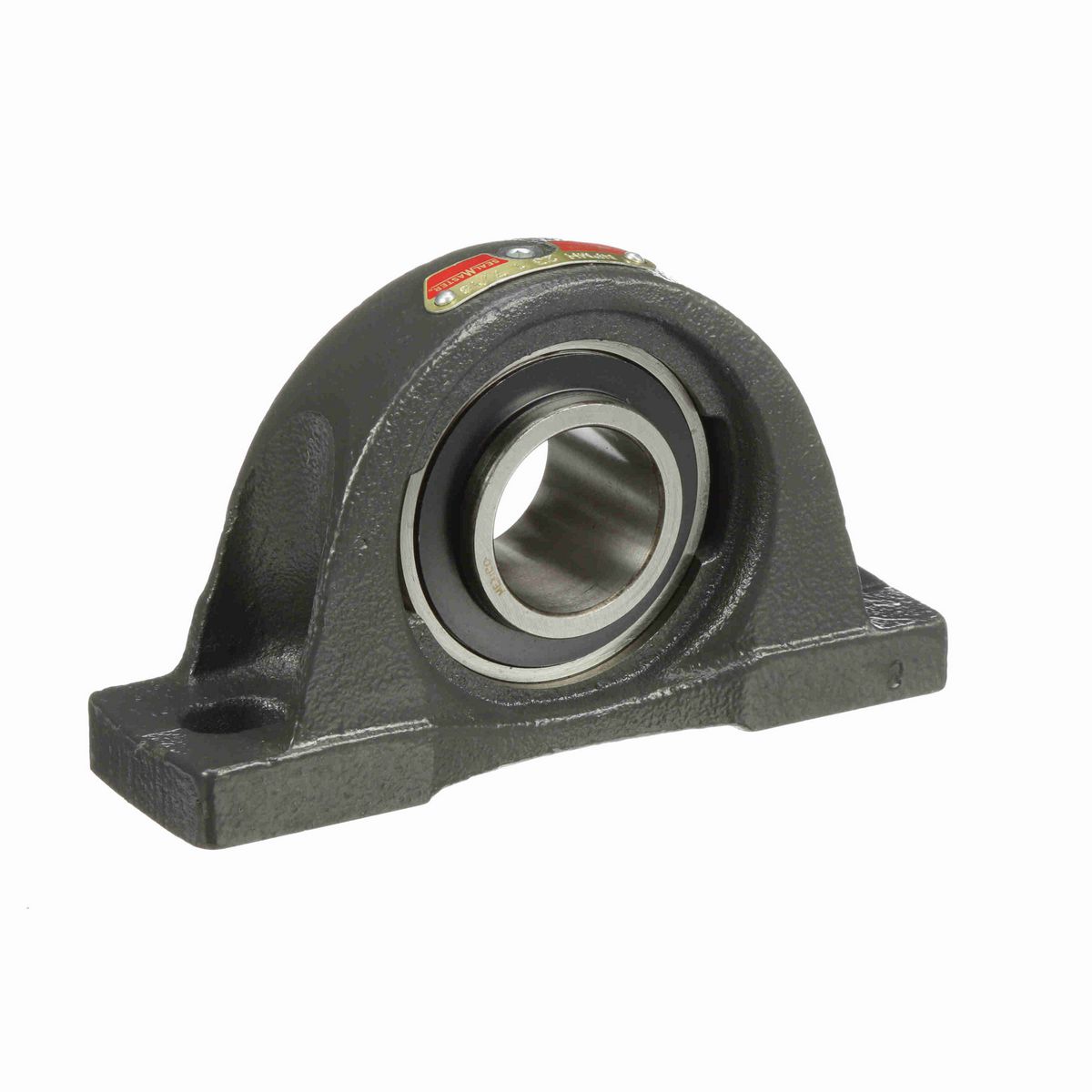

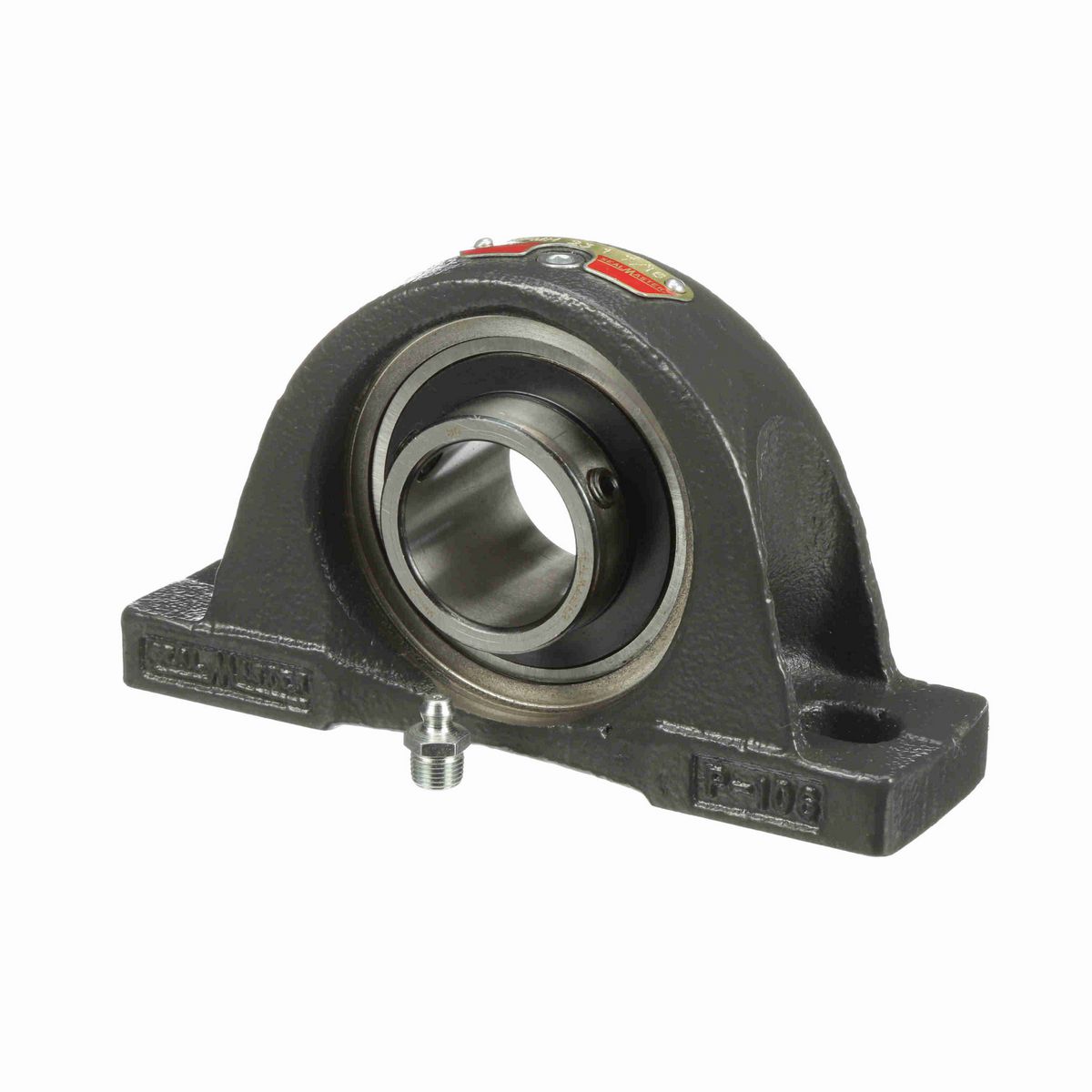

• Cast iron housed, extended inner ring bearing with ball riding nylon retainer
• Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Single lip contact seal and flinger

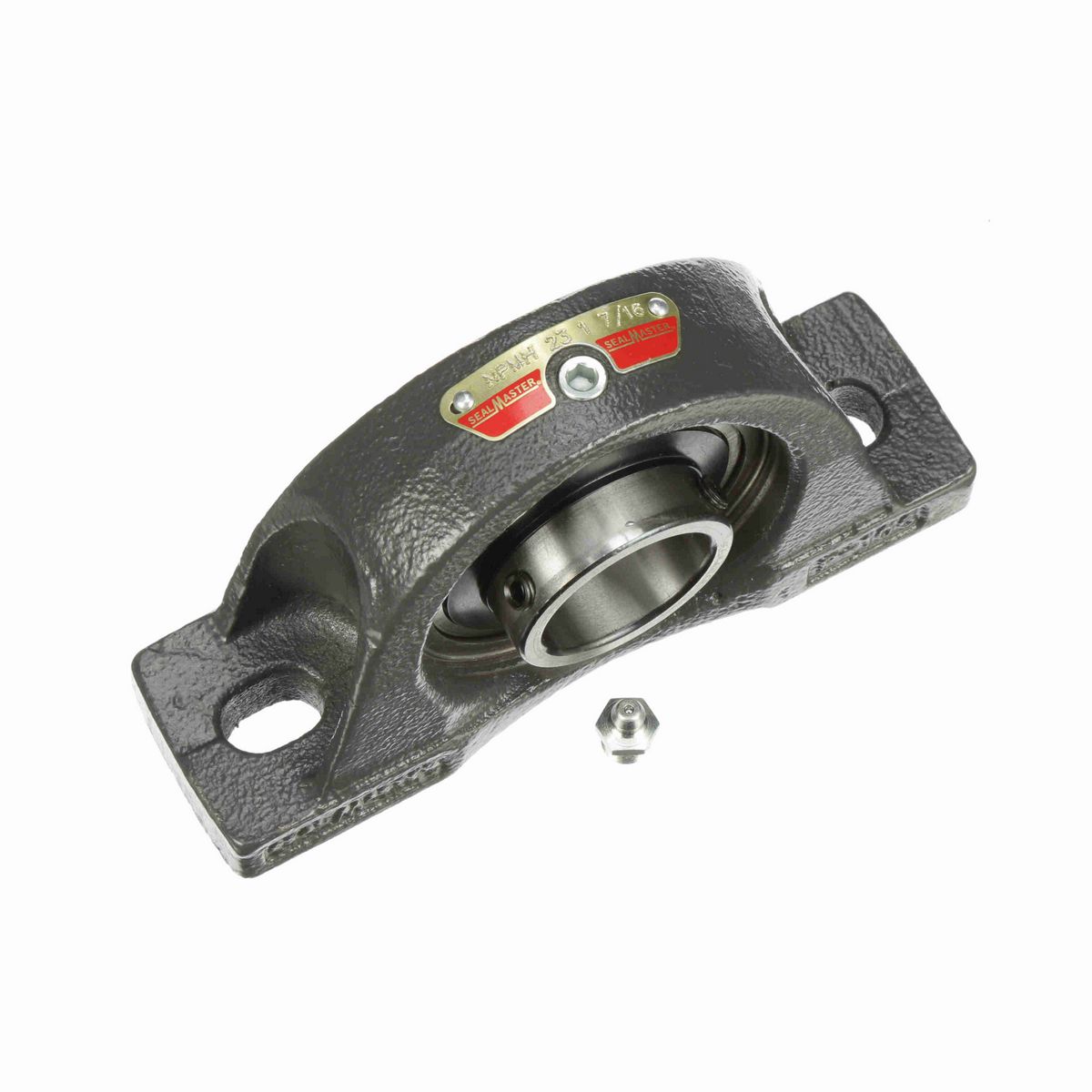

• Supplied sealed for life with optional lubrication fitting in the box

Dimensions

Overall Width (in)	1.88 in
Overall Height (in)	3.75 in
Overall Length (in)	6.56 in
Base Width (in)	1.88 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.4375 in
Foot Height (in)	0.63 in
Base to Center Height (in)	1.875 in
Length Through Bore (in)	1.685 in
Centerline to Outermost Bearing Face (in)	1 in
Bolt Spacing Min (in)	4.69 in
Bolt Spacing Max (in)	5.31 in
Bolt Spacing (in)	5 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal with Flinger
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Misalignment Capability	±2.0° Misalignment - Static Only
Static Load Rating (lb)	3,493 lb
Max Operating Temperature (F)	220 °F
Base Length (in)	6.56 in
Vibration Frequency Inner Ring Defect	0.0905 cps
Vibration Frequency Fundamental Train	0.0066 cps
Bearing Type	Standard Duty
Cage Type	Land Riding Retainer
Fixed vs. Expansion	Fixed
End Cap Available	No
Size Code	2-17
Shaft Locking Type	Set Screw
Bearing Insert Finish	Black Oxide
Radial Clearance	Standard
Insert	MH-23
Grease Fitting Thread Size	1/4-28
Housing Material	Cast Iron
Dynamic Load Rating (lb)	5,782 lb
Vibration Frequency Roller Spin	0.0386 cps
Maximum Speed (RPM)	4000 rpm
Vibration Frequency Outer Ring Defect	0.0595 cps
Bearing Insert Material	52100 Bearing Steel
Housing Coating	Powder Coated
Inner Ring Outside Diameter (in)	1.851 in
Lubricant	Lithium Complex NLGI 2 Grease

General Specifications

UPC	662461342695
Weight	4.36 LB
Packaged Length	4.50 IN
Packaged Width	7.10 IN
Packaged Height	2.10 IN
HTC	8483.20.8040
Country of Origin	Mexico
