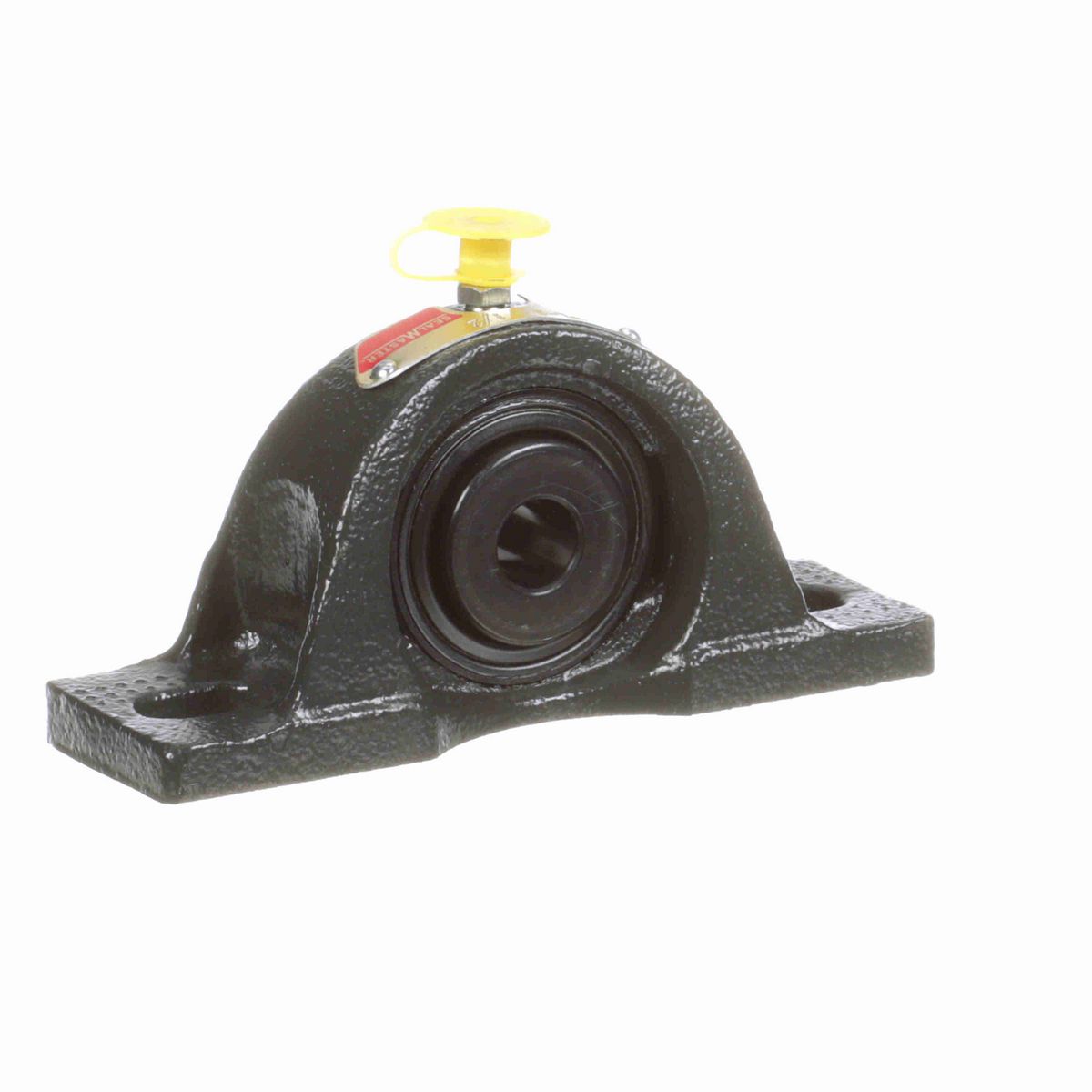

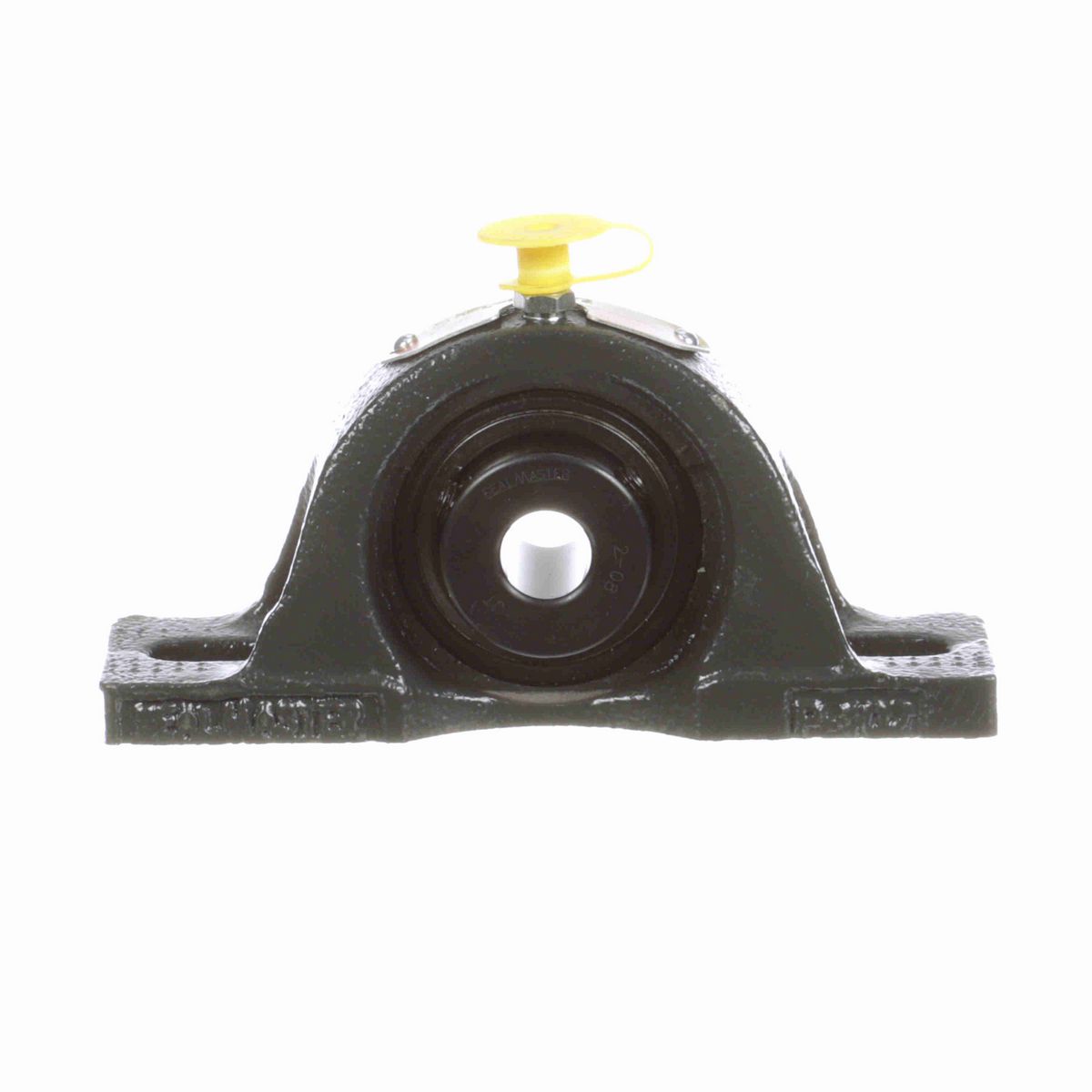

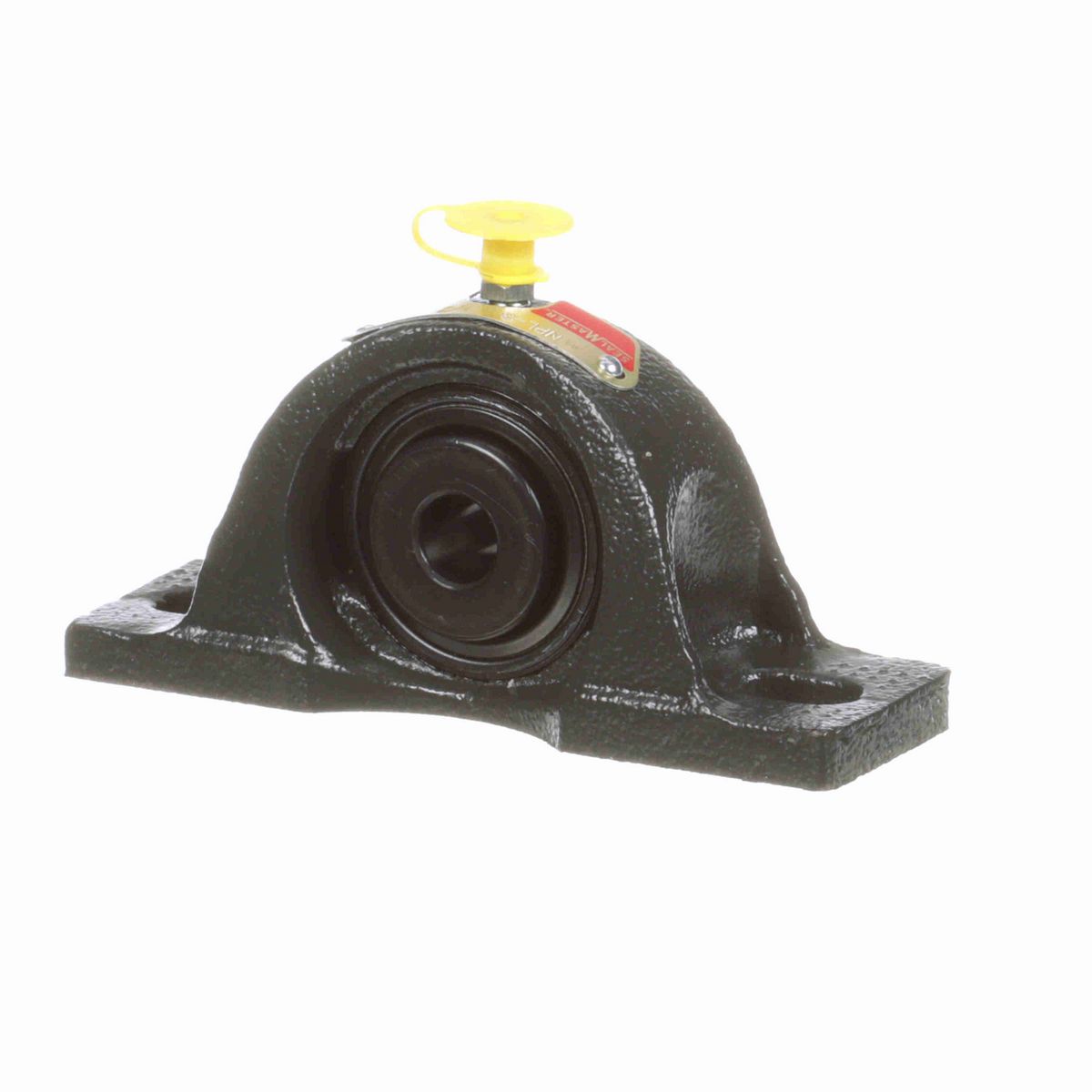

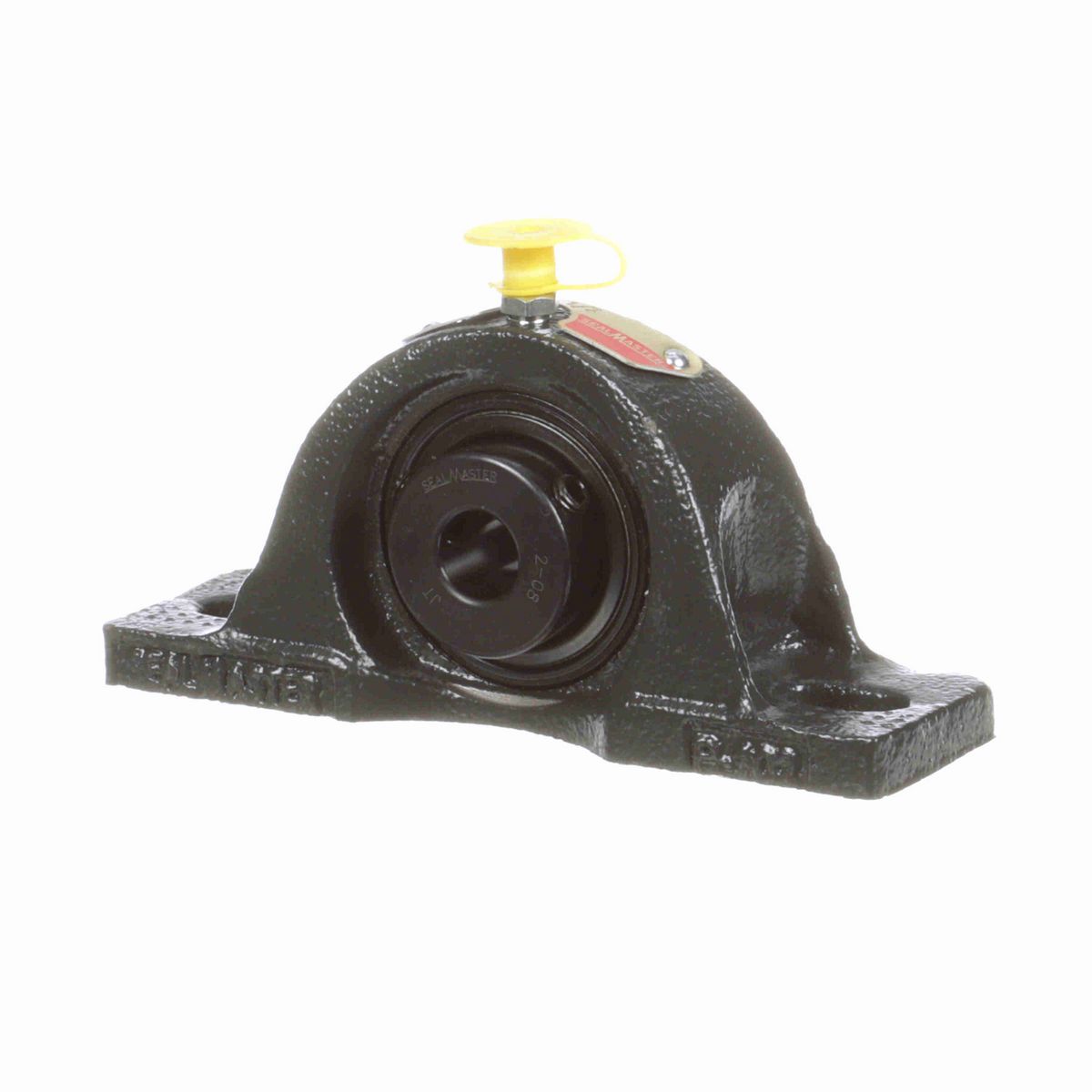

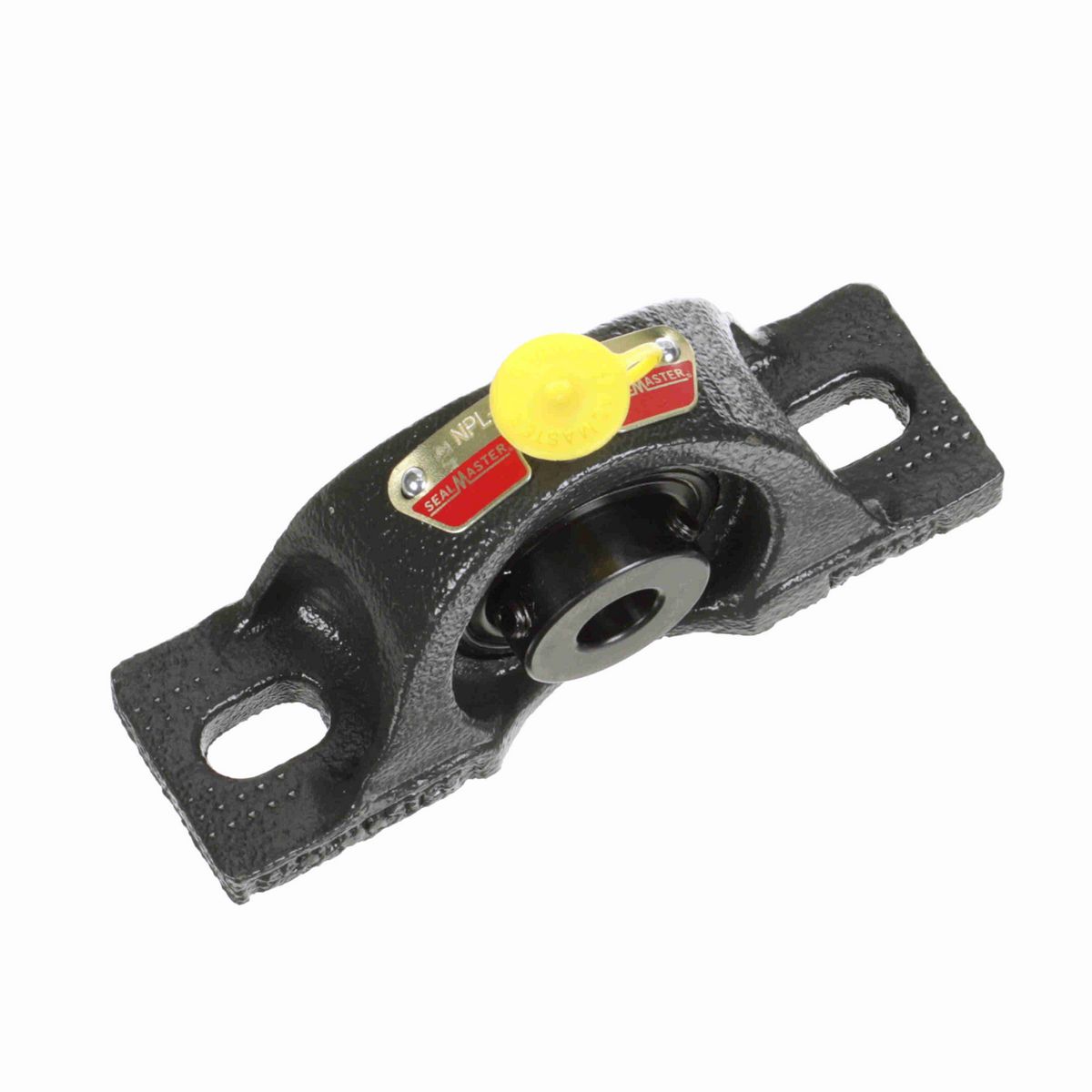

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Base Width (in)	1.5 in
Overall Length (in)	5 in
Overall Height (in)	2.31 in
Overall Width (in)	1.5 in
Bolt Size (in)	3/8 in
Bore Diameter (in)	0.5 in
Base to Center Height (in)	1.0625 in
Foot Height (in)	0.38 in
Length Through Bore (in)	1.219 in
Centerline to Outermost Bearing Face (in)	0.719 in
Bolt Spacing Min (in)	3.38 in
Bolt Spacing (in)	3.75 in
Bolt Spacing Max (in)	4.13 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Two Bolt, Low Base
Housing Style	Pillow Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Bearing Insert Finish	Black Oxide
Housing Coating	Powder Coated
Cage Type	Land Riding Retainer
Bearing Type	Standard Duty
Maximum Speed (RPM)	7300 rpm
Lubricant	Lithium Complex NLGI 2 Grease
Vibration Frequency Inner Ring Defect	0.0915 cps
Bearing Insert Material	52100 Bearing Steel
Size Code	2-012
Inner Ring Outside Diameter (in)	1.188 in
Static Load Rating (lb)	1,444 lb
Vibration Frequency Fundamental Train	0.0065 cps
Insert	2-08
End Cap Available	No
Max Operating Temperature (F)	220 °F
Base Length (in)	5 in
Dynamic Load Rating (lb)	2,611 lb
Shaft Locking Type	Set Screw
Fixed vs. Expansion	Fixed
Grease Fitting Thread Size	1/4-28
Vibration Frequency Outer Ring Defect	0.0585 cps
Vibration Frequency Roller Spin	0.0361 cps
Radial Clearance	Standard
Housing Material	Cast Iron
Misalignment Capability	±2.0° Misalignment - Static Only

General Specifications

UPC	662461004494
Weight	1.70 LB
Packaged Length	3.19 IN
Packaged Width	1.69 IN
Packaged Height	5.25 IN
HTC	8483.20.8040
Country of Origin	United States of America
