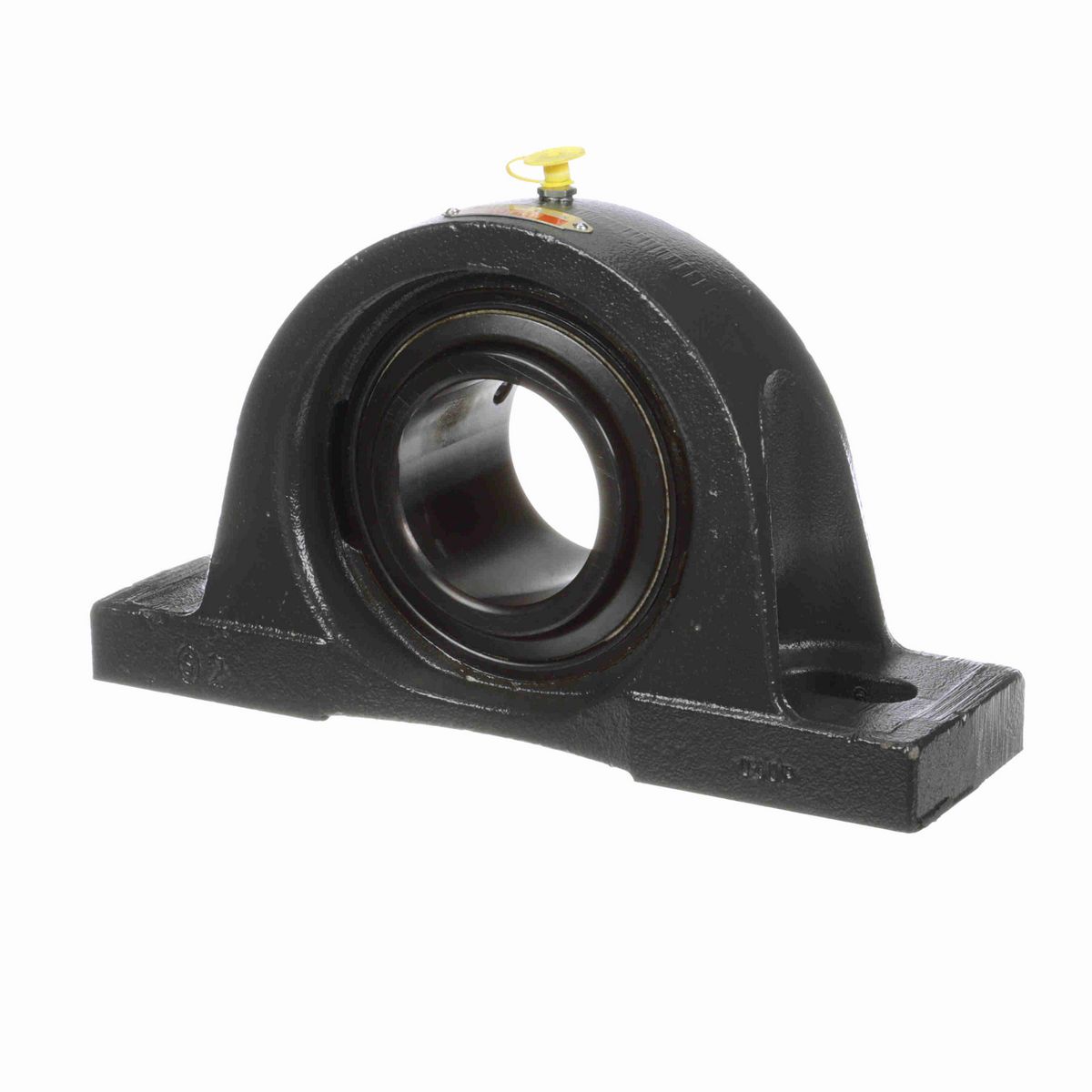

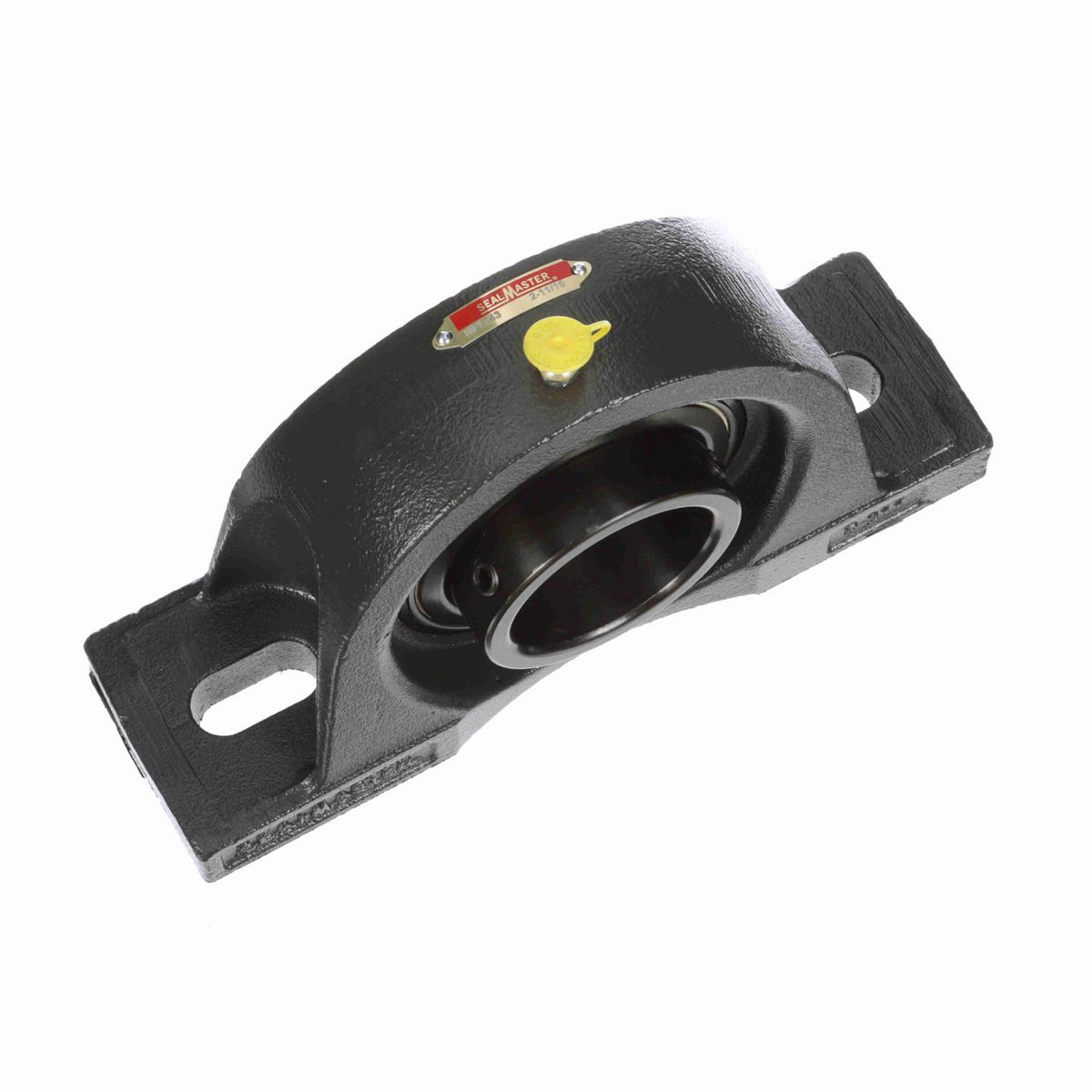

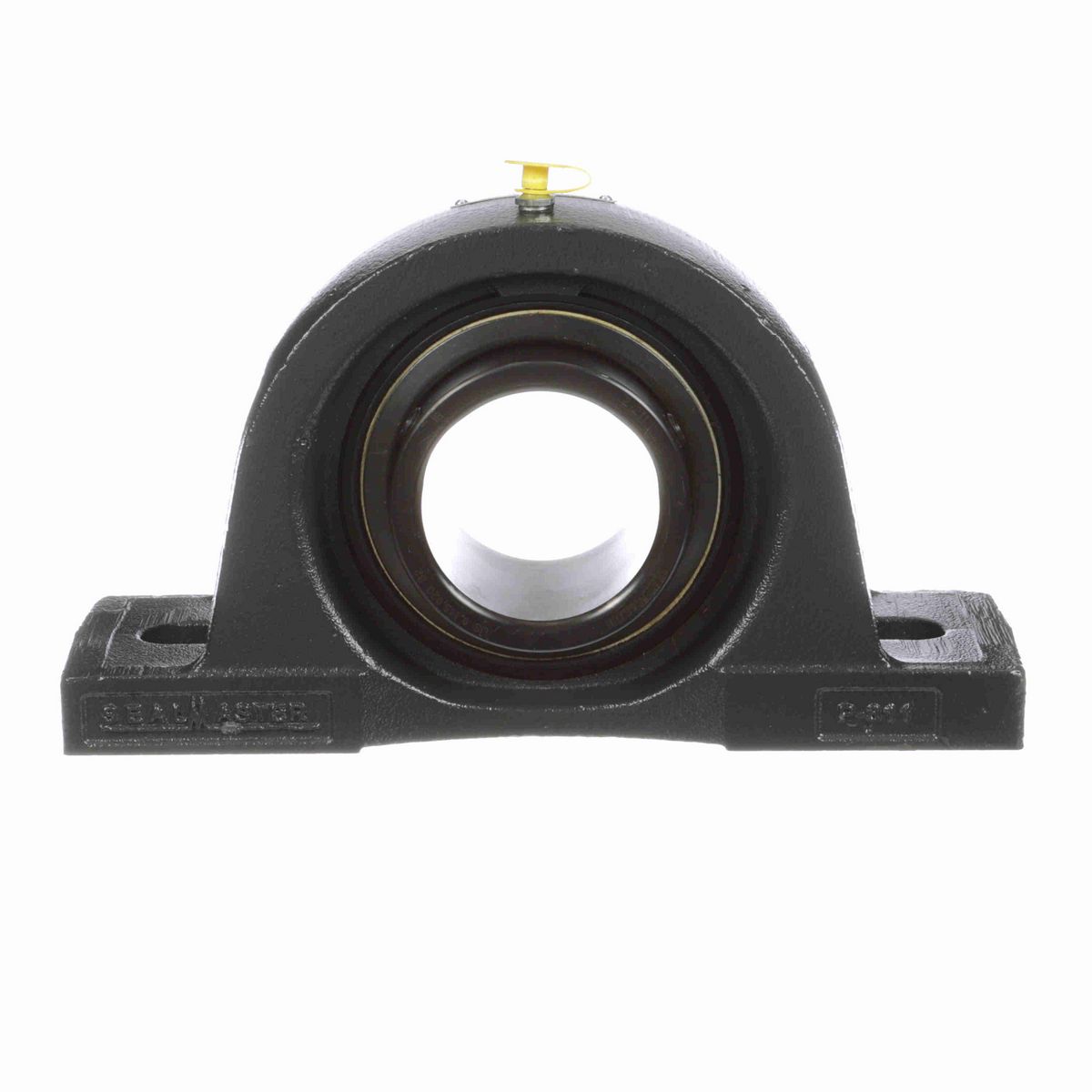

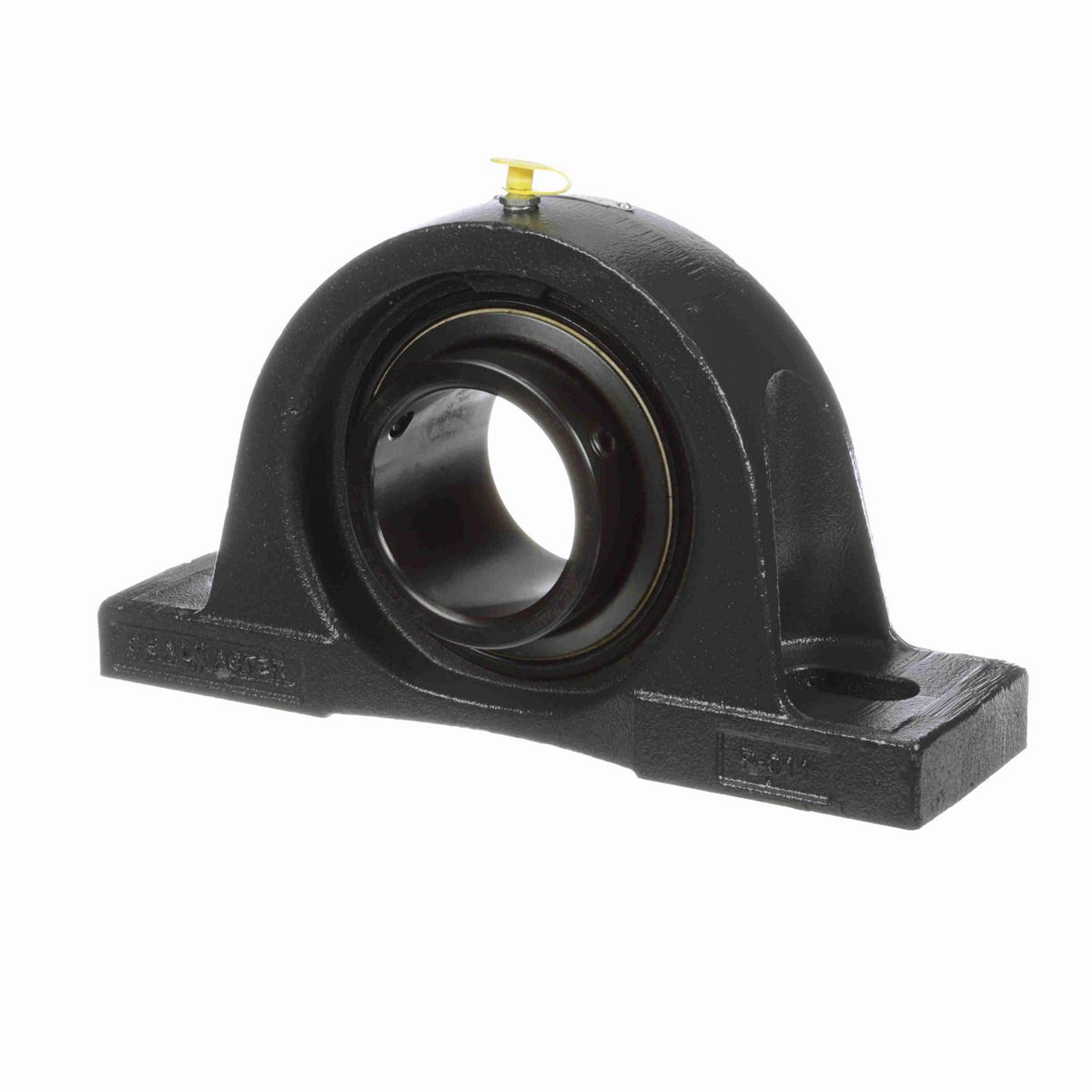

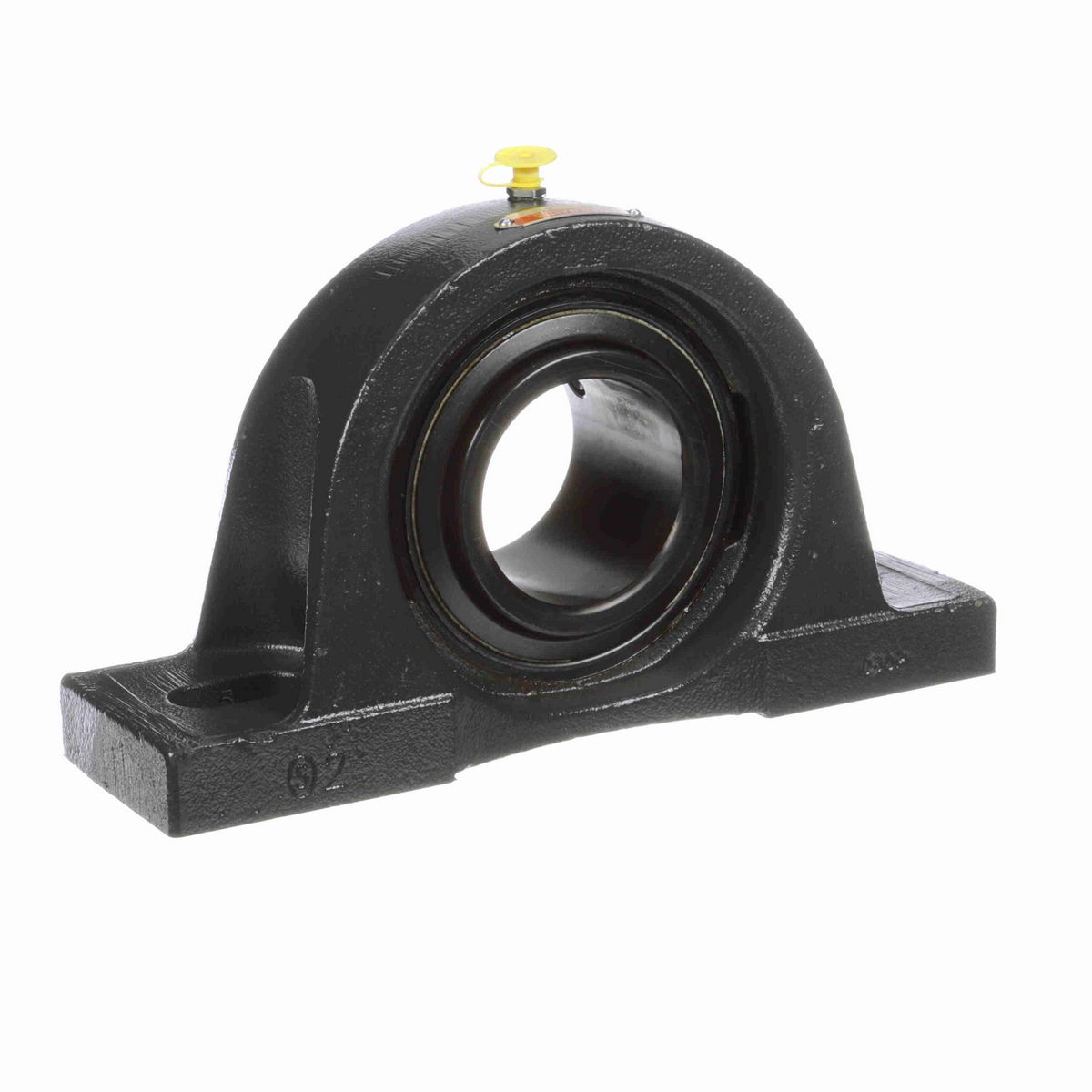

Sealmaster Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - NPL-43

Sealmaster Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - NPL-43
Sealmaster Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - NPL-43
Sealmaster Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - NPL-43
Sealmaster Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - NPL-43
Sealmaster Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - NPL-43
Sealmaster Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - NPL-43
(0)
Под заказ
SealMaster
0 руб.
До конца акции осталось:
00дн.
00час.
00мин.
Полное описание
Заказать товар
Товар доступен только под заказ.
Сроки поставки: 2–3 недели
Подарок при покупке
Дарим подарок при покупке данного товара
Выбрать подарок

Sealmaster Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - NPL-43
Sealmaster Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - NPL-43
(0)
Под заказ
0 руб.
В корзину
Описание Отзывы Доставка


  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
  • Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
Dimensions
Overall Width (in)3.25 in
Base Width (in)3.25 in
Overall Length (in)11.25 in
Overall Height (in)6.25 in
Bolt Size (in)3/4 in
Bore Diameter (in)2.6875 in
Base to Center Height (in)3.0000 in
Foot Height (in)1.06 in
Length Through Bore (in)2.748 in
Bolt Spacing Min (in)7.13 in
Bolt Spacing Max (in)8.88 in
Centerline to Outermost Bearing Face (in)1.688 in
Technical Specifications
Housing BaseSolid
Rolling ElementBall Bearing
Housing ConstructionOne Piece
Bore ShapeStraight
Outer Ring Land ProfileStandard
Housing ColorBlack
Misalignment TypeStatic Only
Cage MaterialBrass
Seal TypeFelt Labyrinth Seal
Housing TypePillow Block, Two Bolt, Low Base
Housing StylePillow Block
Ability to RelubricateYes
Inner Race Heat Treat MethodZone-Hardened
Setscrew Torque (in-lbs)350-450 in/lbs
Housing CoatingPowder Coated
Max Operating Temperature (F)220 °F
Shaft Locking TypeSet Screw
Misalignment Capability±2.0° Misalignment - Static Only
Inner Ring Outside Diameter (in)3.438 in
Maximum Speed (RPM)2500 rpm
Bearing Insert FinishBlack Oxide
Dynamic Load Rating (lb)13,971 lb
Housing MaterialCast Iron
Vibration Frequency Fundamental Train0.0068 cps
Base Length (in)11.25 in
Vibration Frequency Roller Spin0.0451 cps
Vibration Frequency Inner Ring Defect0.0982 cps
Bearing Insert Material52100 Bearing Steel
Cage TypeLand Riding Retainer
Size Code2-211
Radial ClearanceStandard
Vibration Frequency Outer Ring Defect0.0684 cps
Static Load Rating (lb)10,063 lb
Fixed vs. ExpansionFixed
End Cap AvailableNo
Bearing TypeMedium Duty
LubricantLithium Complex NLGI 2 Grease
Grease Fitting Thread Size1/8 NPT
Insert2-211
General Specifications
UPC662461377765
Weight20.00 LB
Packaged Length6.31 IN
Packaged Width11.13 IN
Packaged Height3.19 IN
HTC8483.20.8040
Country of OriginUnited States of America
