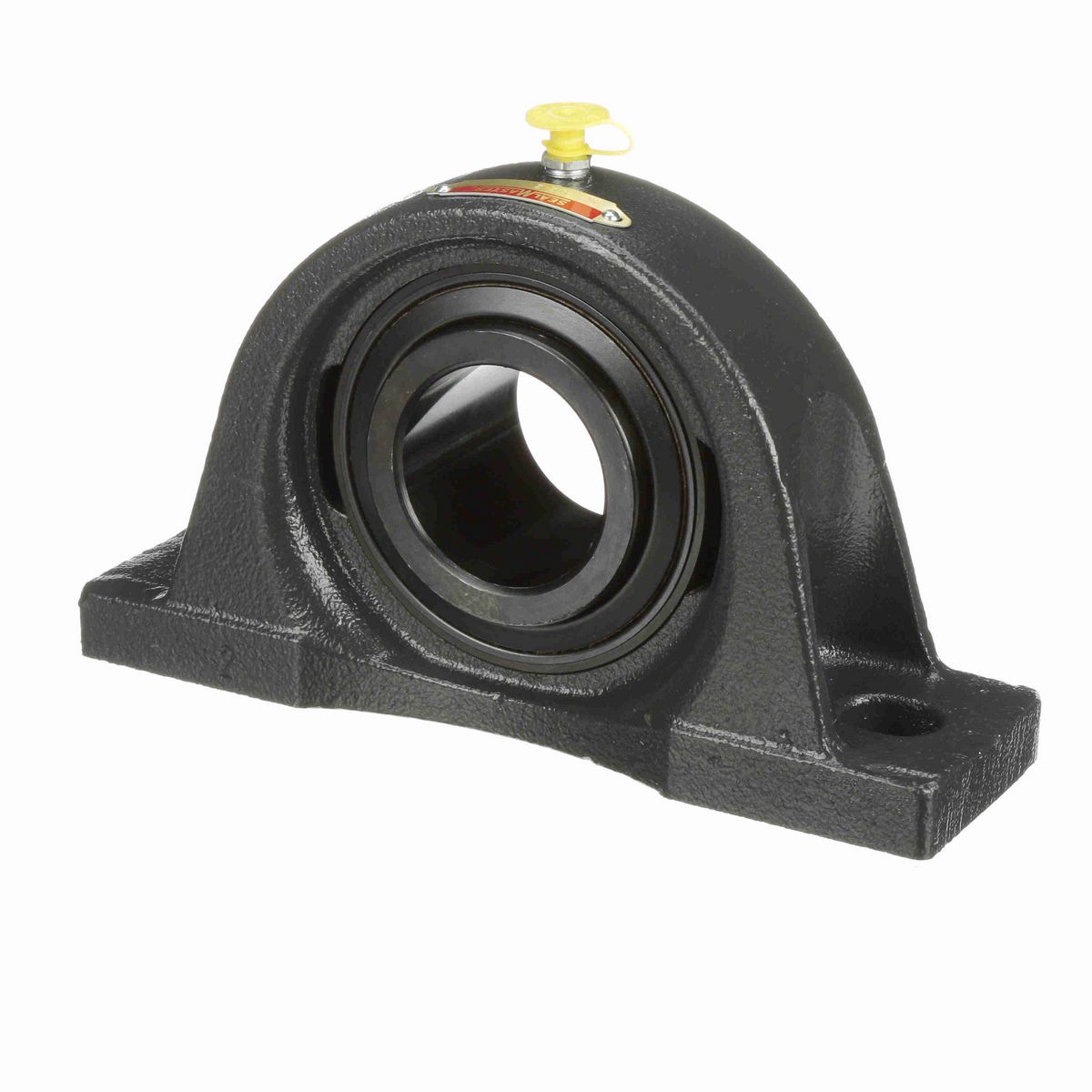

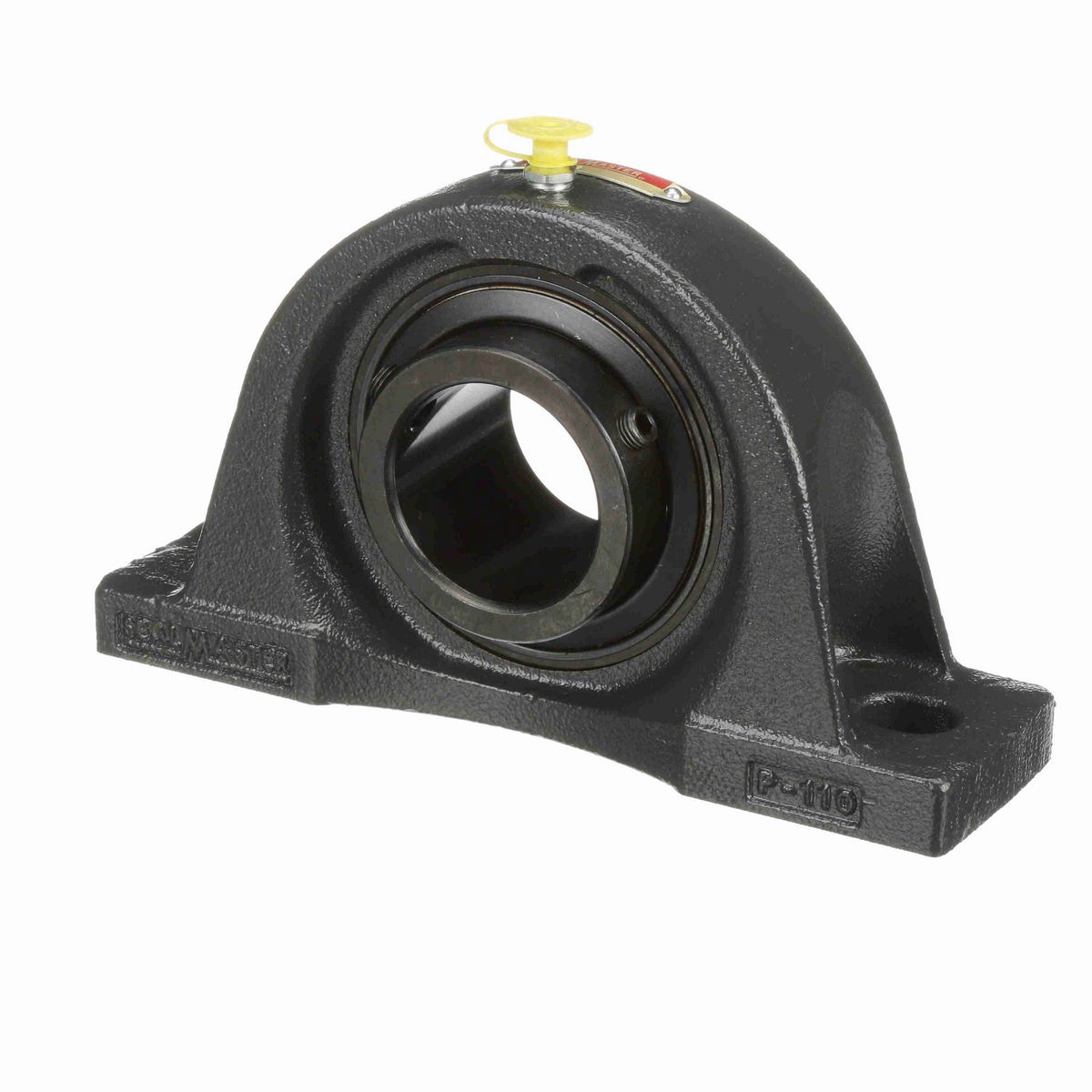

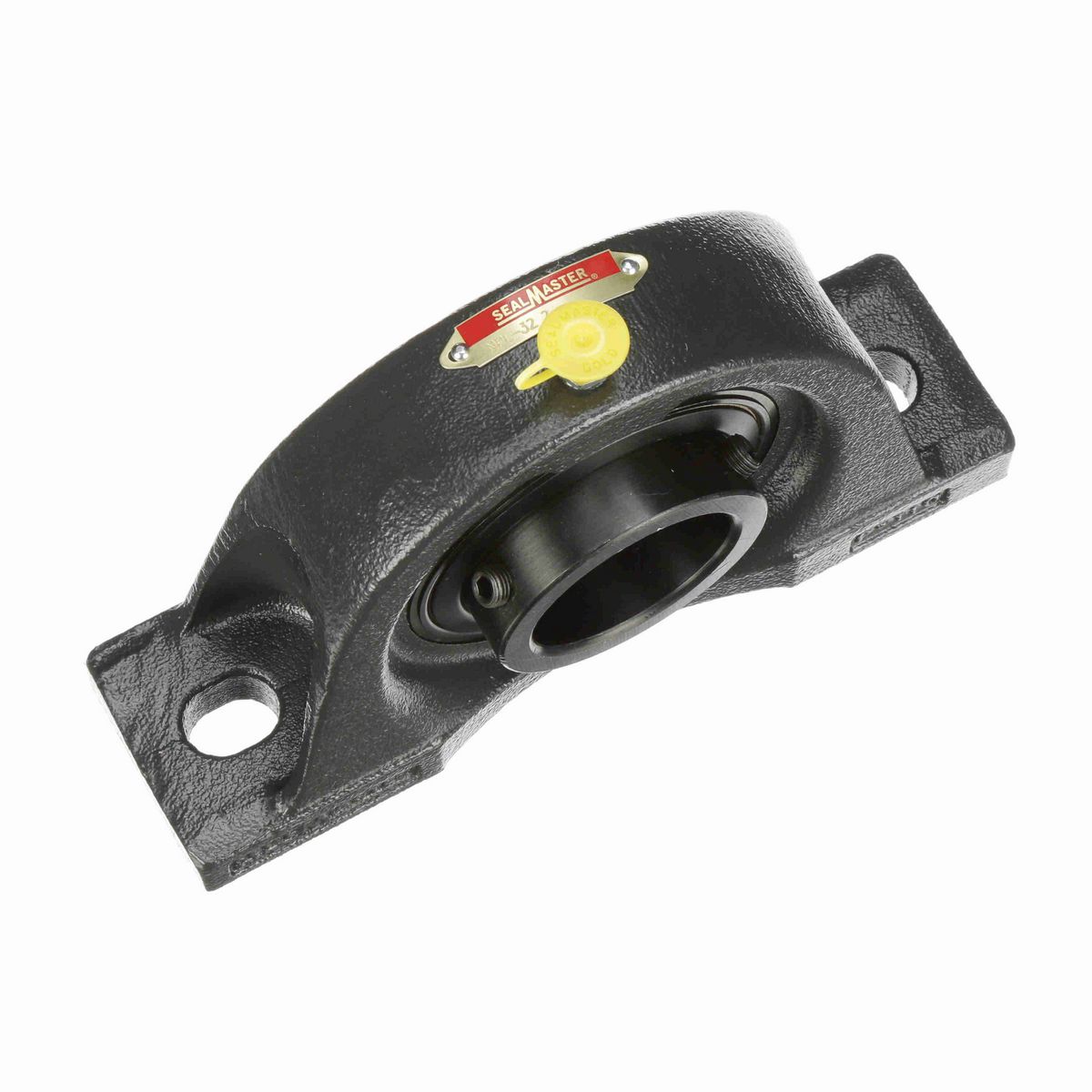

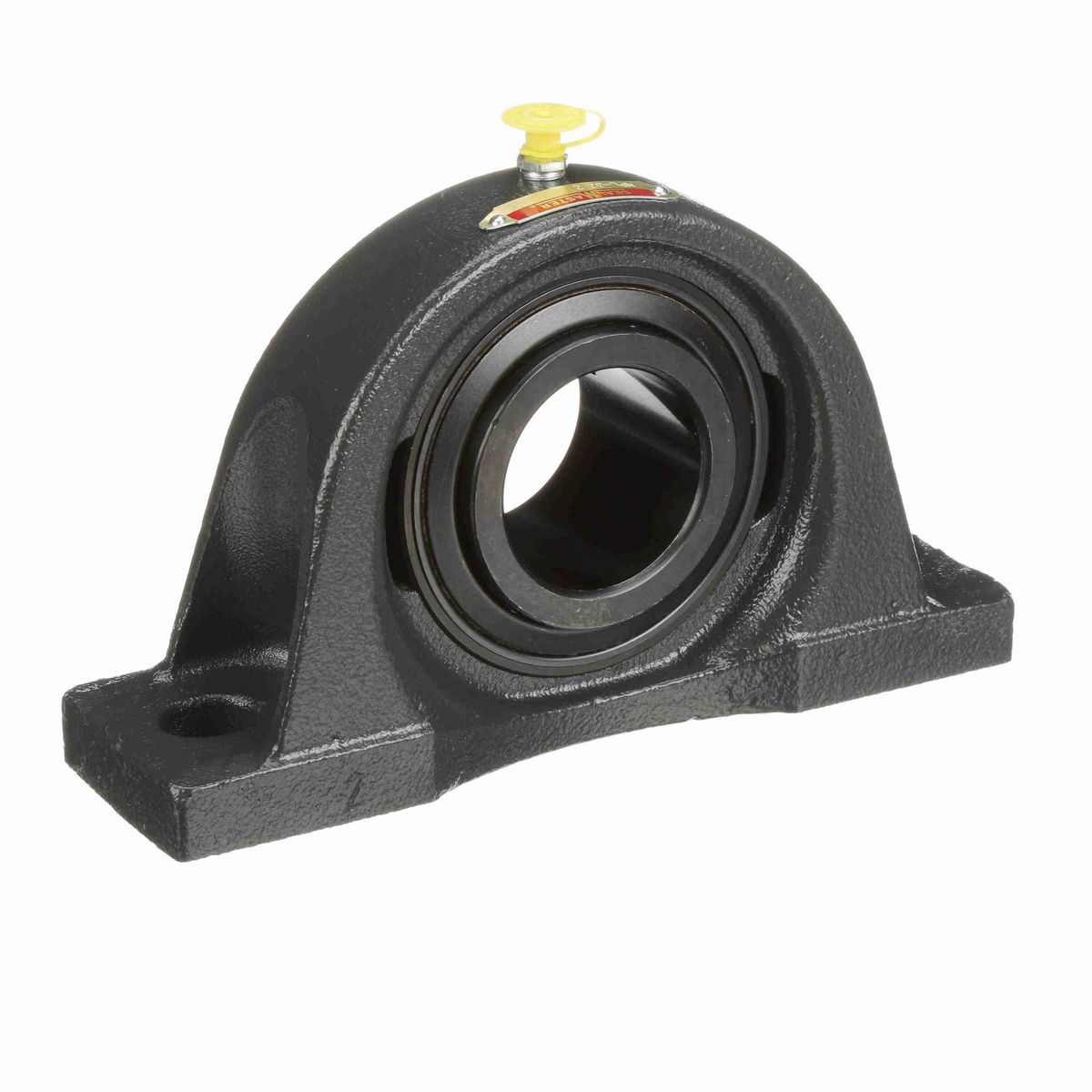

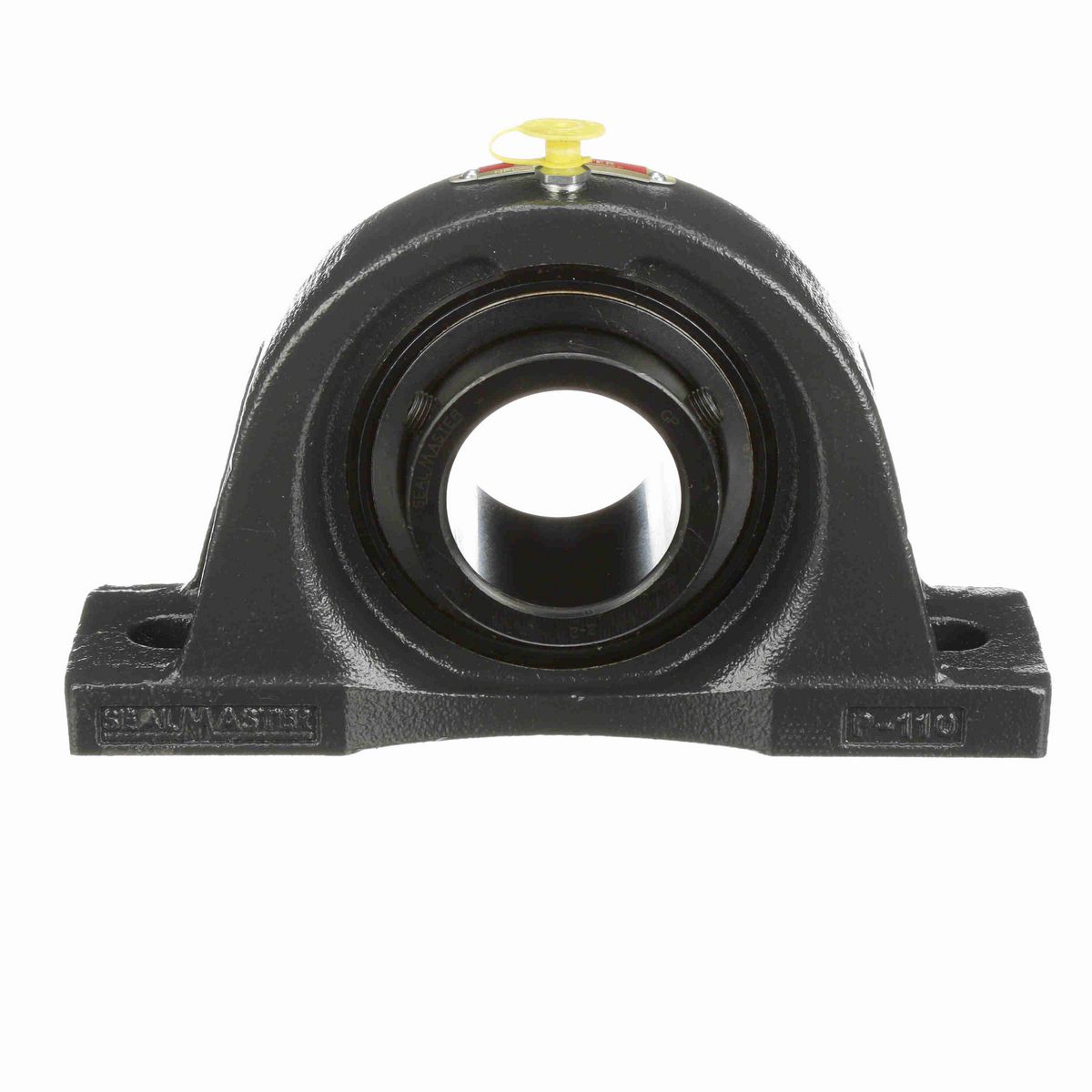

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	8.63 in
Overall Width (in)	2.38 in
Overall Height (in)	4.94 in
Base Width (in)	2.38 in
Bolt Size (in)	5/8 in
Bore Diameter (in)	2 in
Foot Height (in)	0.69 in
Base to Center Height (in)	2.4375 in
Length Through Bore (in)	2.1875 in
Centerline to Outermost Bearing Face (in)	1.313 in
Bolt Spacing Min (in)	6.5 in
Bolt Spacing Max (in)	7 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt, Low Base
Seal Type	Felt Labyrinth Seal
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Inner Ring Defect	0.0987 cps
Vibration Frequency Outer Ring Defect	0.068 cps
Misalignment Capability	±2.0° Misalignment - Static Only
Base Length (in)	8.63 in
End Cap Available	No
Static Load Rating (lb)	6,601 lb
Lubricant	Lithium Complex NLGI 2 Grease
Dynamic Load Rating (lb)	9,752 lb
Bearing Insert Finish	Black Oxide
Vibration Frequency Roller Spin	0.0437 cps
Insert	2-2
Radial Clearance	Standard
Housing Coating	Powder Coated
Size Code	2-23
Fixed vs. Expansion	Fixed
Housing Material	Cast Iron
Bearing Type	Standard Duty
Shaft Locking Type	Set Screw
Maximum Speed (RPM)	3250 rpm
Cage Type	Land Riding Retainer
Grease Fitting Thread Size	1/8 NPT
Max Operating Temperature (F)	220 °F
Vibration Frequency Fundamental Train	0.0068 cps
Inner Ring Outside Diameter (in)	2.719 in

General Specifications

UPC	662461004753
Weight	9.60 LB
Packaged Length	8.88 IN
Packaged Width	5.94 IN
Packaged Height	2.63 IN
HTC	8483.20.8040
Country of Origin	United States of America
