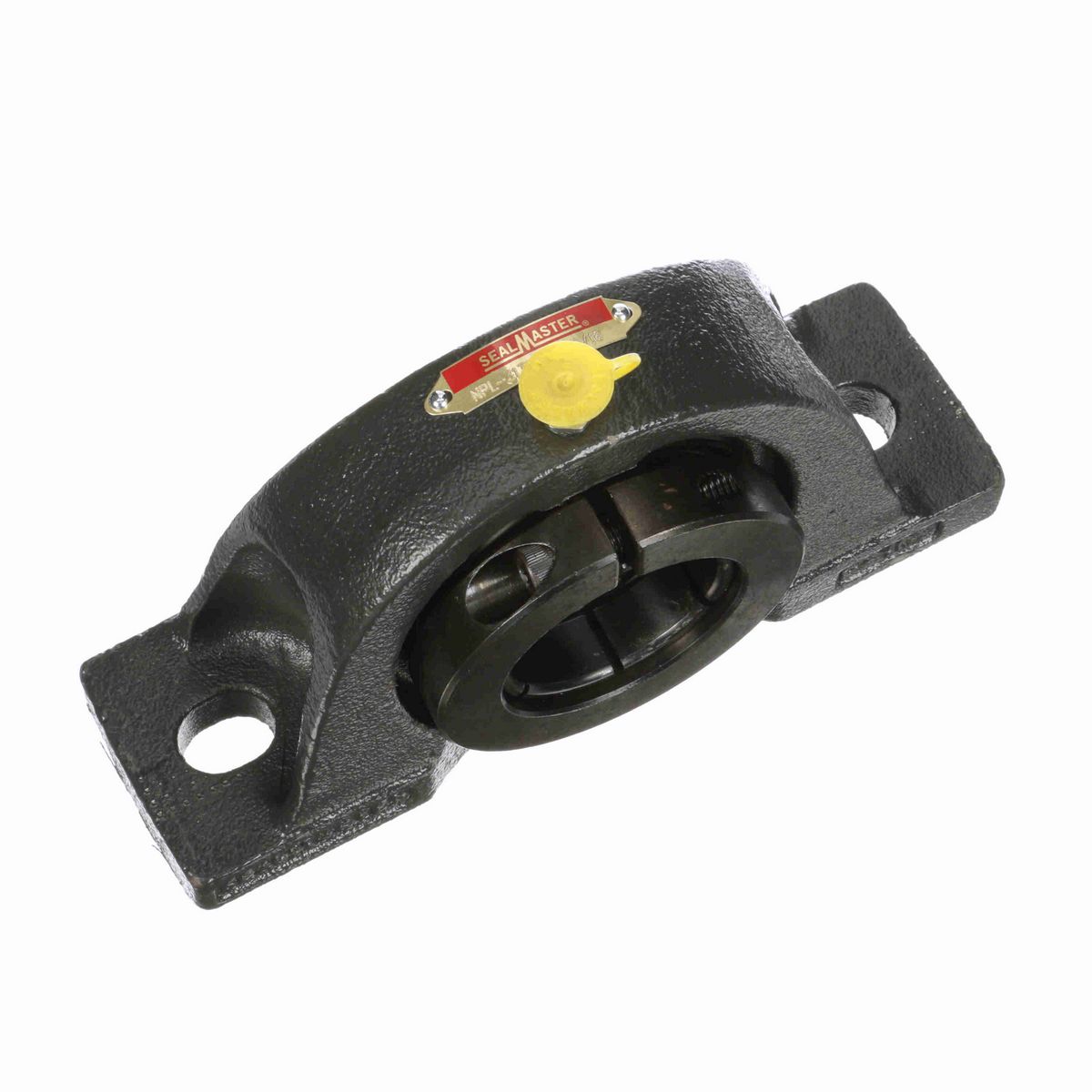

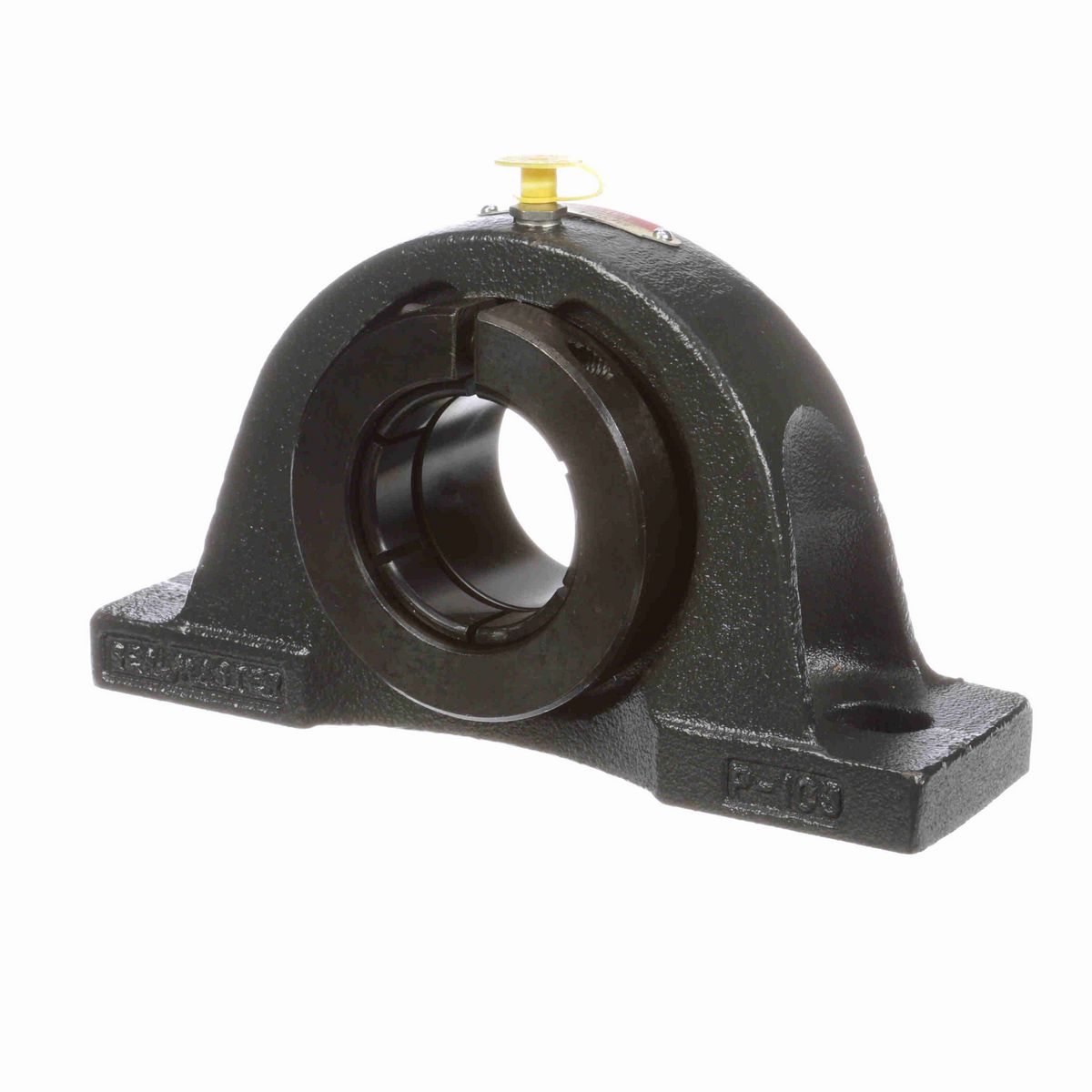

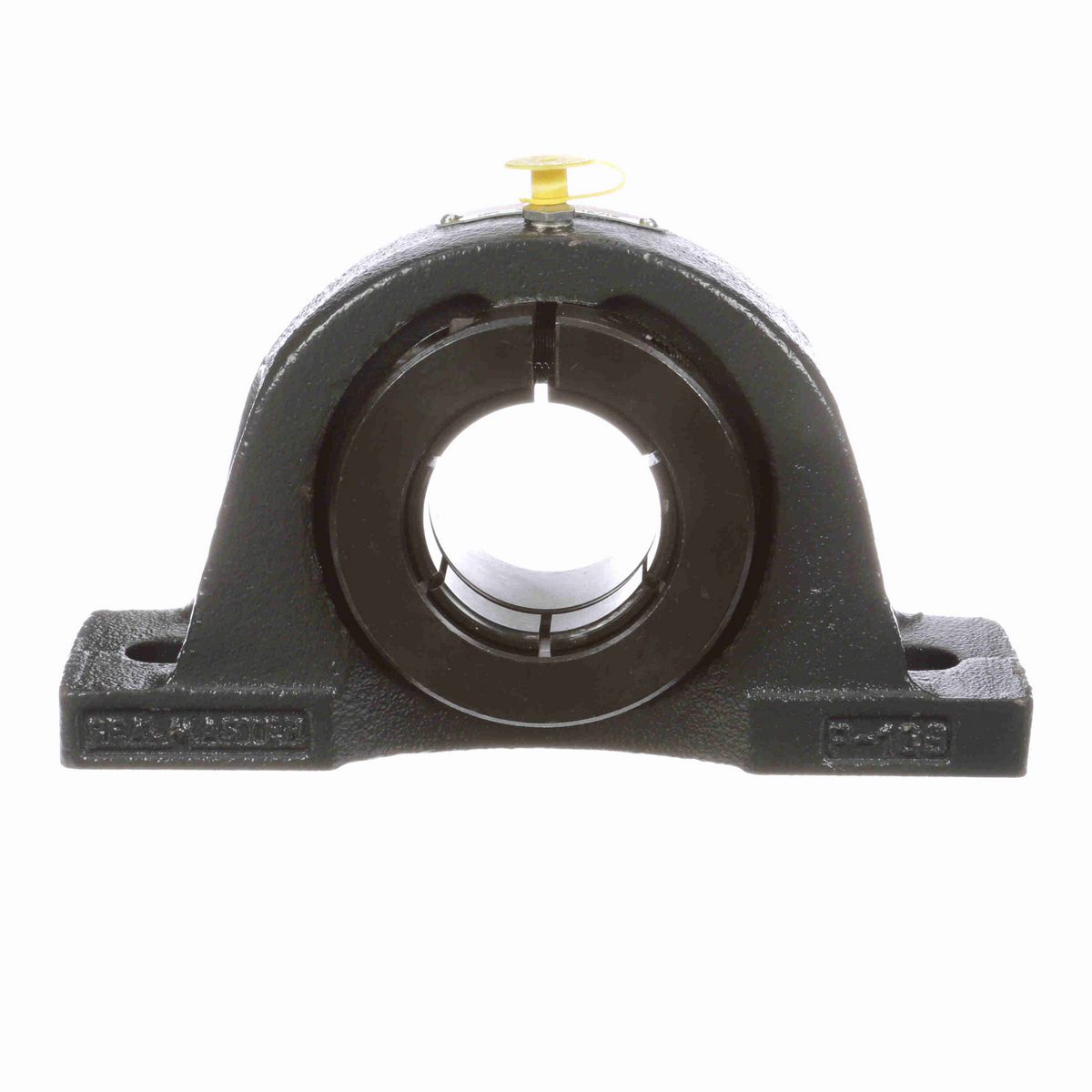

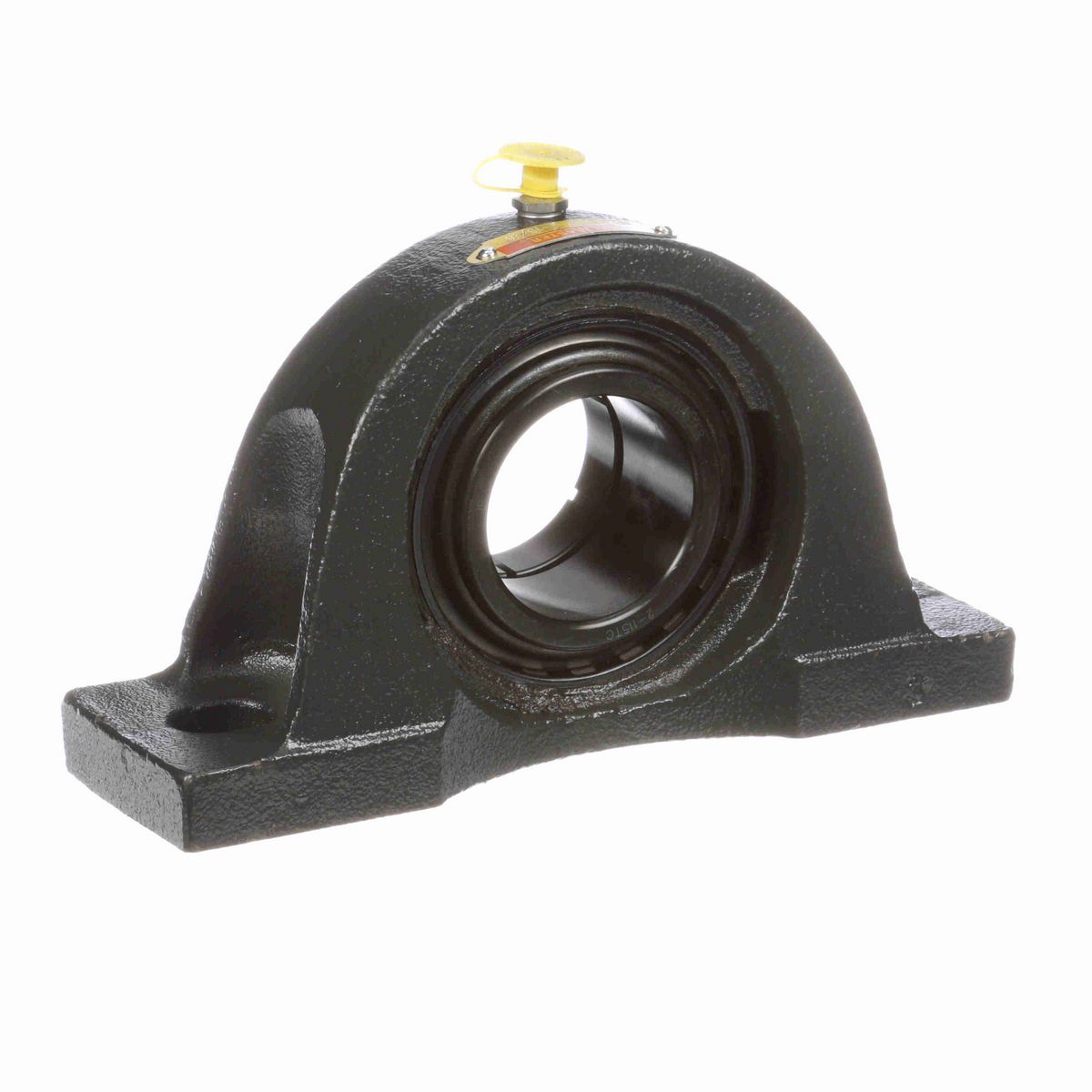

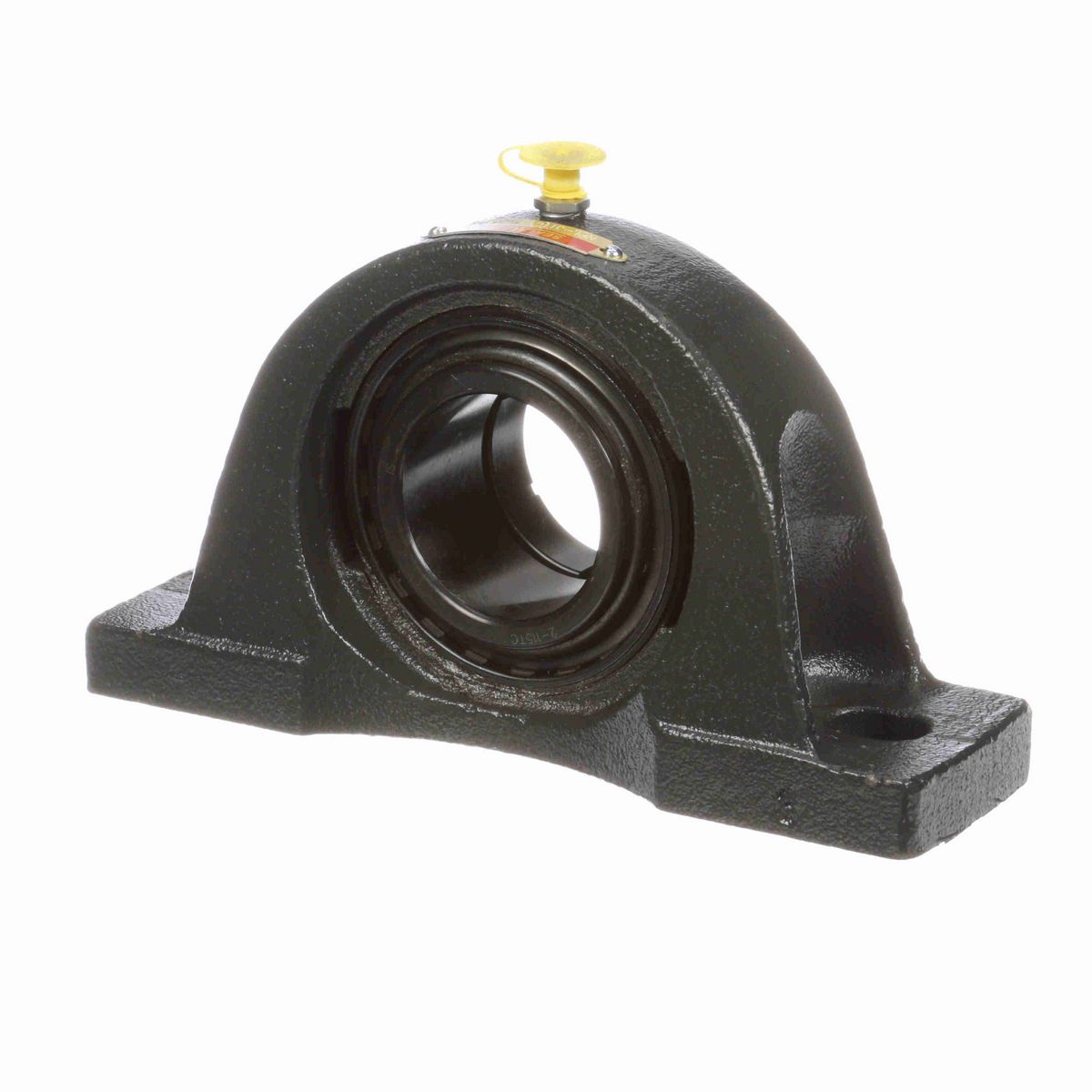

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Base Width (in)	2.38 in
Overall Height (in)	4.5 in
Overall Width (in)	2.38 in
Overall Length (in)	8.13 in
Bolt Size (in)	5/8 in
Bore Diameter (in)	1.9375 in
Foot Height (in)	0.69 in
Base to Center Height (in)	2.1875 in
Length Through Bore (in)	2.09 in
Bolt Spacing Max (in)	6.5 in
Bolt Spacing Min (in)	6 in
Centerline to Outermost Bearing Face (in)	1.34 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt, Low Base
Seal Type	Single Lip Contact Seal
Housing Style	Pillow Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	3.38 in
Dynamic Load Rating (lb)	7,889 lb
Maximum Speed (RPM)	3550 rpm
Misalignment Capability	±2.0° Misalignment - Static Only
Radial Clearance	Standard
Max Operating Temperature (F)	220 °F
Vibration Frequency Inner Ring Defect	0.0984 cps
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Fundamental Train	0.0068 cps
Shaft Locking Type	Concentric
Vibration Frequency Outer Ring Defect	0.0683 cps
Grease Fitting Thread Size	1/8 NPT
Bearing Insert Finish	Black Oxide
Insert	2-115TC
Base Length (in)	8.13 in
Bearing Type	Standard Duty
Vibration Frequency Roller Spin	0.0445 cps
Cage Type	Land Riding Retainer
Inner Ring Outside Diameter (in)	2.469 in
Fixed vs. Expansion	Fixed
Size Code	2-115
Static Load Rating (lb)	5,216 lb
End Cap Available	No
Housing Material	Cast Iron
Housing Coating	Powder Coated
Lubricant	Lithium Complex NLGI 2 Grease

General Specifications

UPC	662461033647
Weight	8.97 LB
Packaged Length	9.00 IN
Packaged Width	5.19 IN
Packaged Height	2.38 IN
HTC	8483.20.8040
Country of Origin	United States of America
