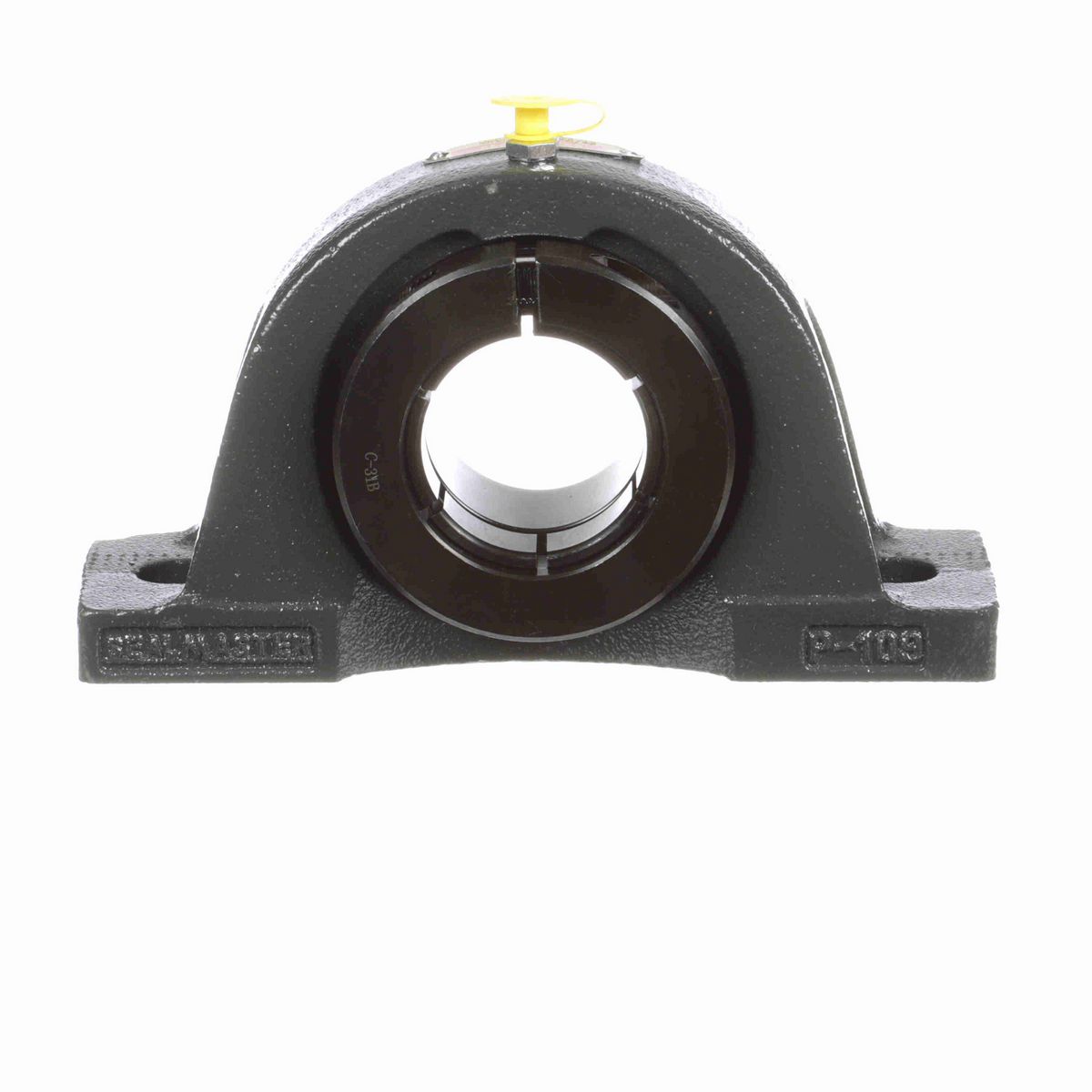

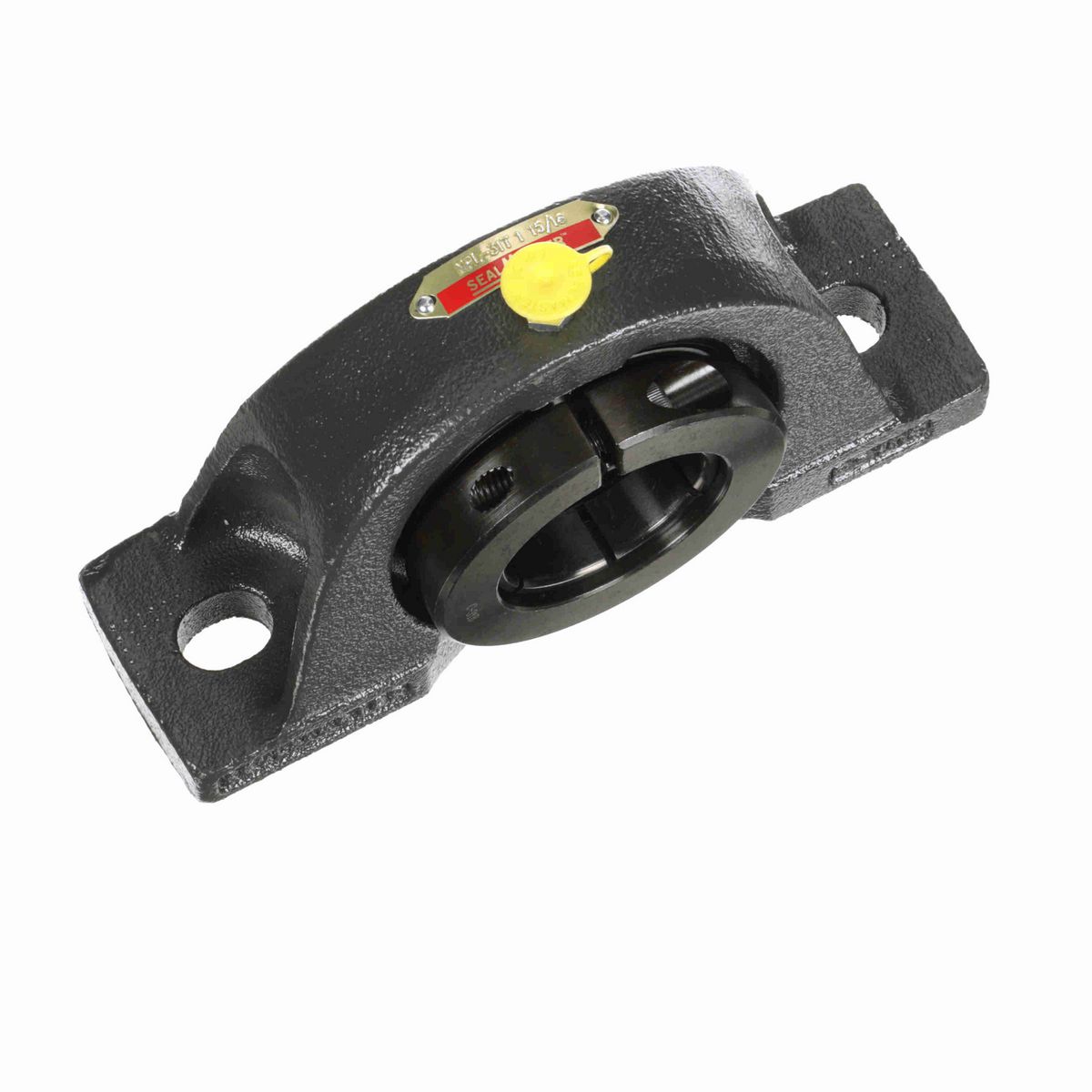

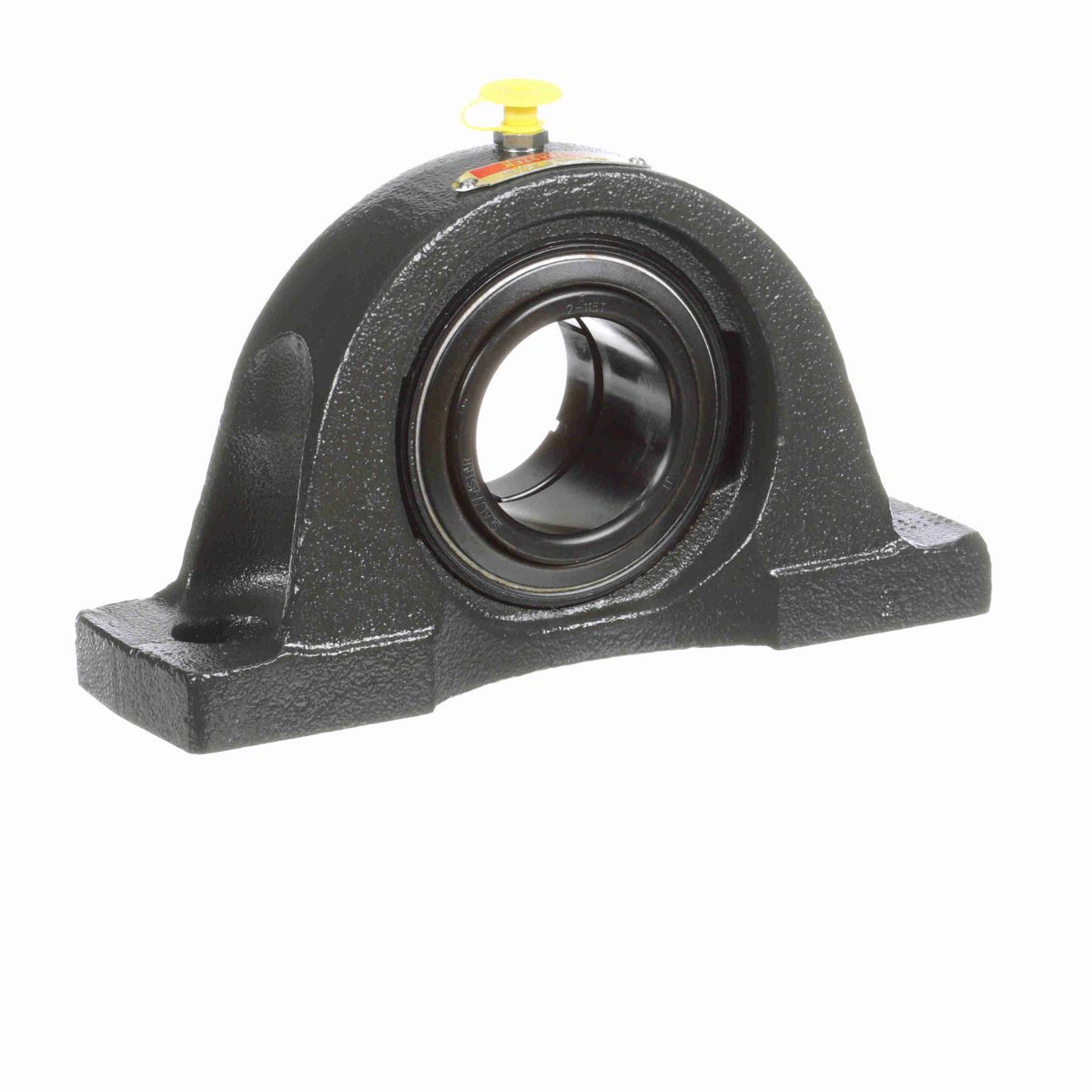

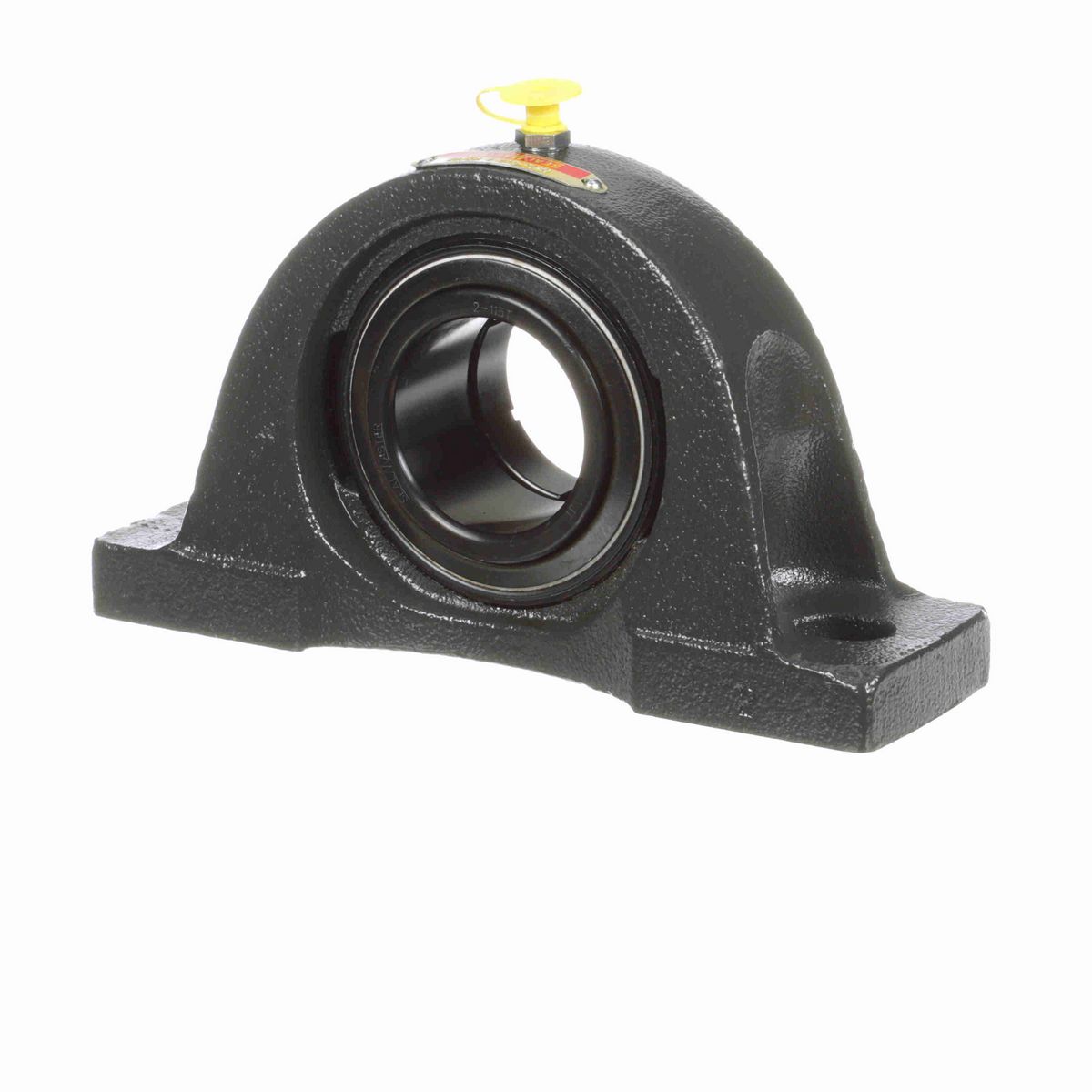

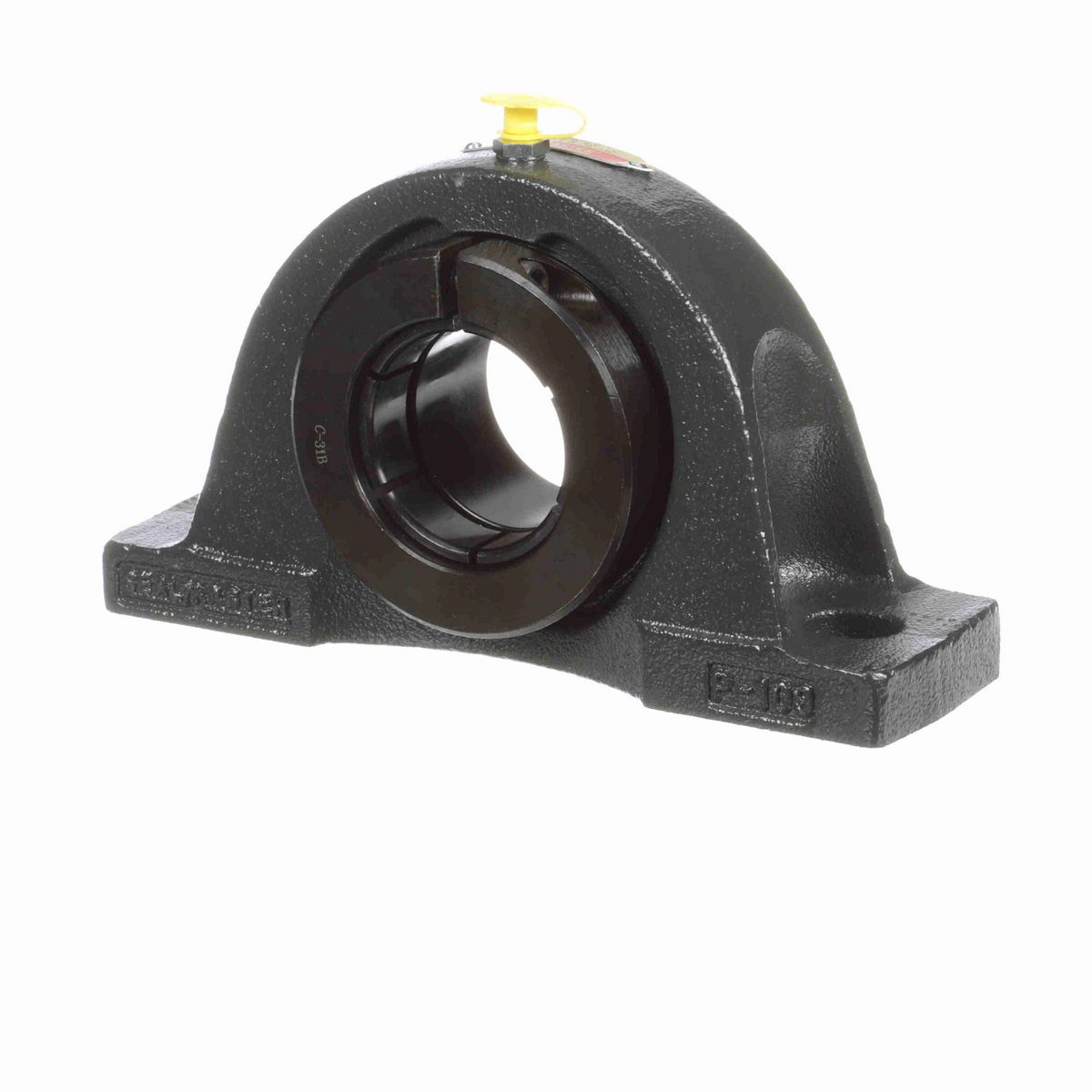

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Length (in)	8.13 in
Overall Width (in)	2.38 in
Overall Height (in)	4.5 in
Base Width (in)	2.38 in
Bolt Size (in)	5/8 in
Bore Diameter (in)	1.9375 in
Foot Height (in)	0.69 in
Base to Center Height (in)	2.1875 in
Length Through Bore (in)	2.09 in
Centerline to Outermost Bearing Face (in)	1.34 in
Bolt Spacing Min (in)	6 in
Bolt Spacing Max (in)	6.5 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt, Low Base
Seal Type	Felt Labyrinth Seal
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	3.38 in
Base Length (in)	8.13 in
Lubricant	Lithium Complex NLGI 2 Grease
End Cap Available	No
Maximum Speed (RPM)	5000 rpm
Insert	2-115T
Bearing Type	Standard Duty
Bearing Insert Finish	Black Oxide
Bearing Insert Material	52100 Bearing Steel
Fixed vs. Expansion	Fixed
Radial Clearance	Standard
Misalignment Capability	±2.0° Misalignment - Static Only
Vibration Frequency Outer Ring Defect	0.0683 cps
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Inner Ring Defect	0.0984 cps
Inner Ring Outside Diameter (in)	2.469 in
Vibration Frequency Roller Spin	0.0445 cps
Static Load Rating (lb)	5,216 lb
Max Operating Temperature (F)	220 °F
Cage Type	Land Riding Retainer
Housing Coating	Powder Coated
Dynamic Load Rating (lb)	7,889 lb
Size Code	2-115
Shaft Locking Type	Concentric
Vibration Frequency Fundamental Train	0.0068 cps
Housing Material	Cast Iron

General Specifications

UPC	662461030608
Weight	8.55 LB
Packaged Length	9.00 IN
Packaged Width	5.19 IN
Packaged Height	2.38 IN
HTC	8483.20.8040
Country of Origin	United States of America
