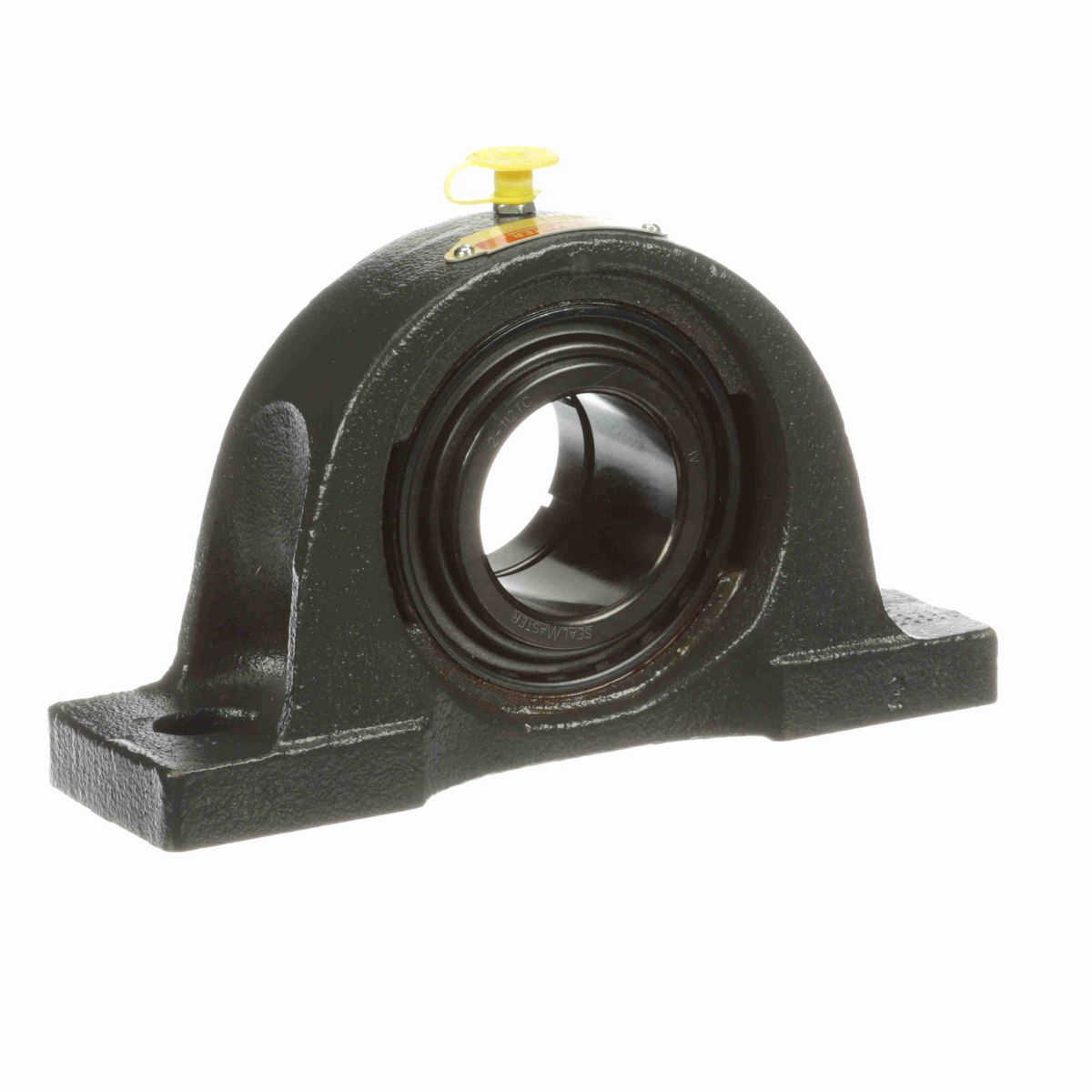

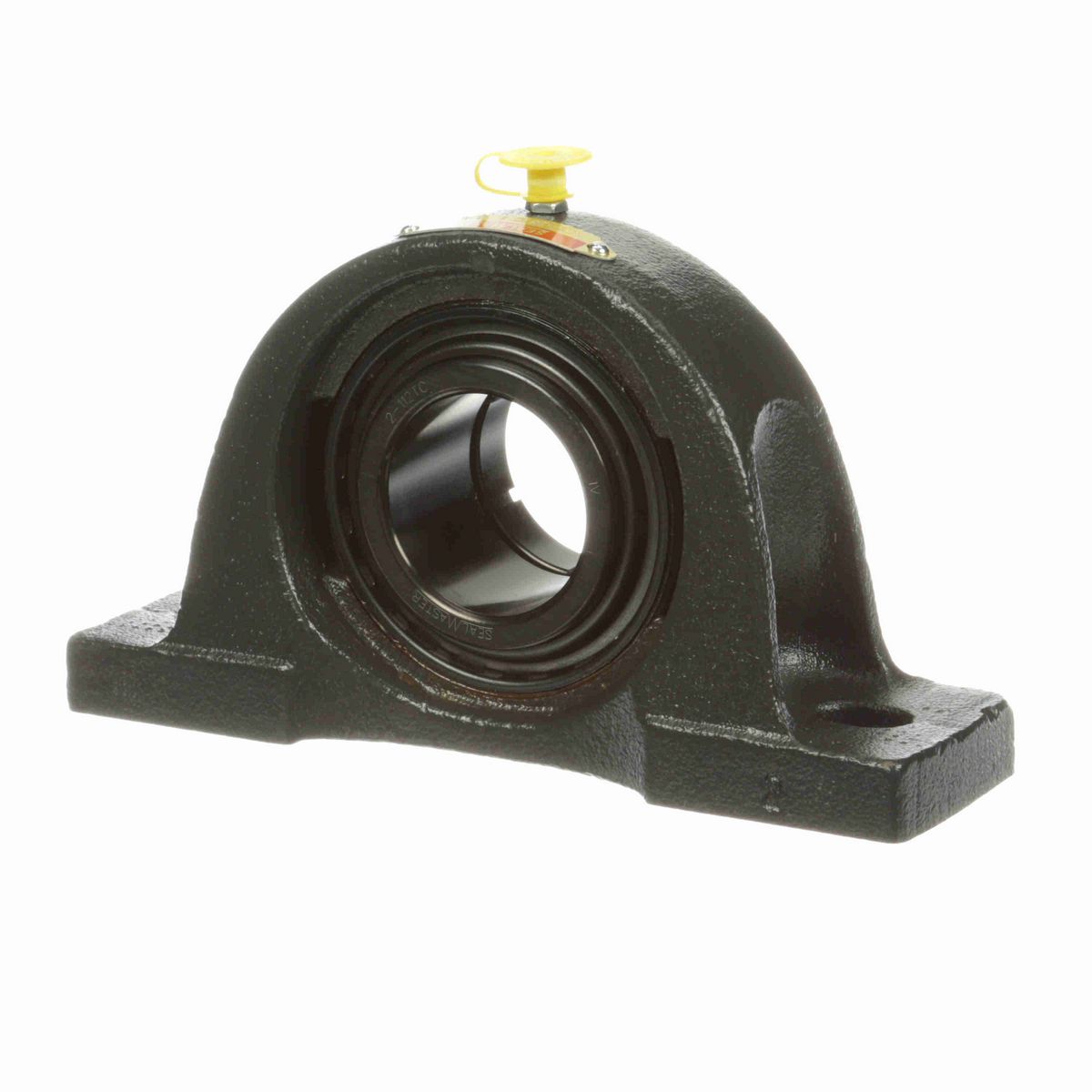

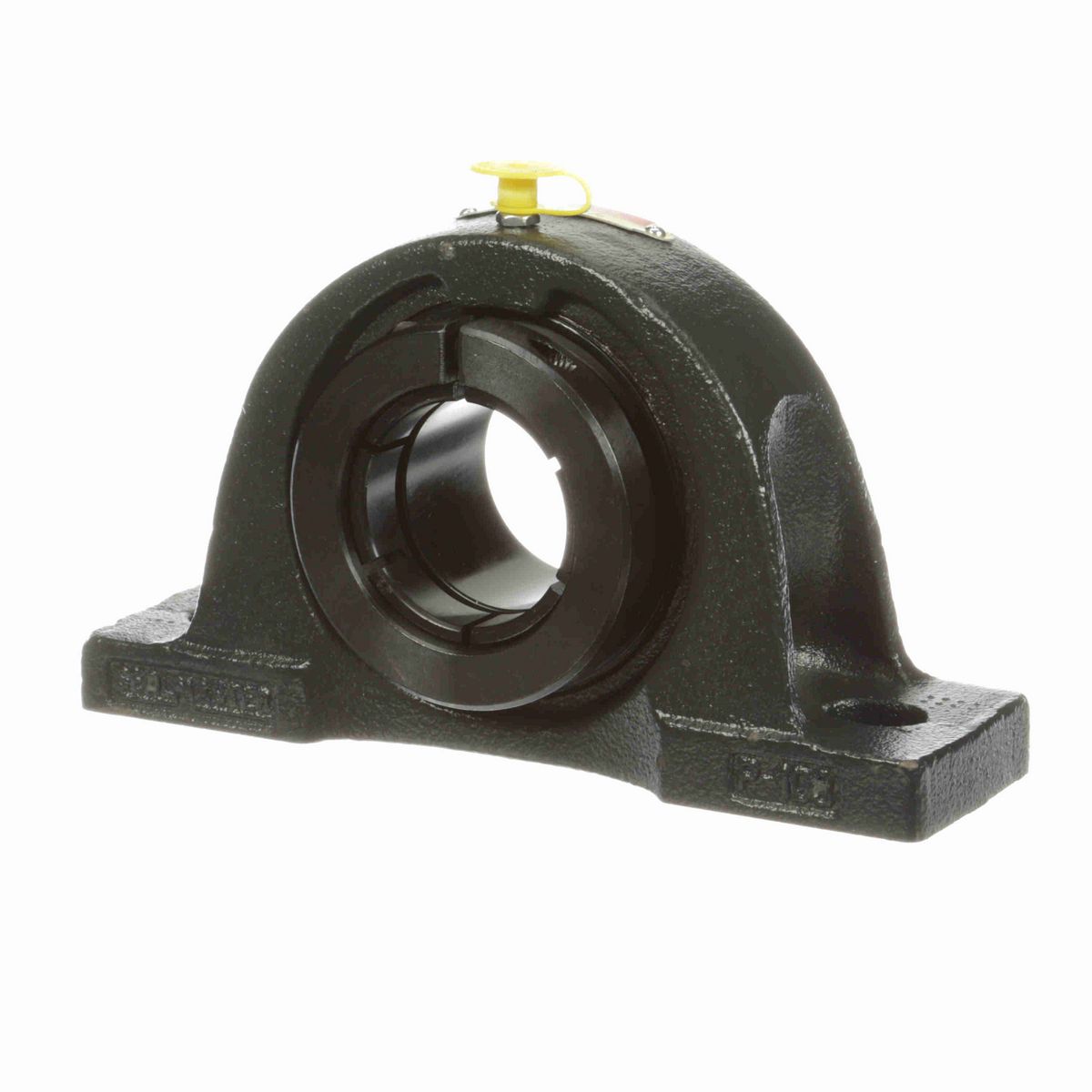

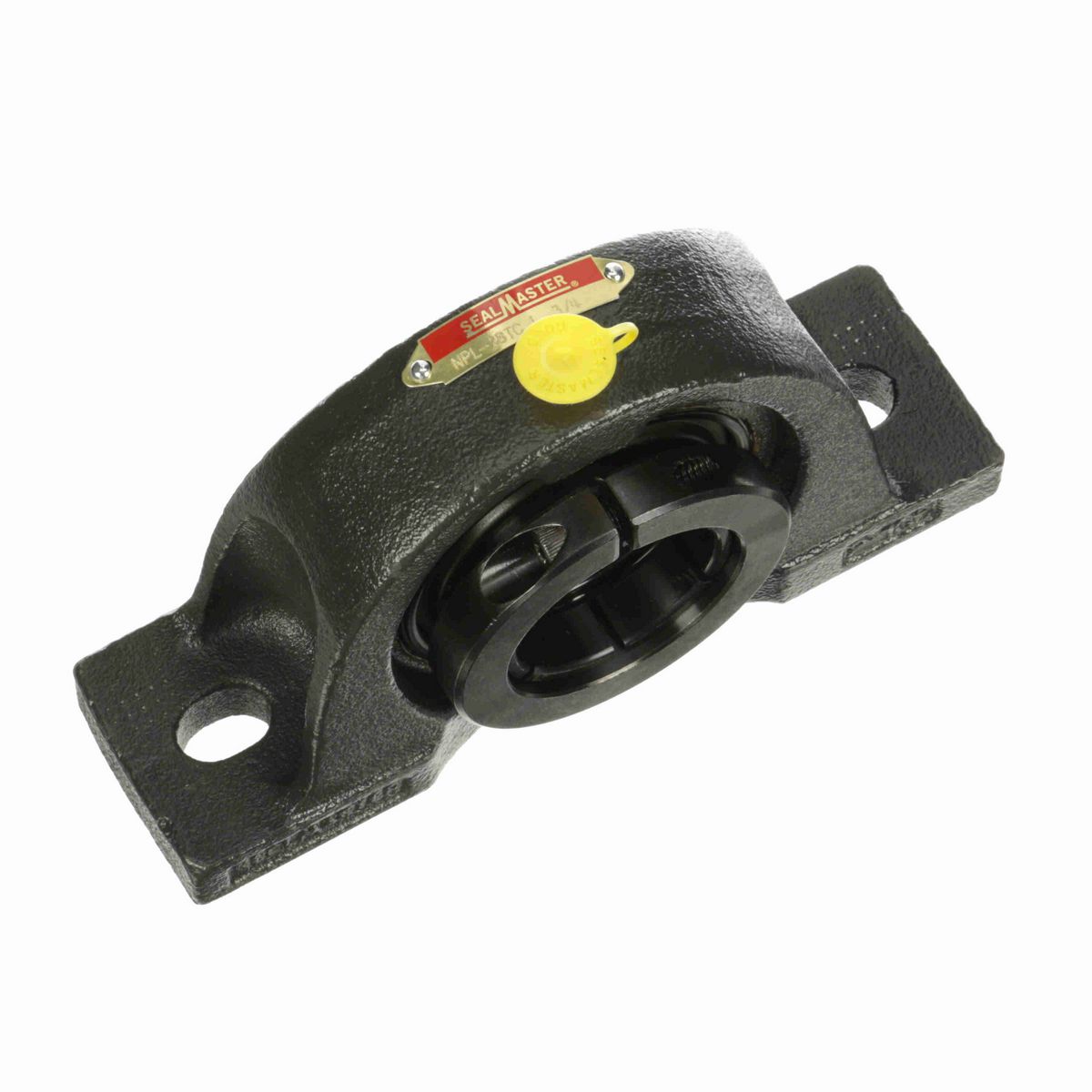

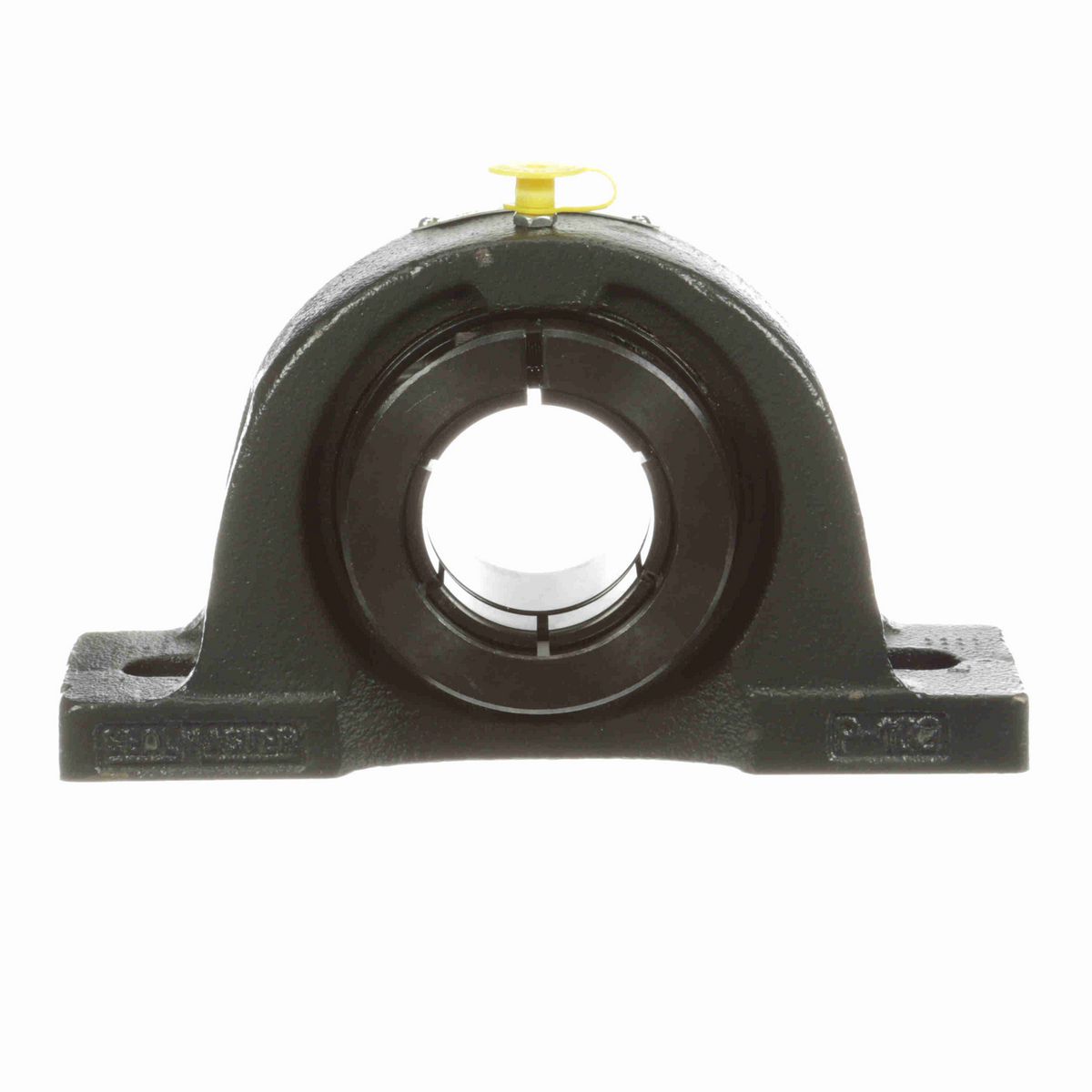

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	2.13 in
Overall Height (in)	4.19 in
Base Width (in)	2.13 in
Overall Length (in)	7.5 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.75 in
Foot Height (in)	0.63 in
Base to Center Height (in)	2.06 in
Length Through Bore (in)	2.00 in
Bolt Spacing Max (in)	6.06 in
Bolt Spacing Min (in)	5.44 in
Centerline to Outermost Bearing Face (in)	1.31 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt, Low Base
Seal Type	Single Lip Contact Seal
Housing Style	Pillow Block
Setscrew Torque (in-lbs)	240 in/lbs
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	2.94 in
Ability to Relubricate	Yes
Size Code	2-111
Bearing Type	Standard Duty
Static Load Rating (lb)	5,139 lb
Base Length (in)	7.50 in
Housing Coating	Powder Coated
Insert	2-112TC
Misalignment Capability	±2.0° Misalignment - Static Only
Max Operating Temperature (F)	220 °F
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Roller Spin	0.0417 cps
Radial Clearance	Standard
Bearing Insert Finish	Black Oxide
Vibration Frequency Inner Ring Defect	0.0994 cps
Housing Material	Cast Iron
Vibration Frequency Fundamental Train	0.0067 cps
Maximum Speed (RPM)	3800 rpm
Inner Ring Outside Diameter (in)	2.063 in
Vibration Frequency Outer Ring Defect	0.0673 cps
End Cap Available	No
Shaft Locking Type	Concentric
Dynamic Load Rating (lb)	7,901 lb
Lubricant	Lithium Complex NLGI 2 Grease
Grease Fitting Thread Size	1/4-28
Fixed vs. Expansion	Fixed
Cage Type	Land Riding Retainer

General Specifications

UPC	662461033630
Weight	6.70 LB
Packaged Length	5.19 IN
Packaged Width	2.13 IN
Packaged Height	7.81 IN
HTC	8483.20.8040
Country of Origin	United States of America
