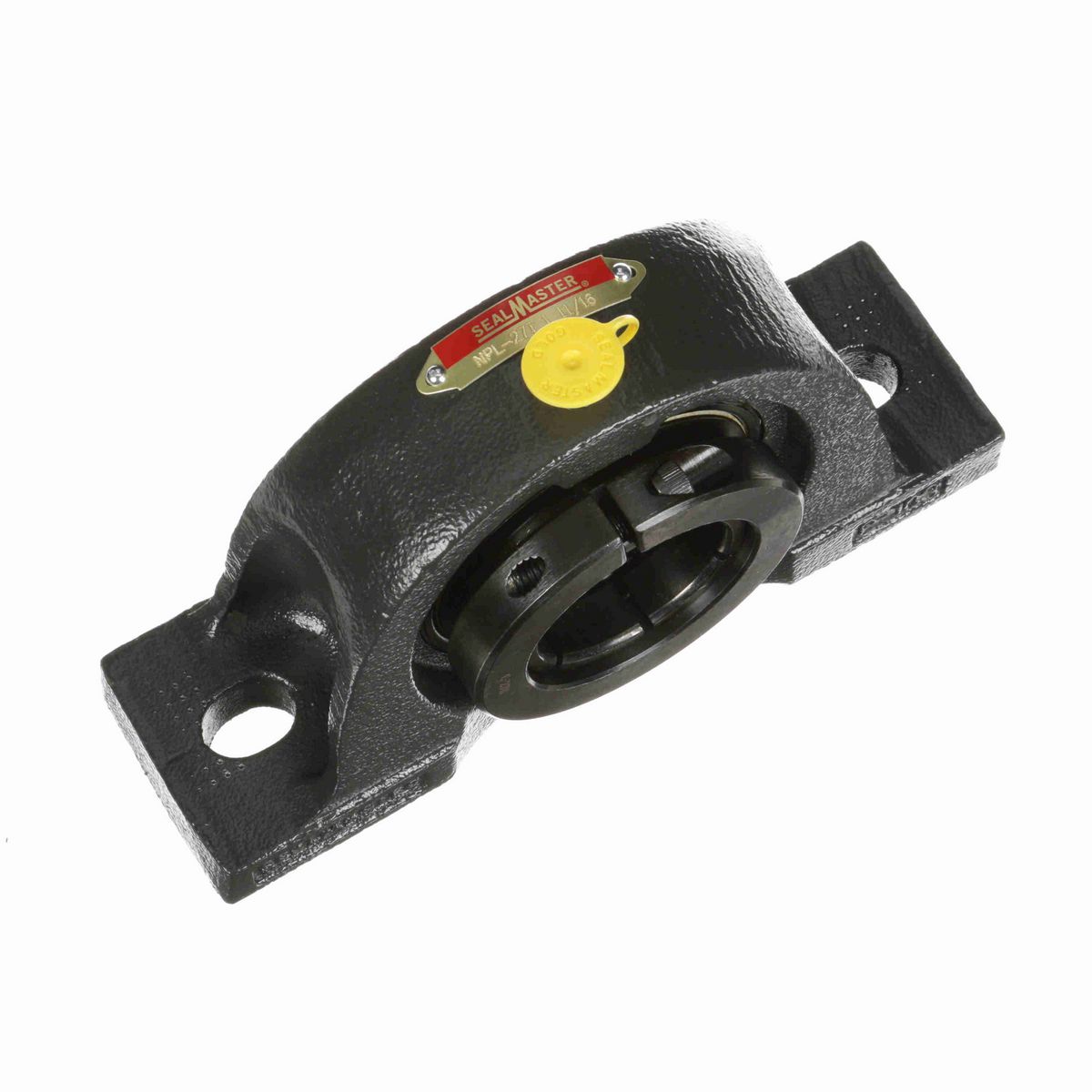

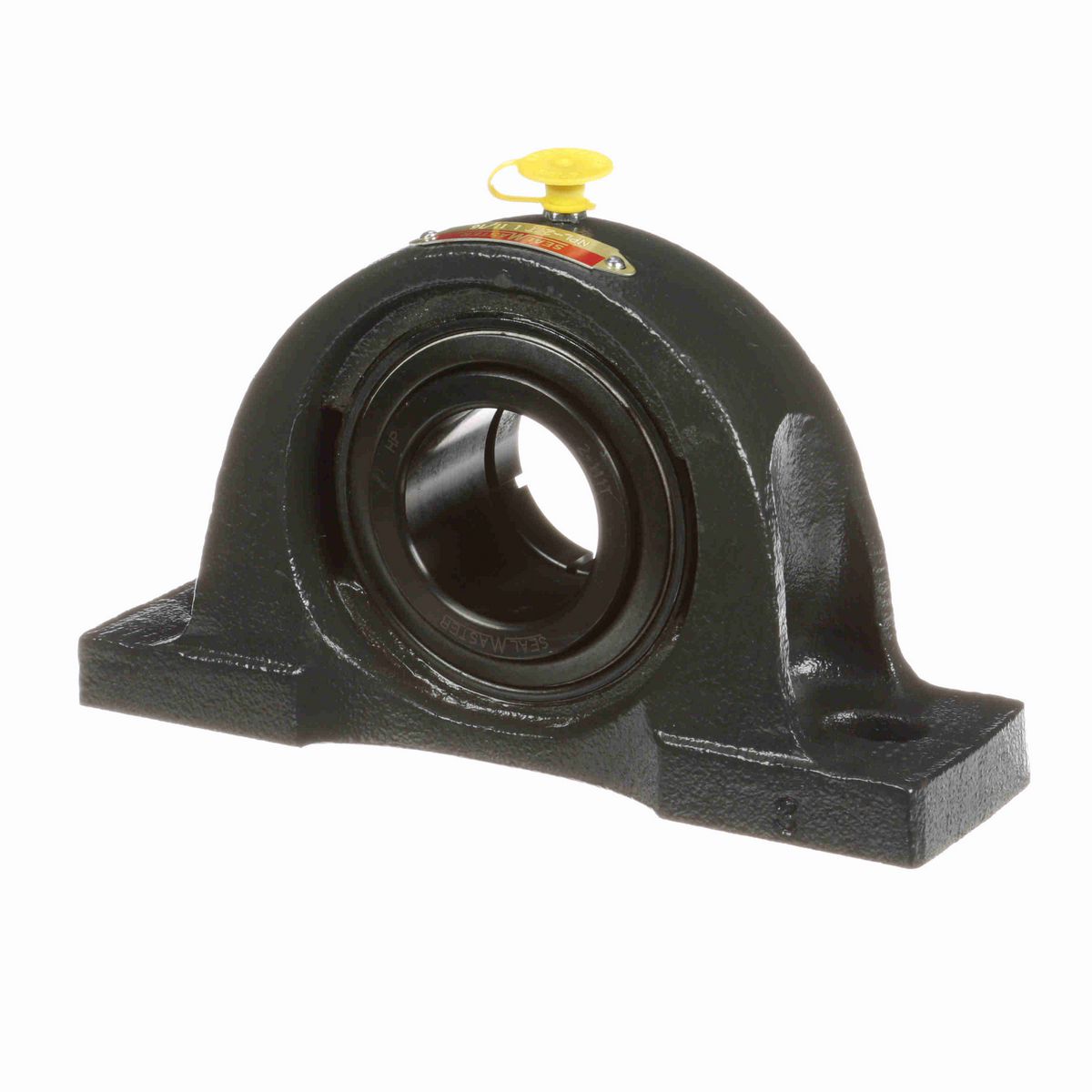

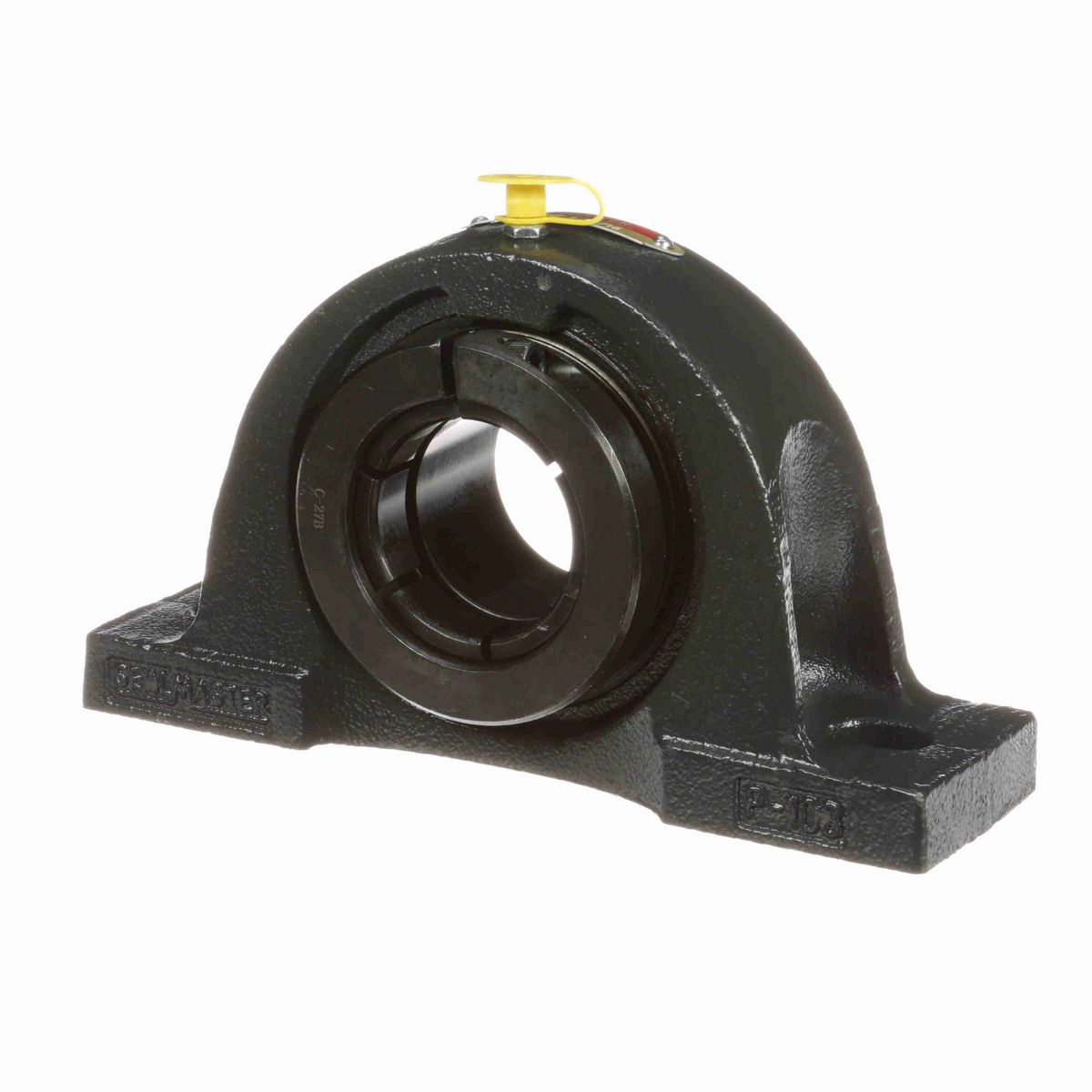

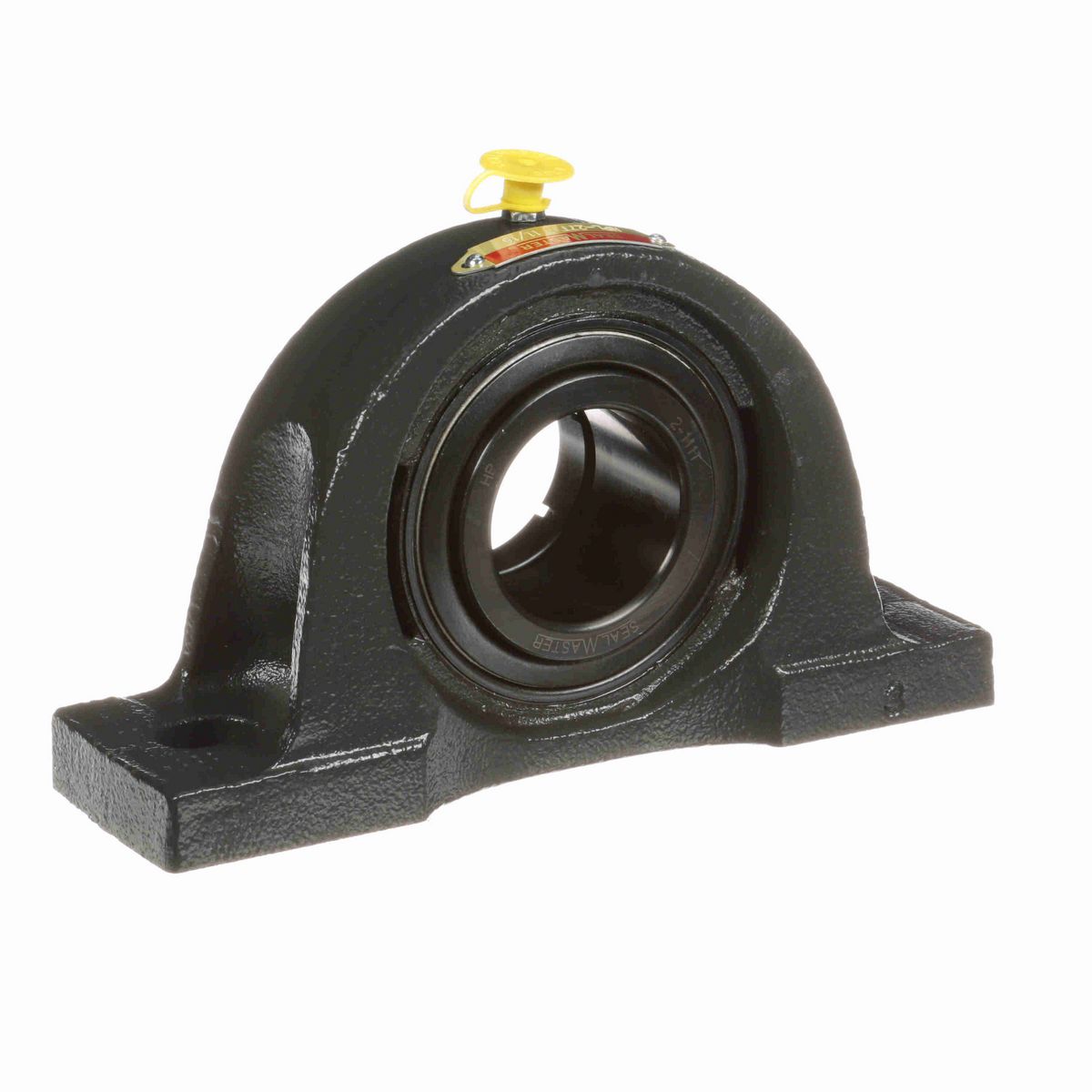

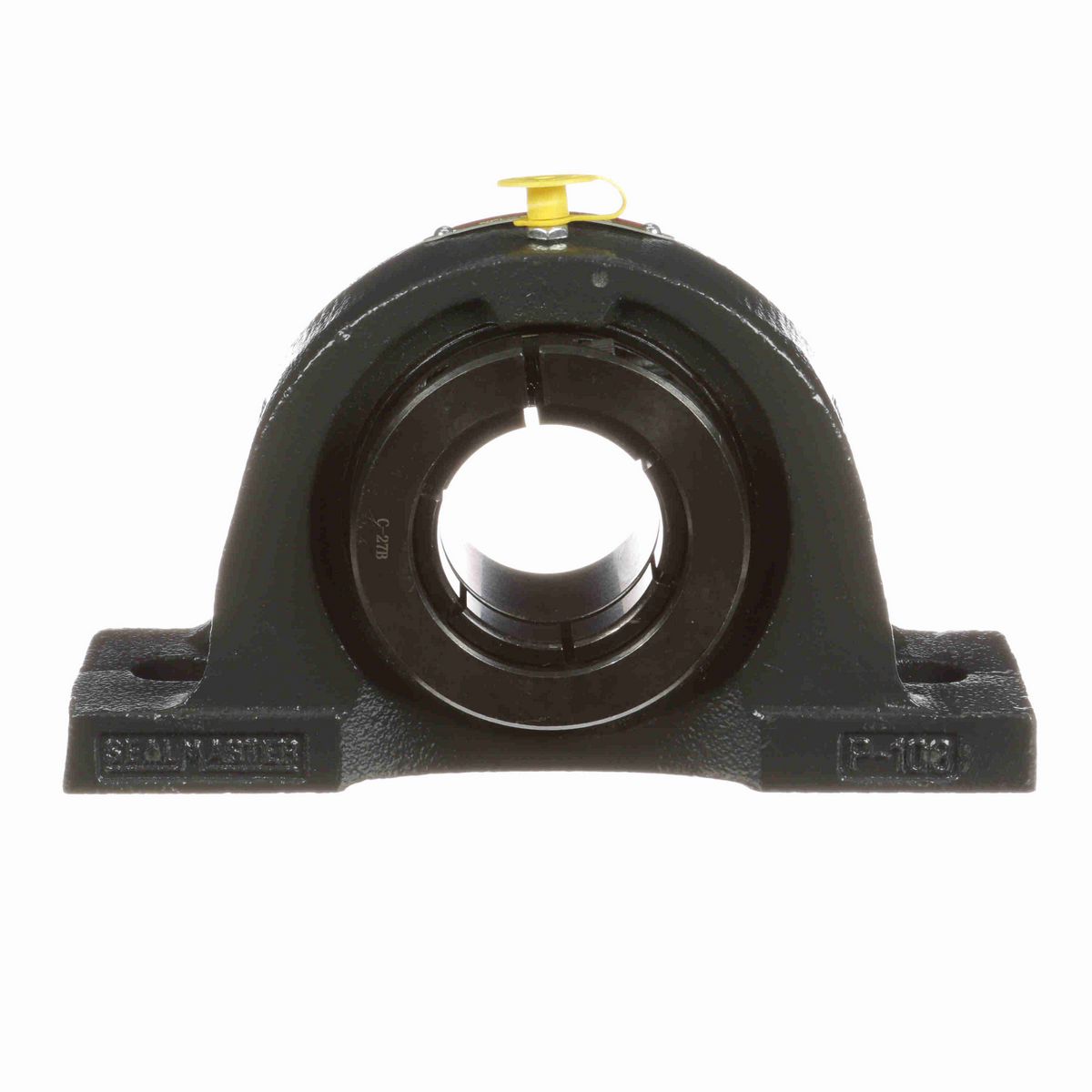

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Height (in)	4.19 in
Overall Width (in)	2.13 in
Overall Length (in)	7.5 in
Base Width (in)	2.13 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.6875 in
Base to Center Height (in)	2.06 in
Foot Height (in)	0.63 in
Length Through Bore (in)	2.00 in
Centerline to Outermost Bearing Face (in)	1.31 in
Bolt Spacing Max (in)	6.06 in
Bolt Spacing Min (in)	5.44 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt, Low Base
Seal Type	Felt Labyrinth Seal
Housing Style	Pillow Block
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.94 in
Inner Race Heat Treat Method	Zone-Hardened
Setscrew Torque (in-lbs)	240 in/lbs
Inner Ring Outside Diameter (in)	2.063 in
Insert	2-111T
Vibration Frequency Roller Spin	0.0417 cps
Bearing Insert Finish	Black Oxide
Housing Coating	Powder Coated
Maximum Speed (RPM)	5300 rpm
Max Operating Temperature (F)	220 °F
Base Length (in)	7.50 in
Shaft Locking Type	Concentric
Fixed vs. Expansion	Fixed
Bearing Insert Material	52100 Bearing Steel
Size Code	2-111
Housing Material	Cast Iron
Vibration Frequency Outer Ring Defect	0.0673 cps
Radial Clearance	Standard
Bearing Type	Standard Duty
Vibration Frequency Fundamental Train	0.0067 cps
Vibration Frequency Inner Ring Defect	0.0994 cps
Grease Fitting Thread Size	1/4-28
End Cap Available	No
Cage Type	Land Riding Retainer
Lubricant	Lithium Complex NLGI 2 Grease
Dynamic Load Rating (lb)	7,901 lb
Static Load Rating (lb)	5,139 lb
Misalignment Capability	±2.0° Misalignment - Static Only

General Specifications

UPC	662461030585
Weight	6.75 LB
Packaged Length	5.19 IN
Packaged Width	2.13 IN
Packaged Height	7.81 IN
HTC	8483.20.8040
Country of Origin	United States of America
